LED DRIVER FOR LED STRIP HIGH VOLTAGE 230V

DR P 500W 220-240V 215V P

GTIN: 4058075844728 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Simple and quick connection thanks to twist lock functionality
  • Increased LED strip luminous efficiency and luminous output in combination with LED driver
  • Low flicker light thanks to LED driver DR P 500W 220-240V 215V P
  • Perfectly matched to 230V AC LED flexible strips
  • Quick and simple installation
  • Good efficiency and reliability
Areas of application
  • General indoor illumination
  • General outdoor illumination
  • Industry and construction site
  • Offices, retail outlets and conference rooms
  • Architecture lighting
  • Decorative illumination
Product features
  • Available in 500 W
  • Prewired cables for mains supply connection and led strip
  • Supply voltage: 220…240 V
  • Operating frequency: 50/60 Hz
  • Overtemperature protection, output circuit short protection, output circuit over voltage protection
  • Lifetime: up to 50,000 h (at max. Ta temperature)
  • Type of protection: IP66
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Do not open enclosure-housing.
  • Disconnect mains before installation.
Electrical data
Nominal wattage 500.00 W
Nominal output power 500 W
Nominal voltage 220…240 V
Nominal output voltage 215 V
Input voltage AC 198…264 V
U-OUT (working voltage) 215 V
Type of current AC/DC
Nominal current 2330 mA
Nominal output current 2330.000 mA
Output ripple current (100 Hz) 8 %
Mains frequency 50/60 Hz
Power factor λ > 0.90
ECG efficiency 94 %
Max. ECG no. on circuit breaker 10 A (B) 3
Max. ECG no. on circuit breaker 25 A (B) 8
Surge capability (L-N) 1 kV
Dimensions & Weight
Length 510.00 mm
Width 60.00 mm
Height 38.00 mm
Cable cross-section, input side 1.0 mm²
Product weight 900.00 g
Colors & materials
Product color White
Casing material Plastic
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 85 °C
Temperature range in operation -20…+45 °C
Permitted rel. humidity during operation 0…93 %
Lifespan
ECG lifetime 50000 h
Number of switching cycles 25000
Additional product data
Product remark Available from September 2024
Capabilities
Dimmable No
Dimming interface Not dimmable
Overheating protection Yes
Short-circuit protection Yes
Certificates & Standards
Approval marks – approval CE, UKCA, EAC
Protection class II
Type of protection IP66
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075844728 Folding box
1		 67 mm x 372 mm x 52 mm 994.00 g 1.30 dm³
4058075844735 Shipping box
10		 392 mm x 352 mm x 139 mm 10485.00 g 19.18 dm³
User instruction / safety instructions
UI_LED STRIP_HV
PDF (4.71 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert G11201420
PDF (302.65 KB)
Declarations of conformity
DR P
PDF (270.85 KB)

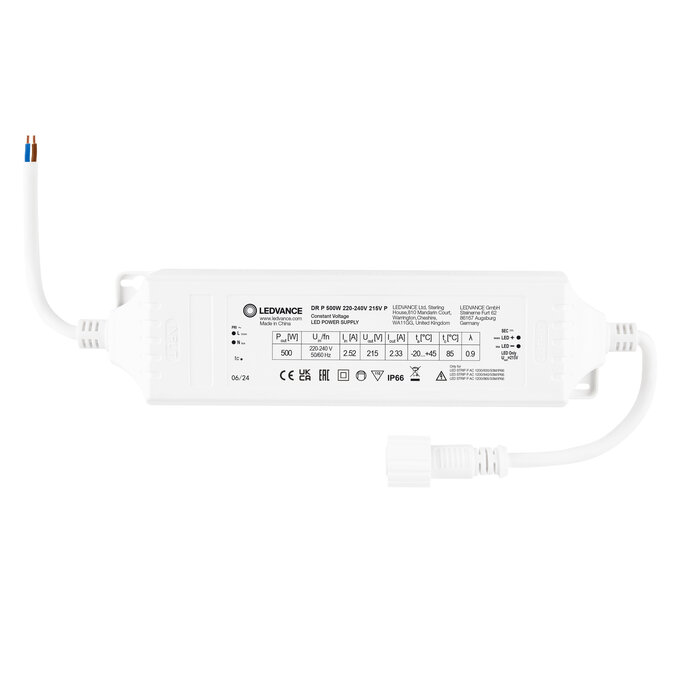

Product image: white background, spacial
DR P 500W 220-240V 215V P
JPG (1.13 MB)
Product line drawing with letters
DR P 500W 220-240V 215V P
SVG (45.47 KB)
Product line drawing with numbers
DR P 500W 220-240V 215V P
SVG (48.42 KB)
Product line drawing - technical
DR P 500W 220-240V 215V P
SVG (38.88 KB)

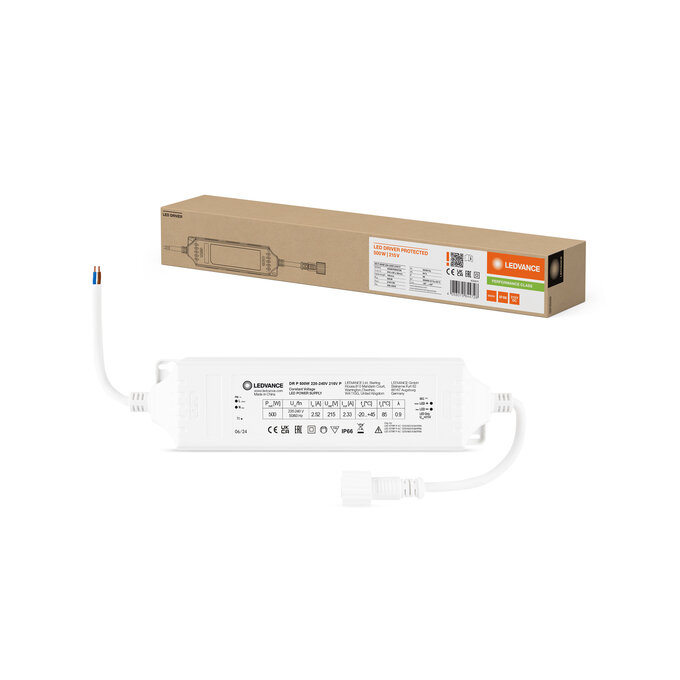

Combo Shot = Product Beauty Shot + Packaging Image
