LS P 1000 RGBW 930 5LED STRIP PERFORMANCE 1000 RGBW GEN 2

NEW

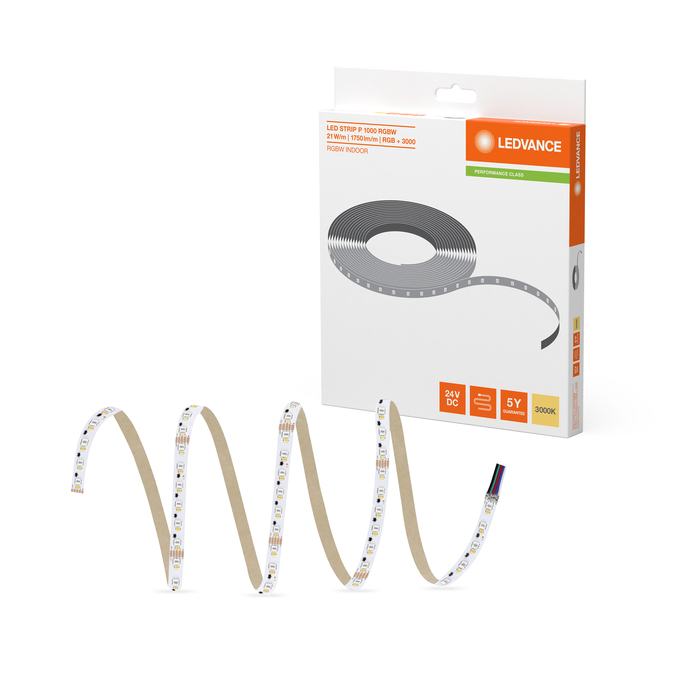

LED STRIP PERFORMANCE 1000 RGBW GEN 2

LS P 1000 RGBW 930 5

GTIN: 4099854358272 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Very good white light quality thanks to color rendering index Ra > 90 and dedicated white LEDs
Great scope of design options due to long and flexible RGBW LED strips
Easy mounting thanks to self-adhesive tape
Simple connection thanks to integrated cables on both sides
Maximum flexibility due to large range of accessories
Easy installation, no tools required for connection

Areas of application

General illumination
Architecture lighting
Dynamic light as an architectural effect in public zones
Intensive color effects for special moods
Cove lighting
Hotels and Offices
Residential interiors

Product features

Flexible and cuttable LED strip with white Chip and Multichip RGB LEDs
Smallest cuttable unit: 83,30 mm
Lifetime (L70/B50): up to 50,000 h at Ta: 55°C
Dimmable by pulse width modulation (PWM)

Electrical data

Nominal wattage	106.00 W ¹⁾
Construction wattage	106.00 W
Nominal wattage per meter	21 W ²⁾
Nominal voltage	24 V
Input voltage range	23…25 V
Input voltage DC	24 V
Type of current	DC
Nominal current	4440.000 mA
Inrush current	0.03 A

¹⁾ 42 W for White, 21.5 W for Red, 21.5W for Green, 21.5 W for Blue, 65.0 W for Red Green Blue
²⁾ 4.3 W per meter for Red, 4.3 W per meter for Green, 4.3 W per meter for Blue, 8.3 W per meter for White. 12.8 W per meter for Red Green Blue

Photometrical data

Luminous efficacy	119 lm/W
Luminous flux	8130 lm ¹⁾
Luminous flux per meter	1750 lm
Luminous flux per module chain	8130 lm
Luminous flux per meter - Red	155 lm/m
Luminous flux per meter - Green	510 lm/m
Luminous flux per meter - Blue	110 lm/m
Luminous flux per meter - RGB	750 lm/m
Color temperature	3000 K
Color rendering index Ra	> 90
Light color LED	RGB, white
Light color (designation)	RGBW, Warm White
Standard deviation of color matching	< 4 sdcm

¹⁾ 4830 lm for 2700 K, 4995 lm for 3000 K, 5250 lm for 4000 K, 5250 lm for 6500 K, 750 lm for Red, 2515 lm for Green, 535 lm for Blue, 3640 lm for Red Green Blue

Light technical data

Beam angle	120 °
Rated beam angle (half peak value)	120.00 °

LED MODULE INFORMATION

Number of LEDs per meter	168
Number of LEDs per module	840
Number of LEDs per smallest unit	14

Dimensions & Weight

Length	5000.00 mm
Length – smallest unit	83,33 mm
Cable length	500.000
Width	12.00 mm
Height	2.10 mm
Prewired	Yes
Wire preparation length, input side	5.00 mm
Wire preparation length, output side	5.00 mm
Conductor cross section	0.5 mm²
LED pitch	11.90 mm
Product weight	150.00 g

Colors & materials

Product color	White
Body material	Polycarbonate (PC)

Temperatures & operating conditions

Ambient temperature range	-20…+55 °C ¹⁾
Maximum temperature at tc test point	85 °C ²⁾
Temperature range in operation	-20…+55 °C
Permitted rel. humidity during operation	0…55 %

¹⁾ Providing that temperature at Tc point is below max value during operation
²⁾ Exceeding the maximum specified ratings can reduce expected life time or destroy the LED strip

Lifespan

Nominal lamp life time

50000 h

Additional product data

Product remark	Available from December 2024
Mounting location	Ceiling, Wall, Floor, Pole

Capabilities

Dimmable	Yes ¹⁾
Overheating protection	No
Lowest bending radius	30,0 mm
Self-adhesive	Yes

¹⁾ Dimmable with suitable drivers, see also www.ledvance.com/dim

Certificates & Standards

Approval marks – approval	TUV, CE, UKCA, EAC
Standards	Acc. to IEC 62471, Acc. to IEC 60598-1, Acc. to EN 60529, Acc. to EN 62031, Acc. to EN 55015, Acc. to EN 61547
Protection class	III
Type of protection	IP20
Energy class of contained light source	F
Salt mist resistance acc. IEC 60068-2-52	Yes
UV resistance acc. IEC 60068-2-5	Yes

LOGISTICAL DATA

Temperature range at storage

-20…+80 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
