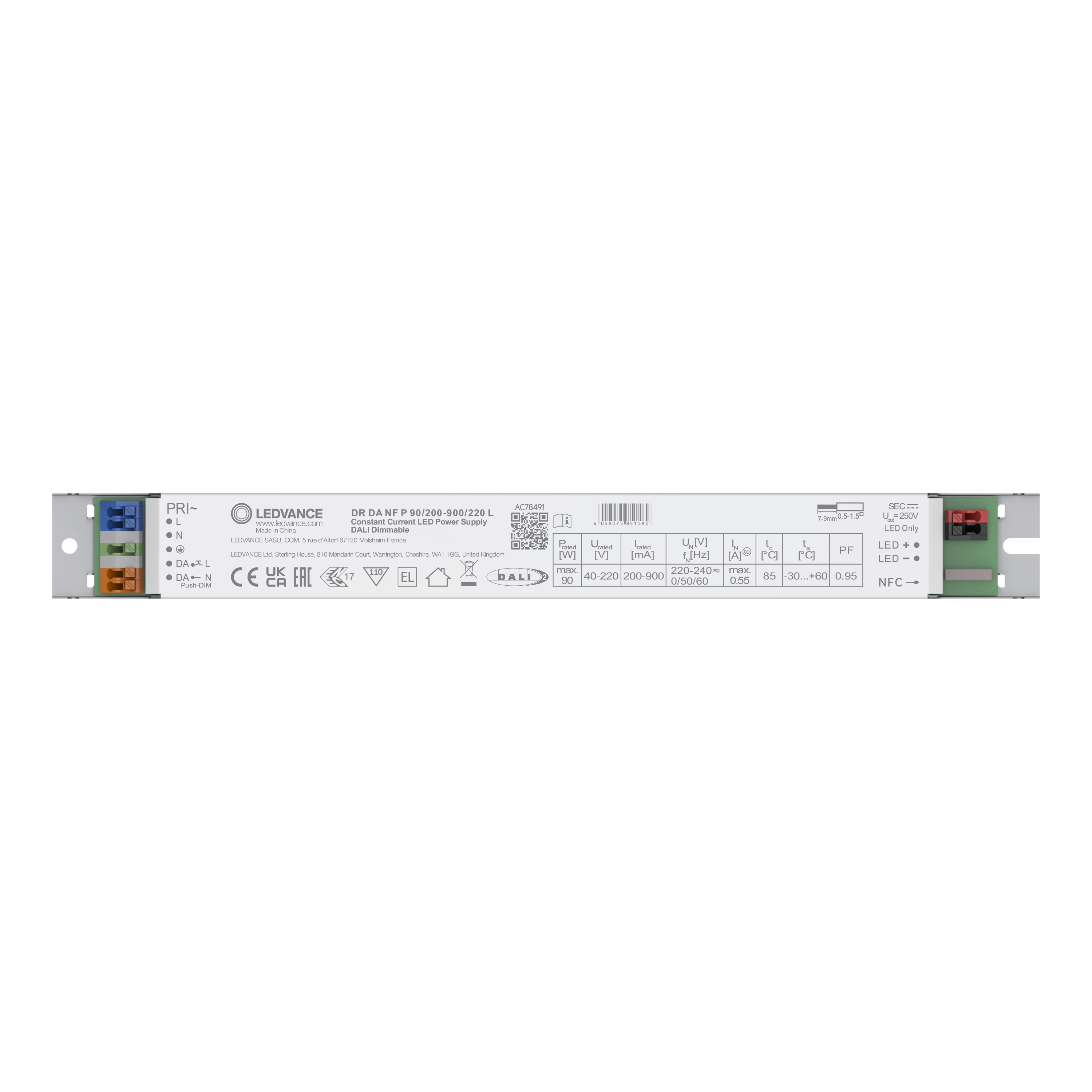

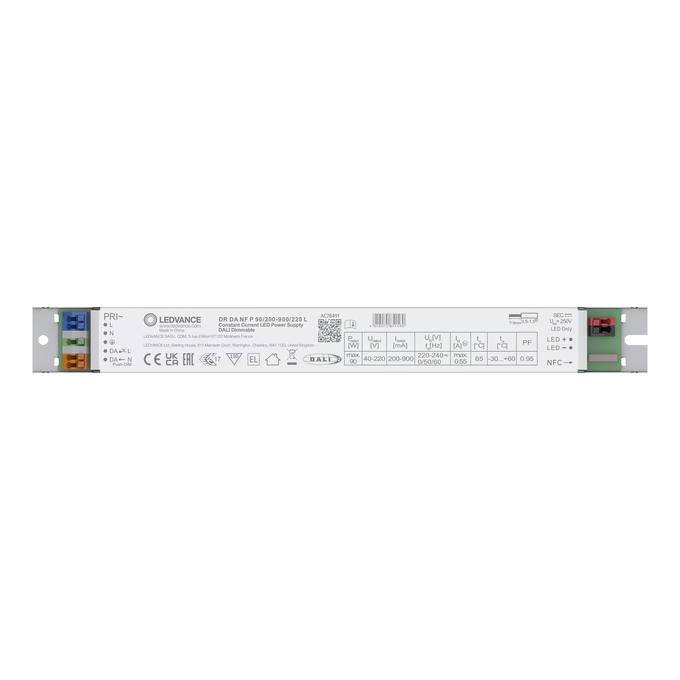

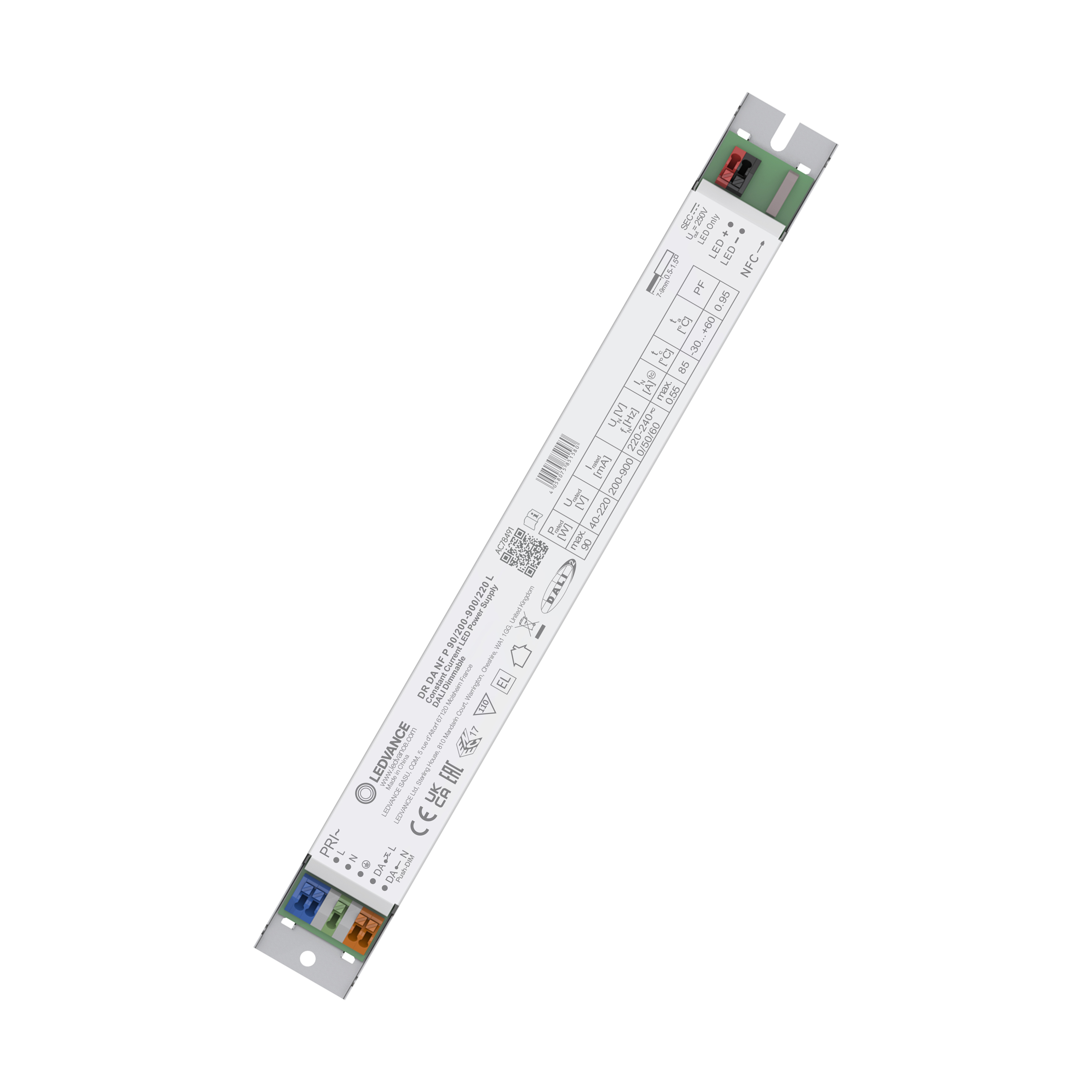

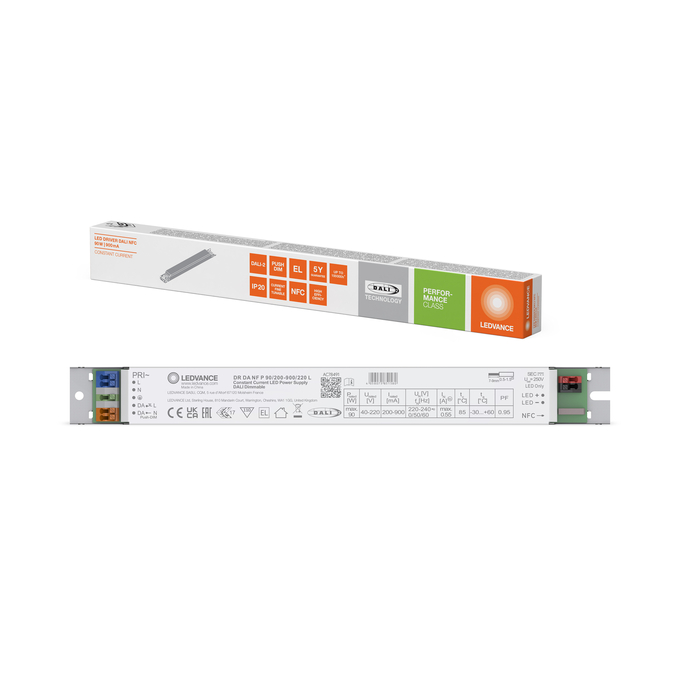

DR DALI NFC P 90/200-900/220 L LED DRIVER DALI NFC PERFORMANCE

Coming soon

GTIN: 4058075851580 Folding box / 1 Show all packages

1 channel DALI-2 certified LED driver
Quick and easy current setting via NFC
Available with output current range: from 50...1,100 mA
Very long lifetime: up to 100,000 h
Constant Lumen Output (CLO)
Compatible to Zhaga Book 13
Suitable for emergency lighting fixtures acc.to EN 60598-2-2 with emergency output factor EOFI (adjustable via NFC)

Nominal wattage	90.00 W
Nominal output power	90 W
Nominal voltage	220…240 V
Nominal output voltage	40…220 V
Input voltage range	198…264 V
Input voltage AC	198…264 V ¹⁾
Input voltage DC	176…280 V
U-OUT (working voltage)	40…220 V
Type of current	AC/DC
Nominal current	550 mA
Nominal output current	200…900 mA ²⁾
Inrush current	41.4 A
Output current tolerance	+/- 5 %
Output ripple current (120 Hz)	±1.5 %
Mains frequency	0/50/60 Hz
Total harmonic distortion	< 8 % ³⁾
Power factor λ	> 0.96 ⁴⁾
ECG efficiency	94 %
Max. ECG no. on circuit breaker 10 A (B)	7
Max. ECG no. on circuit breaker 16 A (B)	12
Max. ECG no. on circuit breaker 10 A (C)	13
Max. ECG no. on circuit breaker 16 A (C)	21
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	N-SELV
Operating frequency	0/50/60 Hz
Power loss in stand-by mode	≤0.3 W

¹⁾ Permitted voltage range
²⁾ Default value 200 mA
³⁾ At full load, 220…240 V, 50 Hz
⁴⁾ Full load at 230 V/50 Hz

Length	280.00 mm
Mounting hole spacing, length	267 mm
Width	30.00 mm
Height	21.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Prewired	No
Wire preparation length, input side	7…9 mm
Wire preparation length, output side	7…9 mm
Product weight	215.00 g

Ambient temperature range	-30…+60 °C
Maximum temperature at tc test point	80 °C
Max.housing temperature in case of fault	<110 °C
Temperature range in operation	-30…+60 °C
Permitted rel. humidity during operation	20…90 %

ECG lifetime	100000 h ¹⁾
Number of switching cycles	100000

¹⁾ At Tc max. - 10°C

Encapsulated	Yes
Product remark	Available from September 2025

Dimmable	Yes
Dimming interface	DALI-2
Dimming range	1…100 %
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
No-load proof	Yes
Max. cable length to lamp/LED module	0,8 m
Suitable for fixtures with prot. class	I
Suitable for emergency lighting	Yes
Type of connection, output side	Push terminal

Approval marks – approval	CE, UKCA, EAC, ENEC, EL
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class	I
Type of protection	IP20

Temperature range at storage

-40…+80 °C

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
