Vintage 1906 LED SPECIAL Shapes

Vintage 1906 Tubular 20 Filament 2.5W 820 Gold E27

GTIN: 4099854091858 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lamps with innovative LED "filament" technology
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED lamps for line voltage
  • Lamp made of glass
  • Lifetime up to 15,000 h
  • Beam angle: up to 360°
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Electrical data
Nominal wattage 2.5 W
Construction wattage 2.50 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 20 W
Nominal current 19 mA
Type of current AC
Inrush current 1.8 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 250
Max. lamp number on MCB B16 A 400
Power factor λ > 0.40
Photometrical data
Luminous flux 200 lm
Nominal useful luminous flux 90° 200 lm
Luminous efficacy 80 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm Comfort Light
Color temperature 2000 K
Color rendering index Ra 80
Light color 820
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Light technical data
Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 127.00 mm
Diameter 32.00 mm
Maximum diameter 32 mm
Product weight 28.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 60 °C
Lifespan
Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear gold
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class G 1)
Energy consumption 3.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference 1906LEDCLF202,5
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 127.00 mm
Height 32.00 mm
Width 32.00 mm
Chromaticity coordinate x 0,527
Chromaticity coordinate y 0,413
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor ≥0.4
LED light source replaces a fluorescent light source No
EPREL ID 523044
Model number AC32481,AC32481
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854091858 Folding box
1		 33 mm x 47 mm x 166 mm 41.00 g 0.26 dm³
4099854091865 Shipping box
4		 112 mm x 78 mm x 174 mm 225.00 g 1.52 dm³
4099854091872 Shipping box
24		 250 mm x 240 mm x 201 mm 1669.00 g 12.06 dm³
Declarations of conformity
LED lamps CLA,B,G,P
PDF (223.84 KB)
Product image: white background, diagonal
Vintage 1906 LED CL Tubular FIL GOLD 20 non-dim 2,5W/820 E27
JPG (1.36 MB)

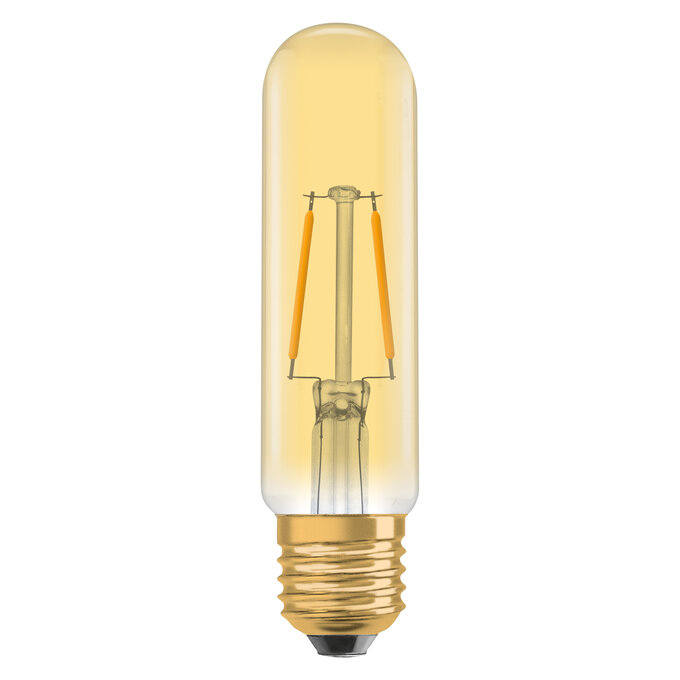

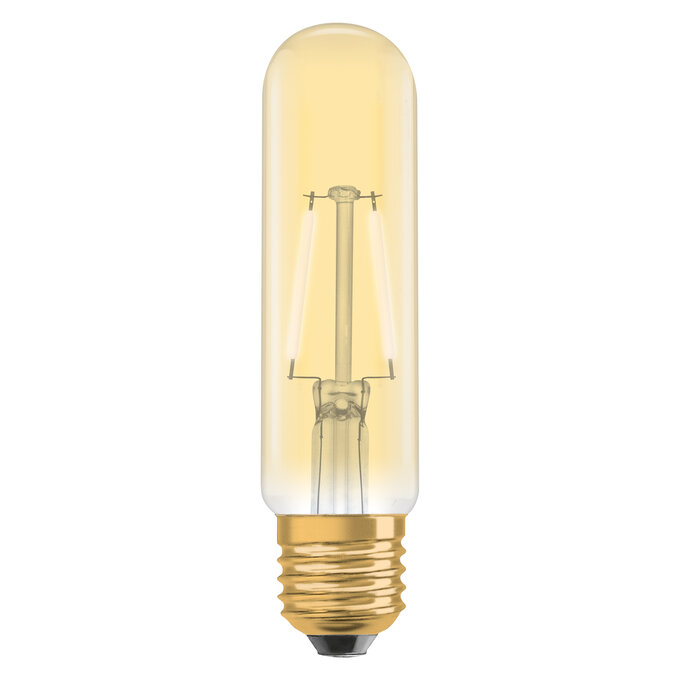

Product image: white background, upright
Vintage 1906 LED CL Tubular FIL GOLD 20 non-dim 2,5W/820 E27
JPG (1.2 MB)
Product image: white background, upright, switched on
Vintage 1906 LED CL Tubular FIL GOLD 20 non-dim 2,5W/820 E27
JPG (1.15 MB)
Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com_Grafik V2 1200x1200px 2023 EN
JPG (809.28 KB)
Product infographic (application image with text and graphic)
Vintage Edition 1906 E-Com Grafik V1 1200x1200px 2023 EN
JPG (629.63 KB)
Product line drawing with letters
Vintage 1906 LED CL Tubular FIL GOLD 20 non-dim 2,5W/820 E27
SVG (10.46 KB)
Product line drawing with numbers
Vintage 1906 LED CL Tubular FIL GOLD 20 non-dim 2,5W/820 E27
SVG (12 KB)
Product line drawing - technical
Vintage 1906 LED CL Tubular FIL GOLD 20 non-dim 2,5W/820 E27
SVG (7.34 KB)

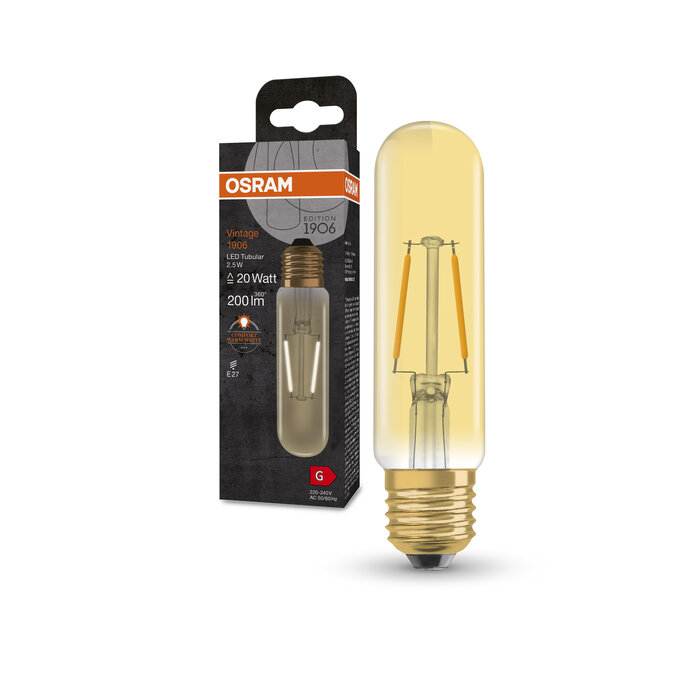

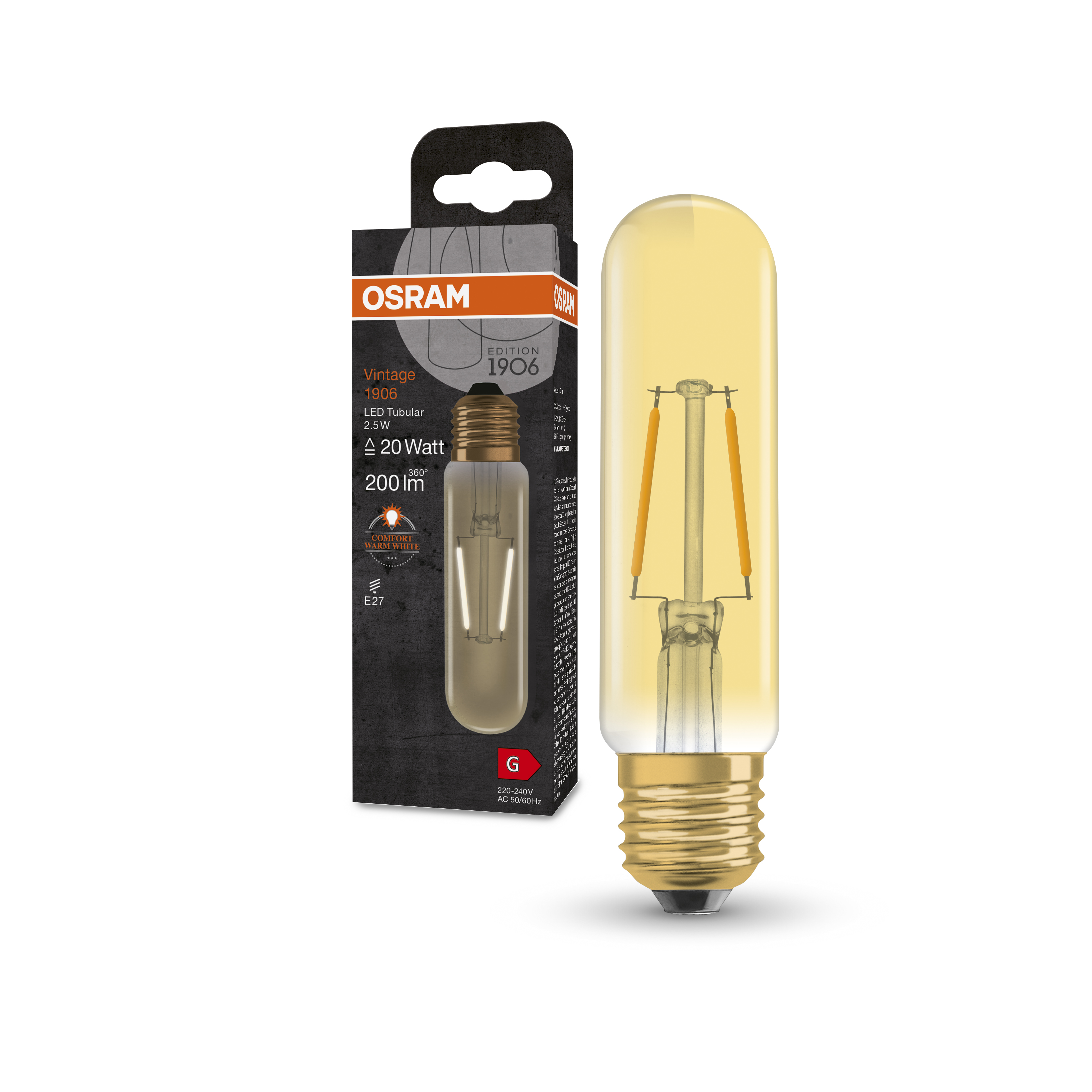

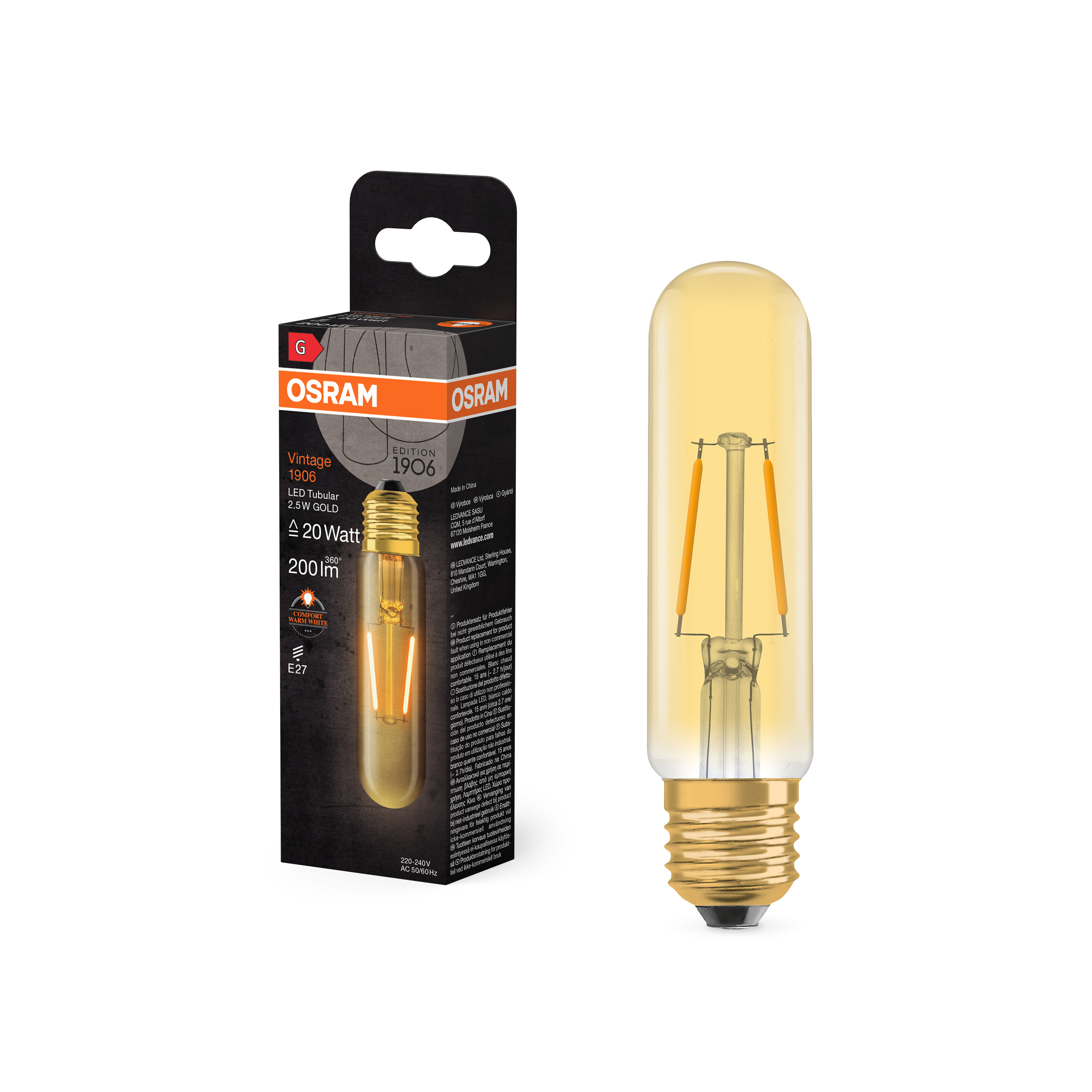

Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 TUBULAR CLF20 2.5W 820 FIL GOLD E27 MiCh
JPG (1.86 MB)
Combo Shot = Product Beauty Shot + Packaging Image
LED V1906 TUBULAR CLF20 2.5W 820 FIL GOLD E27 MiCh
JPG (735.44 KB)

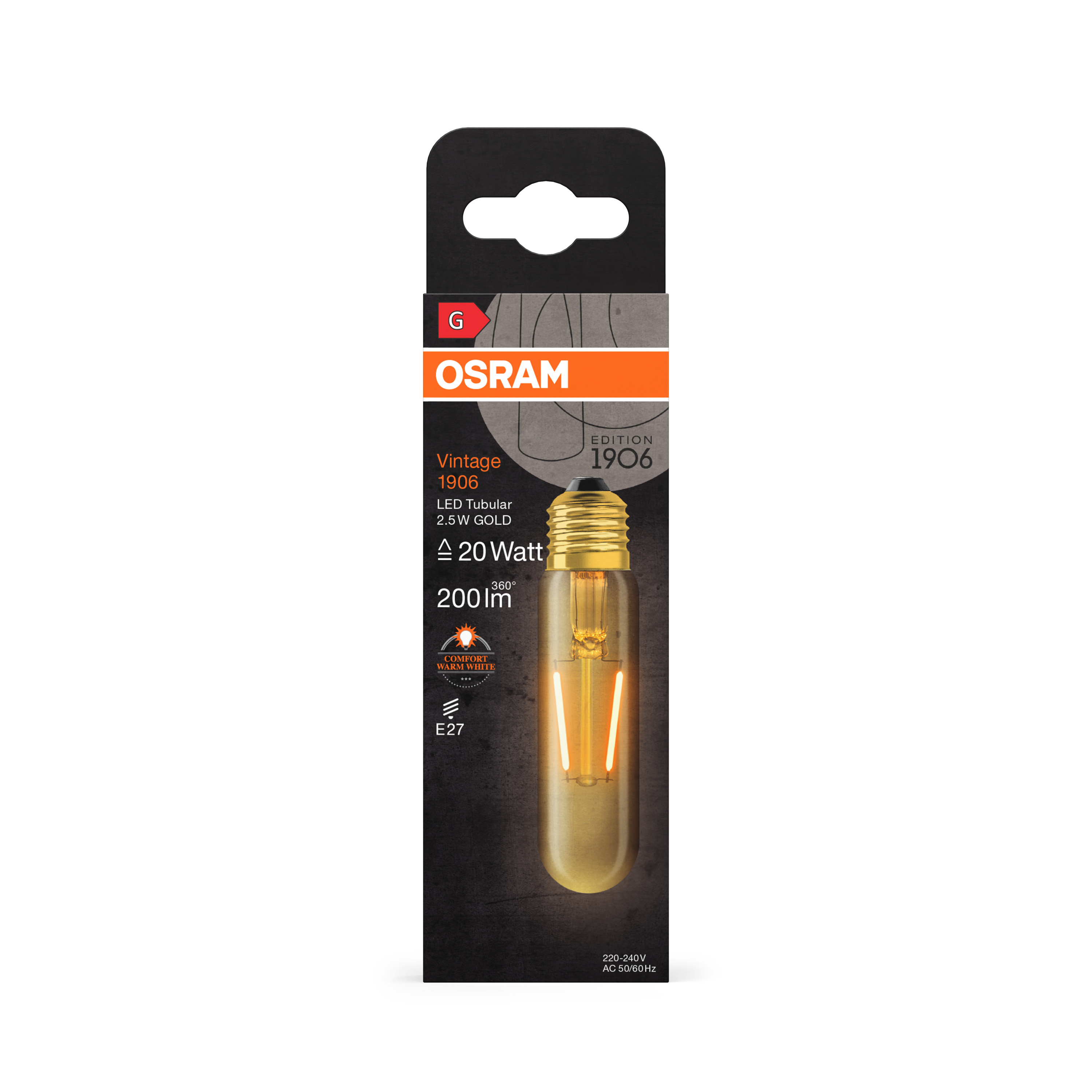

Packaging image, frontal
LED V1906 TUBULAR CLF20 2.5W 820 FIL GOLD E27 MiCh
JPG (581.52 KB)

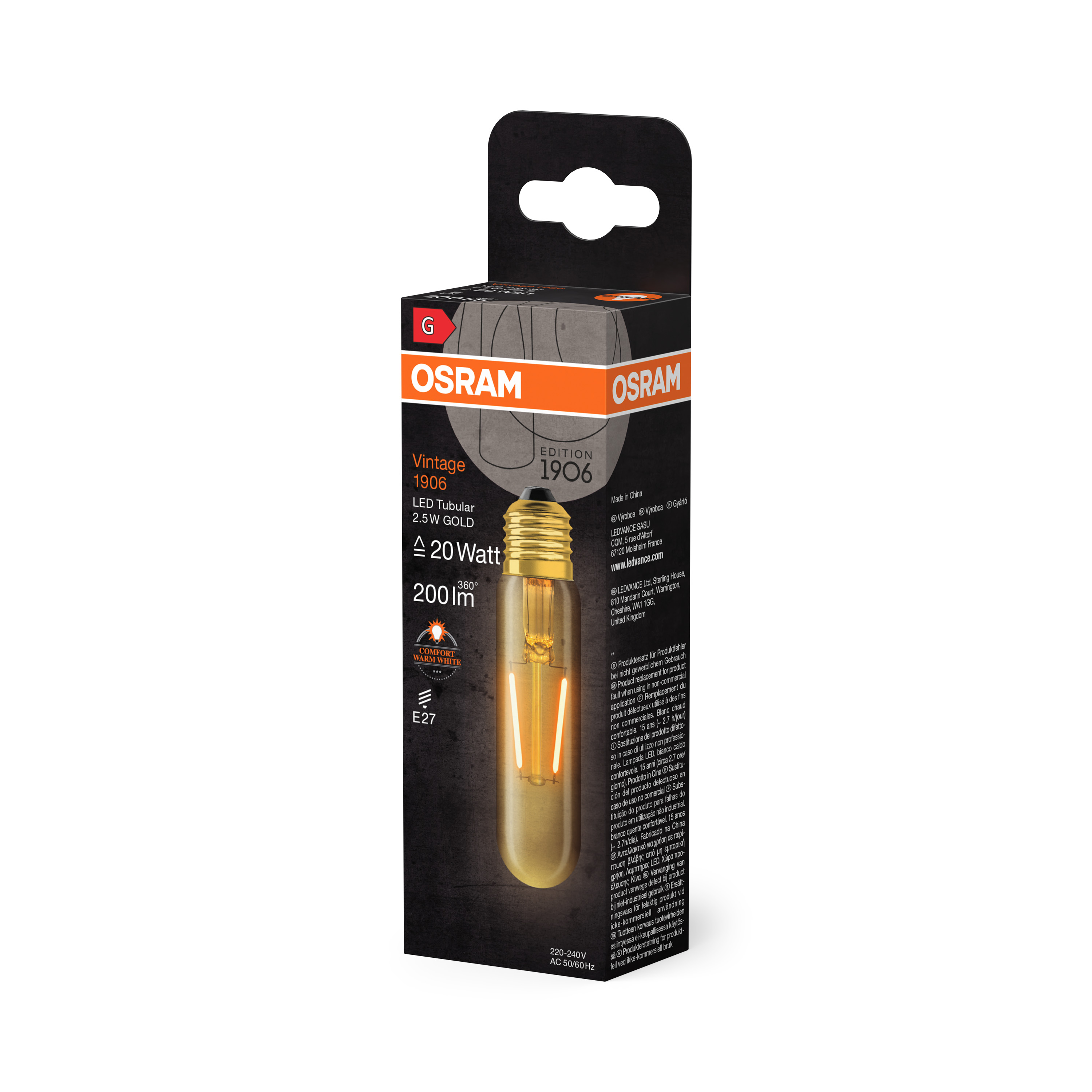

Packaging image, spacial
LED V1906 TUBULAR CLF20 2.5W 820 FIL GOLD E27 MiCh
JPG (706.96 KB)
Energy label
EL-4099854091858-AC324 81
PDF (21.73 KB)
Spectral power distribution
Everlight 67-23ST RKE 2700K
PNG (114.33 KB)
EAN SEG number EFO number ELDAS number
4099854091858 8299208 3760291 941004690
