Coming soon
SWITCH KINETIC DIRECT 4B
SWITCH KINETIC DIRECT 4B GR ZB
GTIN: 4099854589850
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy harvesting switch for light control, allows for universal placement
- Low-maintenance compared to battery or AC mains powered switches
- Individual adjustment of brightness level and personalized scenes
- Available in white, anthracite and black
- Compatible with LEDVANCE DIRECT EASY or VIVARES ZIGBEE light management systems
Areas of application
- Open office spaces
- Meeting, storage and break rooms
- Classrooms
- Stairways
- Smart-Home
Product features
- Zigbee certified switch with energy harvesting technology
- Plug & Play On/Off / Brightness / Color Temperature control without the need to configure in the app
- Fit for existing frames using 55 x 55 mm
Equipment / Accessories

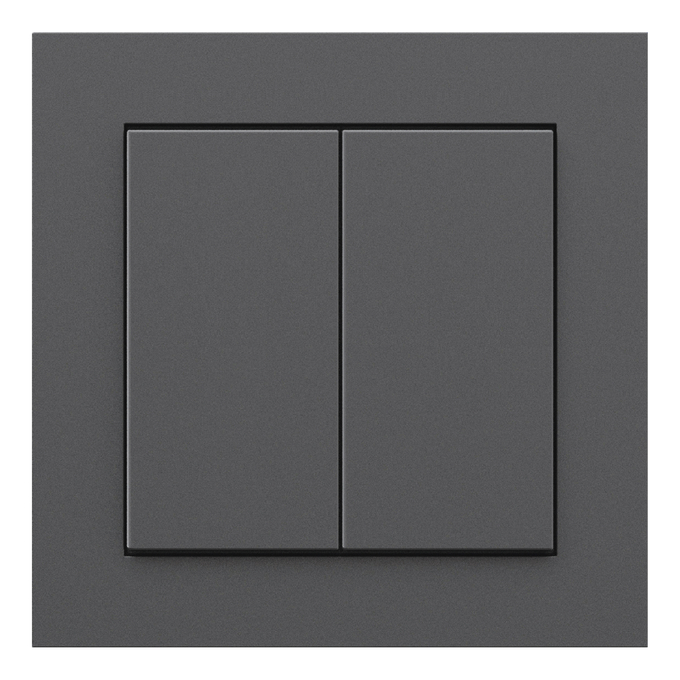

- Large control element for two switch assignments included
- Double-sided adhesive dots for attachment to smooth surfaces included
References / Links
- For current information see www.ledvance.com/light-management-systems
Electrical data
| Mains frequency | 0 Hz |
Dimensions & Weight
| Length | 81.00 mm |
| Width | 81.00 mm |
| Height | 17.00 mm |
| Product weight | 130.00 g |
Colors & materials
| Product color | Grey |
| Body material | Polycarbonate (PC) |
Temperatures & operating conditions
| Ambient temperature range | -25…+65 °C |
| Temperature range in operation | -25…+65 °C |
Additional product data
| Product remark | Available from September 2025 |
| Commissioning App | App (Android/ iOS) |
Capabilities
| Dimmable | No |
| Dimming interface | Zigbee 3.0, IoT |
| Type of installation | Surface mounting |
Certificates & Standards
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854589850 | Folding box 1 |
98 mm x 88 mm x 35 mm | 225.00 g | 0.30 dm³ |
| 4099854589867 | Shipping box 5 |
200 mm x 100 mm x 100 mm | 1310.00 g | 2.00 dm³ |
User instruction / safety instructions
ZB KINETIC SWITCH DIRECT
ZB KINETIC SWITCH DIRECT
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11242781 SWITCH KINETIC DIRECT 4B
Safety Insert G11242781 SWITCH KINETIC DIRECT 4B
Legal information
App Download guide
App Download guide
Declarations of conformity
CE declaration SWITCH KINETIC DIRECT 4B
CE declaration SWITCH KINETIC DIRECT 4B

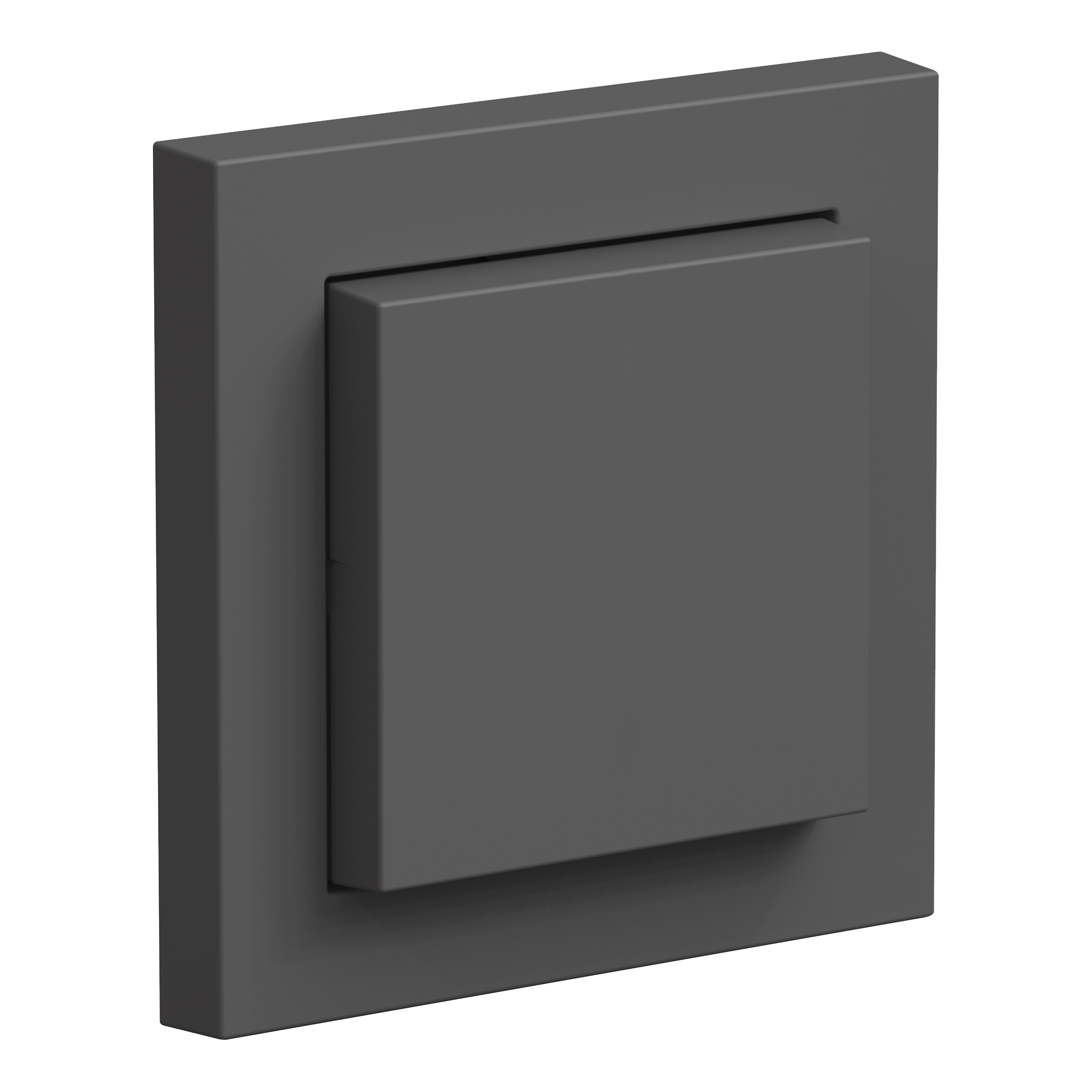

Product image: white background, diagonal
SWITCH KINETIC DIRECT 4B BK ZB
SWITCH KINETIC DIRECT 4B BK ZB
Product image: white background, diagonal
SWITCH KINETIC DIRECT 4B BK ZB
SWITCH KINETIC DIRECT 4B BK ZB

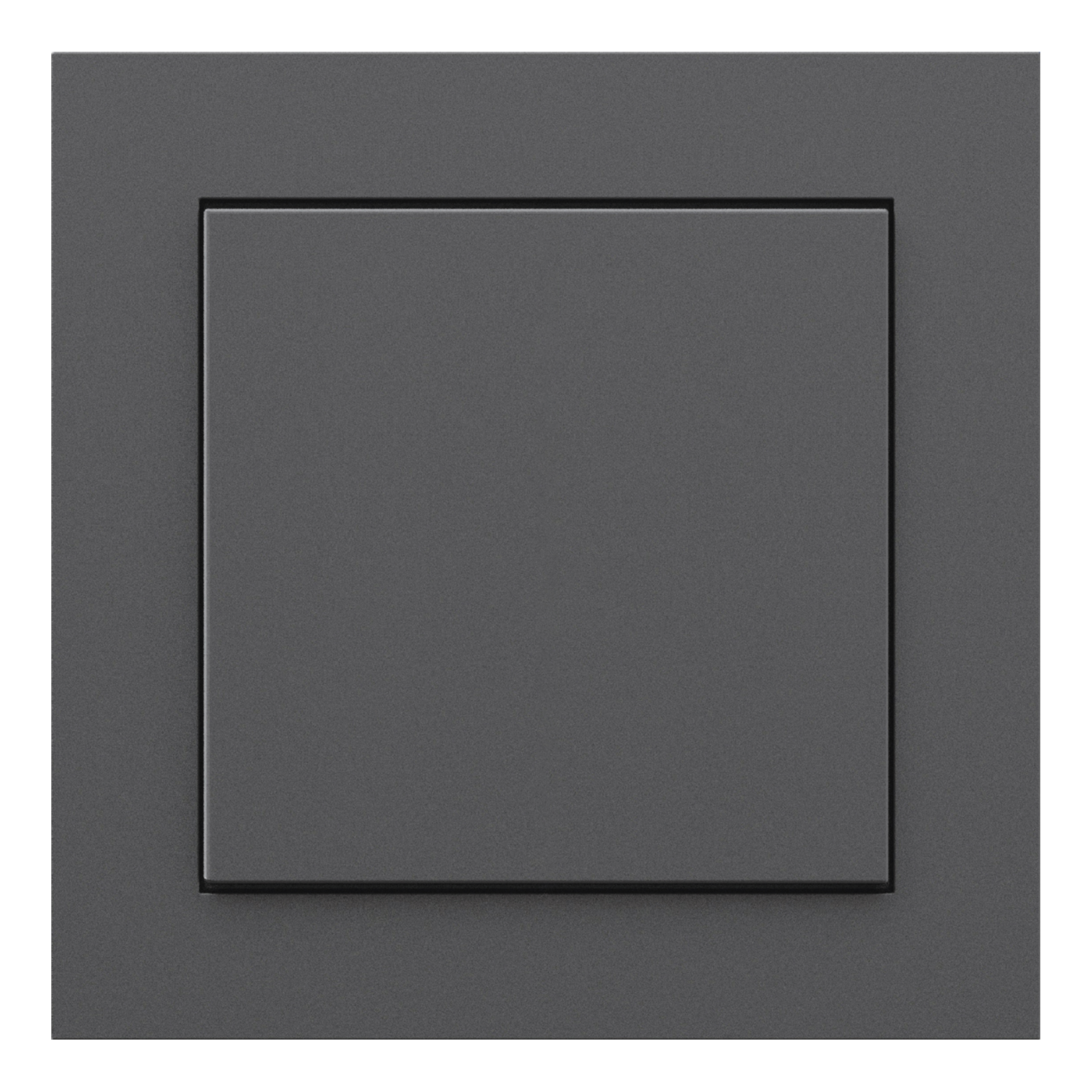

Product image: white background, upright
SWITCH KINETIC DIRECT 4B BK ZB
SWITCH KINETIC DIRECT 4B BK ZB

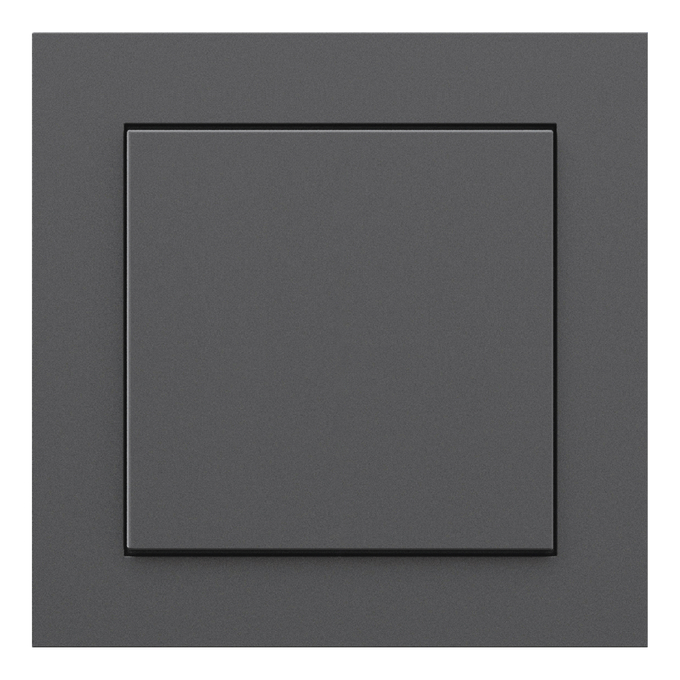

Product image: white background, upright
