Sun@Home Downlights

SUN@Home Downlight Slim 120mm

GTIN: 4058075627024 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Enable increased concentration and efficiency
  • Improve overall activity level and daytime alertness
  • Improve sleeping rhythm and –intensity
  • Improve optic convenience
  • Enables an improved level of clean-air-safety by killing residential germs and bad odors
  • Homogenous light distribution
  • Easy and quick installation
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Adjustable color temperature via Tunable White: 2,200…5,000 K
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Dimmable
  • Innovative Fullspectrum SunLike LEDs with CRI95
  • SunLike LEDs with reduced Blue Light in LED Spectrum
  • Innovative luminaire coating-technology fighting household germs and odors
  • Automated biorhythm feature
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Complete mounting and connecting accessories included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 80.000 mA
Inrush current 30 A
Power factor λ ≥0.5
Protection class II
Operating mode Mains voltage
Photometrical data
Luminous flux 400 lm
Total luminous flux of contained light sources 700 lm
Luminous efficacy 50 lm/W
Color temperature 2200…5000 K
Reference control setting of contained light source (Kelvin) 2700 K
Light color (designation) Tunable White
Color rendering index Ra > 95
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤ 1 %
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 110 °
Dimensions & Weight
Diameter 120.00 mm
Height 35.00 mm
Width 120.00 mm
Product weight 107.00 g
Materials & Colors
Product color White
Housing color White
Body material Plastic
Cover material Polystyrene (PS)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+60 °C
Type of connection Terminal
Type of protection IP20
Dimmable Yes
Type of dimming WiFi
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 105.00 mm
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 15000
Emergency lighting
Luminous flux in maintained operation mode -
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075627024 Folding box
1		 127 mm x 127 mm x 58 mm 156.00 g 0.94 dm³
4058075627031 Shipping box
6		 262 mm x 134 mm x 186 mm 1071.00 g 6.53 dm³
4058075657090 Shipping box
24		 542 mm x 286 mm x 209 mm 4929.00 g 32.40 dm³
User instruction / safety instructions
SUN@HOME DOWNLIGHT SLIM
PDF (995.21 KB)
Legal information
SUN@HOME
PDF (193.56 KB)
Declarations of conformity
SUN@HOME Downlight Slim
PDF (300.87 KB)

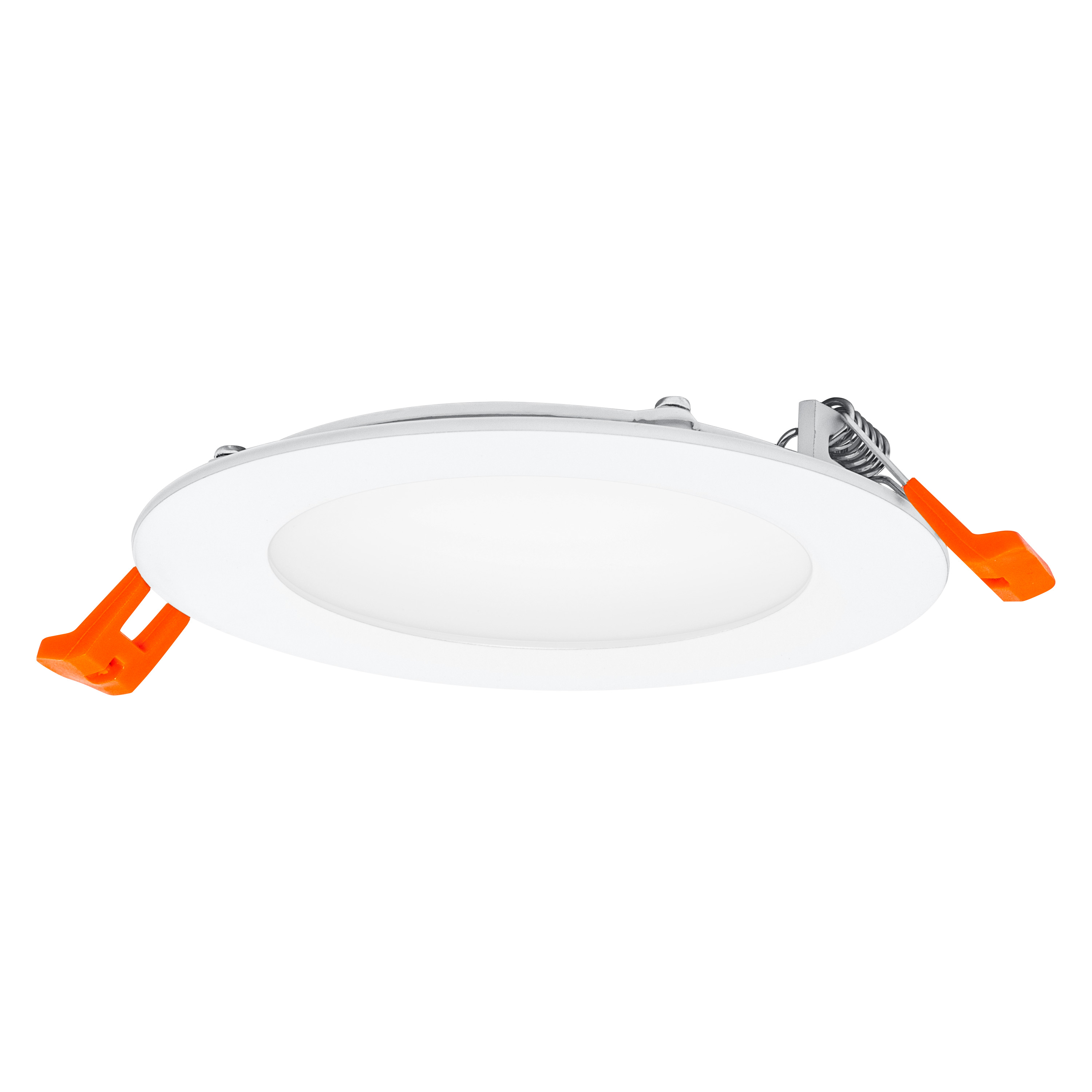

Product image: white background, upright
HCL SMART Downlight 120 TW
JPG (415.45 KB)
Product image: white background, upright, alternative image
HCL SMART Downlight 120 TW
JPG (580.34 KB)
Product image: white background, upright, switched on
HCL SMART Downlight 120 TW
JPG (418.52 KB)
Product line drawing with letters
HCL SMART Downlight 120 TW
SVG (8.74 KB)
Product line drawing with numbers
HCL SMART Downlight 120 TW
SVG (9.78 KB)
Product line drawing, front, no dimensions
HCL SMART Downlight 120 TW
SVG (7.47 KB)

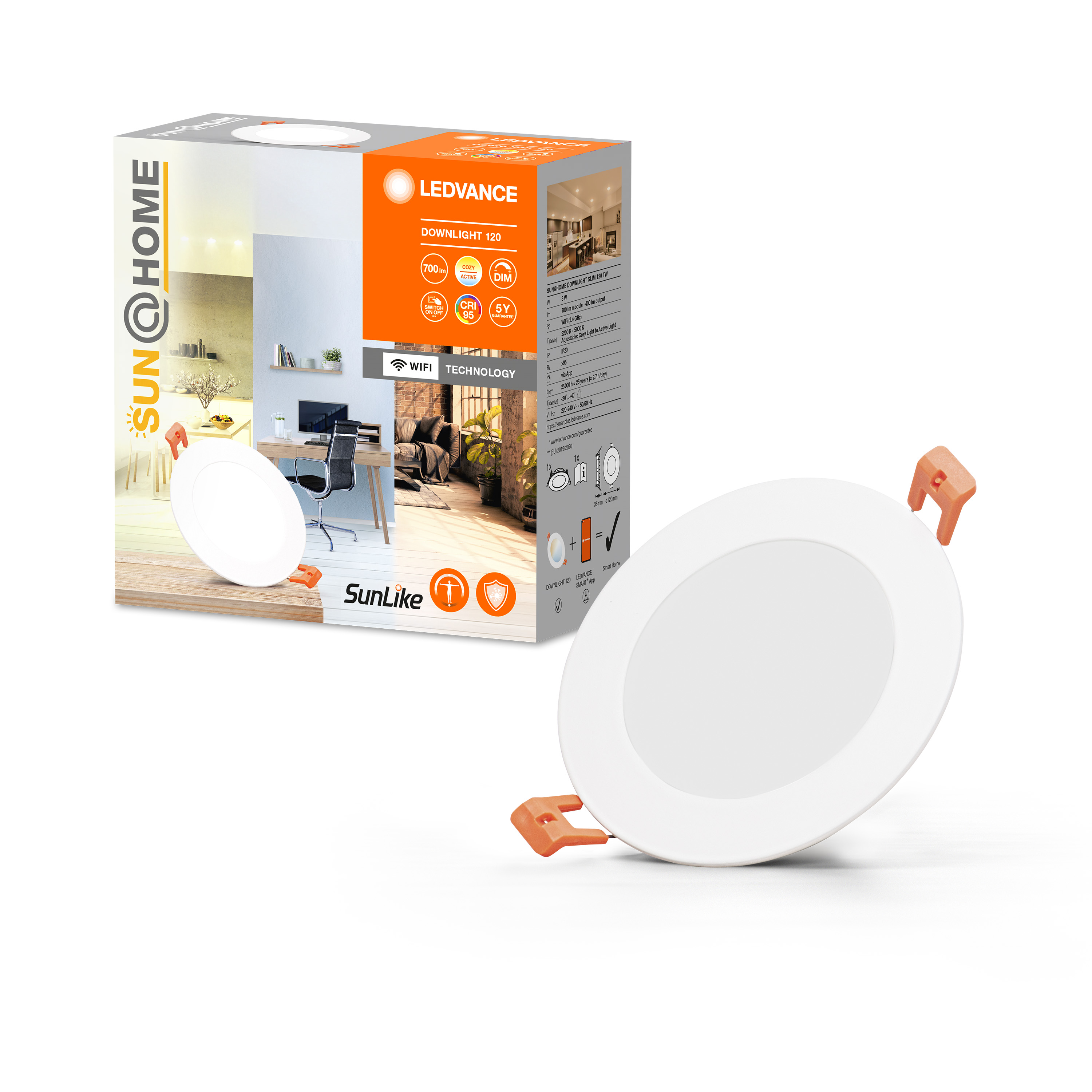

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI DOWNLIGHT 120 TW MiPRC
JPG (831.47 KB)

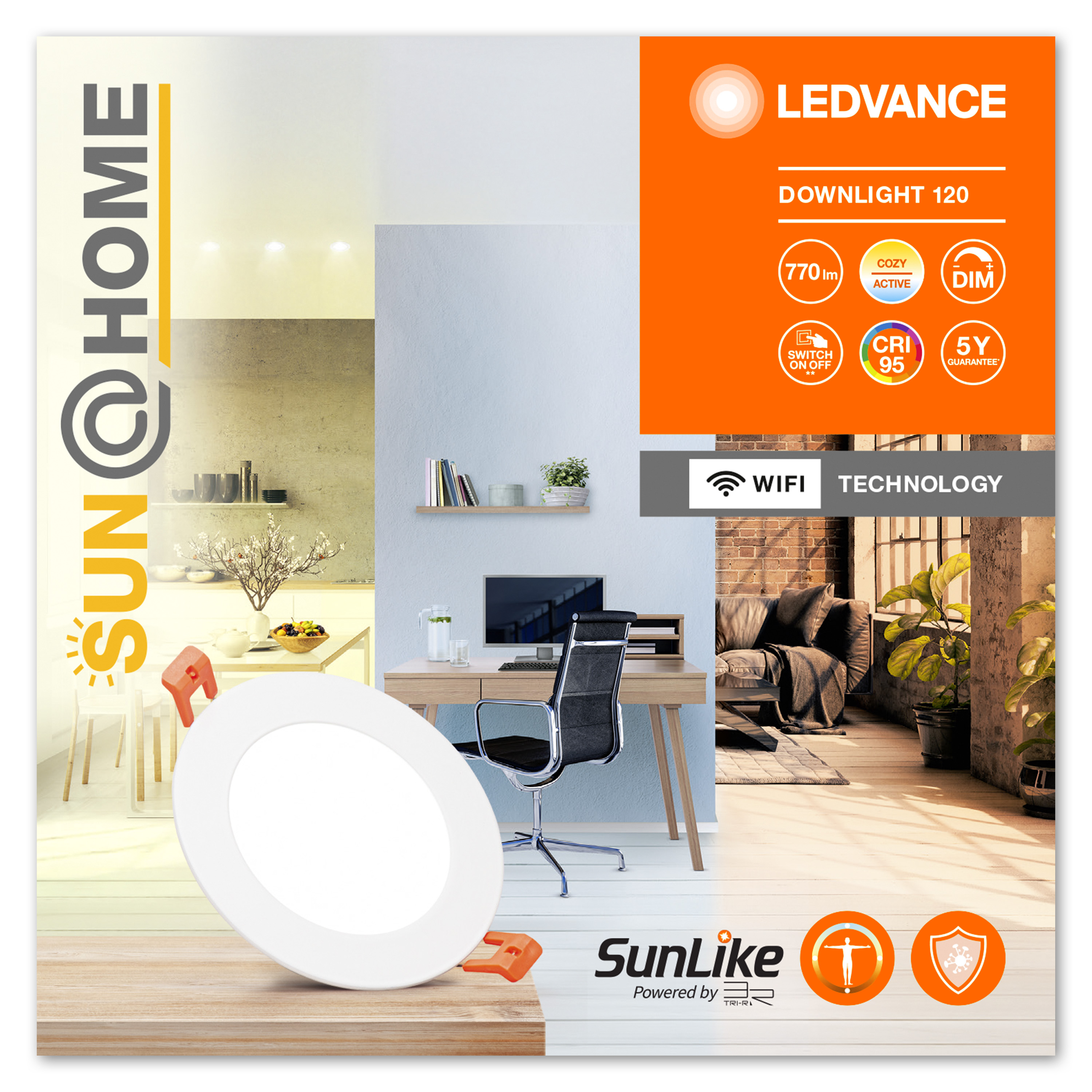

Packaging image, frontal
SH FC WIFI DOWNLIGHT 120 TW MiPRC
JPG (1.3 MB)

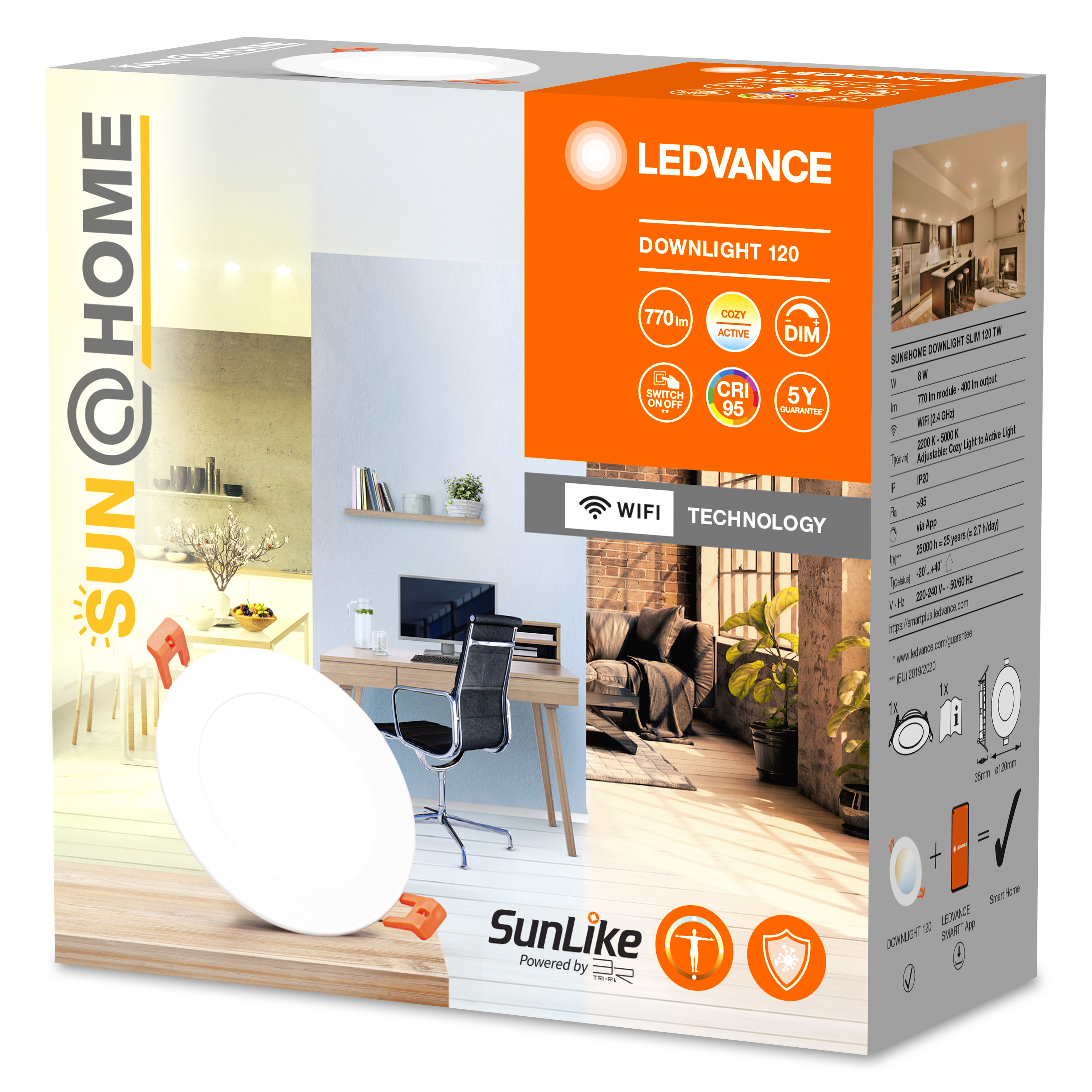

Packaging image, spacial
SH FC WIFI DOWNLIGHT 120 TW MiPRC
JPG (1.32 MB)
BIM Step 3D
Sun@Home DL SLIM 120
STEP (1.51 MB)
Application pictures
SUN@HOME SMART Indoor HCL Packaging Front
JPG (4.41 MB)
Application pictures
SUN@HOME SMART Indoor DL 120 on packaging front
JPG (522.44 KB)
Application pictures Getty
SMART INDOOR WIFI HCL DOWNLIGHT SLIM 120MM TW 2200K
JPG (1.66 MB)

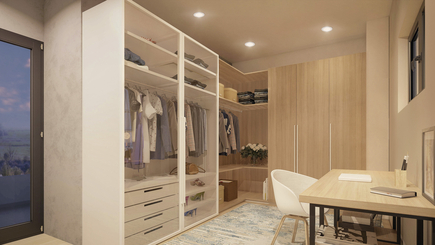

Application pictures Getty
SMART INDOOR WIFI HCL DOWNLIGHT SLIM 120MM TW 3000K
JPG (1.64 MB)
Application pictures Getty
SMART INDOOR WIFI HCL DOWNLIGHT SLIM 120MM TW 5000K
JPG (1.63 MB)
EAN EFO number ELDAS number
4058075627024 3202866 941506310
