SMART+ Planon Plus Backlight with WiFi technology with Remote Control

SMART+ Wifi Planon Plus Backlight 1000x250mm RGB + TW + RC

GTIN: 4058075650213 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Main light and back light
  • Both light are independent
  • TW and RGB
Areas of application
  • Indoor applications
  • Kitchens, living rooms, children's rooms or home offices
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Dimmable
  • Network protocol: WiFi
  • Adjustable color temperature via Tunable White: 3,000…6,500 K
Equipment / Accessories
  • Mounting bracket included
  • Mounting screws and dowels included
  • Control via app or voice control requires compatible Smart home system
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Batteries required for remote control: 2xAAA (not included)
  • Remote control included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 30.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 150.000 mA
Inrush current 20 A
Power factor λ ≥0.91
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver
Photometrical data
Luminous flux 1900 lm
Total luminous flux of contained light sources 3050 lm
Luminous efficacy 76 lm/W
Color temperature 3000…6500 K
Reference control setting of contained light source (Kelvin) 3000 K 1)
Light color (designation) RGBTW
Color rendering index Ra ≥80
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) < 0.9
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 110 °
1) Performing a reset will restore the default values set by the manufacturer
Dimensions & Weight
Length 1000.00 mm
Height 56.00 mm
Width 250.00 mm
Product weight 2500.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screw terminal
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 15000
BATTERY
Type of Battery Alkaline
Battery size [GMS] AAA
Nominal voltage of battery 1.5 V
Emergency lighting
Type of emergency operation test None
Integrated test switch No
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075650213 Folding box
1
319 mm x 83 mm x 1,076 mm 3419.00 g 28.49 dm³
4058075650220 Shipping box
4
1,095 mm x 355 mm x 357 mm 15384.00 g 138.77 dm³
User instruction / safety instructions
SMART+ PLANON PLUS
Legal information
Legal insert residential luminaires
Declarations of conformity
SMART WIFI PLANON PLUS BACKLIGHT
EU Data Act
SMART WiFi Lamps and Luminaires

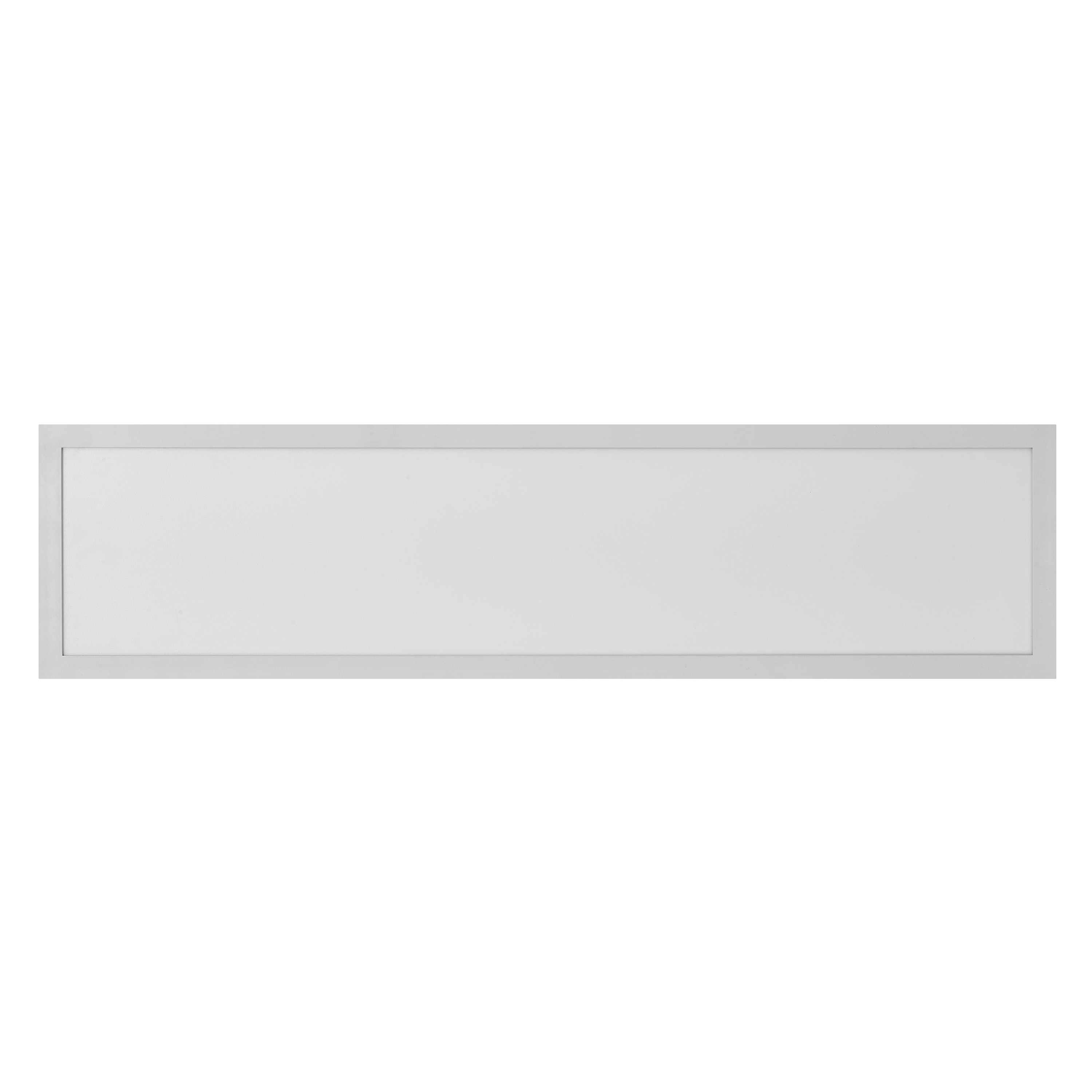

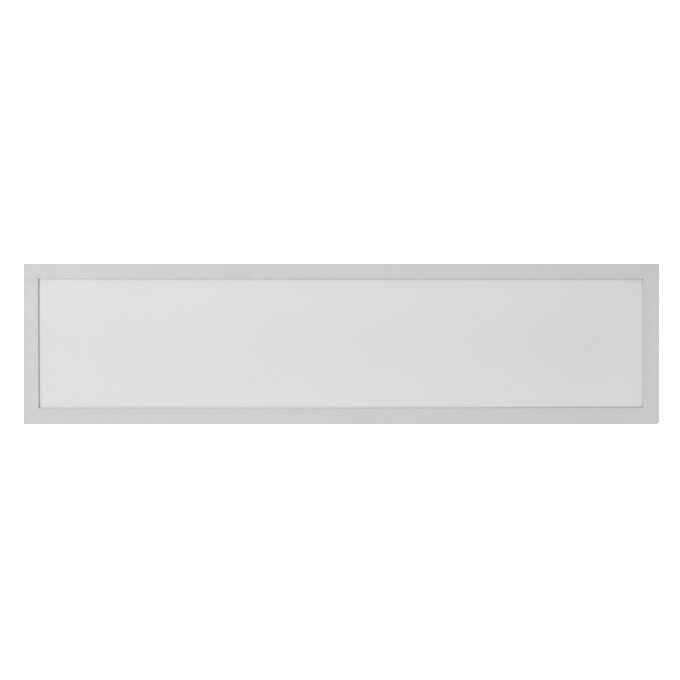

Product image: white background, upright
SMARTWIFIPLANPLUSBL100 X25REMRGBTWWT

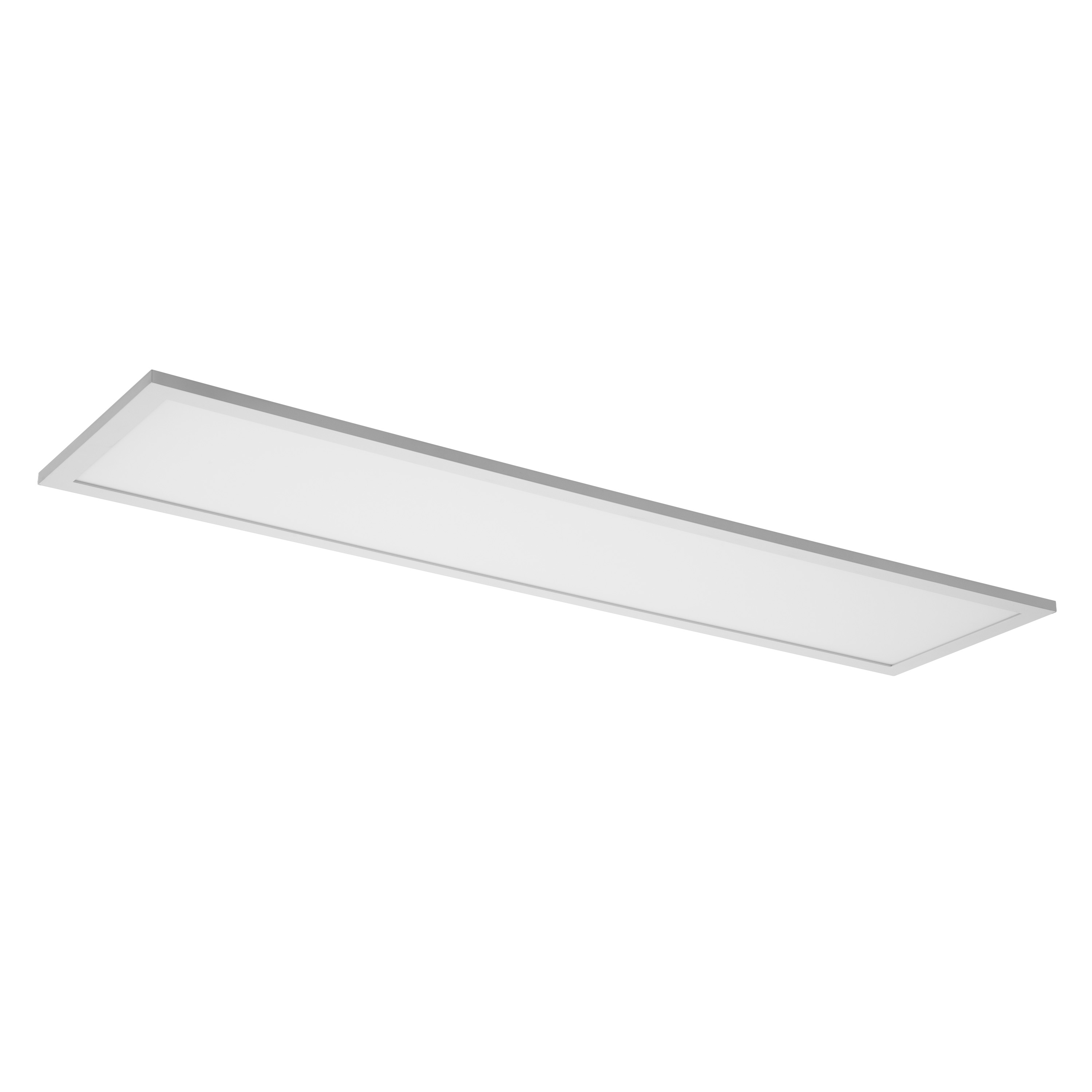

Product image: white background, upright, alternative image
SMARTWIFIPLANPLUSBL100 X25REMRGBTWWT

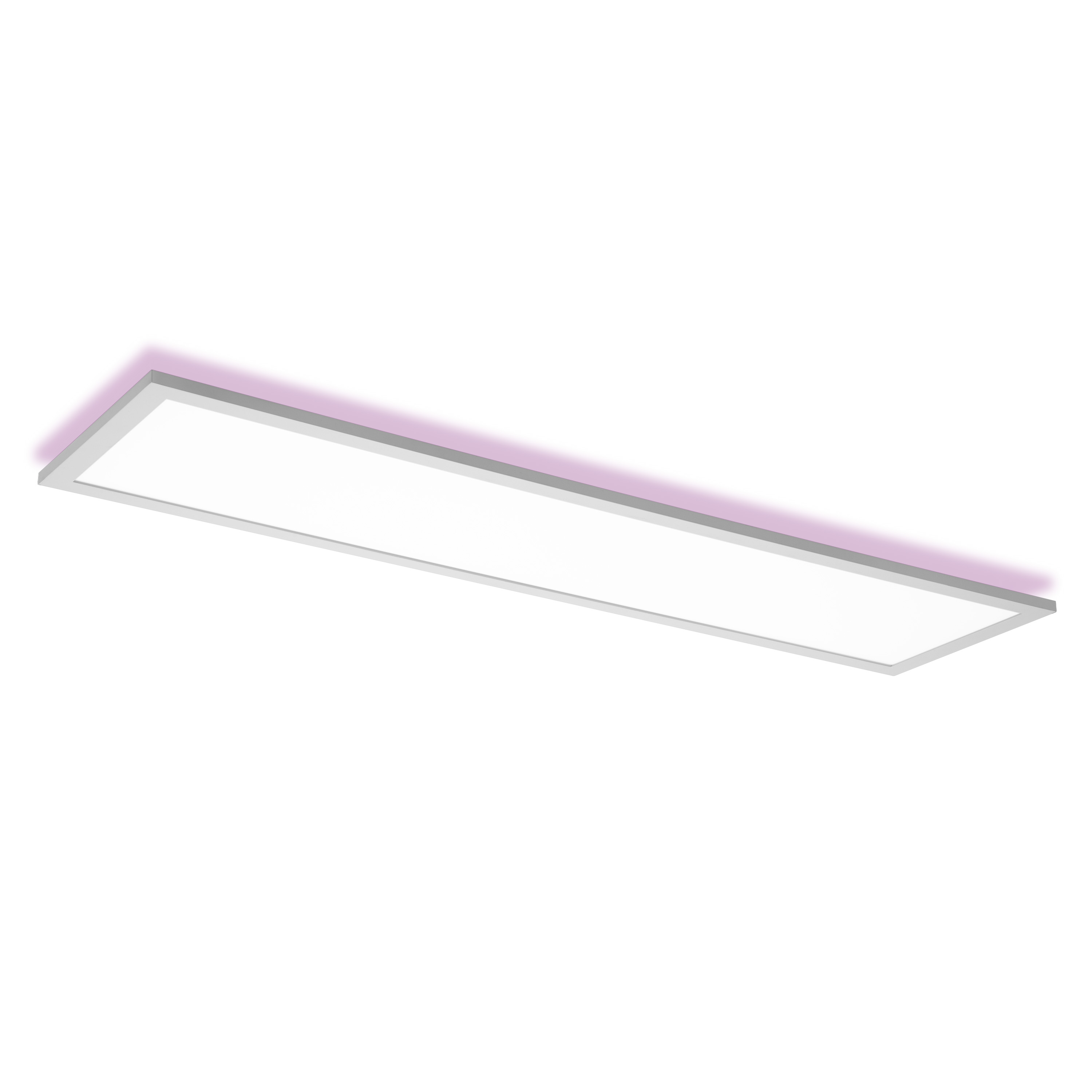

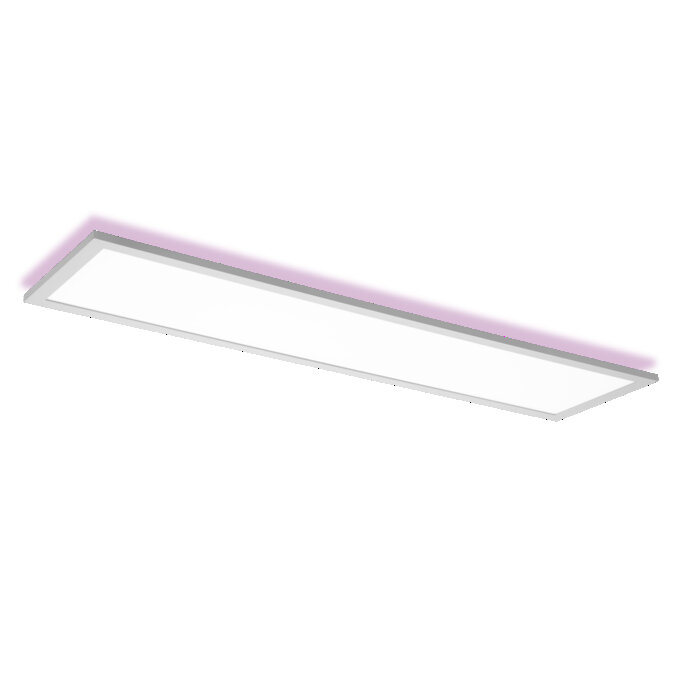

Product image: white background, upright, switched on
SMARTWIFIPLANPLUSBL100 X25REMRGBTWWT
Product line drawing with letters
SMART WIFI PLAN PLUS BL 100X25 REM RGBTW
Product line drawing with numbers
SMART WIFI PLAN PLUS BL 100X25 REM RGBTW
Product line drawing, front, no dimensions
SMART WIFI PLAN PLUS BL 100X25 REM RGBTW

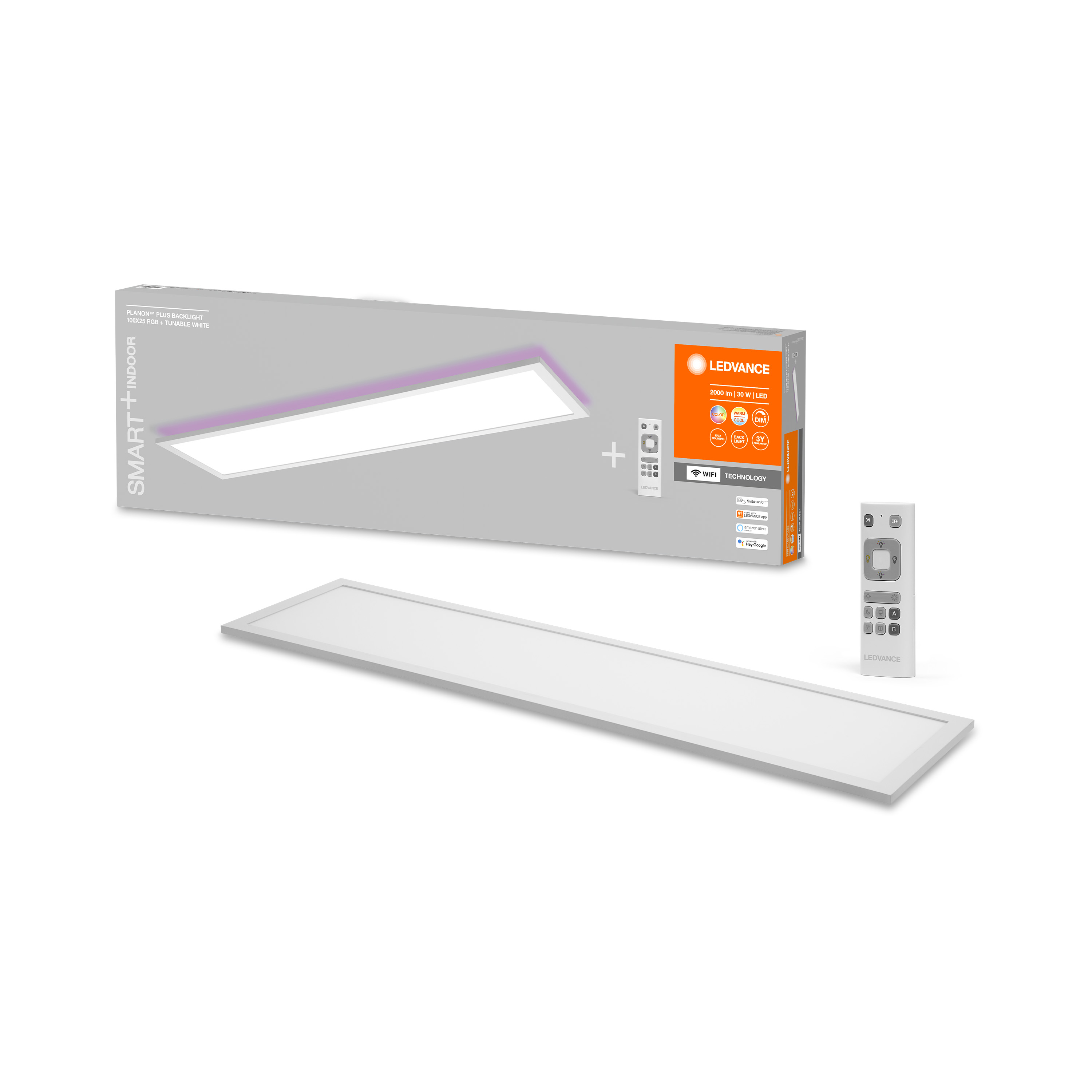

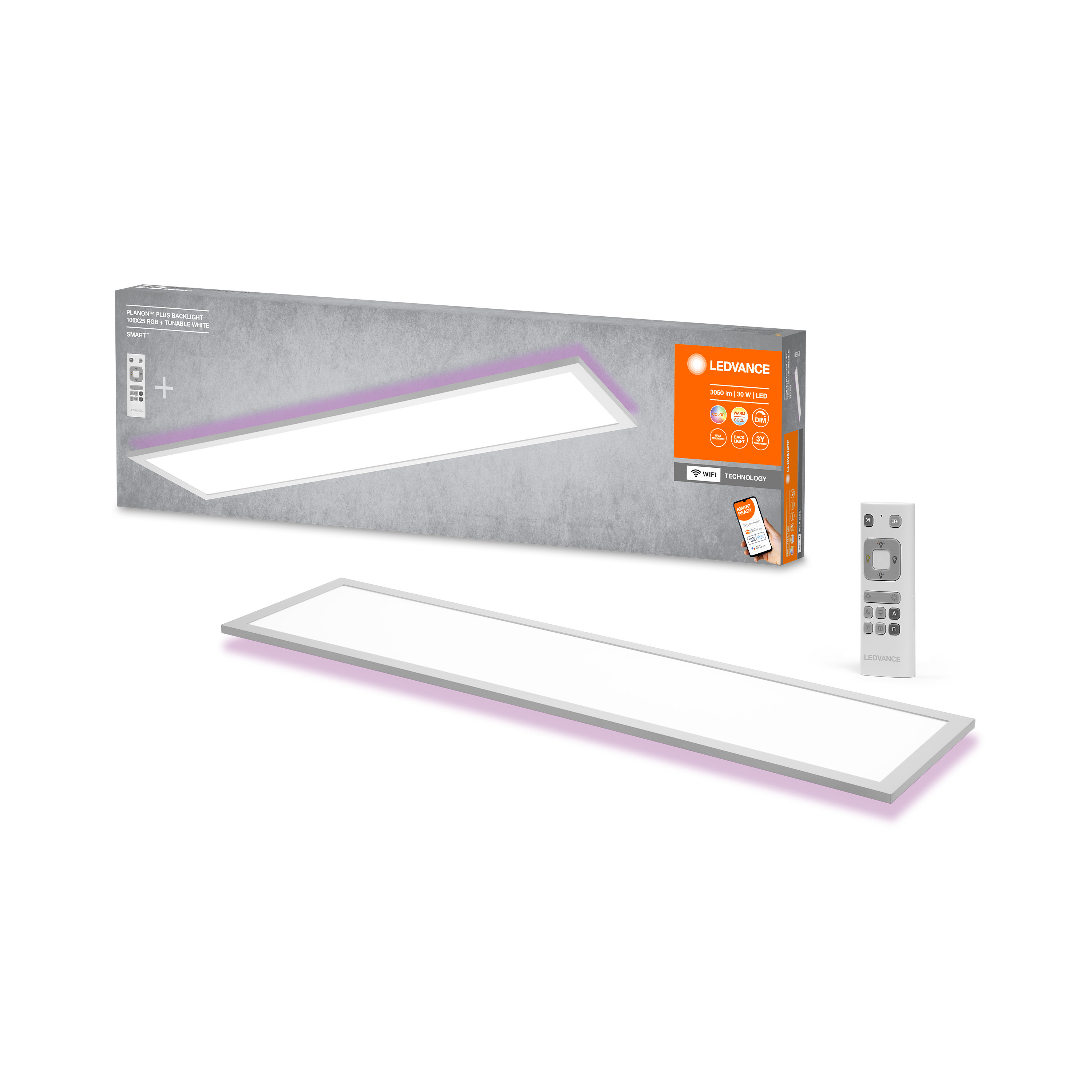

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF PLUS BL 100X25 REM WT MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF PLUS BL 100X25 REM WT MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF PLUS BL 100X25 REM WT MiPRC
Packaging image, frontal
SH FC WF PLUS BL 100X25 REM WT MiPRC
Packaging image, spacial
SH FC WF PLUS BL 100X25 REM WT MiPRC

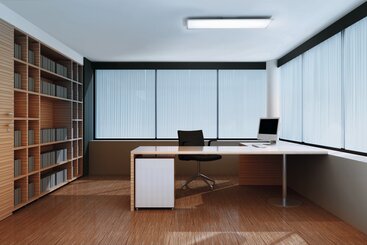

Application pictures
SMART INDOOR WIFI PLANON PLUS BL 1000X250MM TW 6500K
Application pictures
SMART INDOOR WIFI PLANON PLUS BL 1000X250MM TW 4000K
Application pictures
SMART INDOOR WIFI PLANON PLUS BL 1000X250MM RGBW PURPLE LIGHT

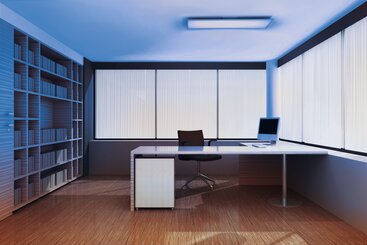

Application pictures
SMART INDOOR WIFI PLANON PLUS BL 1000X250MM RGBW BLUE LIGHT

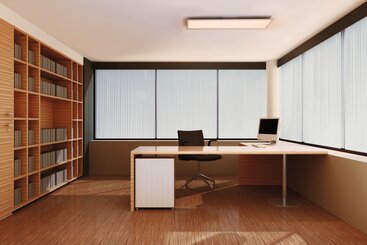

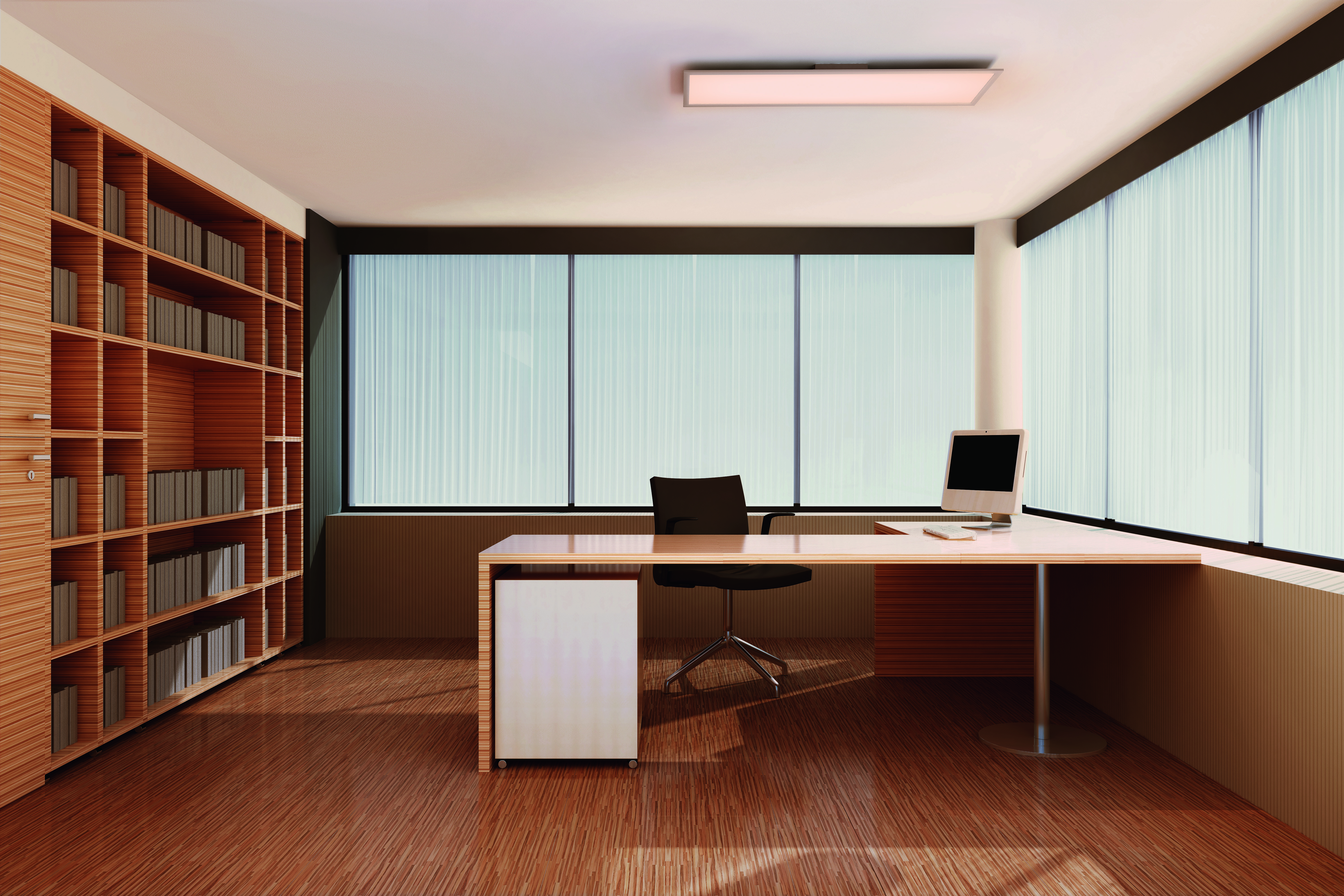

Application pictures
