HYBRID INVERTER LOW VOLTAGE SINGLE PHASE
LHS-LV 8K F1-DC-WIET-CT
GTIN: 4099854220029
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- 10 years of product guarantee
- Built-in color LCD touchscreen next to buttons
- Supports storing energy directly from a diesel generator
- Compatible with many energy storage systems manufacturers
- Possible selection of different work modes
- Inverter is powered by the grid or the battery and is independent of the PV panels
Areas of application
- Residential installations
Product features
- Colorful touchable display LCD screen, IP65 protection degree
- Cooling by natural convection
- DC couple and AC couple to retrofit existing solar system
- Max. charging and discharging current of 90 A, 120 A and 135 A
- Support energy storage from diesel generator
- 6 time period setting for battery charging and discharging
Equipment / Accessories
- Mounting bracket included
- Data logger included
- Allen key included
- Supplied with user manual
- Additional battery connectors for the outlets on the inverter
- Additional DC connectors for the outlets on the inverter
- CT clamps included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Output phases | Single phase |
| Max. input power DC | 10.4 kW |
| Input voltage DC | 370 V |
| MPP voltage | 150 - 425 V |
| Max. input current DC | 26 A |
| Max. input current DC per string input | 13 A |
| Max. input current DC per MPP tracker | 26 A |
| Max. short circuit current per MPPT | 44 A |
| Number of independent MPPT inputs | 2 |
| String connections per MPPT input | 2 |
| Nominal output power AC | 8 kW |
Dimensions & Weight
| Length | 420 mm |
| Width | 233 mm |
| Height | 670 mm |
| Product weight | 32000.000 g |
Additional product data
| Integrated DC switch | Yes |
| Connection DC for battery | Yes |
| Suitable for emergency power | Yes |
| Charging controller integrated | Yes |
| With data logging | Yes |
| Wireless | Yes |
| Display | Standard |
| Ethernet | Yes |
| Integrated transformer | Yes |
| Type of connection | MC4-Compatible |
| Temperature range in operation | -40…+60 °C |
| Ambient temperature range | -40…+60 °C |
| Outdoor application | No |
| Type of protection | IP65 |
| Product color | White |
Efficiency
| Maximum efficiency | 97.60 % |
| European efficiency | 97.00 % |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) 1,3,5-Triazine-2,4,6-triamine (68649-66-1) Tetrabromobisphenol A (79-94-7) Dodecamethylcyclohexasiloxane [D6] (540-97-6) Bisphenol A (BPA) (80-05-7) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854220029 | Shipping box 1 |
875 mm x 590 mm x 355 mm | 37500.00 g | 183.27 dm³ |
User instruction / safety instructions
LHS LV 8K F1
LHS LV 8K F1
Declarations of conformity
CE declaration_LHS-LV-3.6 -8K
CE declaration_LHS-LV-3.6 -8K
Product family datasheet
LHS LV 8K F1
LHS LV 8K F1

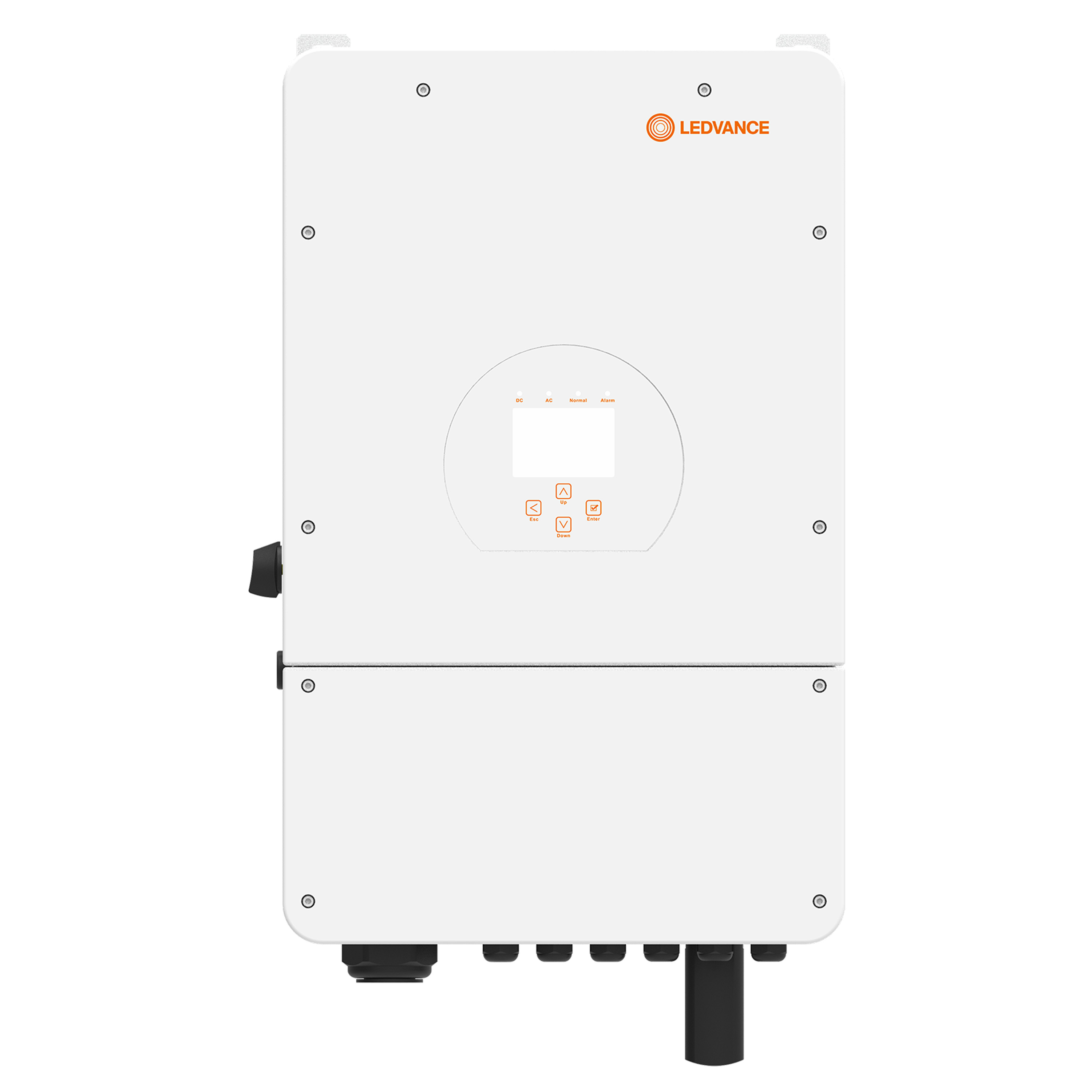

Product image: white background, upright
