ENDURA STYLE UPDOWN DECO
ENDURA Style UpDown Deco I 6W Dark Grey
GTIN: 4058075205529
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Energy-efficient thanks to LED technology
Areas of application
- Outdoor use (IP44)
- Building facades
- Entrance lighting
- Patios, balconies
Product features
- Narrow, clear-cut beam angle
- Die-cast aluminum housing
- Single or double light outlet
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 30.000 mA |
| Inrush current | 4.5 A |
| Max. number of luminaires per miniature circuit breaker B16 | 200 |
| Max. number of luminaires per miniature circuit breaker C10 | 200 |
| Max. number of luminaires per miniature circuit breaker C16 | 400 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Operating mode | Electronic control gear (ECG) |
Photometrical data
| Luminous flux | 280 lm |
| Total luminous flux of contained light sources | 500 lm |
| Luminous efficacy | 47 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <5 |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 55 ° |
Dimensions & Weight
| Length | 50.00 mm |
| Height | 130.00 mm |
| Width | 100.00 mm |
| Product weight | 550.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -30…+70 °C |
| Type of connection | Screw terminal |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency light operation | Non-maintained |
| Luminous flux in maintained operation mode | - |
| Luminous flux in emergency operation mode | - |
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075205529 | Folding box 1 |
64 mm x 114 mm x 145 mm | 574.00 g | 1.06 dm³ |
| 4058075205536 | Shipping box 6 |
252 mm x 217 mm x 182 mm | 3559.00 g | 9.95 dm³ |
User instruction / safety instructions
ENDURA STYLE UPDOWN DECO
ENDURA STYLE UPDOWN DECO
Legal information
Legal insert
Legal insert
Declarations of conformity
ENDURA STYLE MIDI and UPDOWN
ENDURA STYLE MIDI and UPDOWN
Product datasheet -> old version of product
4058075205529 ENDURA STYLE UpDown Deco I 6 W DG en old
4058075205529 ENDURA STYLE UpDown Deco I 6 W DG en old

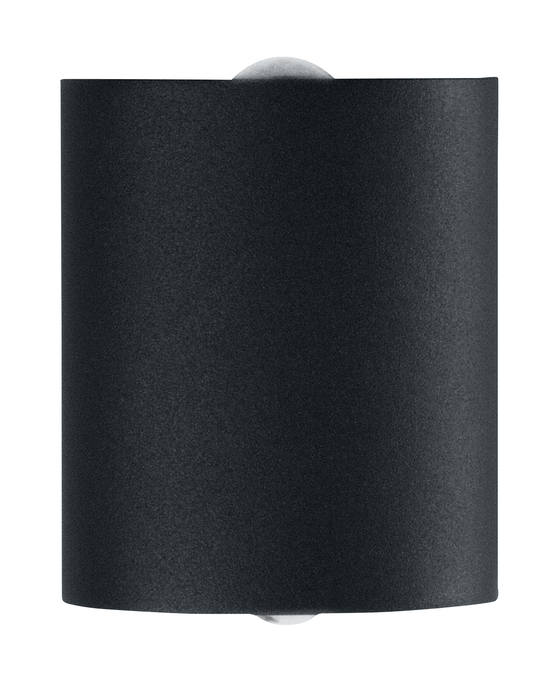

Product image: white background, upright
ENDURA STYLE UPDOWN DECO I 6W DG
ENDURA STYLE UPDOWN DECO I 6W DG

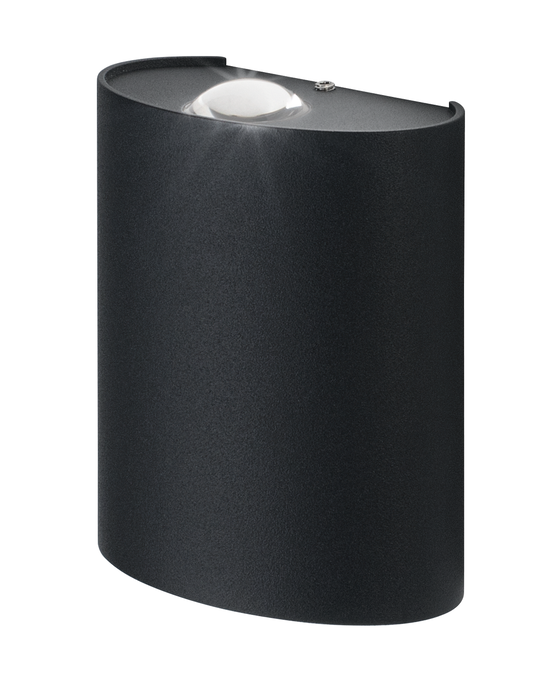

Product image: white background, upright, alternative image
ENDURA STYLE UPDOWN DECO I 6W DG
ENDURA STYLE UPDOWN DECO I 6W DG
Product image: white background, upright, switched on
ENDURA STYLE UPDOWN DECO I 6W DG
ENDURA STYLE UPDOWN DECO I 6W DG
Product line drawing with letters
ENDURA STYLE UPDOWN DECO I 6W DG
ENDURA STYLE UPDOWN DECO I 6W DG
Product line drawing with numbers
ENDURA STYLE UPDOWN DECO I 6W DG
ENDURA STYLE UPDOWN DECO I 6W DG
Product line drawing, front, no dimensions
ENDURA STYLE UPDOWN DECO I 6W DG
ENDURA STYLE UPDOWN DECO I 6W DG

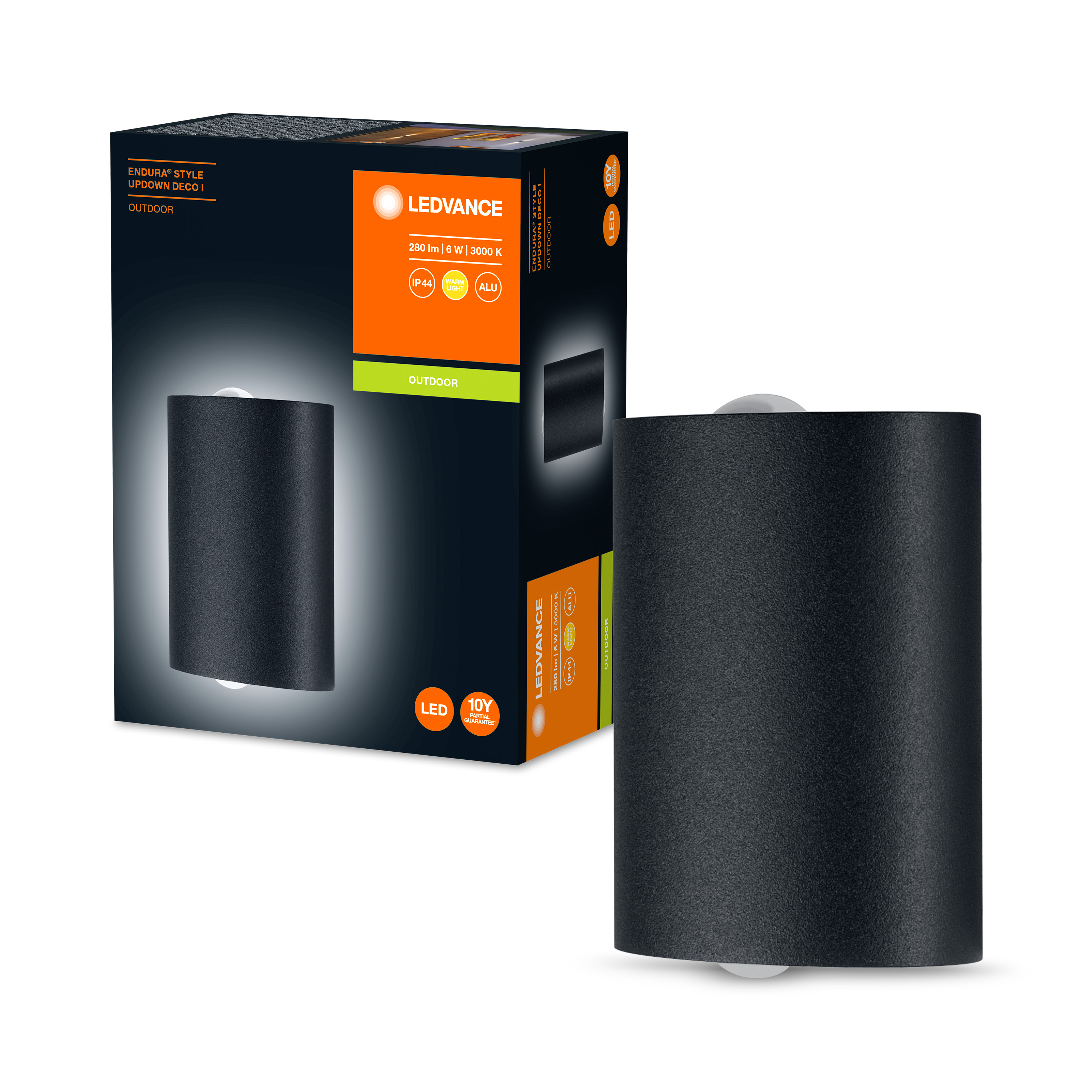

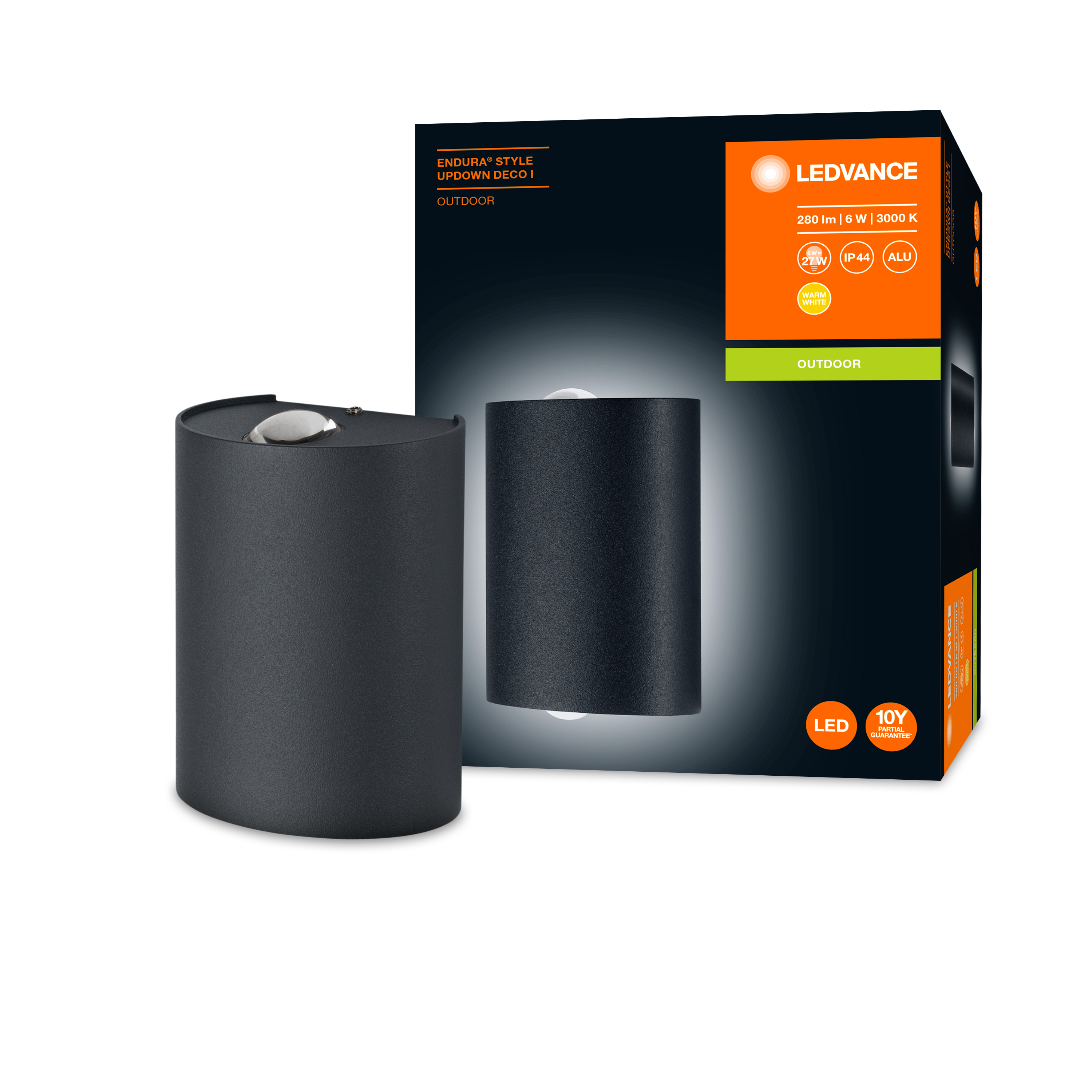

Combo Shot = Product Beauty Shot + Packaging Image
ENDURA STYLE UPDOWN DECO I 6W DG
ENDURA STYLE UPDOWN DECO I 6W DG

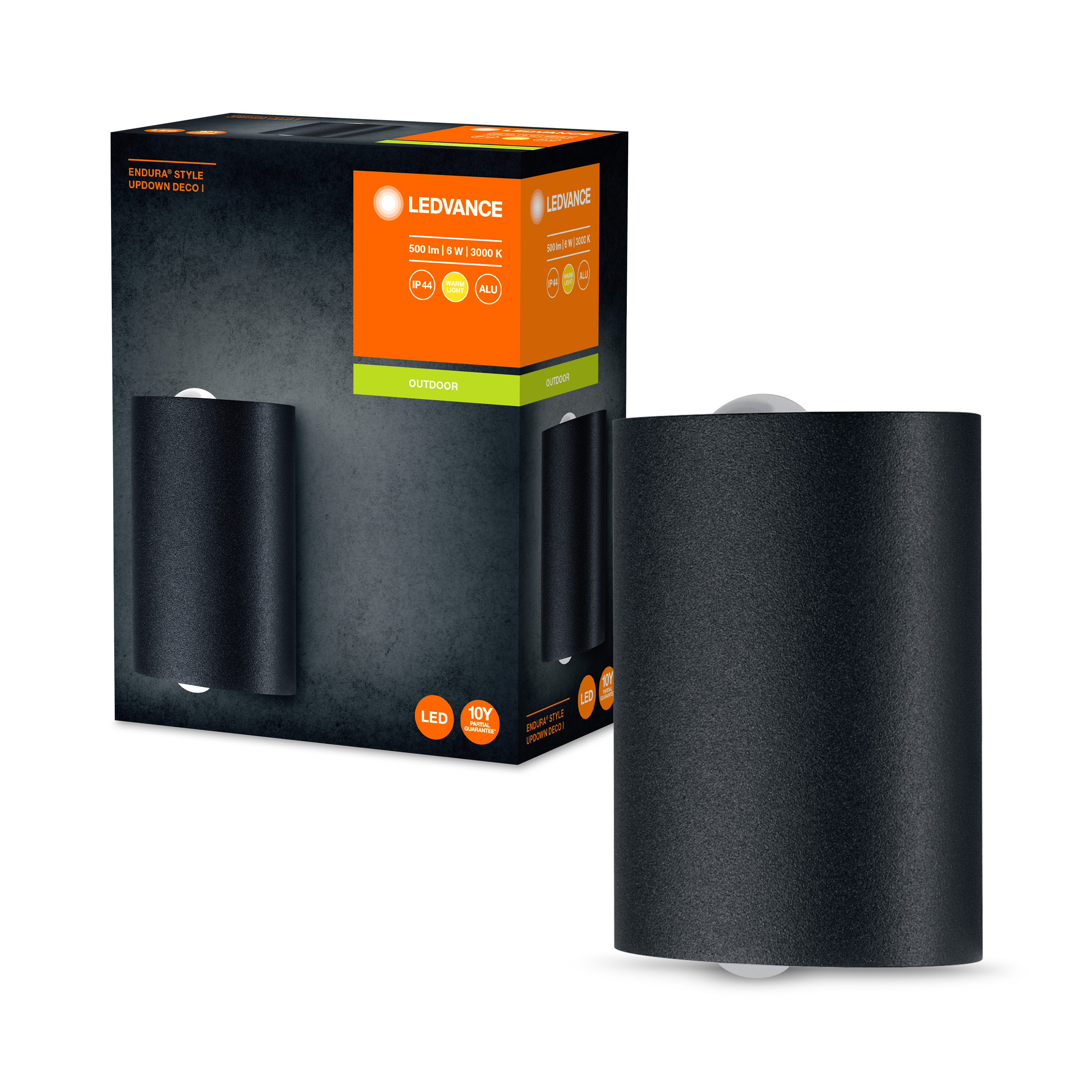

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES UPDOWN DECO I 6W DG MiPRC
LUM FC ES UPDOWN DECO I 6W DG MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES UPDOWN DECO I 6W DG MiPRC
LUM FC ES UPDOWN DECO I 6W DG MiPRC

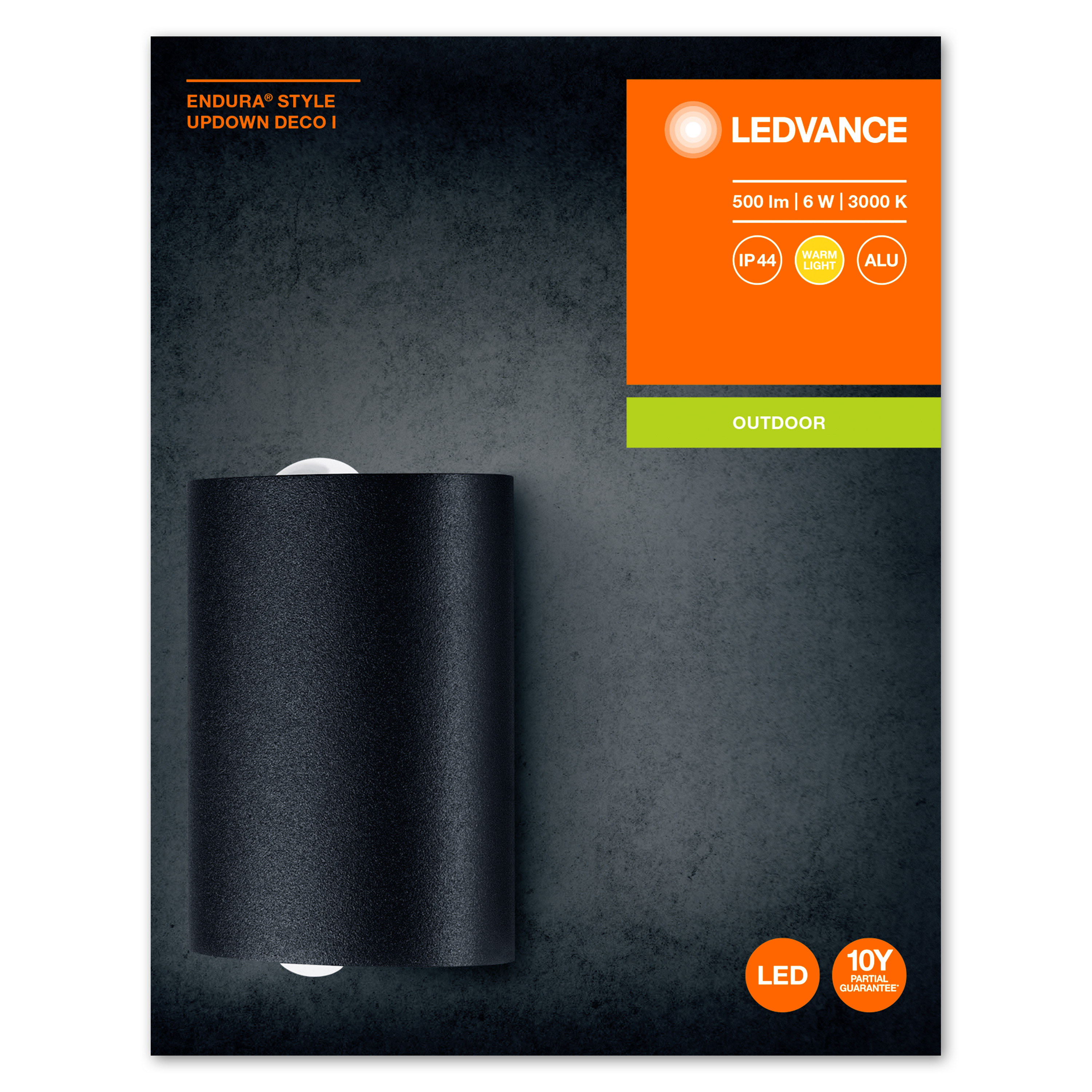

Packaging image, frontal
LUM FC ES UPDOWN DECO I MiPRC LDV Front
LUM FC ES UPDOWN DECO I MiPRC LDV Front

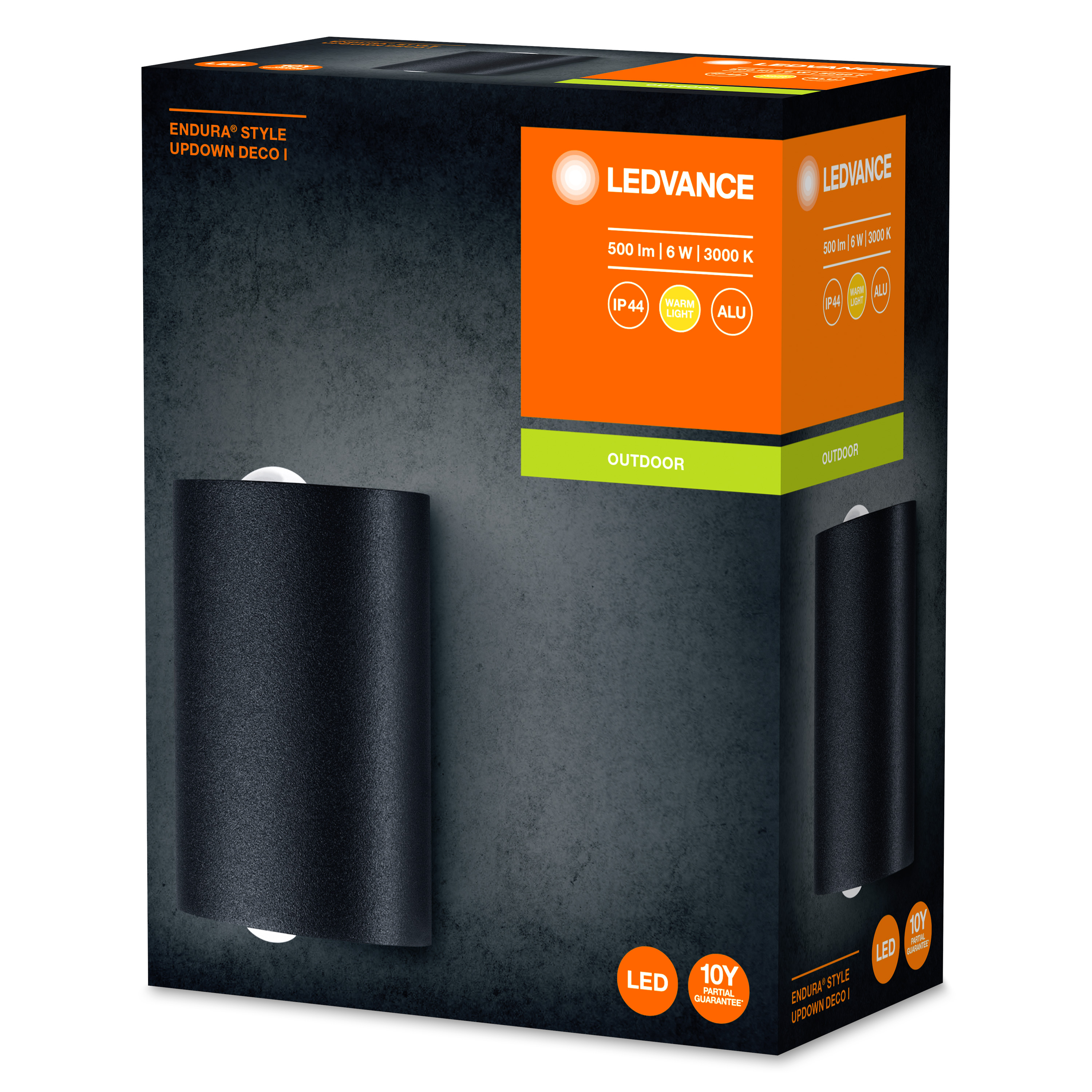

Packaging image, spacial
