ENDURA CLASSIC CASCADE
ENDURA Classic Cascade 50cm Post E27 Amber
GTIN: 4058075554290
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High flexibility in the choice of the light source thanks to E27 socket
- Easy and quick installation
Areas of application
- Building facades
- Patios, balconies
- Pathway lighting
- Driveways
Product features
- Direct illumination
- Light cover material: glass
- Light cover appearance: amber or clear
- Housing material: aluminum
- Housing color: RAL 7016
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
Dimensions & Weight
| Length | 200.00 mm |
| Height | 500.00 mm |
| Width | 160.00 mm |
| Product weight | 1540.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Glass |
| Mercury content | 0.0 mg |
Application & Mounting
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ground |
| Application environment | Outdoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Emergency lighting
| Type of emergency light operation | Non-maintained |
| Luminous flux in maintained operation mode | - |
| Luminous flux in emergency operation mode | - |
Certificates & Standards
| Standards | CE, EAC, UKCA |
Additional product data
| Product remark | Maximum bulb wattage: 25 W |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075554290 | Folding box 1 |
180 mm x 220 mm x 520 mm | 1752.00 g | 20.59 dm³ |
| 4058075554306 | Shipping box 2 |
540 mm x 380 mm x 240 mm | 4609.00 g | 49.25 dm³ |
User instruction / safety instructions
ENDURA CLASSIC CASCADE
ENDURA CLASSIC CASCADE
Legal information
Legal insert I-Outdoor
Legal insert I-Outdoor
Declarations of conformity
EC_ENDURA CLASSIC PIPE_ENDURA CLASSIC CASCADE
EC_ENDURA CLASSIC PIPE_ENDURA CLASSIC CASCADE

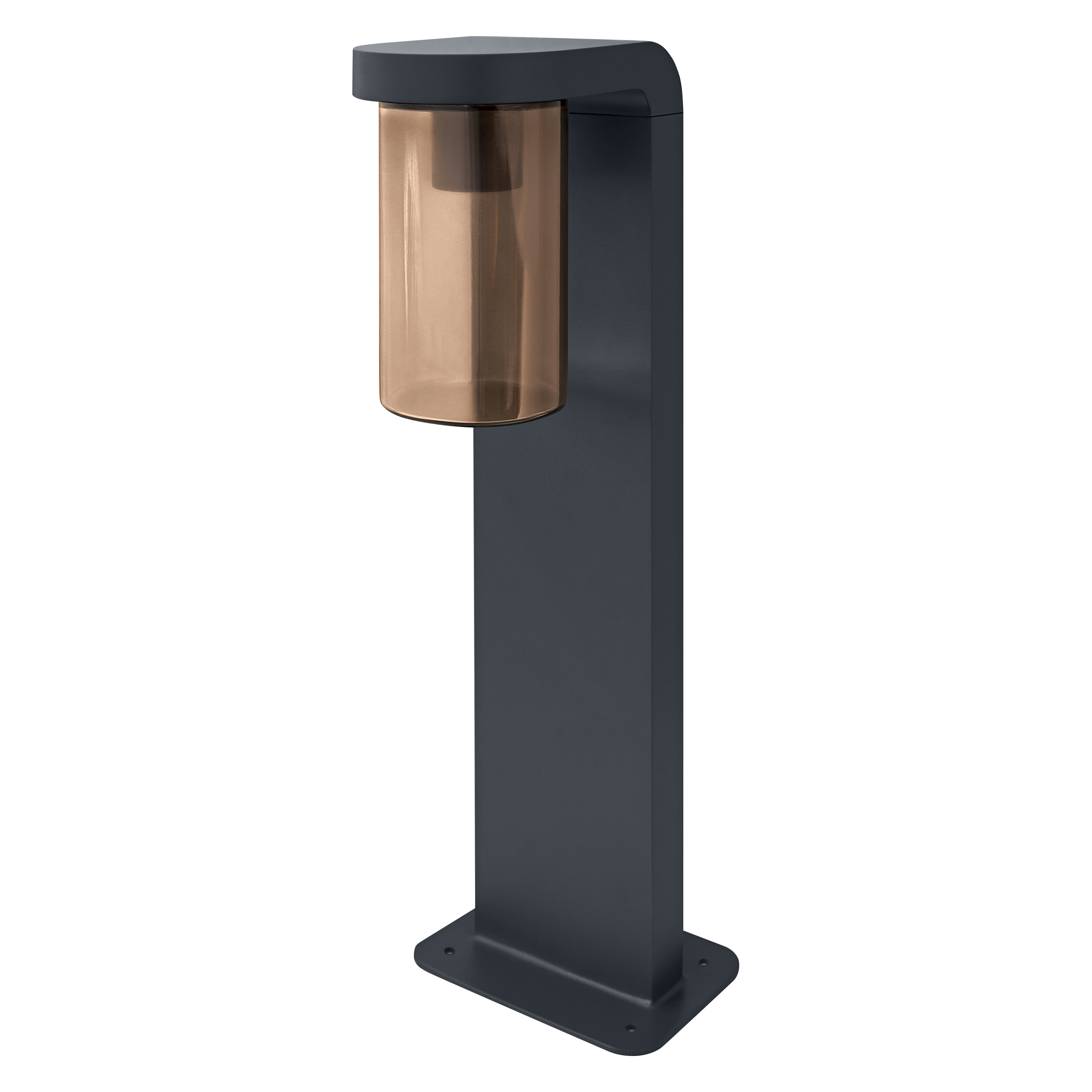

Product image: white background, upright
ENDURA CLASSIC CASCADE 50CM E27 AMB
ENDURA CLASSIC CASCADE 50CM E27 AMB
Product image: white background, upright, alternative image
ENDURA CLASSIC CASCADE 50CM E27 AMB
ENDURA CLASSIC CASCADE 50CM E27 AMB
Product image: white background, upright, switched on
ENDURA CLASSIC CASCADE 50CM E27 AMB
ENDURA CLASSIC CASCADE 50CM E27 AMB
Product line drawing with letters
ENDURA CLASSIC CASCADE 50CM E27 AMB
ENDURA CLASSIC CASCADE 50CM E27 AMB
Product line drawing with numbers
ENDURA CLASSIC CASCADE 50CM E27 AMB
ENDURA CLASSIC CASCADE 50CM E27 AMB
Product line drawing, front, no dimensions
ENDURA CLASSIC CASCADE 50CM E27 AMB
ENDURA CLASSIC CASCADE 50CM E27 AMB

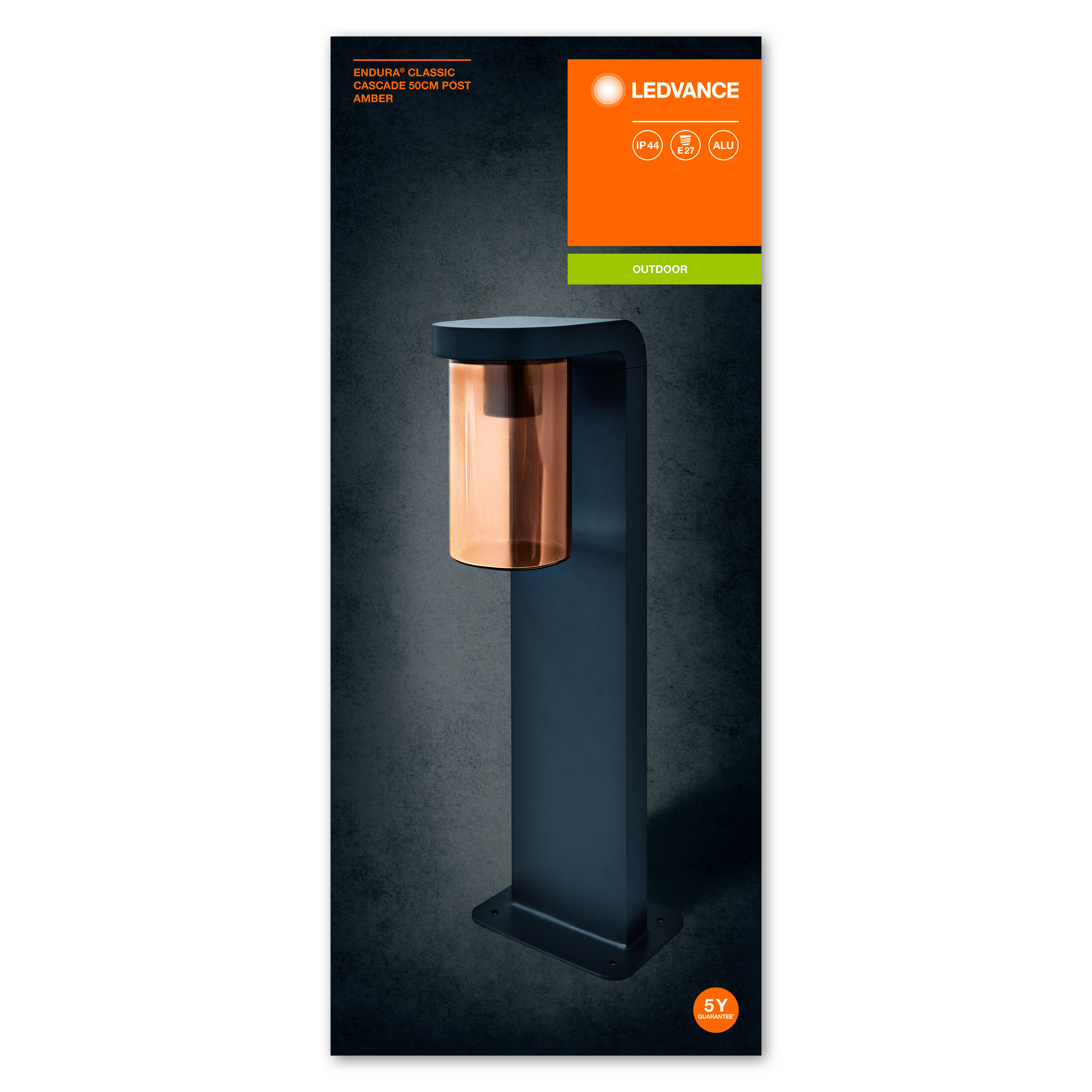

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC CASCADE 50CM E27 AMB MiPRC
LUM FC EC CASCADE 50CM E27 AMB MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC CASCADE 50CM E27 AMB MiPRC
LUM FC EC CASCADE 50CM E27 AMB MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC CASCADE 50CM E27 AMB MiPRC
LUM FC EC CASCADE 50CM E27 AMB MiPRC
Packaging image, frontal
LUM FC EC CASCADE 50CM E27 AMB MiPRC
LUM FC EC CASCADE 50CM E27 AMB MiPRC
Packaging image, spacial
LUM FC EC CASCADE 50CM E27 AMB MiPRC
LUM FC EC CASCADE 50CM E27 AMB MiPRC
Application pictures Getty
SMART OUTDOOR ENDURA CLASSIC CASCADE AMBER E27 DG
SMART OUTDOOR ENDURA CLASSIC CASCADE AMBER E27 DG
| EAN | ELDAS number |
|---|---|
| 4058075554290 | 941798010 |
