Cabinet LED Corner
Cabinet LED Corner Sensor 350mm Two Light
GTIN: 4058075227910
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low voltage luminaire for DC operation with external driver
- Suitable for mounting in corners
- Homogenous light distribution
- Easy and fast mounting on nearly every surface (adhesive tape or screws)
Areas of application
- Shelf and undercabinet lighting
Product features
- Luminous flux: up to 480 lm
- Switch on and off by movements with 5 cm distance in front of the infrared motion sensor
- Stepless dimming by covering the infrared motion sensor in 5 cm distance for at least one second
- Material: aluminum
- Color: silver
- Available in two lengths: 35 cm and 55 cm
- Available as single and double luminaire kit
Equipment / Accessories
- External mains adapter (cable length: 1.5 m) included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 9.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 90.000 mA |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Power factor λ | > 0.5 |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 640 lm |
| Total luminous flux of contained light sources | 800 lm |
| Luminous efficacy | 71 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 350.00 mm |
| Height | 23.00 mm |
| Width | 40.70 mm |
| Product weight | 423.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbon|Acrylonitrile |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -30…+70 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Mounting type | Surface |
| Mounting location | Cabinet undersides |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Motion |
| Sensor technology | Infrared/Photocell |
| Detection range of motion sensor | 5 cm |
Certificates & Standards
| Standards | CE, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075227910 | Folding box 1 |
94 mm x 71 mm x 400 mm | 493.00 g | 2.67 dm³ |
| 4058075227927 | Shipping box 8 |
416 mm x 303 mm x 205 mm | 4317.00 g | 25.84 dm³ |
User instruction / safety instructions
CABINET LED CORNER
CABINET LED CORNER
Legal information
Legal insert B-not dimmable
Legal insert B-not dimmable
Declarations of conformity
CE Declaration Cabinet LED
CE Declaration Cabinet LED
Product datasheet -> old version of product
4058075227910 CABINET LED Corner 350 two light en old
4058075227910 CABINET LED Corner 350 two light en old

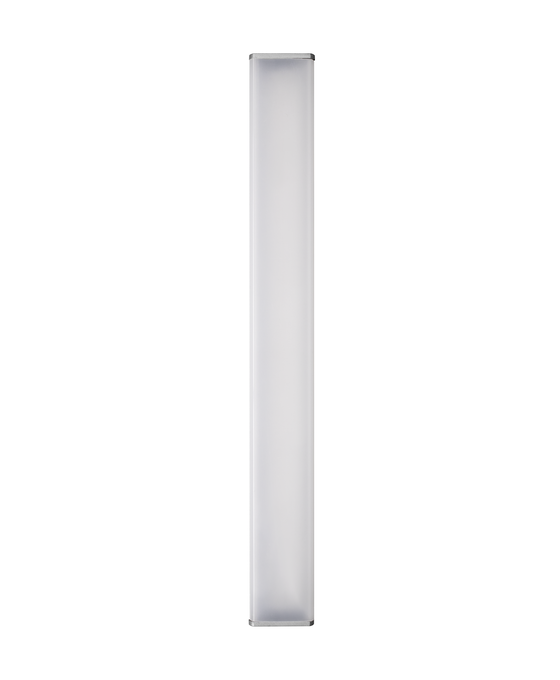

Product image: white background, upright
Cabinet LED Corner 35cm
Cabinet LED Corner 35cm

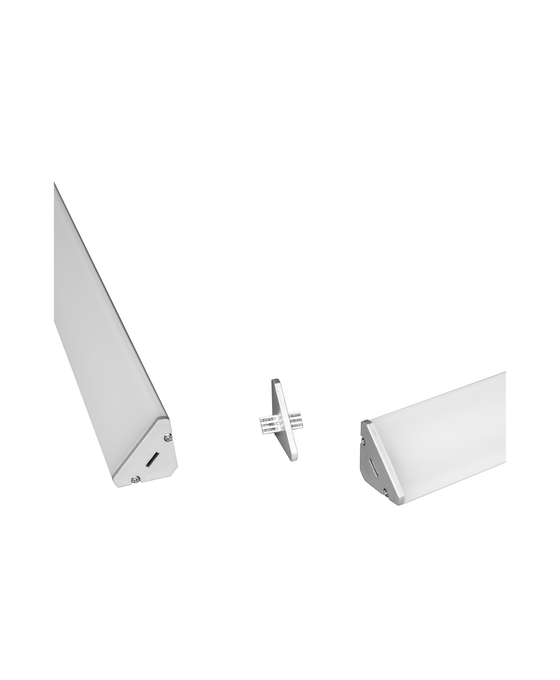

Product image: white background, upright, alternative image
Cabinet LED Corner 35cm
Cabinet LED Corner 35cm

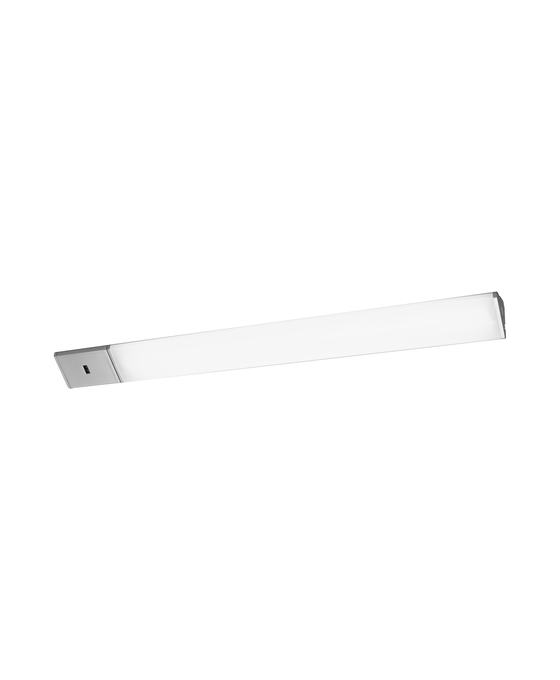

Product image: white background, upright, switched on
Cabinet LED Corner 35cm
Cabinet LED Corner 35cm

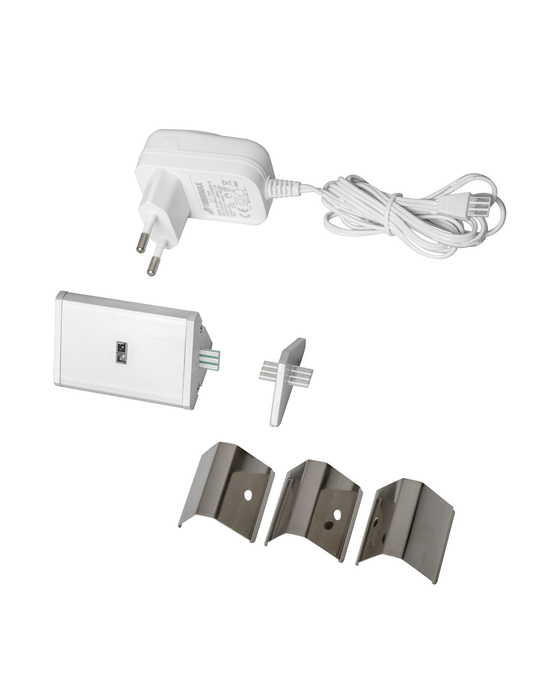

Product image: white background, with accessory, alternative image
Cabinet LED Corner 35cm
Cabinet LED Corner 35cm
Product line drawing with letters
Cabinet LED Corner 35cm
Cabinet LED Corner 35cm
Product line drawing with numbers
Cabinet LED Corner 35cm
Cabinet LED Corner 35cm
Product line drawing, front, no dimensions
Cabinet LED Corner 35cm
Cabinet LED Corner 35cm
Combo Shot = Product Beauty Shot + Packaging Image
LUM IN CABINET CORNER 35 TL MiPRC
LUM IN CABINET CORNER 35 TL MiPRC
Packaging image, frontal
LUM IN CABINET CORNER 35 TL MiPRC
LUM IN CABINET CORNER 35 TL MiPRC
Packaging image, spacial
LUM IN CABINET CORNER 35 TL MiPRC
LUM IN CABINET CORNER 35 TL MiPRC

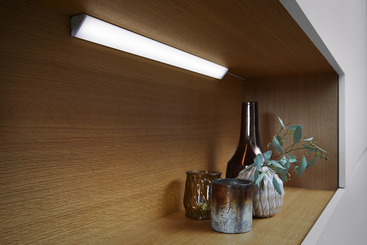

Application pictures
