BULKHEAD COMBO ROUND SENSOR
BLKH CBO RD SENSOR
GTIN: 4099854481093
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Plug & Upgrade concept to extend the On/Off luminaire to a sensor luminaire
- Multiple sensor settings by DIP switch: range, daylight detection, hold time and DIM-level /-period
Areas of application
- Suitable for BULKHEAD COMBO ROUND
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 0.60 W |
| Nominal voltage | 300 V |
| Nominal current | 1.75 mA |
| Protection class | II |
Dimensions & Weight
| Length | 54.00 mm |
| Height | 20.00 mm |
| Width | 54.00 mm |
| Product weight | 32.00 g |
Materials & Colors
| Product color | White |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Replaceable light source | No |
Lifespan
| Number of switching cycles | 25000 |
Sensor
| Type of sensor | Motion, Light |
| Sensor technology | Microwave/Photocell |
| Sensor detection angle | 30 ° x 150 ° |
| Sensor controlled switching time | 0 s…15 min |
| Detection range of motion sensor | 4 m |
| Detection threshold of daylight sensor | 10…50 lx |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC |
Additional product data
| Product remark | Available from March 2025 |
| Added function | PLUG & UPGRADE |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854481093 | Folding box 1 |
32 mm x 82 mm x 62 mm | 45.00 g | 0.16 dm³ |
| 4099854481109 | Shipping box 100 |
352 mm x 332 mm x 184 mm | 5037.00 g | 21.50 dm³ |
User instruction / safety instructions
BLKH CBO RD SENSOR
BLKH CBO RD SENSOR
Legal information
Safety Insert G11218823
Safety Insert G11218823
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Legal Insert G11185544
Legal Insert G11185544
Declarations of conformity
BLKH CBO RD SENSOR
BLKH CBO RD SENSOR

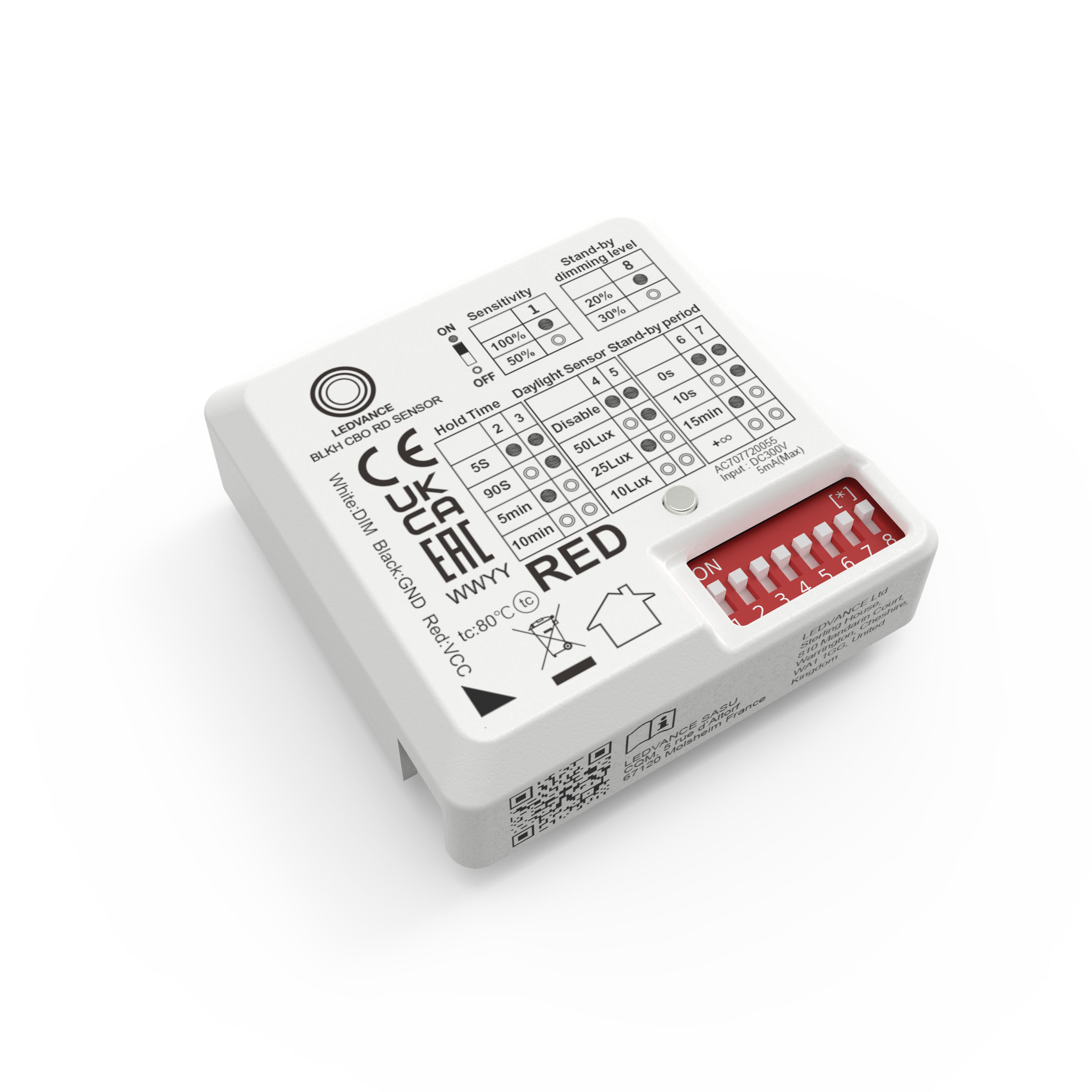

Product image: white background, diagonal
BLKH CBO RD SENSOR
BLKH CBO RD SENSOR

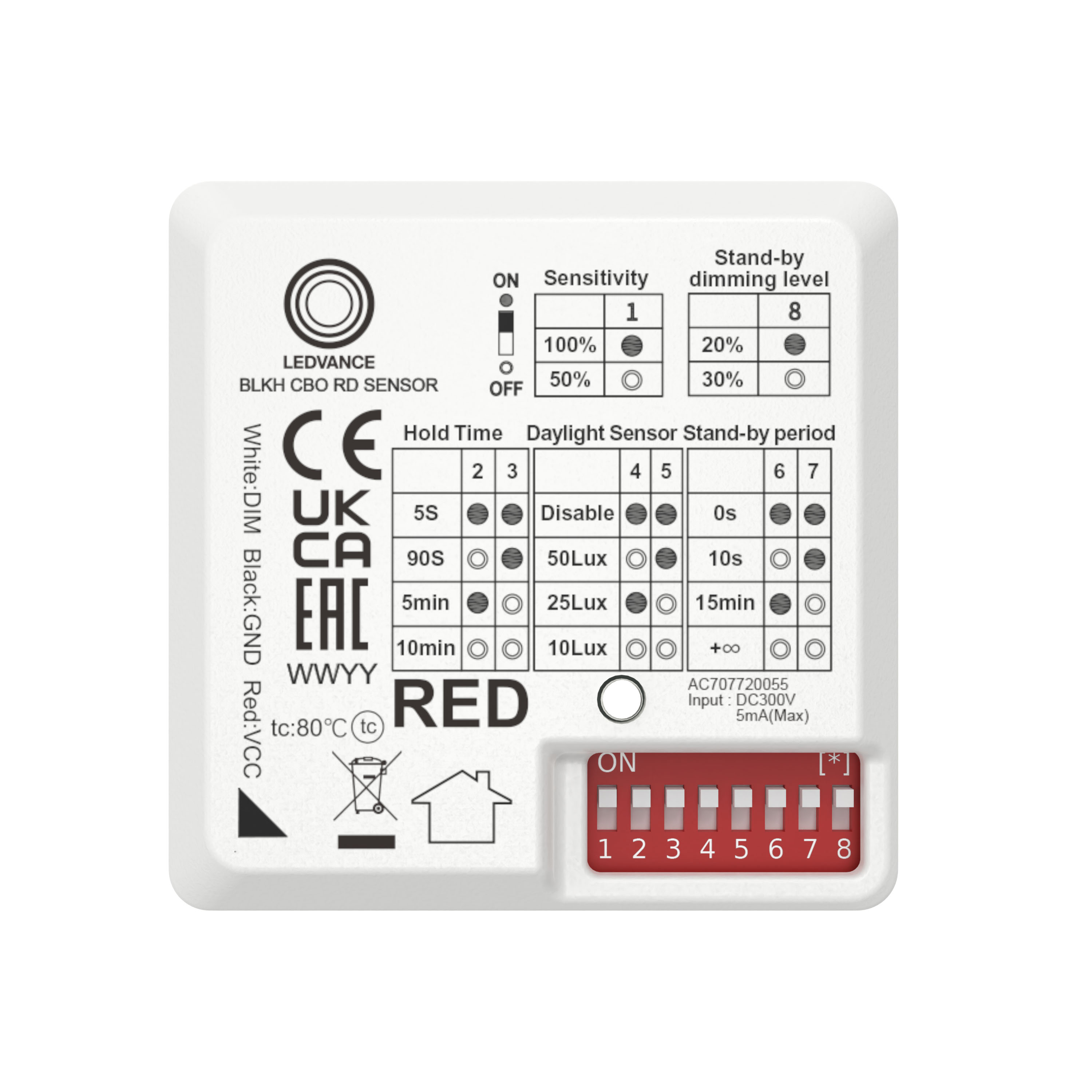

Product image: white background, horizontal
