SURFACE FLAT SENSOR

SENSOR SF FLAT LEADER FOLLOWER

GTIN: 4099854292897 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits

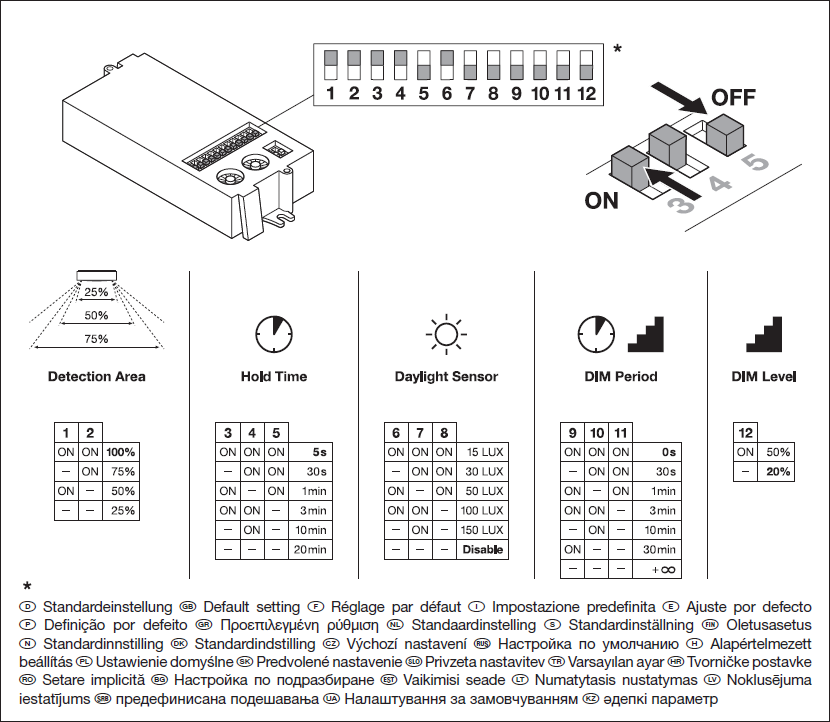

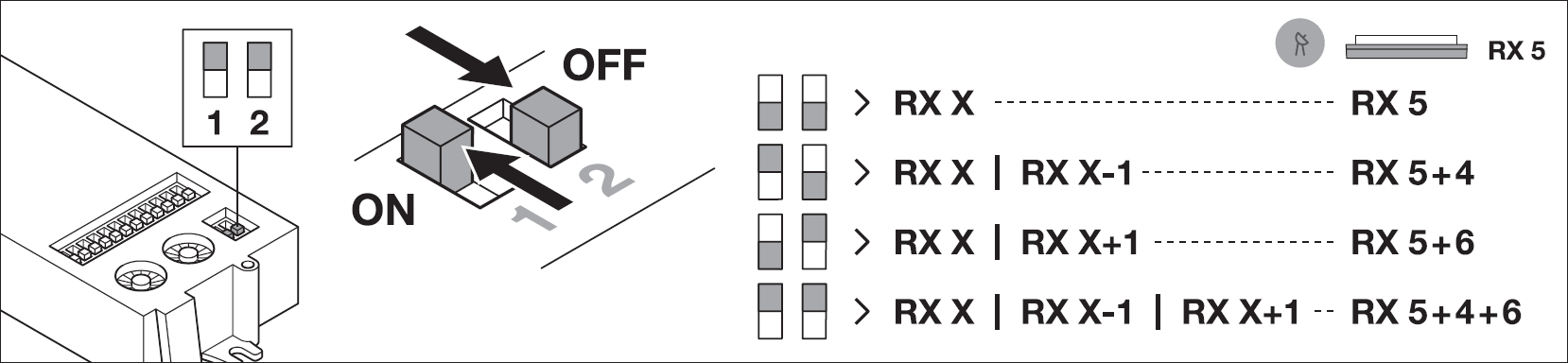

  • Multiple settings for sensor range, daylight detection, hold time and DIM-level /-period by DIP switches
  • Wireless (radio frequency) communication with other sensor luminaires in a distance of up to 15 m

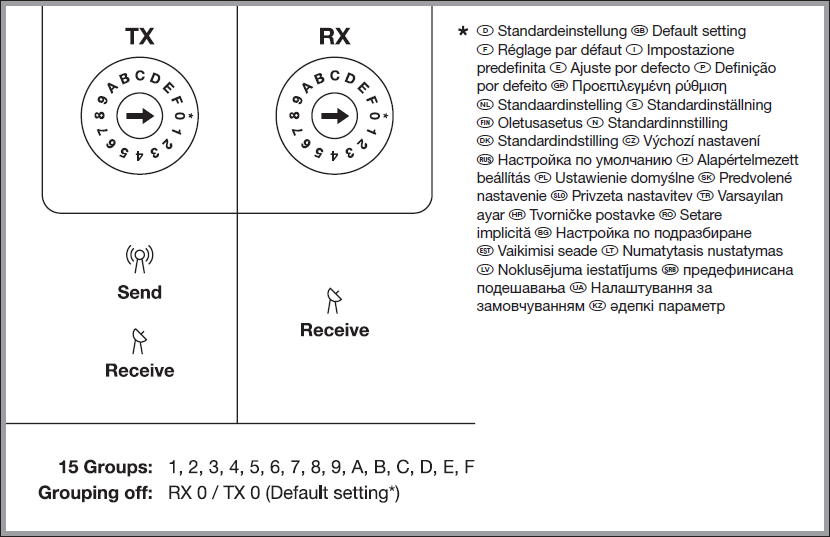

  • Assignment of up to 15 groups and cross-group interaction (leader/follower or swarm function)
  • Simple tool-free mounting in the luminaire
  • 5 years guarantee
Areas of application
  • Suitable for SURFACE FLAT / SURFACE FLAT SENSOR 19 W / 27 W
Product features
  • Type of protection: IP20
Equipment / Accessories
  • Connection wire for direct installation integrated
References / Links
Electrical data
Nominal voltage 12 V
Nominal current 75 mA
Dimensions & Weight
Length 90 mm
Height 35 mm
Width 39 mm
Product weight 32.00 g
Materials & Colors
Product color Transparent
Body material Plastic
Application & Mounting
Ambient temperature range -25…+60 °C
Temperature range at storage -40…+80 °C
Dimmable No
Replaceable light source No
Control gear
Nominal output current 75 mA
ECG lifetime 100000 h
Sensor
Type of sensor Motion, Light
Sensor technology Microwave
Sensor detection angle 120 °
Sensor controlled switching time 5 s…20 min

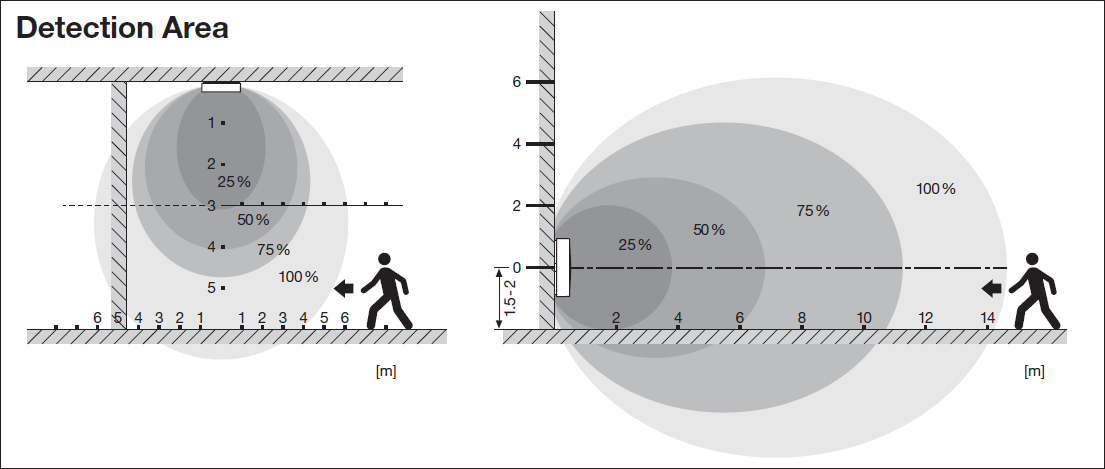

Detection range of motion sensor 3…7 m
Detection threshold of daylight sensor 15…150 lx
Certificates & Standards
Standards CE, CB, UKCA, EAC
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854292897 Folding box
1		 42 mm x 95 mm x 56 mm 53.00 g 0.22 dm³
4099854292903 Shipping box
10		 196 mm x 101 mm x 96 mm 680.00 g 1.90 dm³
User instruction / safety instructions
SEN SF FLAT LEADER FOLLOWER
PDF (3.7 MB)

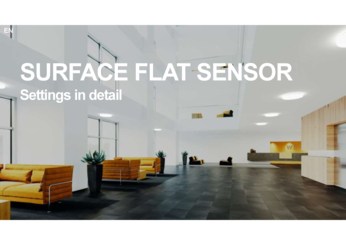

User instruction / safety instructions
SF FLAT
PDF (1.49 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
SEN SF FLAT LEADER FOLLOWER
PDF (261.69 KB)
Declarations of conformity
CE Declaration SEN SF
PDF (267.99 KB)

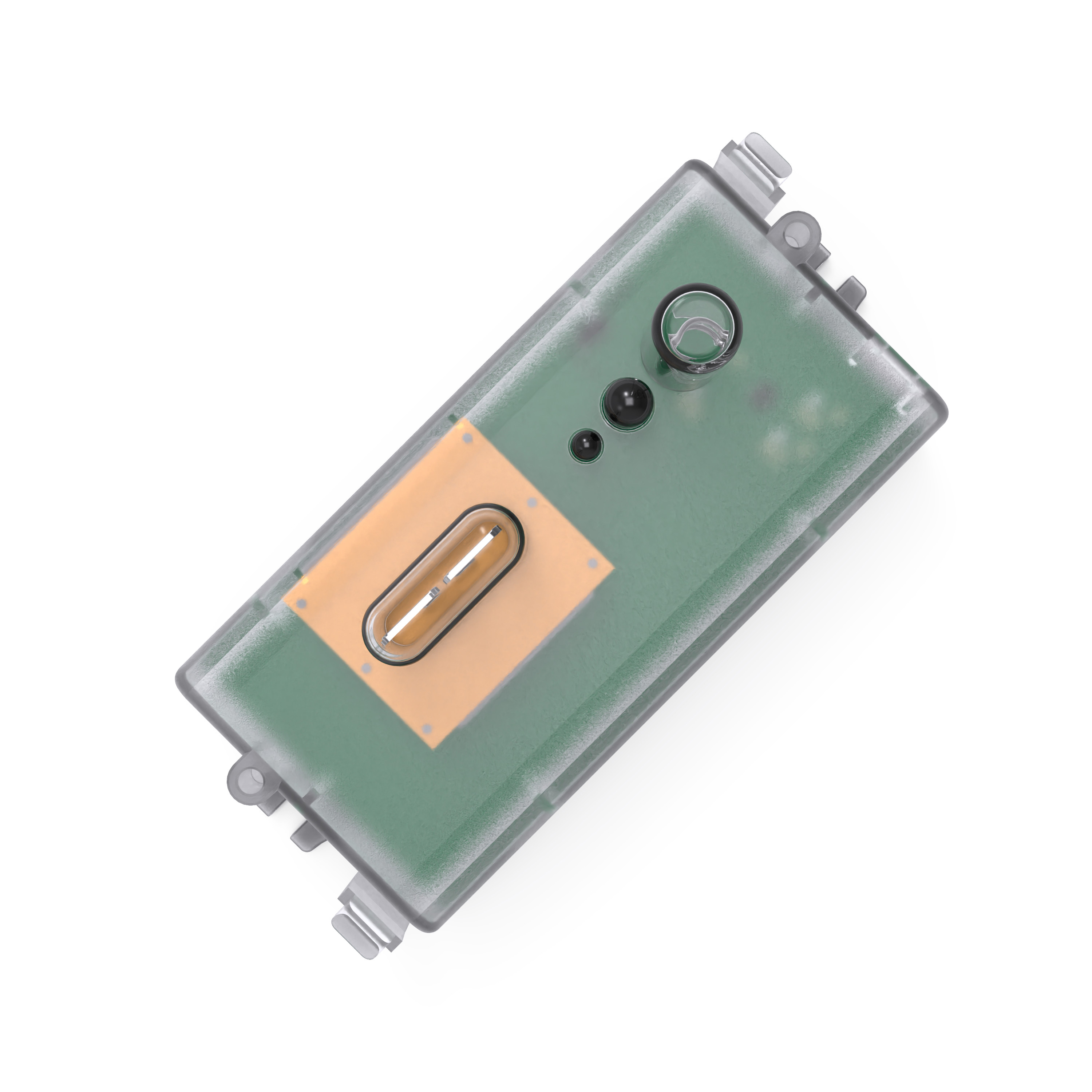

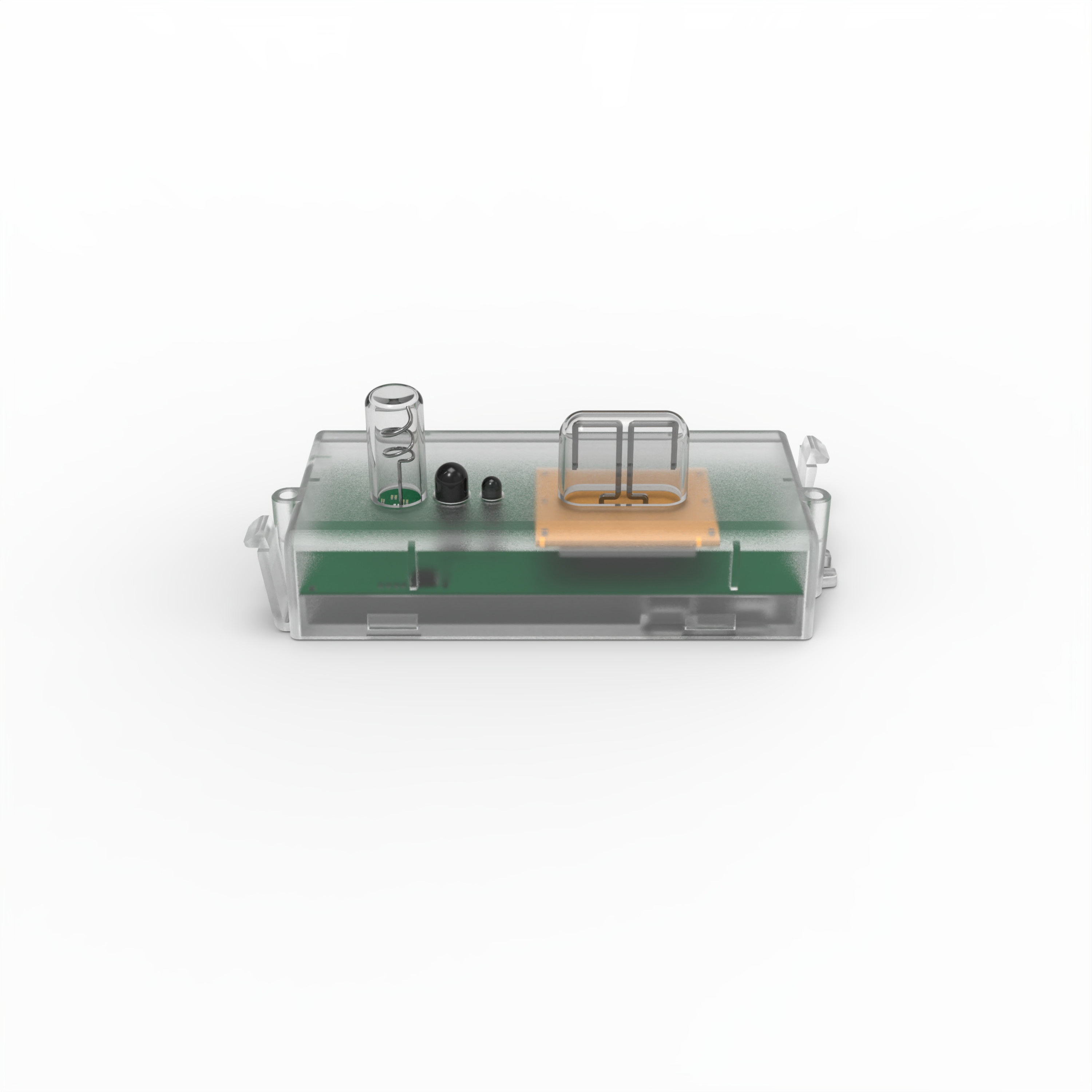

Product image: white background, diagonal
SEN SF FLAT LEADER FOLLOWER
JPG (1.49 MB)

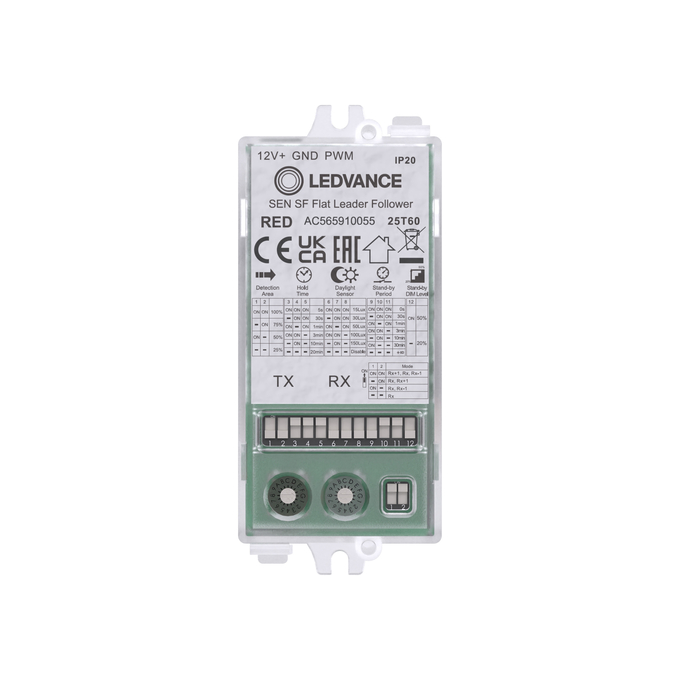

Product image: white background, horizontal
SEN SF FLAT LEADER FOLLOWER
JPEG (300.21 KB)
Product image: white background, upright
SEN SF FLAT LEADER FOLLOWER
JPG (712.32 KB)

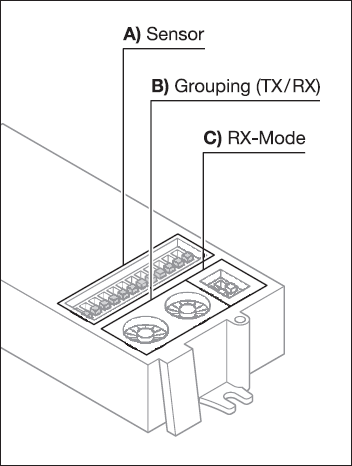

Product line drawing with letters
SEN SF FLAT LEADER FOLLOWER
SVG (19.76 KB)
Product line drawing with numbers
SEN SF FLAT LEADER FOLLOWER
SVG (22.51 KB)
Product line drawing - technical
SEN SF FLAT LEADER FOLLOWER
SVG (13.17 KB)

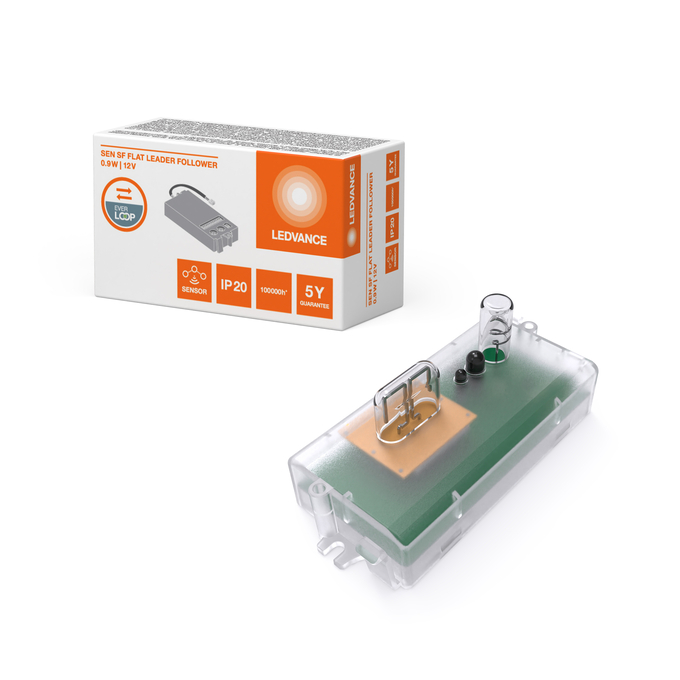

Combo Shot = Product Beauty Shot + Packaging Image
