SURFACE CIRCULAR 250

SF CIRC 250 V 13W 830 IP44

GTIN: 4058075617865 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Indoor luminaire with high luminous efficacy
  • Energy savings of up to 55 % compared to luminaires that use CFL
  • Easy and quick installation
  • Very homogenous light
  • 3 years guarantee
Areas of application
  • Corridors
  • Stairways
  • Bathrooms
  • Foyers
Product features
  • Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
  • Impact resistance: IK03
  • Metal housing, PMMA cover
  • Ambient temperature in operation: -20…+40 °C
  • Indoor use only, not suitable for outdoor use
Equipment / Accessories
  • Replacement cover optional available
References / Links
Electrical data
Nominal wattage 13.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 100 mA
Inrush current 6.7 A
Inrush current time Th50 228 µs
Max. number of luminaires per miniature circuit breaker B16 50
Max. number of luminaires per miniature circuit breaker C10 40
Max. number of luminaires per miniature circuit breaker C16 64
Power factor λ > 0.55
Total harmonic distortion < 120 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 920 lm
Luminous efficacy 70 lm/W
Color temperature 3000 K
Light color (designation) Warm white
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °
UGR ≤ 23
Dimensions & Weight
Diameter 250.00 mm
Height 91.00 mm
Product weight 340.00 g
Materials & Colors
Product color White
Housing color White
Body material Steel
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material PMMA
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Terminal, 3-pin
Type of protection IP44 1)
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
1) Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 22000 h 1)
Lifespan L90/B10 at 25 °C 15000 h
Number of switching cycles 50000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 145 mA
Certificates & Standards
Standards CE, CB, TÜV SÜD, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00010-V01.01-EN
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075617865 Folding box
1		 280 mm x 282 mm x 98 mm 308.00 g 7.74 dm³
4058075617872 Shipping box
5		 525 mm x 305 mm x 315 mm 2162.00 g 50.44 dm³
User instruction / safety instructions
SURFACE CIRCULAR SENSOR
PDF (4.06 MB)
Legal information
LS Insert SF Circular
PDF (1.3 MB)
Legal information
LS Insert SF Circular
PDF (1.3 MB)
Legal information
Legal insert
PDF (4.26 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
CE Declaration SF CIRC
PDF (256.51 KB)
EPD
ENVIRONMENTAL PRODUCT DECLARATION SF Circular
PDF (640.76 KB)
Product image: white background, diagonal
SF CIRCULAR 250
TIF (90.87 MB)
Product image: white background, horizontal
SF CIRCULAR 250
TIF (90.87 MB)
Product line drawing with letters
SF CIRCULAR 250
SVG (6.2 KB)
Product line drawing with numbers
SF CIRCULAR 250
SVG (10.36 KB)
Product line drawing, front, no dimensions
SF CIRCULAR 250 S
SVG (4.17 KB)

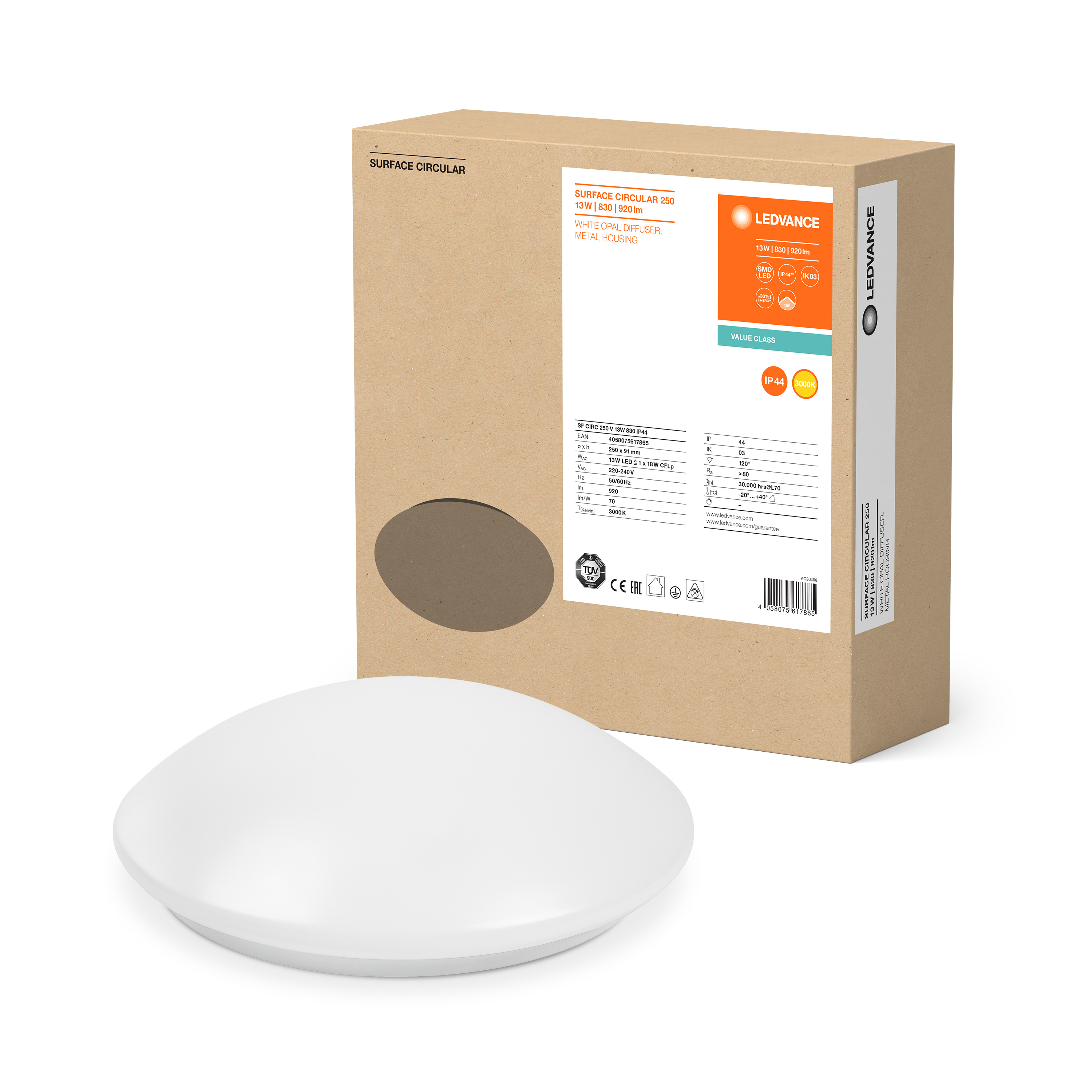

Combo Shot = Product Beauty Shot + Packaging Image
SC CIRC 250 V 13W 830 IP44
JPG (968.02 KB)

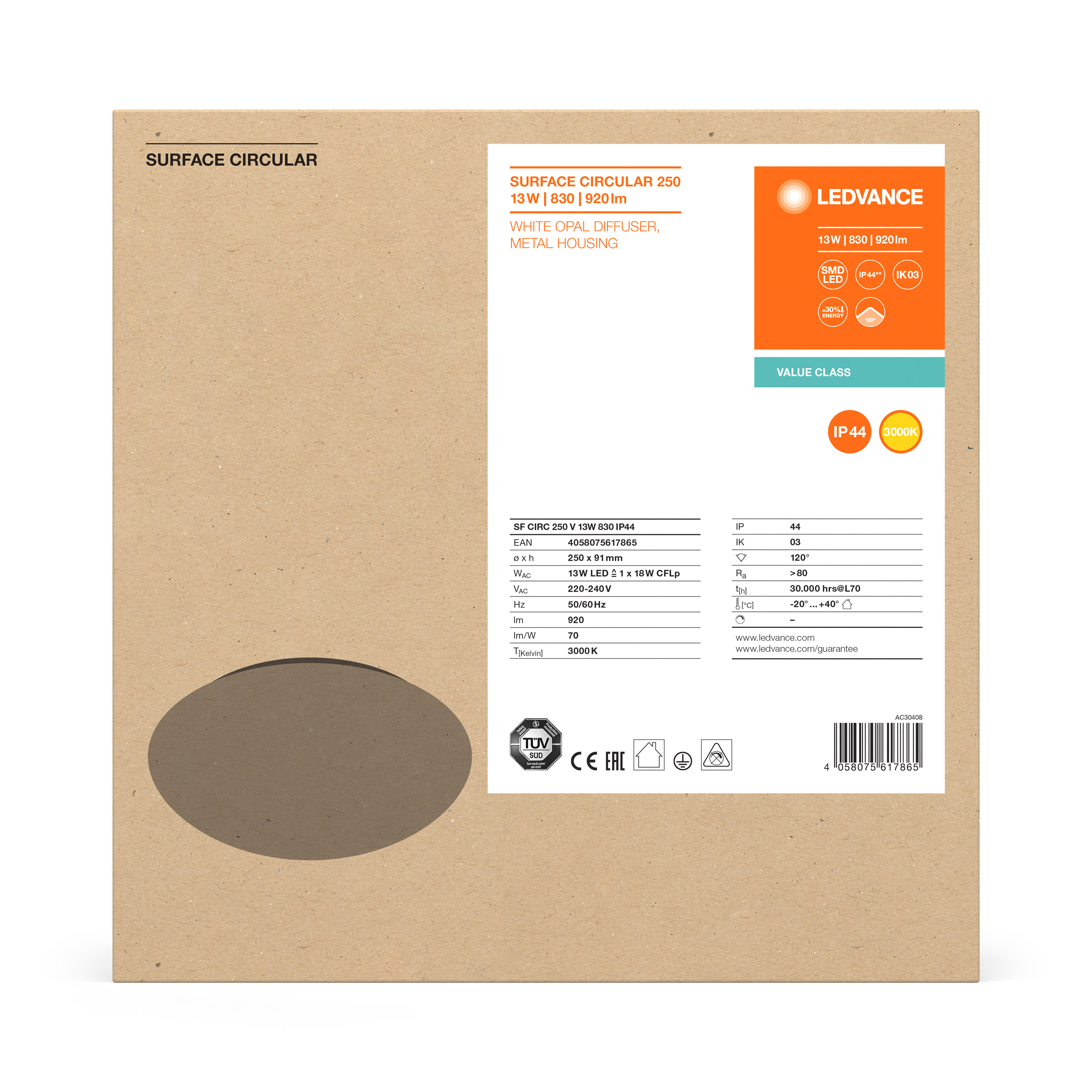

Packaging image, frontal
SC CIRC 250 V 13W 830 IP44
JPG (1.37 MB)

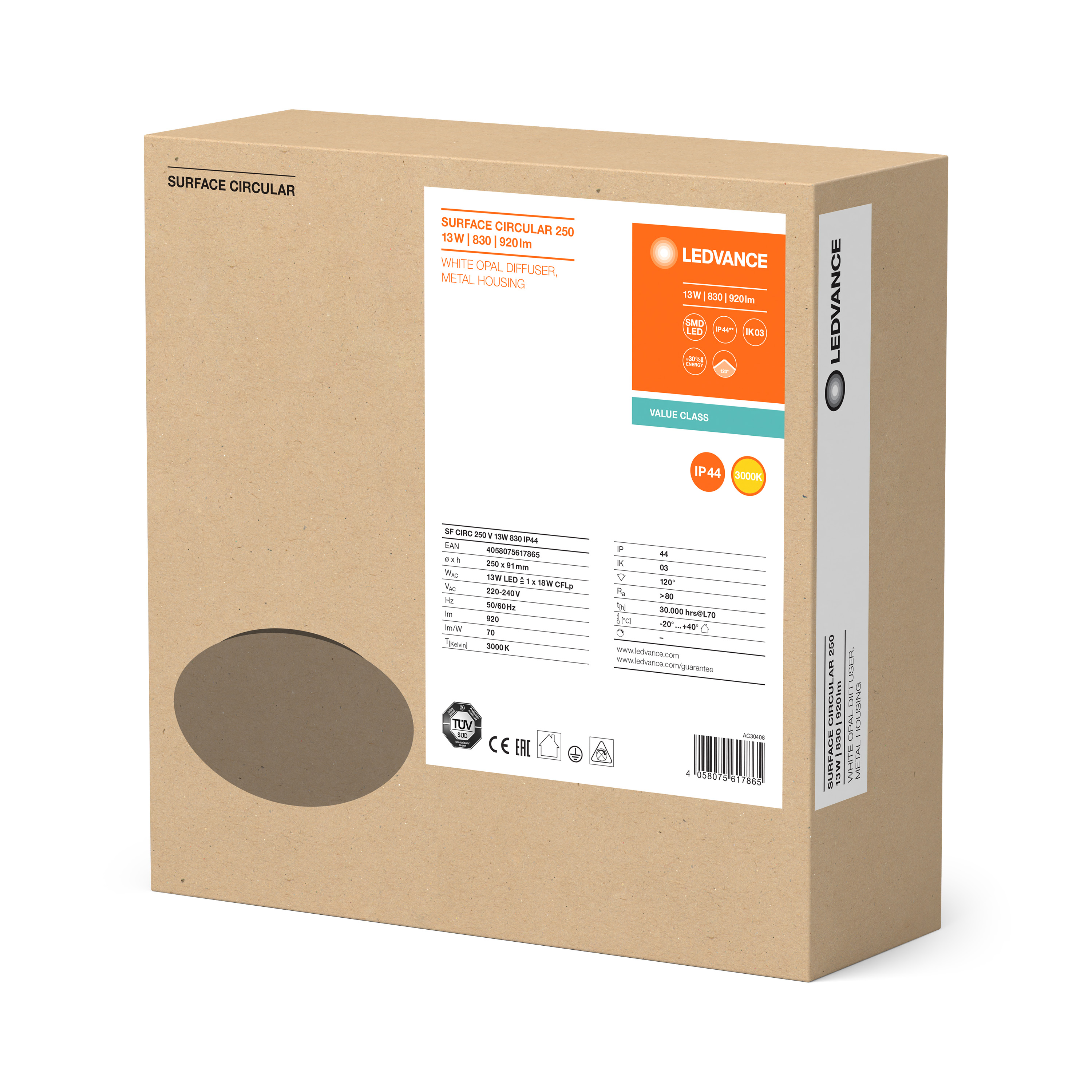

Packaging image, spacial
