SURFACE BULKHEAD 300 ON/OFF
SF BLKH 300 15W/3000K BK IP65
GTIN: 4058075375208
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
- Multiple mounting patterns for convenient installation
- Separate covers available for an aesthetic and functional product design
- 5 years guarantee
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Corridors, stairways, entrance areas
- Passages, underpasses
- Public areas
Product features
- UV-stabilized polycarbonate (PC) housing, PC-diffuser
- Impact resistance: IK10
- Push wire terminal for tool-free connection
- Through wiring possible
- Type of protection: IP65
- Luminous flux: up to 1,400 lm
- High luminous efficacy: up to 95 lm/W
- Lifetime (L70/B50) up to 50,000 h (at 25 °C)
- Ambient temperature in operation: -20…+40 °C
Equipment / Accessories
- Additional cover rings in different designs available
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 12.40 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 350 mA |
| Inrush current | 4.52 A |
| Inrush current time Th50 | 50 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 94 |
| Max. number of luminaires per miniature circuit breaker C10 | 75 |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 10 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 1400 lm |
| Luminous efficacy | 93 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 300.00 mm |
| Height | 70.00 mm |
| Product weight | 680.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Lifespan L90/B10 at 25 °C | 20000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, CB |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | - |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075375208 | Folding box 1 |
74 mm x 322 mm x 312 mm | 785.00 g | 7.43 dm³ |
| 4058075375215 | Shipping box 8 |
650 mm x 335 mm x 315 mm | 7001.00 g | 68.59 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
SF BLKH EYELID 300 BK | 4058075375543 |
|
SF BLKH RING 300 BK | 4058075399396 |
User instruction / safety instructions
SURFACE BULKHEAD
SURFACE BULKHEAD
Declarations of conformity
SF BULKHEAD
SF BULKHEAD

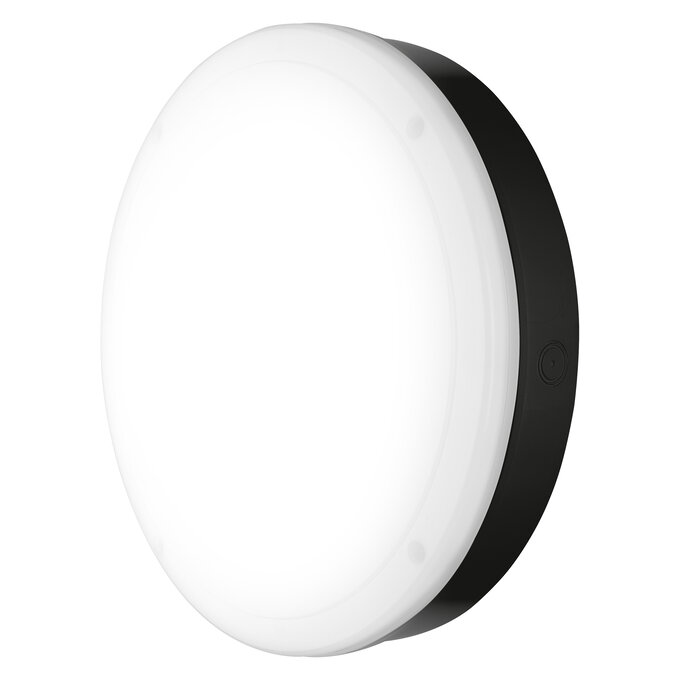

Product image: white background, diagonal
SF BLKH 300 15W BK IP65
SF BLKH 300 15W BK IP65

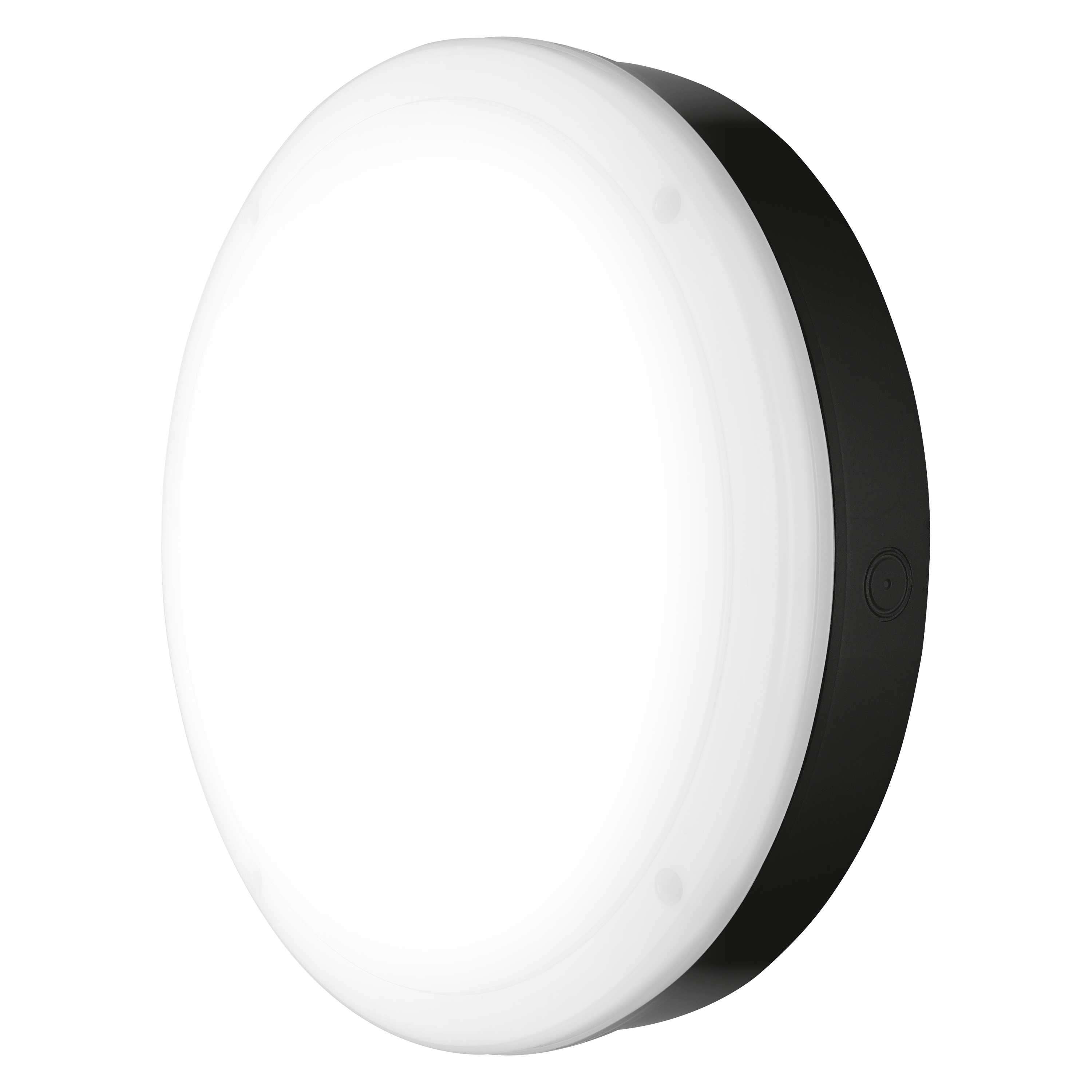

Product image: white background, diagonal
SF BLKH 300 15W BK IP65
SF BLKH 300 15W BK IP65
Product line drawing with letters
SF BLKH 300 15W IP65
SF BLKH 300 15W IP65
Product line drawing with numbers
SF BLKH 300 15W IP65
SF BLKH 300 15W IP65
Product line drawing - technical
SF BLKH 300 15W IP65
SF BLKH 300 15W IP65
Packaging image, spacial
Surface Bulkhead 300 BK 15W 830 MiCh
Surface Bulkhead 300 BK 15W 830 MiCh
Catalog info 3
Surface Bulkhead
Surface Bulkhead
IES file (IES)
SF BLKH 300 15W3000K BK IP65 LEDV IES
SF BLKH 300 15W3000K BK IP65 LEDV IES
LDT file (Eulumdat)
SF BLKH 300 15W3000K BK IP65 LEDV LDT
SF BLKH 300 15W3000K BK IP65 LEDV LDT

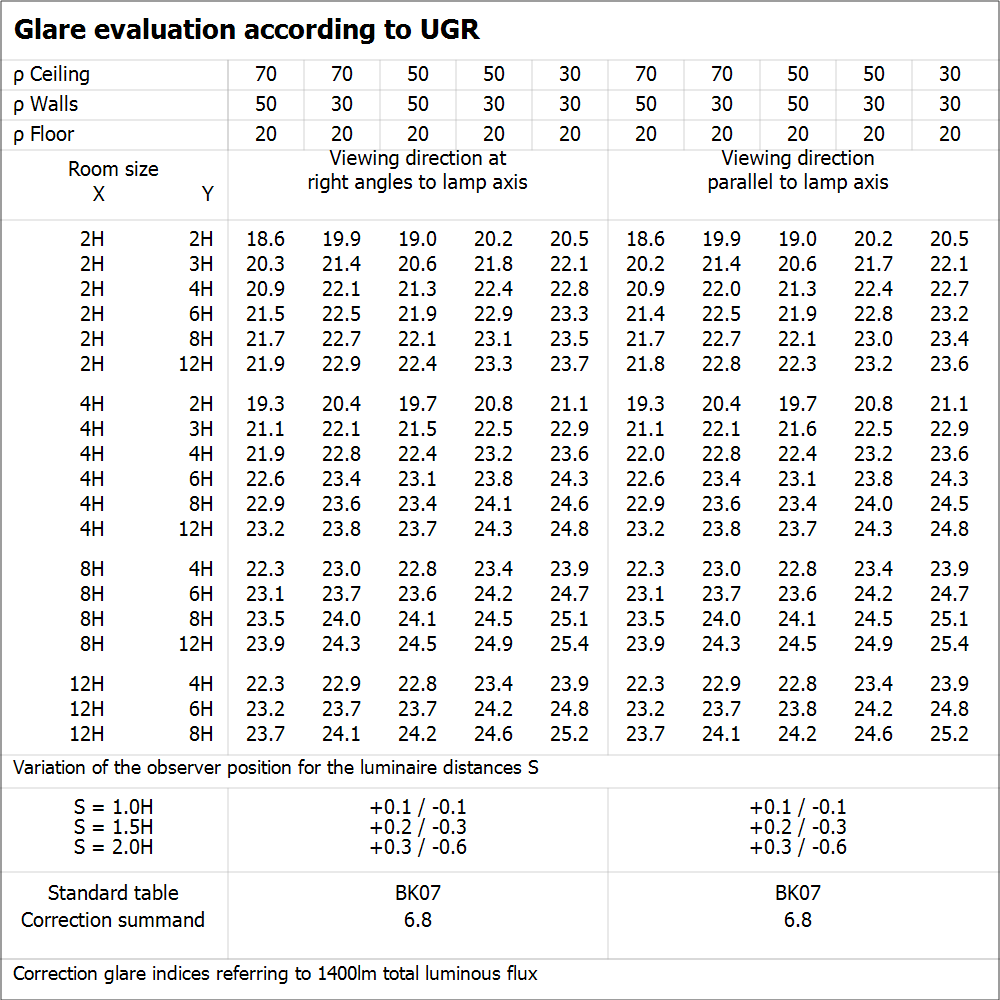

UGR file (UGR table)
