BULKHEAD ROUND

BLKH RD 300 P 17W CPS BK

GTIN: 4099854286124 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Flexible mounting patterns for convenient installation
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Suitable for use in emergency lighting systems (DC capable)
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • High luminous efficacy: > 120 lm/W for 3000 K and 4000 K
  • Impact resistance: IK10
  • Type of protection: IP65
  • Push wire terminal for tool-free connection
  • Through-wiring possible
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
  • Anti-theft screw included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Electrical data
Nominal wattage 17 W / 15 W / 12.5 W / 10 W 1)
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 75…65…55…45 mA
Inrush current 9.5 A
Inrush current time Th50 26.8 µs
Max. number of luminaires per miniature circuit breaker B16 79
Max. number of luminaires per miniature circuit breaker C10 63
Max. number of luminaires per miniature circuit breaker C16 101
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode Integrated LED driver
1) For possible options refer to lumen/power table image
Photometrical data
Luminous flux 2270 lm / 1990 lm / 1700 lm / 1400 lm 1)
Luminous efficacy 132 lm/W / 136 lm/W / 138 lm/W 1)
Color temperature 3000 K / 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °
1) For possible options refer to lumen/power table image
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
17 W 4000 K 2270 lm 132 lm/W
17 W 3000 K 2140 lm 125 lm/W
15 W 4000 K 1990 lm 132 lm/W
15 W 3000 K 1880 lm 125 lm/W
12.5 W 4000 K 1700 lm 136 lm/W
12.5 W 3000 K 1600 lm 128 lm/W
10 W 4000 K 1400 lm 138 lm/W
10 W 3000 K 1310 lm 130 lm/W
Dimensions & Weight
Diameter 312.00 mm
Height 73.00 mm
Product weight 900.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal
Type of protection IP65
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Outdoor
With light source Yes
Replaceable light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 55000 h 1)
Lifespan L90/B10 at 25 °C 40000 h
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 370…320…270…220 mA
ECG - Output ripple current < 5 %
Emergency lighting
Type of emergency operation test None
Certificates & Standards
Standards CE, CB, UKCA, EAC, ENEC, EL
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00029-V01.01-EN
Replaceable light source (EPREL) Only by an expert
Additional product data
Added function EVERLOOP, MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854286124 Folding box
1		 77 mm x 317 mm x 317 mm 1034.00 g 7.74 dm³
4099854286131 Shipping box
8		 650 mm x 330 mm x 335 mm 8932.00 g 71.86 dm³
User instruction / safety instructions
BLKH RD GEN2
PDF (4.52 MB)
User instruction / safety instructions
ECOCLASS SURFACEMOUNTCLIPS4X10X 4EUELEDV
PDF (435.15 KB)
Legal information
Light Source Insert G11233325
PDF (2.24 MB)
Legal information
Legal Insert G11234785
PDF (887.55 KB)
Legal information
Safety Insert G11234787
PDF (283.81 KB)
Declarations of conformity
BLKH RD/LISOEV
PDF (253.73 KB)
EPD
EPD EN BULKHEAD ROUND
PDF (644.24 KB)
Product image: white background, diagonal
BLKH RD 250/300 P 10/16W BK
JPG (797.6 KB)
Product image: white background, horizontal
BLKH RD 250/300 P 10/16W BK
JPG (812.68 KB)
Product image: white background, spacial
BLKH RD BK
JPG (797.6 KB)
Product image: white background, internal view
BLKH RD 300 P 17W
PNG (2.39 MB)
Product image: white background, internal view
Bulkhead Round Everloop
PNG (5.77 MB)
Product image: white background, explosion
Bulkhead Round Eveloop
PNG (7.73 MB)
Product line drawing with letters
BLKH RD/SEN/DA/EM 300 P 16W
JPG (833.73 KB)
Product line drawing with numbers
BLKH RD/SEN/DA/EM 300 P 16W
JPG (840.25 KB)
Product line drawing - technical
BLKH RD/SEN/DA/EM 300 P 16W
JPG (813.43 KB)

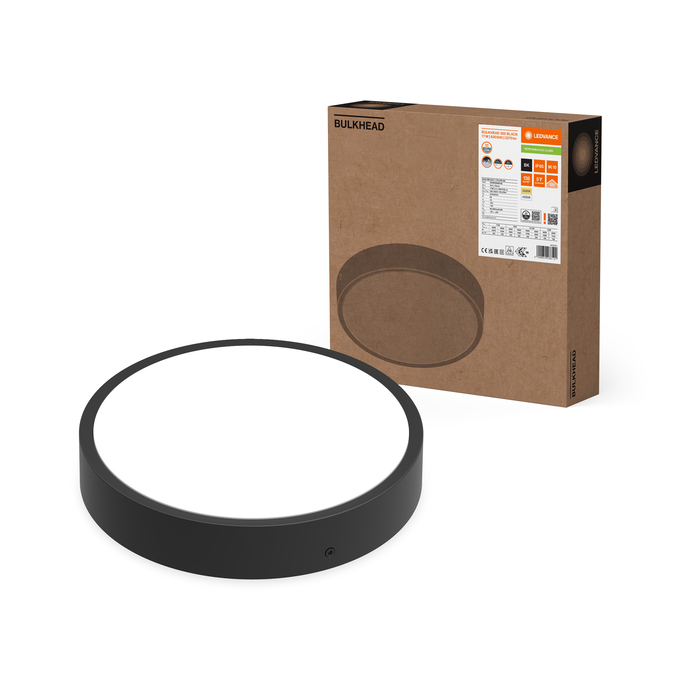

Combo Shot = Product Beauty Shot + Packaging Image
BLKH RD 300 P 17W CPS BK
JPG (1.16 MB)
Packaging image, frontal
BLKH RD 300 P 17W CPS BK
JPG (1.83 MB)
Packaging image, spacial
BLKH RD 300 P 17W CPS BK
JPG (1.84 MB)

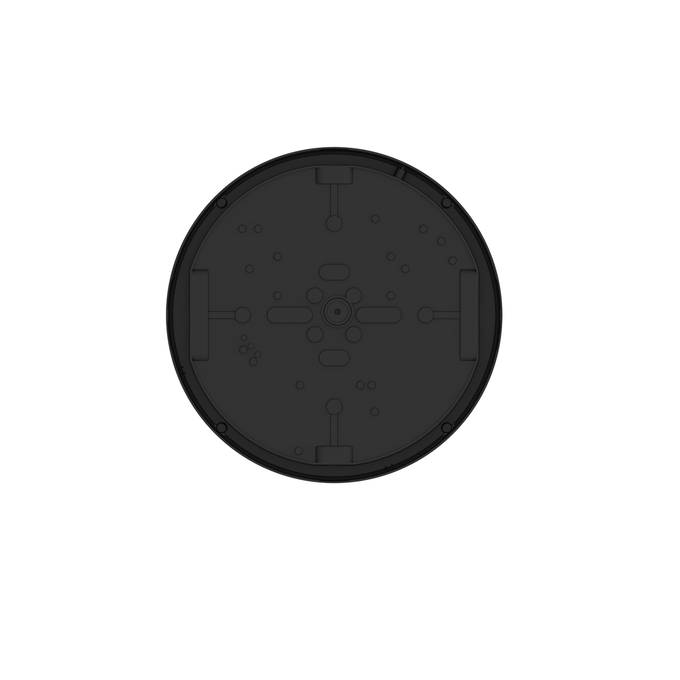

Catalog info 1
BLKH RD GEN2
PNG (33.9 KB)
Catalog info 3
BLKH RD GEN2
PNG (34 KB)
IES file (IES)
BLKH 300 P 17W 830 2140lm
IES (14.42 KB)
IES file (IES)
BLKH 300 P 17W 840 2270lm
IES (14.42 KB)
IES files (IES, additional)
BLKH 300 P 10W 830 1310lm
IES (14.42 KB)
IES files (IES, additional)
BLKH 300 P 10W 840 1400lm
IES (14.42 KB)
IES files (IES, additional)
BLKH 300 P 12.5W 830 1600lm
IES (14.43 KB)
IES files (IES, additional)
BLKH 300 P 12.5W 840 1700lm
IES (14.43 KB)
IES files (IES, additional)
BLKH 300 P 15W 830 1880lm
IES (14.42 KB)
IES files (IES, additional)
BLKH 300 P 15W 840 1990lm
IES (14.42 KB)
LDT file (Eulumdat)
BLKH 300 P 17W 830 2140lm
LDT (10.56 KB)
LDT file (Eulumdat)
BLKH 300 P 17W 840 2270lm
LDT (10.56 KB)
LDT files (Eulumdat, additional)
BLKH 300 P 10W 830 1310lm
LDT (10.56 KB)
LDT files (Eulumdat, additional)
BLKH 300 P 10W 840 1400lm
LDT (10.56 KB)
LDT files (Eulumdat, additional)
BLKH 300 P 12.5W 830 1600lm
LDT (10.56 KB)
LDT files (Eulumdat, additional)
BLKH 300 P 12.5W 840 1700lm
LDT (10.56 KB)
LDT files (Eulumdat, additional)
BLKH 300 P 15W 830 1880lm
LDT (10.56 KB)
LDT files (Eulumdat, additional)
BLKH 300 P 15W 840 1990lm
LDT (10.56 KB)
ULD file (DIALux)
BLKH RD 300 P 17W CPS BK
ULD (149.5 KB)
ROLF file (RELUX)
BLKH RD 300 P 17W CPS BK
ROLF (163.86 KB)
UGR file (UGR table)
BLKH 300 P 16W 830 2000lm
PNG (56.12 KB)
UGR file (UGR table)
BLKH 300 P 16W 840 2000lm
PNG (55.97 KB)
UGR file (UGR table)
BLKH 300 P 10W 830 1310lm
PNG (56.07 KB)
UGR file (UGR table)
BLKH 300 P 10W 840 1400lm
PNG (56.02 KB)
UGR file (UGR table)
BLKH 300 P 12.5W 830 1600lm
PNG (56.26 KB)
UGR file (UGR table)
BLKH 300 P 12.5W 840 1700lm
PNG (55.65 KB)
UGR file (UGR table)
BLKH 300 P 15W 830 1880lm
PNG (55.94 KB)
UGR file (UGR table)
BLKH 300 P 15W 840 1990lm
PNG (56.26 KB)
UGR file (UGR table)
BLKH 300 P 17W 830 2140lm
PNG (56.13 KB)
UGR file (UGR table)
BLKH 300 P 17W 840 2270lm
PNG (56.07 KB)
Light distribution curve type cone
BLKH 300 P 16W 830 2000lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 16W 840 2000lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 10W 830 1310lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 10W 840 1400lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 12.5W 830 1600lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 12.5W 840 1700lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 15W 830 1880lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 15W 840 1990lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 17W 830 2140lm
SVG (11.42 KB)
Light distribution curve type cone
BLKH 300 P 17W 840 2270lm
SVG (11.42 KB)
Light distribution curve type polar
BLKH 300 P 16W 830 2000lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 16W 840 2000lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 10W 830 1310lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 10W 840 1400lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 12.5W 830 1600lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 12.5W 840 1700lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 15W 830 1880lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 15W 840 1990lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 17W 830 2140lm
SVG (17.4 KB)
Light distribution curve type polar
BLKH 300 P 17W 840 2270lm
SVG (17.4 KB)
BIM Revit 3D
Bulkhead Round
ZIP (1.86 MB)
CAD STEP 3D
BLKH G2 300
STEP (293.27 KB)
Tender documents
BULKHEAD ROUND 300 P 17W CPS BK-EN
TXT (1.61 KB)

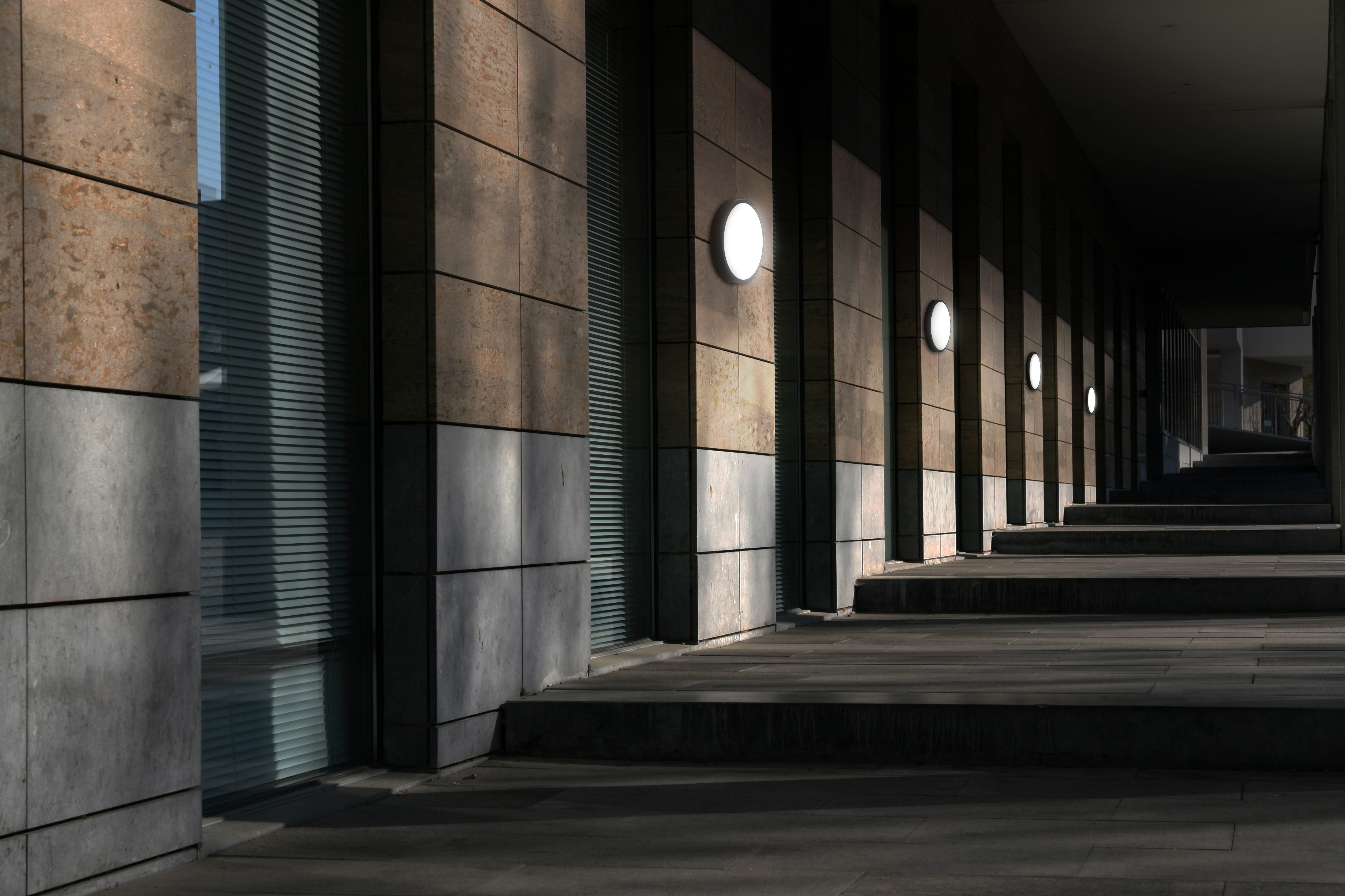

Application pictures Getty
