BULKHEAD ROUND DALI

BLKH RD DA 300 P 15.5W 830 BK

GTIN: 4099854286568 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions

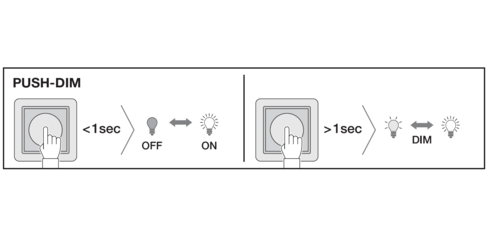

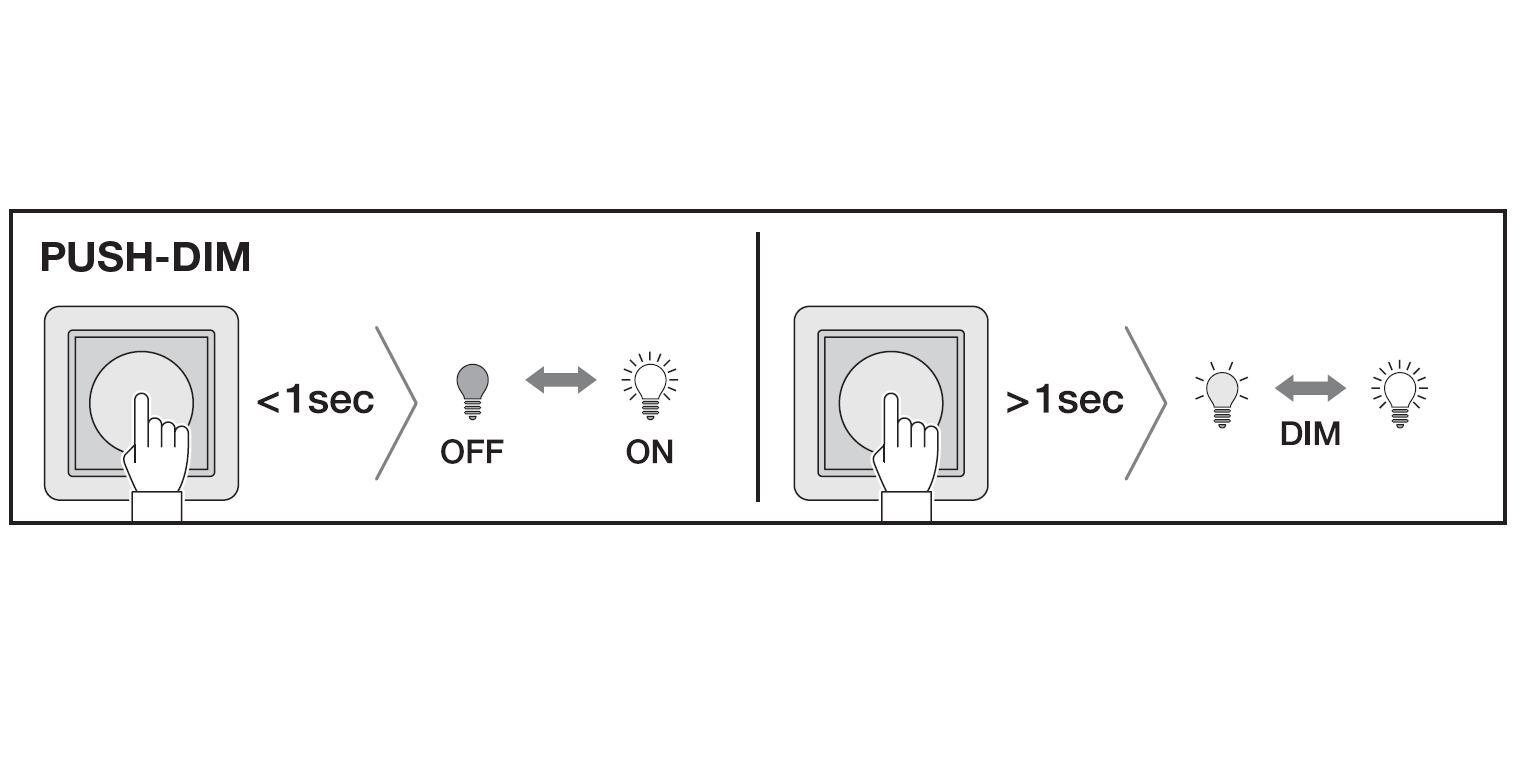

  • Push DIM application for easy control
  • High-quality dimming of 1…100 %
  • Flexible mounting patterns for convenient installation
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
  • Separate decor element available for an aesthetic and functional product design
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairways, entrance areas
  • Passages, underpasses
  • Public areas
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • UV-stabilized polycarbonate (PC) housing, PC-diffuser
  • Impact resistance: IK10
  • Type of protection: IP65
  • Push wire terminal for tool-free connection
  • Through-wiring possible
Equipment / Accessories
  • Additional cover rings in different designs available
  • Mounting screws and dowels included
  • Anti-theft screw included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Electrical data
Nominal wattage 15.50 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 69 mA
Inrush current 5.13 A
Inrush current time Th50 26 µs
Max. number of luminaires per miniature circuit breaker B16 146
Max. number of luminaires per miniature circuit breaker C10 115
Max. number of luminaires per miniature circuit breaker C16 185
Power factor λ > 0.90
Total harmonic distortion < 25 %
Protection class II
Surge capability (L-N) 1000 V
Operating mode Integrated LED driver
Photometrical data
Luminous flux 2020 lm
Luminous efficacy 130 lm/W
Color temperature 3000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Diameter 312.00 mm
Height 73.00 mm
Product weight 978.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C

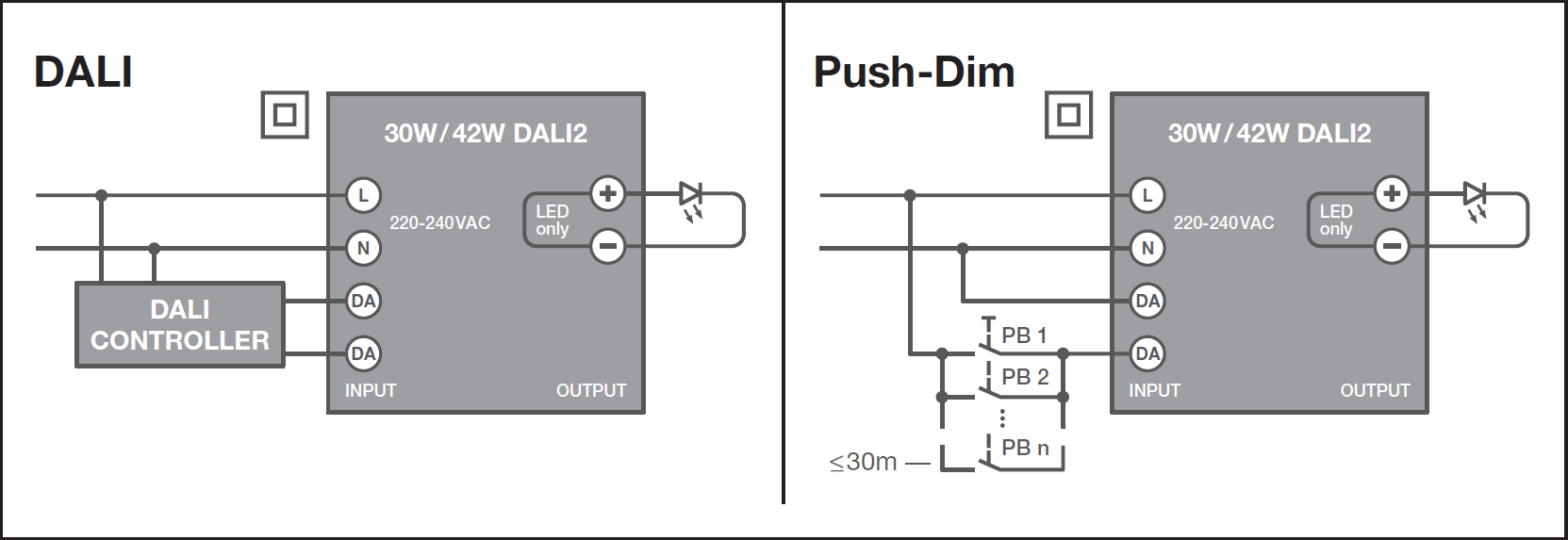

Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP65
Protection class IK (shock resistance) IK10
Dimmable Yes
Type of dimming DALI2
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Outdoor
With light source Yes
Replaceable light source Yes
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
Lifespan
Lifespan L70/B50 at 25 °C 99000 h 1)
Lifespan L80/B10 at 25 °C 72000 h 1)
Lifespan L90/B10 at 25 °C 46000 h
Number of switching cycles 60000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 350 mA
ECG - Output ripple current < 5 %
BATTERY
Nominal capacity of battery 4500 mAh
Emergency lighting
Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None
Wattage in emergency operation mode 2.2 W
Luminous flux in emergency operation mode 300 lm
Certificates & Standards
Standards CE, CB, UKCA, EAC, ENEC, EL
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Only by an expert
Additional product data
Product remark Available from June 2025
Added function EVERLOOP, VIVARES
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854286568 Folding box
1
77 mm x 317 mm x 317 mm 1155.00 g 7.74 dm³
4099854286575 Shipping box
8
650 mm x 330 mm x 335 mm 9900.00 g 71.86 dm³
