SURFACE CIRCULAR 500 PS
SF CIRC 500 V 42W 830 IP44 PS
GTIN: 4099854042119
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly versatile due to selectable power steps (Power Select - PS) on the driver
- Indoor luminaire with high luminous efficacy
- Energy savings of up to 55 % compared to luminaires that use CFL
- Easy and quick installation
- Very homogenous light
- 5 years guarantee
Areas of application
- Corridors
- Stairways
- Bathrooms
- Foyers
Product features
- Type of protection: IP44 (ceiling mounting), IP20 (wall mounting)
- Extended lifetime (L70/B10): up to 50,000 h (at 25°C)
- Impact resistance: IK03
- Metal housing, PMMA cover
- Ambient temperature in operation: -20…+40 °C
- Indoor use only, not suitable for outdoor use
Equipment / Accessories
- Replacement cover optional available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 42 W / 30 W / 19 W 1) |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180.000 mA |
| Inrush current | 23.2 A |
| Inrush current time Th50 | 280 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 11 |
| Max. number of luminaires per miniature circuit breaker C10 | 10 |
| Max. number of luminaires per miniature circuit breaker C16 | 17 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 30 % |
| Protection class | I |
| Operating mode | Integrated LED driver |

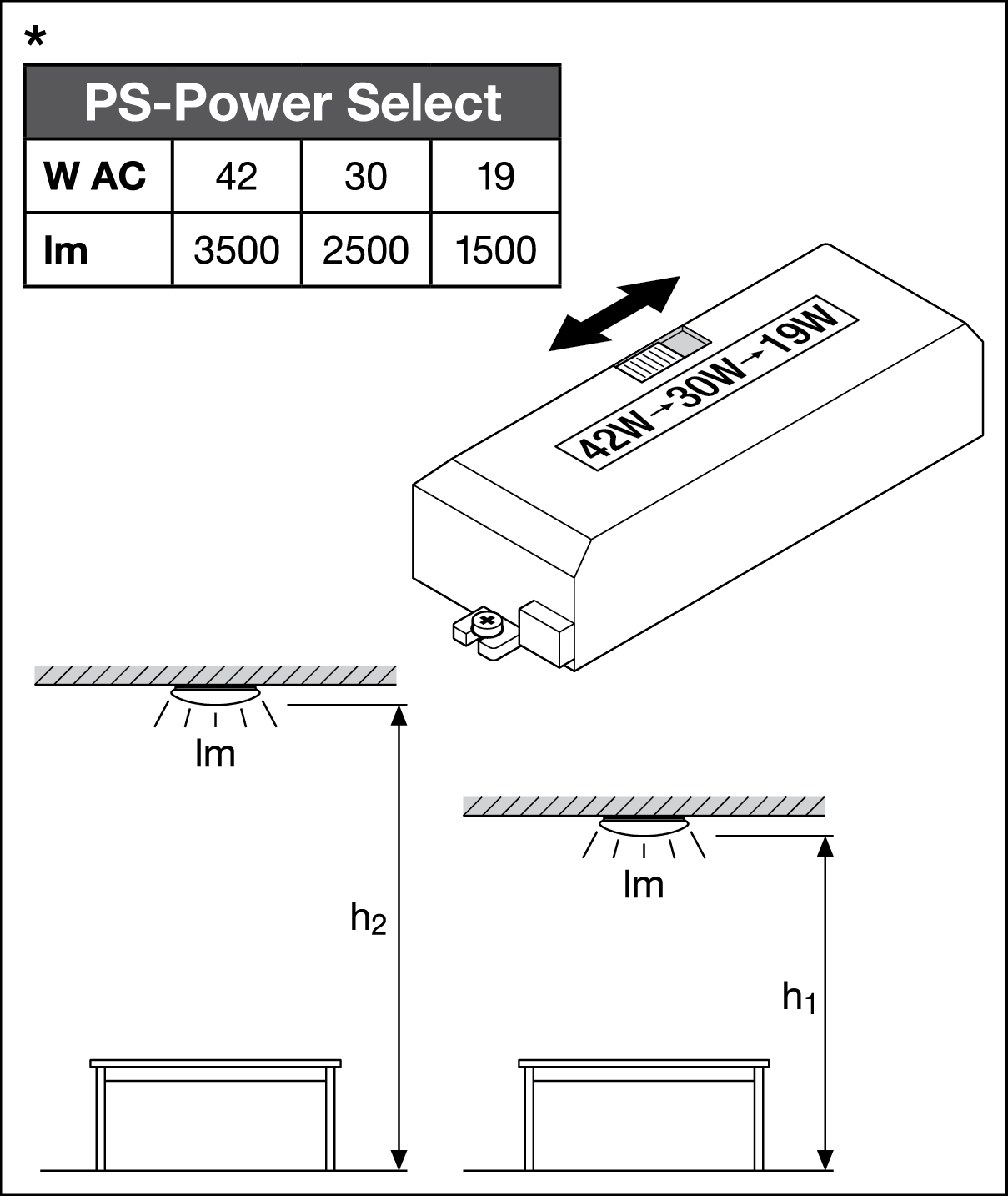

1) For possible options refer to lumen/power table image
Photometrical data
| Luminous flux | 3500 lm / 2500 lm / 1500 lm 1) |
| Luminous efficacy | 83 lm/W / 78 lm/W 1) |
| Color temperature | 3000 K |
| Light color (designation) | Warm white |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
1) For possible options refer to lumen/power table image
Dimensions & Weight
| Diameter | 500.00 mm |
| Height | 105.00 mm |
| Product weight | 1150.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-pin |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 40000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 1000 mA |
| ECG - Output ripple current | < 20 % |
Certificates & Standards
| Standards | CE, CB, TÜV, UKCA, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| EPD | LEDV-00022-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854042119 | Folding box 1 |
112 mm x 527 mm x 534 mm | 1622.00 g | 31.52 dm³ |
| 4099854042126 | Shipping box 5 |
582 mm x 547 mm x 564 mm | 10149.00 g | 179.55 dm³ |
User instruction / safety instructions
SF CIRC 500
SF CIRC 500
User instruction / safety instructions
ECOCLASS SURFACEMOUNTCLIPS4X10X 4EUELEDV
ECOCLASS SURFACEMOUNTCLIPS4X10X 4EUELEDV
Legal information
LSI SF CIRC 500 42W IP44 PS
LSI SF CIRC 500 42W IP44 PS
Legal information
Legal insert
Legal insert
Declarations of conformity
SF CIRC 500 V
SF CIRC 500 V
EPD
EPD EN SURFACE CIRCULAR 500 SENSOR
EPD EN SURFACE CIRCULAR 500 SENSOR
Product image: white background, diagonal
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS

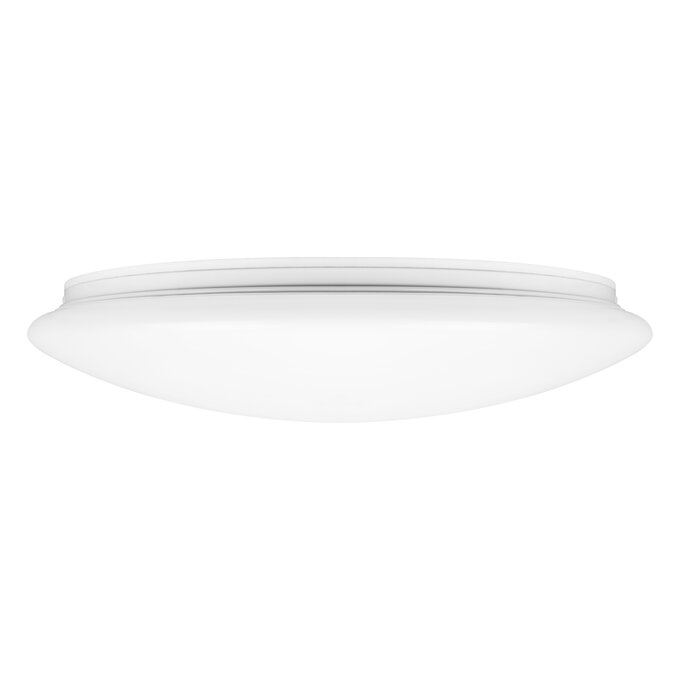

Product image: white background, horizontal
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS

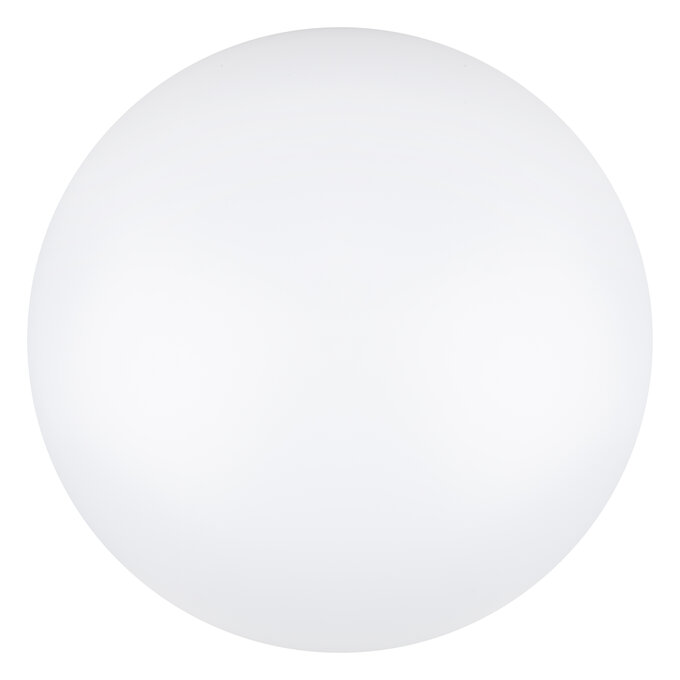

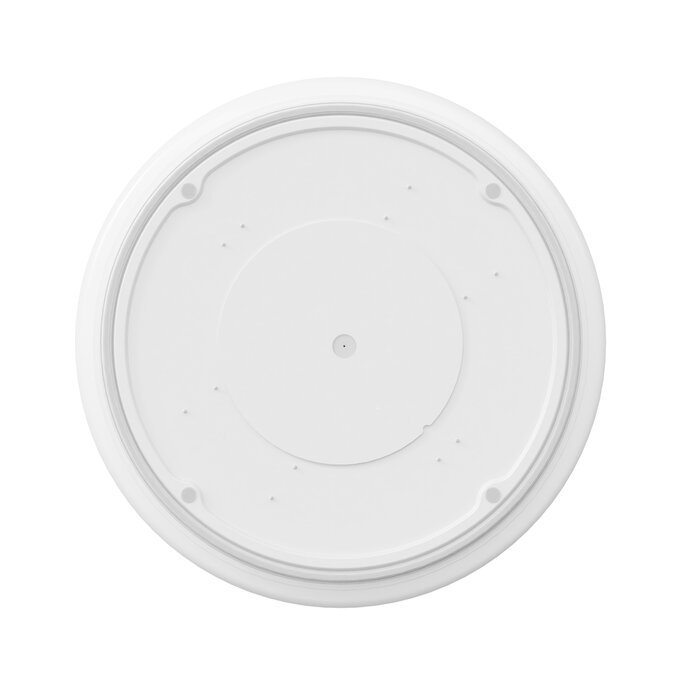

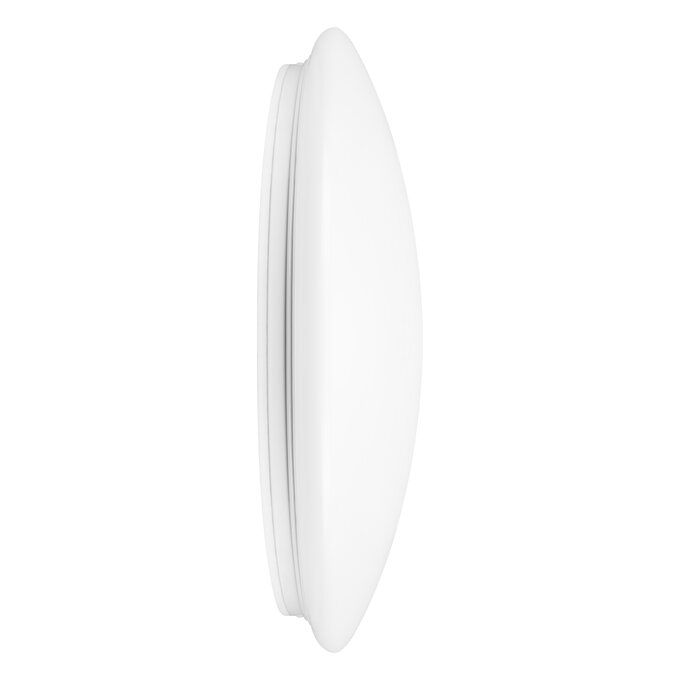

Product image: white background, upright
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS

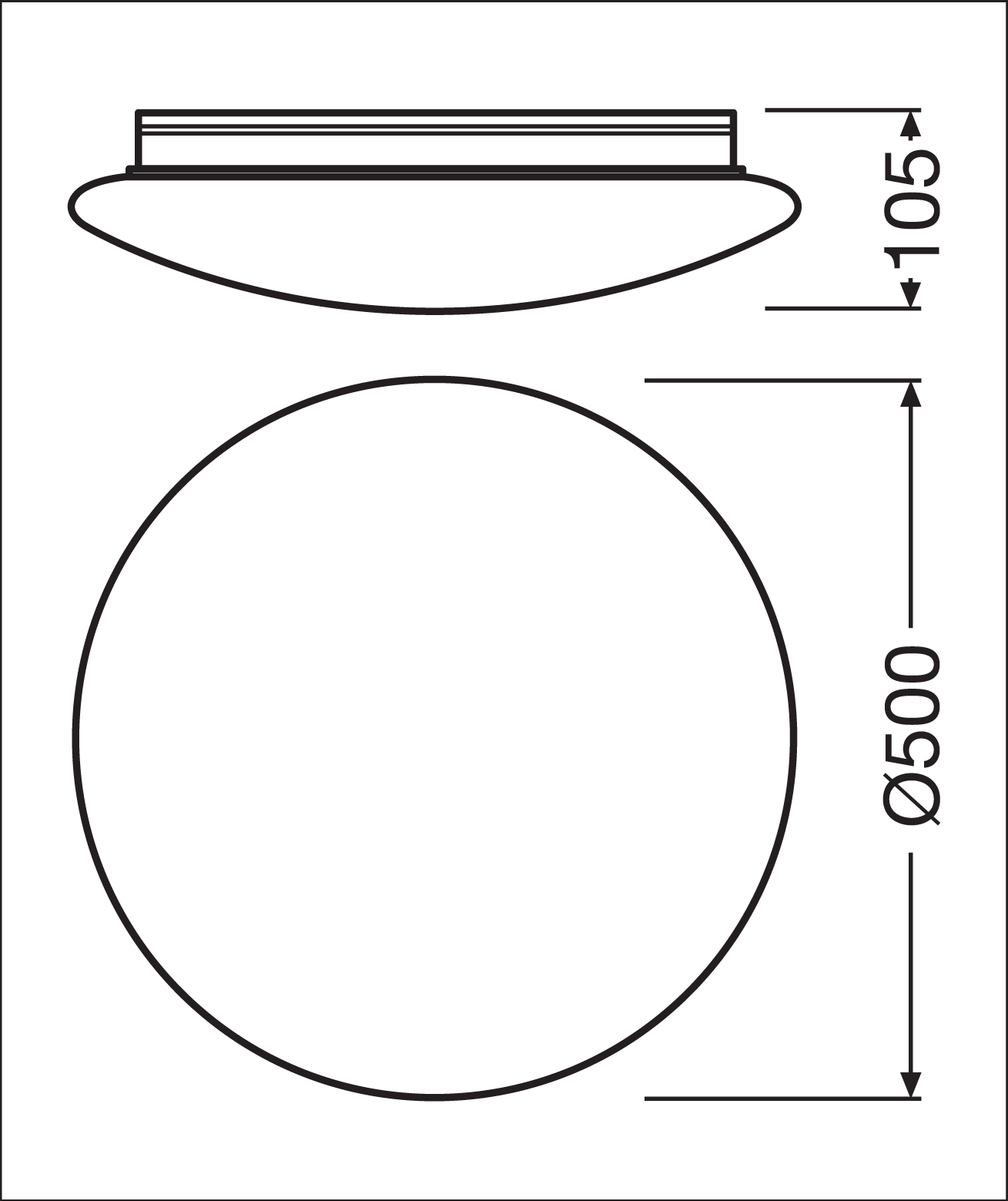

Product line drawing with letters
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS
Product line drawing with numbers
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS
Product line drawing, front, no dimensions
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS
SF CIRC 500 V 42W IP44 PS and SF CIRC 500 SEN V 42W IP44 PS

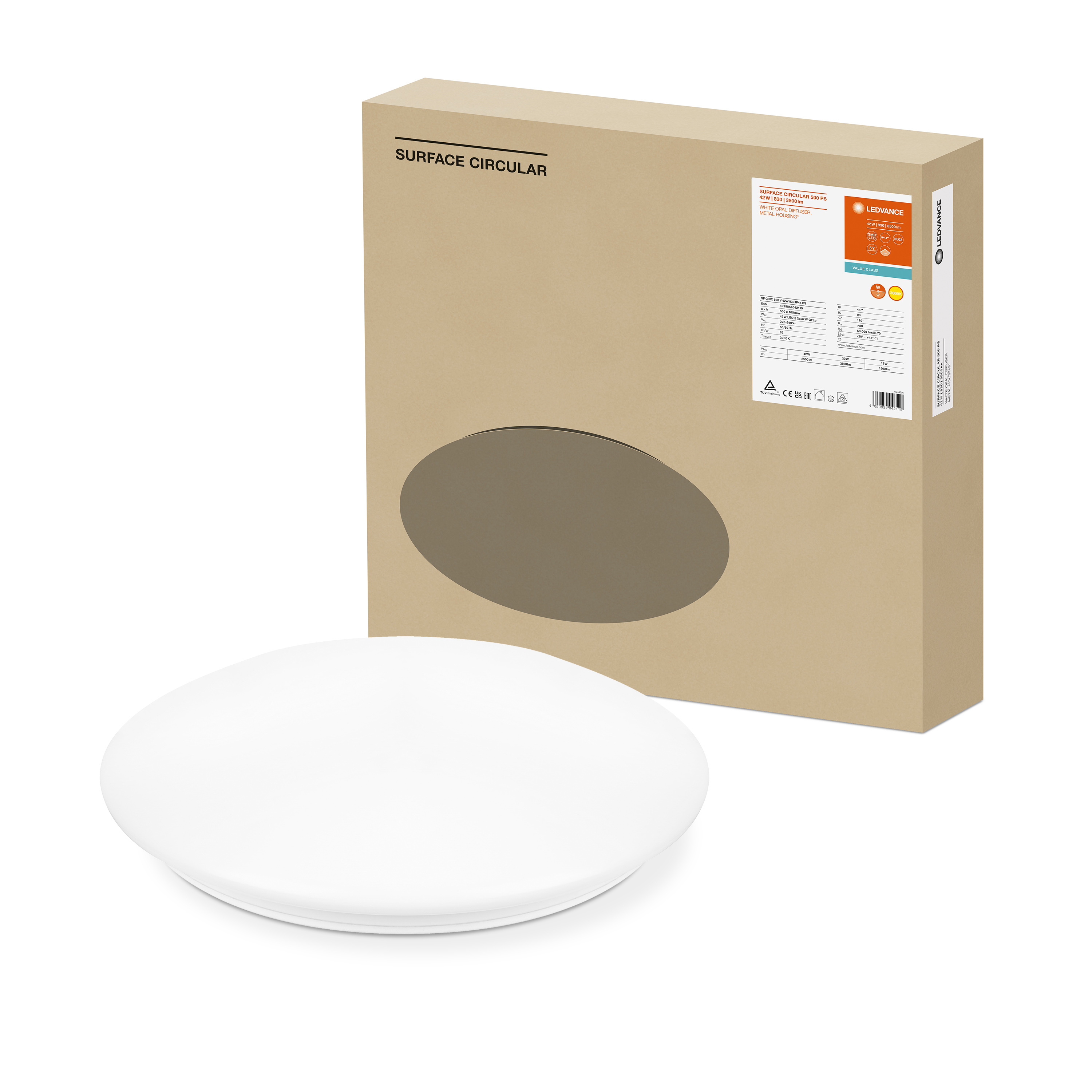

Combo Shot = Product Beauty Shot + Packaging Image
SF CIRC 500 V 42W 830 IP44 PS
SF CIRC 500 V 42W 830 IP44 PS

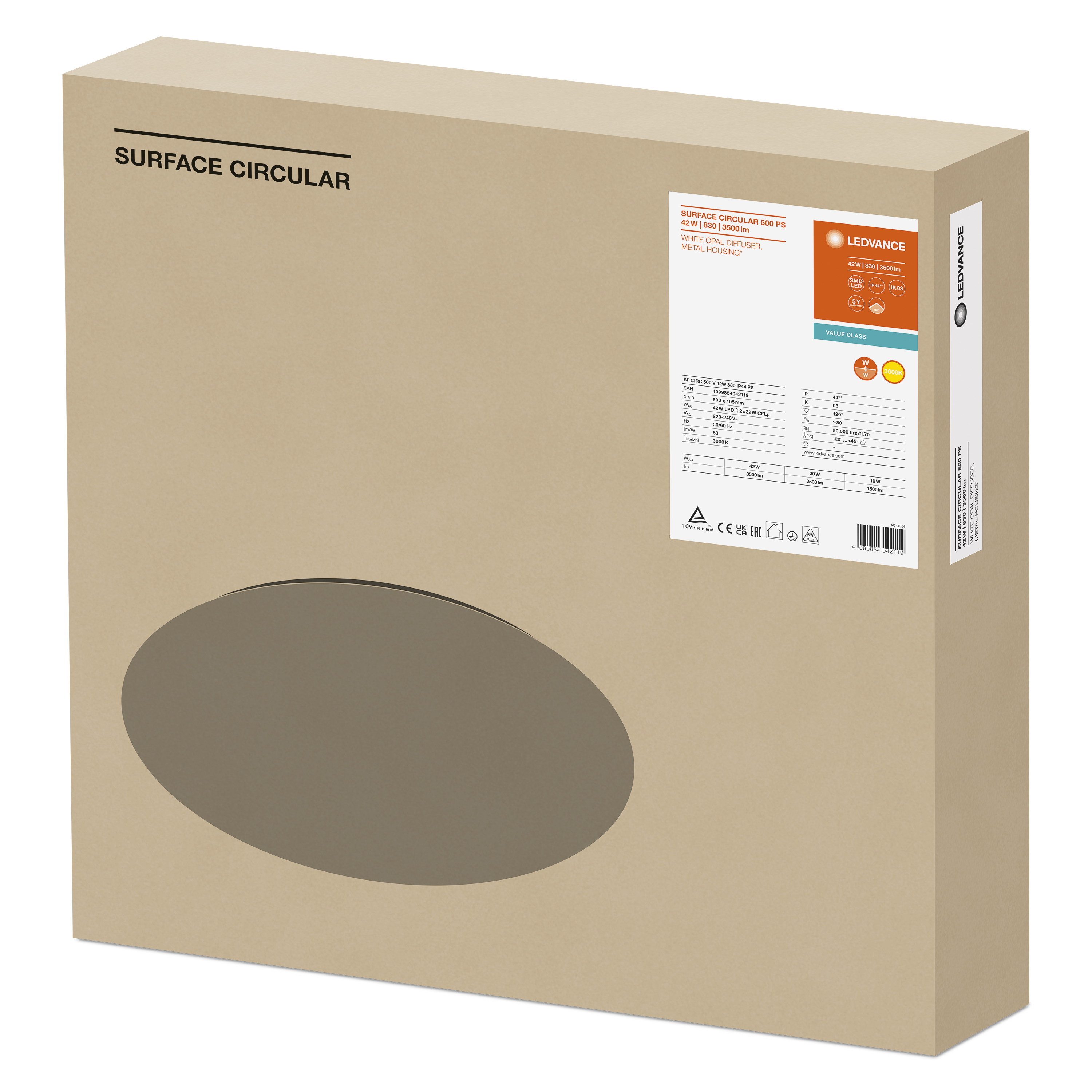

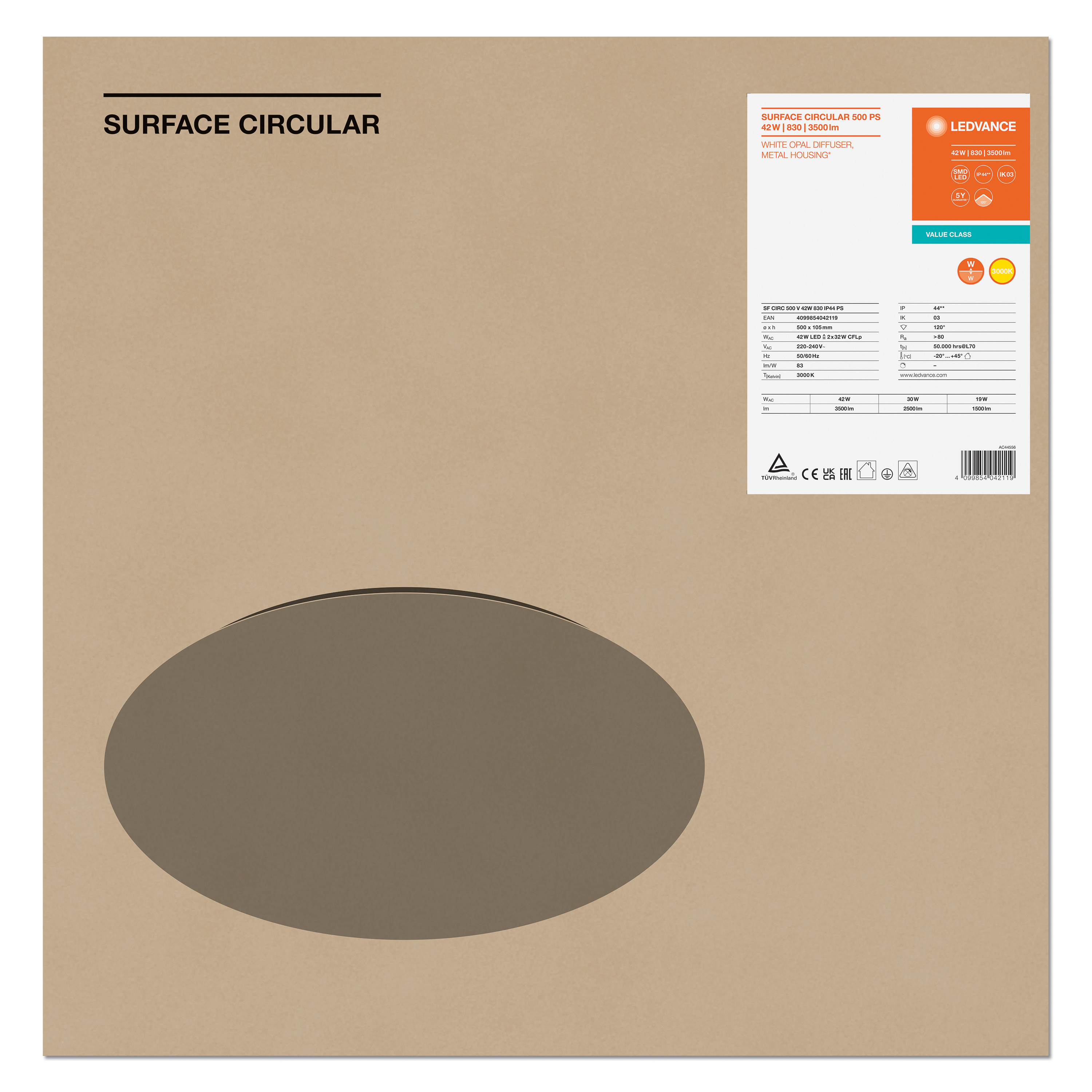

Packaging image, frontal
Surface Circular 500 V 42W IP44 WT MiCh
Surface Circular 500 V 42W IP44 WT MiCh
Packaging image, spacial
Surface Circular 500 V 42W IP44 WT MiCh
Surface Circular 500 V 42W IP44 WT MiCh
Catalog info 1
SF CIRC 500
SF CIRC 500
Catalog info 2
SF CIRC 500 V PS and SF CIRC 500 SEN V PS
SF CIRC 500 V PS and SF CIRC 500 SEN V PS
Catalog info 3
SF CIRC 500 42W IP44 PS
SF CIRC 500 42W IP44 PS
IES file (IES)
SF CIRC 500 V 42W 830 IP44 PS 3500lm
SF CIRC 500 V 42W 830 IP44 PS 3500lm
LDT file (Eulumdat)
SF CIRC 500 V 42W 830 IP44 PS 3500lm
SF CIRC 500 V 42W 830 IP44 PS 3500lm
ULD file (DIALux)
SF CIRC 500 V
SF CIRC 500 V
ROLF file (RELUX)
SF CIRC 500 V
SF CIRC 500 V
UGR file (UGR table)
SF CIRC 500 V 42W 830 IP44 PS 3500lm
SF CIRC 500 V 42W 830 IP44 PS 3500lm
Light distribution curve type cone
SF CIRC 500 V 42W 830 IP44 PS 3500lm
SF CIRC 500 V 42W 830 IP44 PS 3500lm
Light distribution curve type polar
SF CIRC 500 V 42W 830 IP44 PS 3500lm
SF CIRC 500 V 42W 830 IP44 PS 3500lm
BIM Revit 3D
SURFACE CIRCULAR
SURFACE CIRCULAR
CAD STEP 3D
SF CIRC 500
SF CIRC 500
Tender documents
SURFACE CIRCULAR 500 PS 42W 830 IP44 PS-EN
SURFACE CIRCULAR 500 PS 42W 830 IP44 PS-EN
Application pictures
LEDVANCE floor with Surface Compact
LEDVANCE floor with Surface Compact
Application pictures

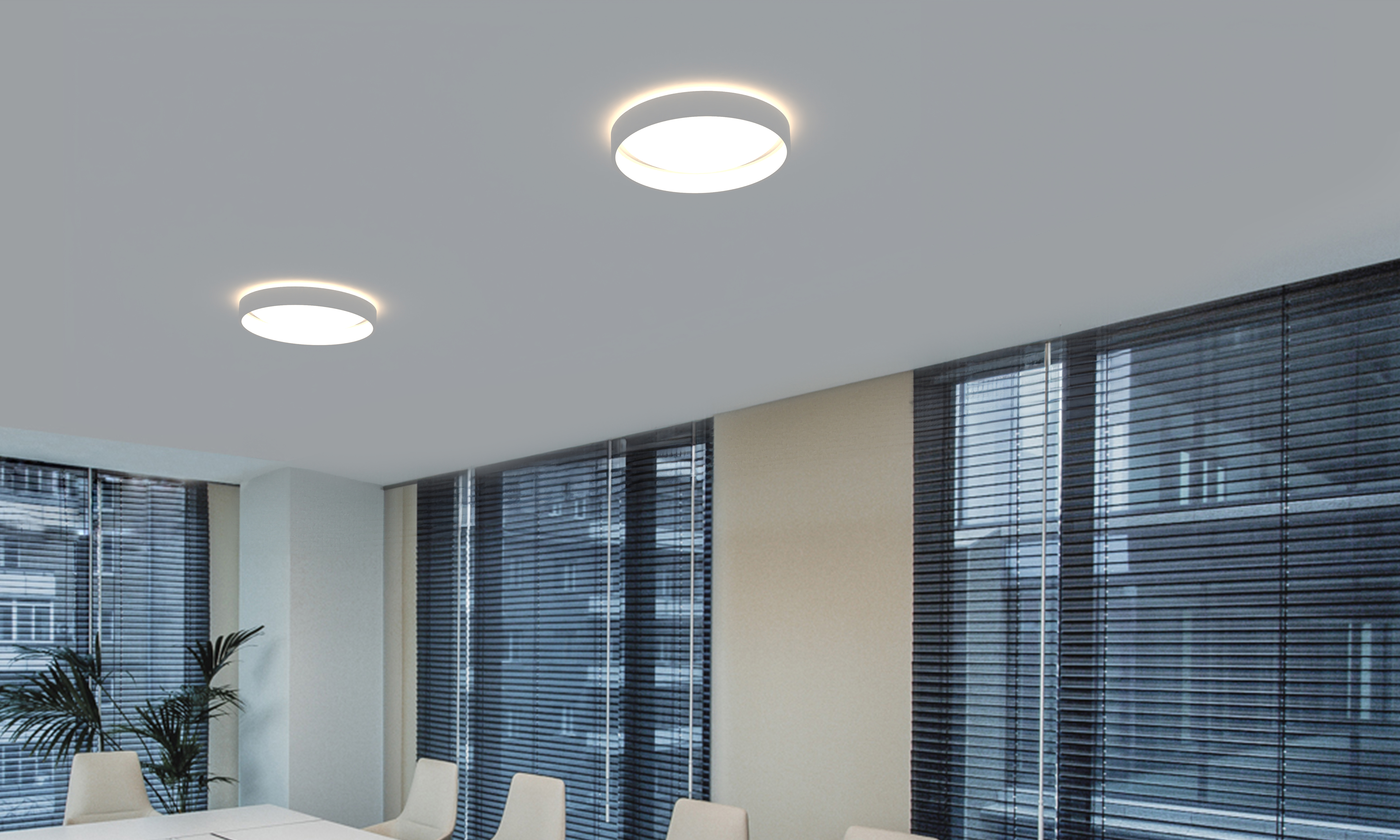

Surface Circular with frame in the office lights on
Surface Circular with frame in the office lights on
Application pictures

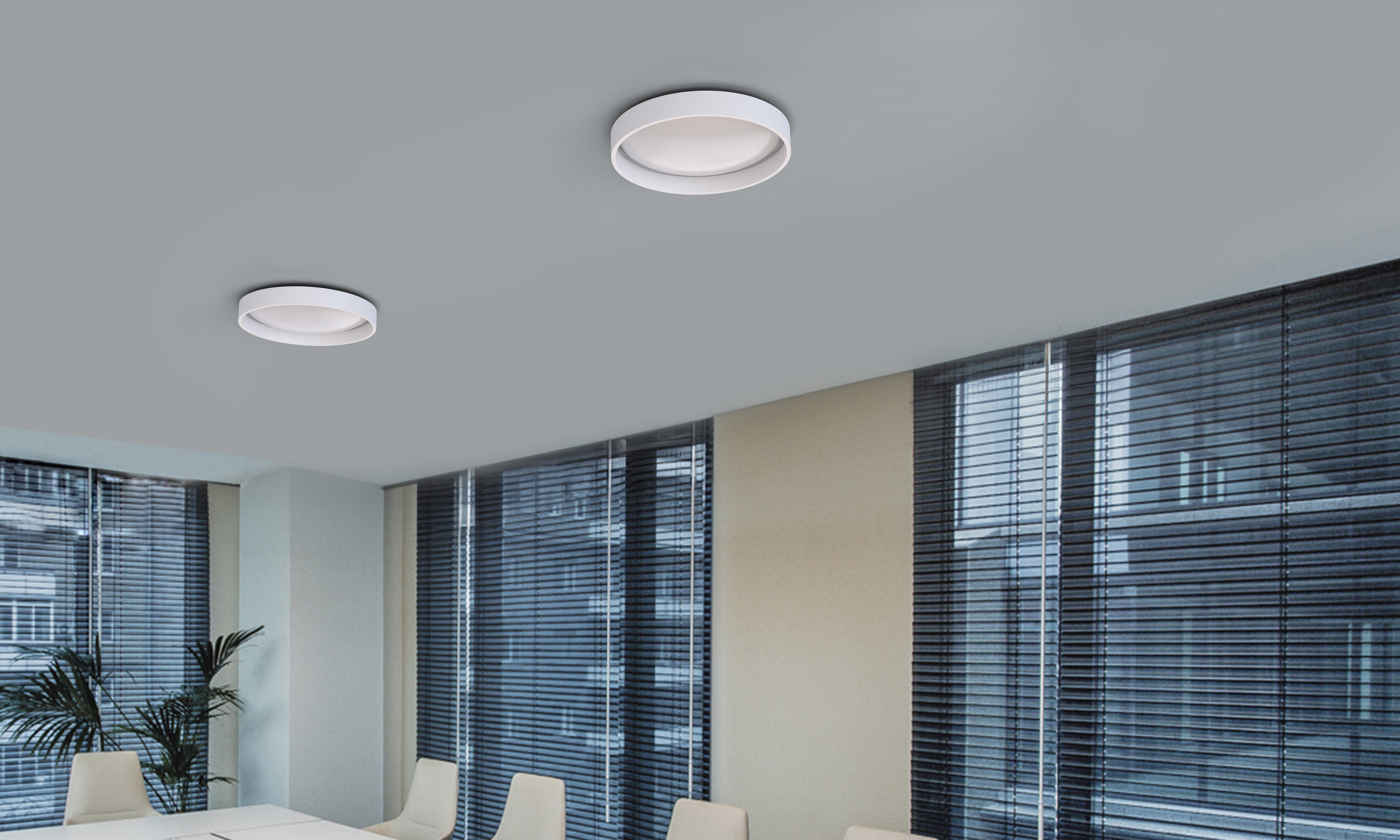

Surface Circular with frame in the office lights off
Surface Circular with frame in the office lights off
Application pictures
Surface Circular with frame in a lobby lights off
Surface Circular with frame in a lobby lights off
Application pictures Getty

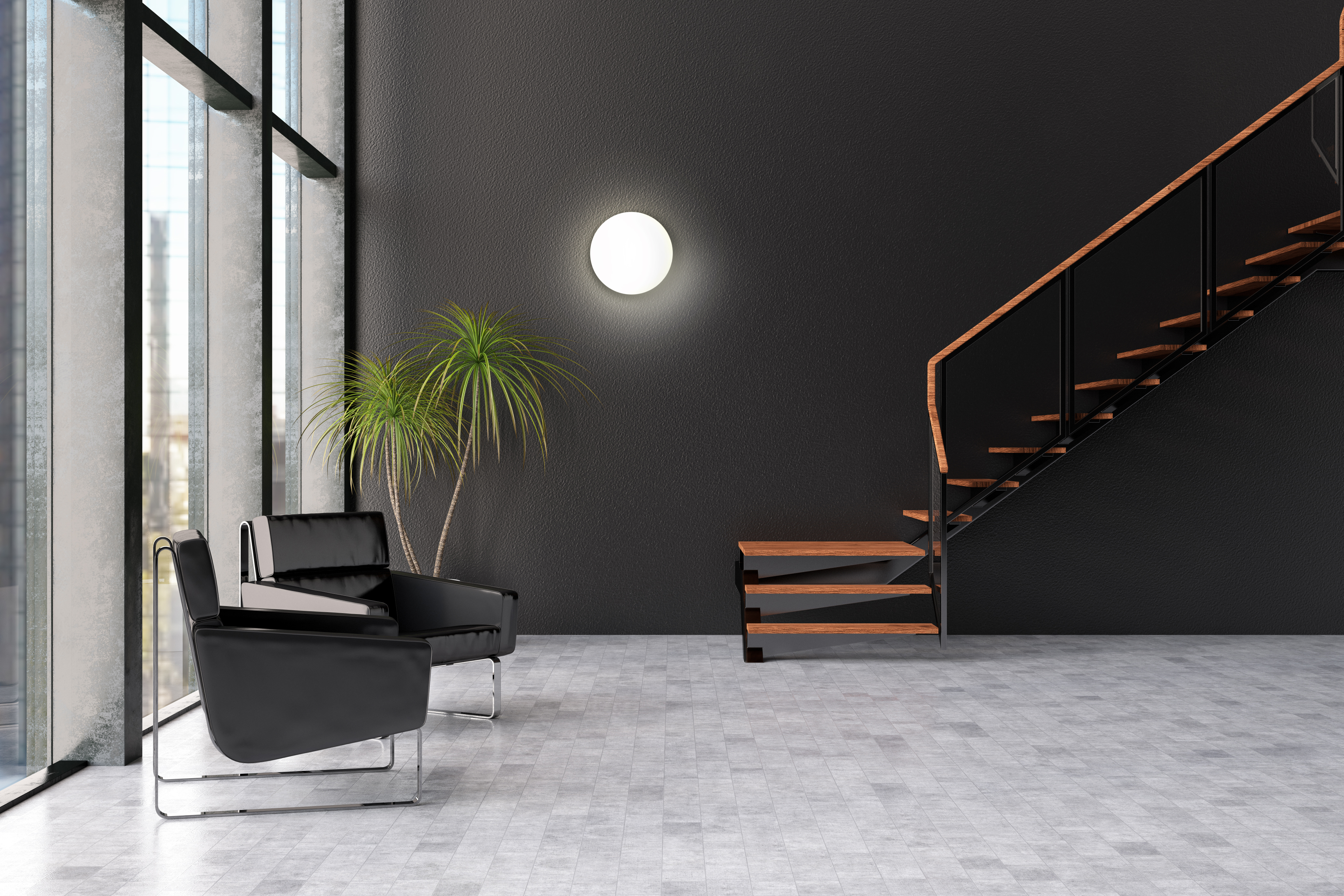

Modern design interior area Surface Circular 500
Modern design interior area Surface Circular 500
Application pictures Getty
Surface Circular with frame in lobby lights on
Surface Circular with frame in lobby lights on
Application pictures Getty

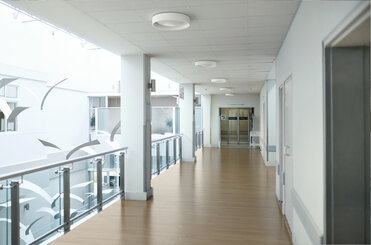

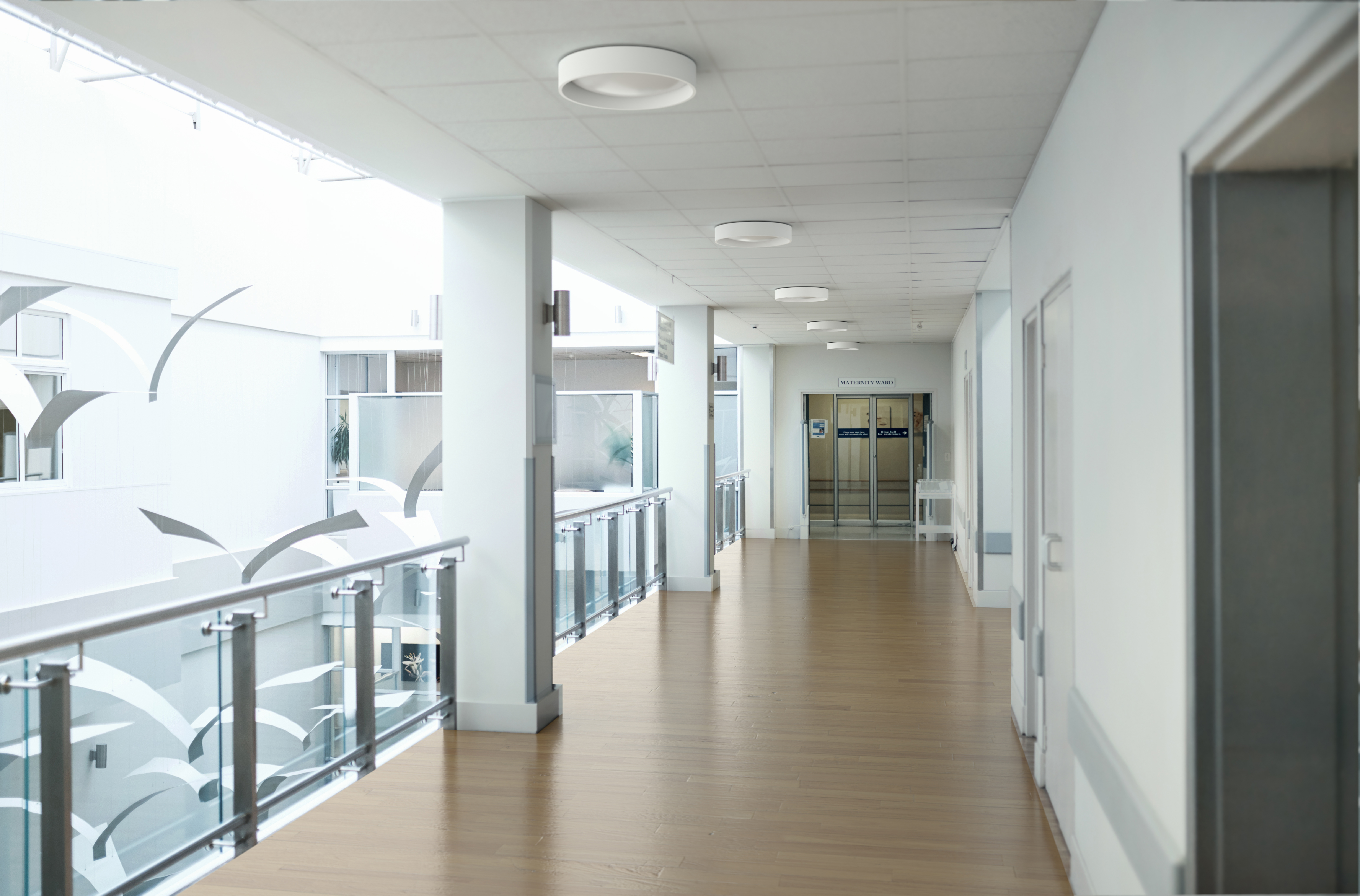

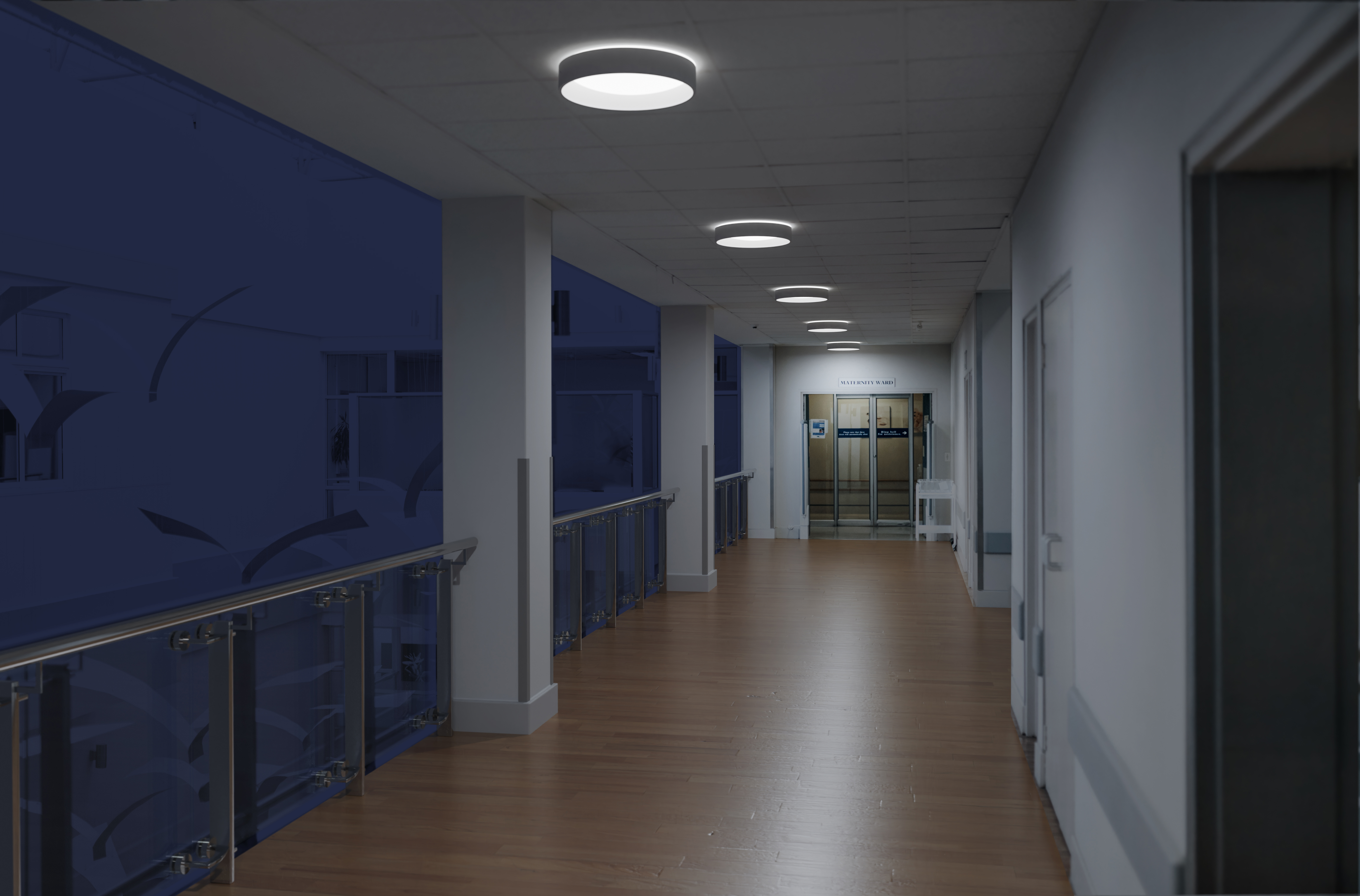

Surface Circular with frame in a hospital
