TruSys FLEX DOUBLE ASYMMETRIC
TRUSYS FLEX P 35W 865 DS CL WT
GTIN: 4099854190575
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Double directed light distribution for shelf illumination
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Industry halls, high rack warehouse, hardware stores
- Discounters, supermarkets
Product features
- Beam angle double asymmetric: 2x30°
- Click into place solution with smart click buttons
- Luminous efficacy: up to 175 lm/W
- Fixed luminare taps
- Luminaire versions available with on-off or IoT-ready DALI-2 driver
- Steel-sheet housing
- Lens material: PMMA
- Type of protection: IP40
Equipment / Accessories
- Mounting rail with fixed integrated 5- and 8-pole cable
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 35.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 160.000 mA |
| Inrush current | 27.5 A |
| Inrush current time Th50 | 148 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 22 |
| Max. number of luminaires per miniature circuit breaker C10 | 17 |
| Max. number of luminaires per miniature circuit breaker C16 | 27 |
| Power factor λ | ≥ 0.95 |
| Total harmonic distortion | ≤ 15 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 6000 lm |
| Luminous efficacy | 175 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 2 x 30 ° |
Dimensions & Weight
| Length | 1500.00 mm |
| Height | 39.40 mm |
| Width | 77.70 mm |
| Product weight | 1680.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -25…+40 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Plug-In connection |
| Type of protection | IP40 |
| Protection class IK (shock resistance) | IK04 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Mounting rail |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 76000 h 1) |
| Lifespan L90/B10 at 25 °C | 43000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 430 mA |
| ECG - Output ripple current | < 5 % |
Emergency lighting
| Type of Emergency Lighting (EL) | EL certified driver (0Hz / DC operation) for central battery operation included |
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, CB, UKCA, ENEC, EAC |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), Perfluorobutanesulfonic acid (PFBS) (375-73-5),2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854190575 | Folding box 1 |
108 mm x 1,534 mm x 102 mm | 1855.00 g | 16.90 dm³ |
| 4099854190582 | Shipping box 4 |
1,547 mm x 218 mm x 231 mm | 8213.00 g | 77.90 dm³ |
User instruction / safety instructions
TRUSYS FLEX 865 ON OFF
TRUSYS FLEX 865 ON OFF
Legal information
Legal insert TRUSYS FLEX ON OFF
Legal insert TRUSYS FLEX ON OFF
Legal information
LSI TRUSYS FLEX 865 ON OFF
LSI TRUSYS FLEX 865 ON OFF
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
TRUSYS FLEX on/off
TRUSYS FLEX on/off
Certificates
ENEC Certificate Trusys Flex ON/OFF
ENEC Certificate Trusys Flex ON/OFF
Product image: white background, diagonal
TRUSYS FLEX luminaire - clear
TRUSYS FLEX luminaire - clear
Product image: white background, diagonal, alternative image
TRUSYS FLEX luminaire - clear
TRUSYS FLEX luminaire - clear
Product image: white background, horizontal
TRUSYS FLEX luminaire - clear
TRUSYS FLEX luminaire - clear
Product image: white background, horizontal, alternative image
TRUSYS FLEX luminaire - clear
TRUSYS FLEX luminaire - clear
Product image: white background, with accessory, alternative image
TRUSYS FLEX luminaire - clear
TRUSYS FLEX luminaire - clear
Product line drawing with letters
TRUSYS FLEX luminaire - clear
TRUSYS FLEX luminaire - clear
Product line drawing with numbers
TRUSYS FLEX luminaire - clear
TRUSYS FLEX luminaire - clear
Product line drawing, front, no dimensions
TRUSYS FLEX luminaire - clear
TRUSYS FLEX luminaire - clear

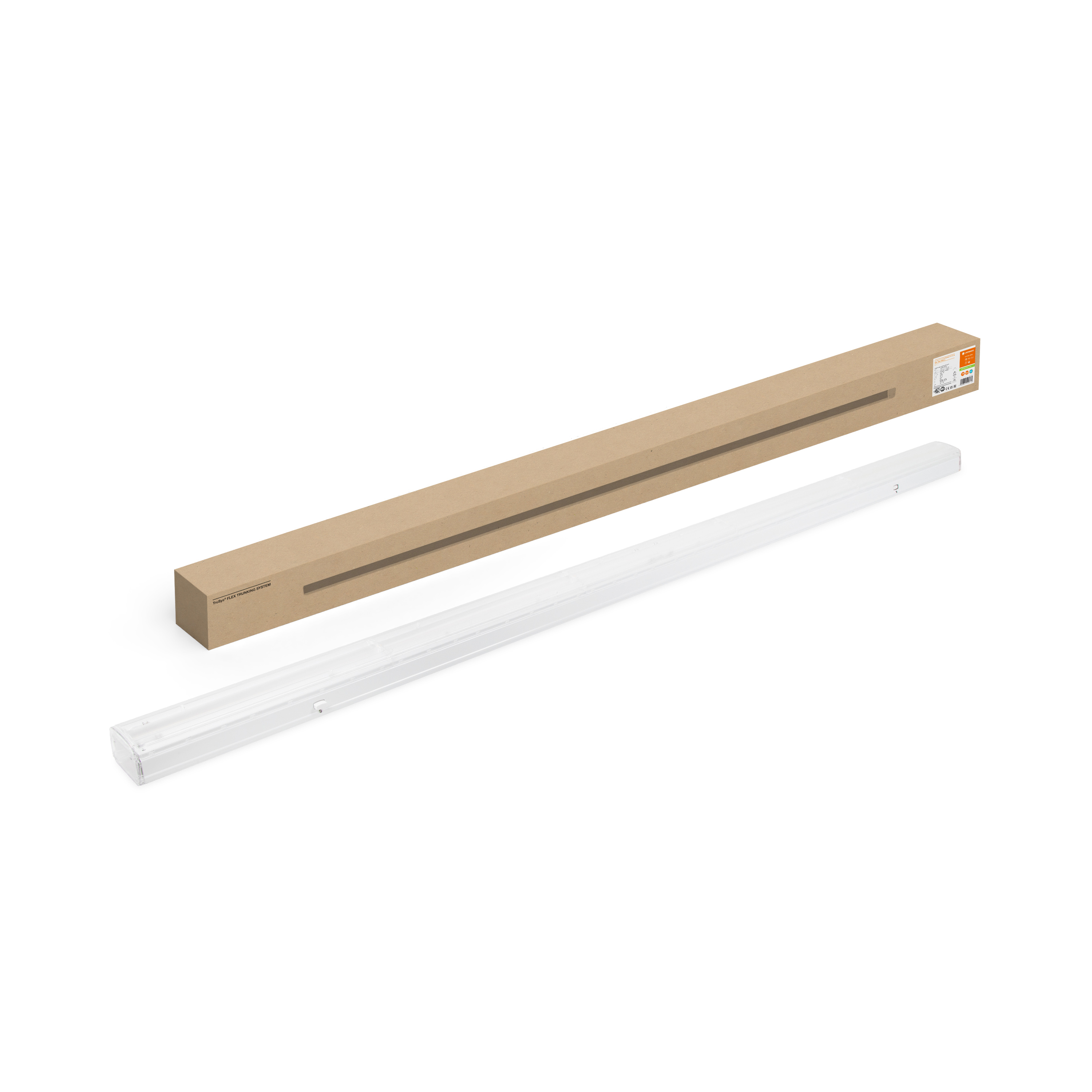

Combo Shot = Product Beauty Shot + Packaging Image
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT

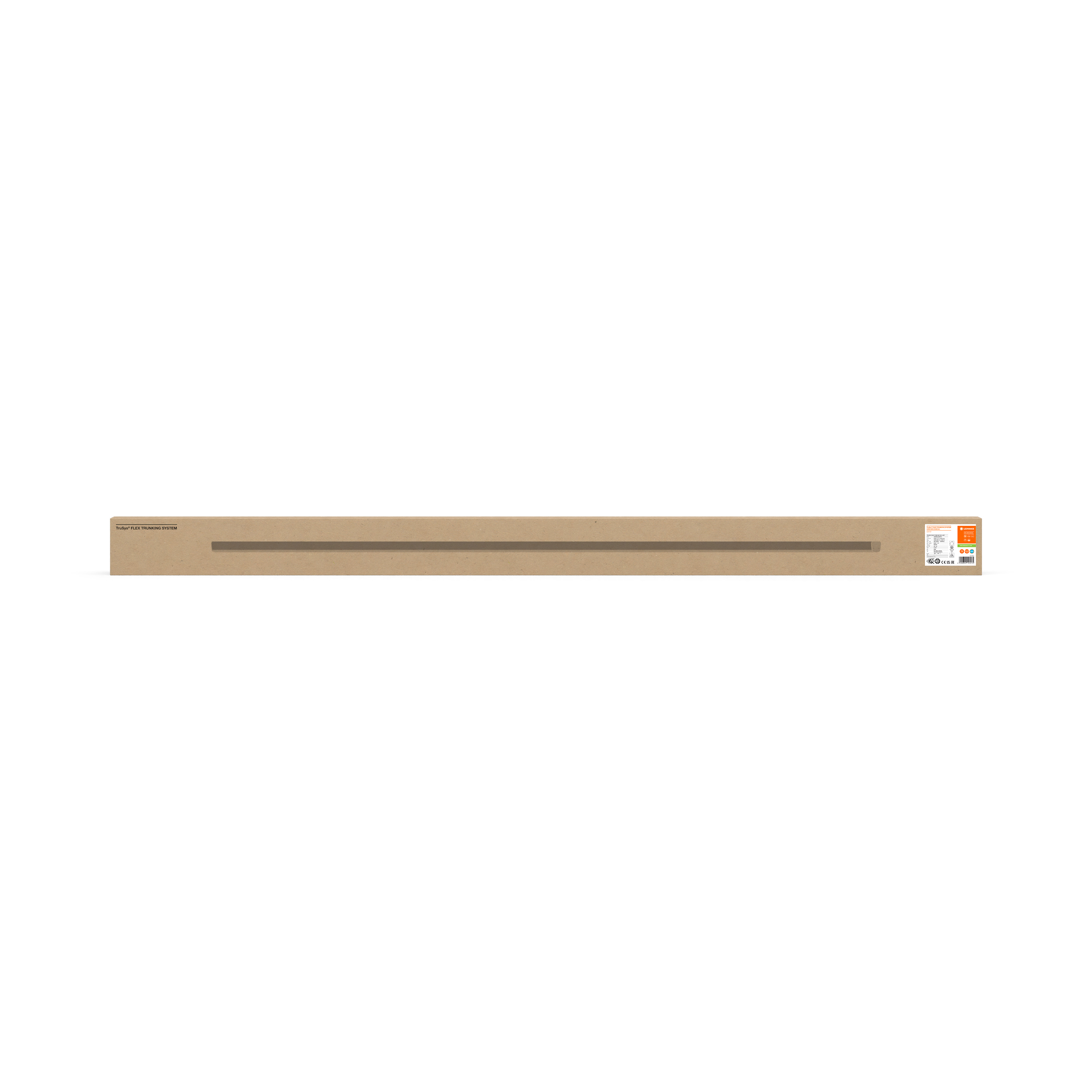

Packaging image, frontal
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT

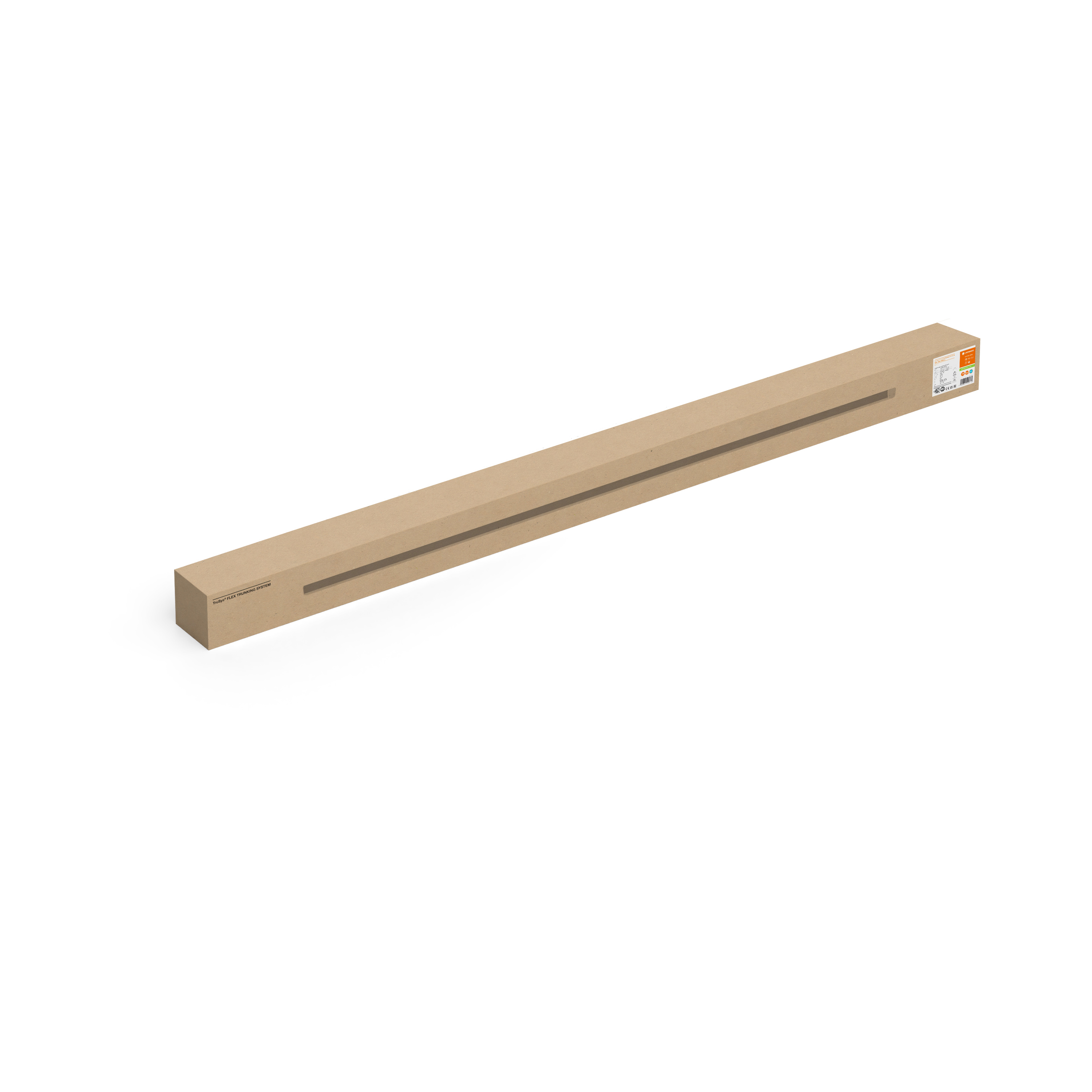

Packaging image, spacial
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT

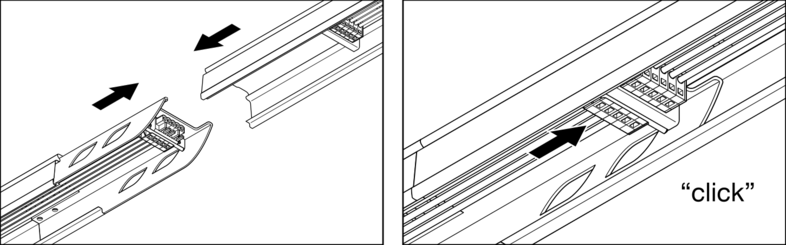

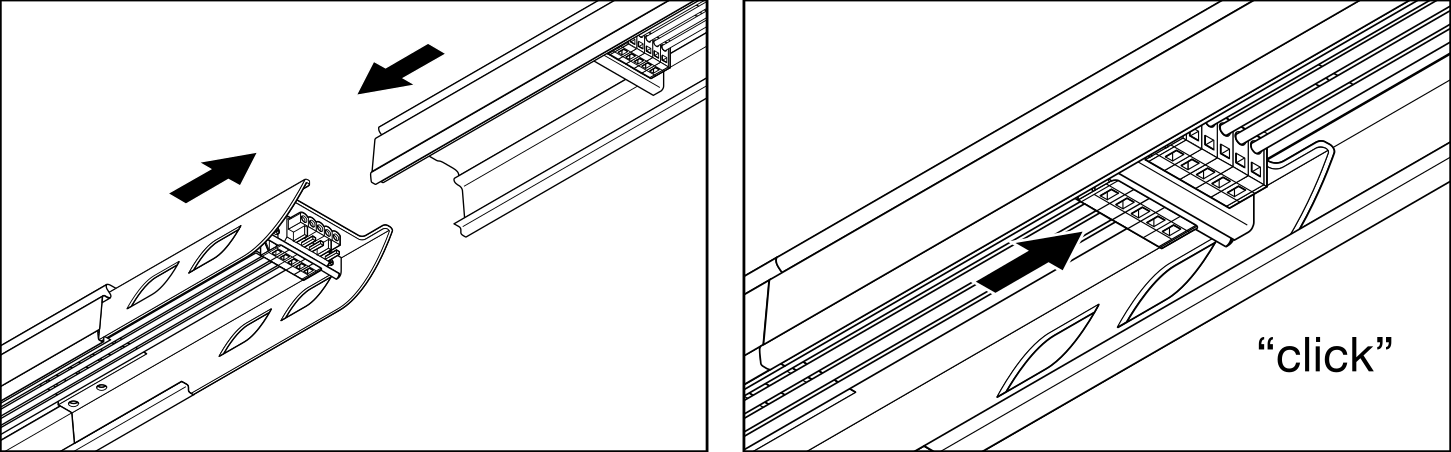

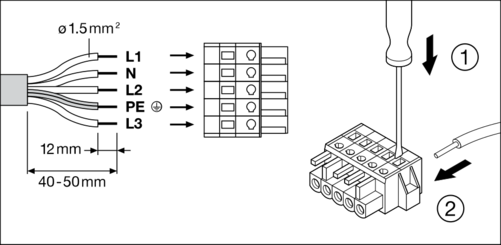

Catalog info 1
TRUSYS FLEX DALI
TRUSYS FLEX DALI
Catalog info 2
TRUSYS FLEX DALI
TRUSYS FLEX DALI
Catalog info 3
TRUSYS FLEX
TRUSYS FLEX
Catalog info 4
TRUSYS FLEX DALI
TRUSYS FLEX DALI
Catalog info 5
TRUSYS FLEX
TRUSYS FLEX
Catalog info 6
TRUSYS FLEX EM
TRUSYS FLEX EM
IES file (IES)
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT
LDT file (Eulumdat)
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT
ULD file (DIALux)
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT
ROLF file (RELUX)
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT

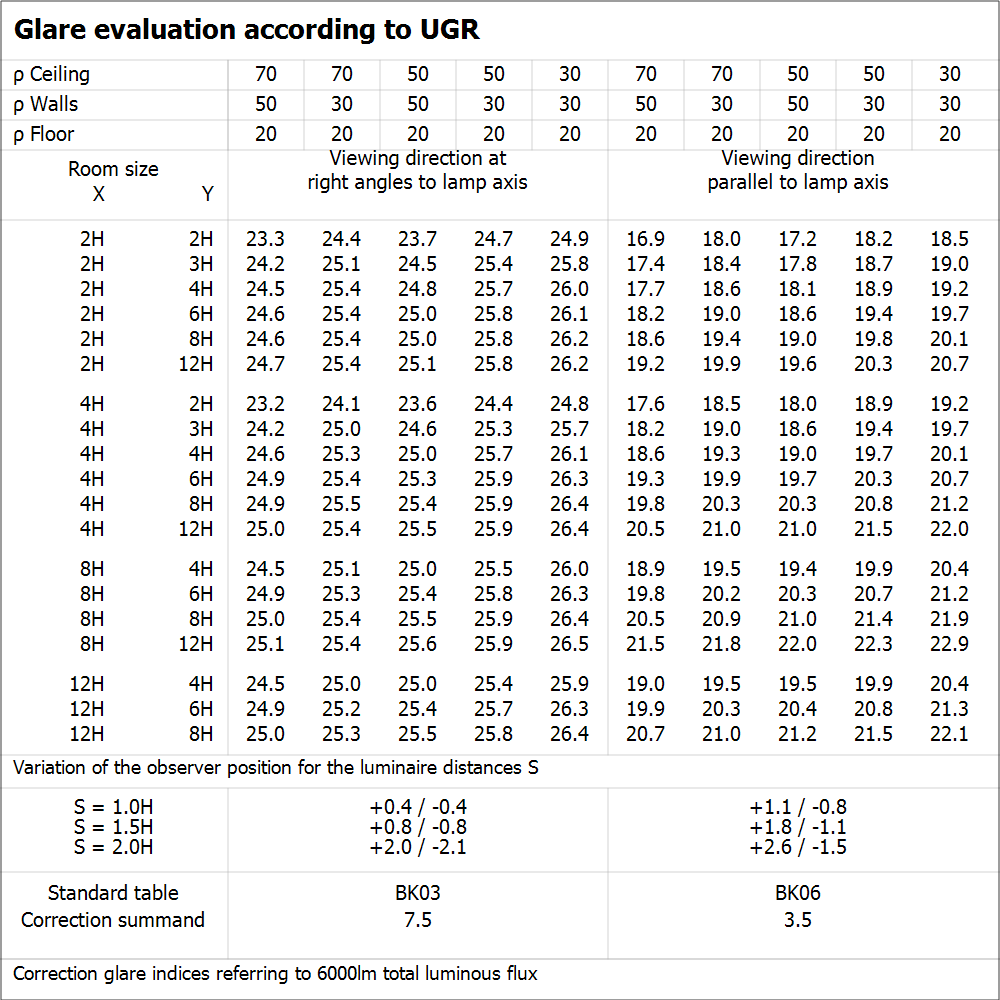

UGR file (UGR table)
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT
Light distribution curve type cone
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT
Light distribution curve type polar
TRUSYS FLEX P 35W 865 DS CL WT
TRUSYS FLEX P 35W 865 DS CL WT
CAD STEP 3D
TruSys FLEX
TruSys FLEX
Tender documents
TruSys FLEX DOUBLE ASYMMETRIC 35W 865 DS CL WT-EN
TruSys FLEX DOUBLE ASYMMETRIC 35W 865 DS CL WT-EN
Application pictures
Trusys Flex Supermarket fruit & vegetables
Trusys Flex Supermarket fruit & vegetables
Application pictures
Trusys Flex Warehouse
Trusys Flex Warehouse
Application pictures
Trusys Flex Supermarket
Trusys Flex Supermarket
| EAN | ELDAS number |
|---|---|
| 4099854190575 | 941601840 |
