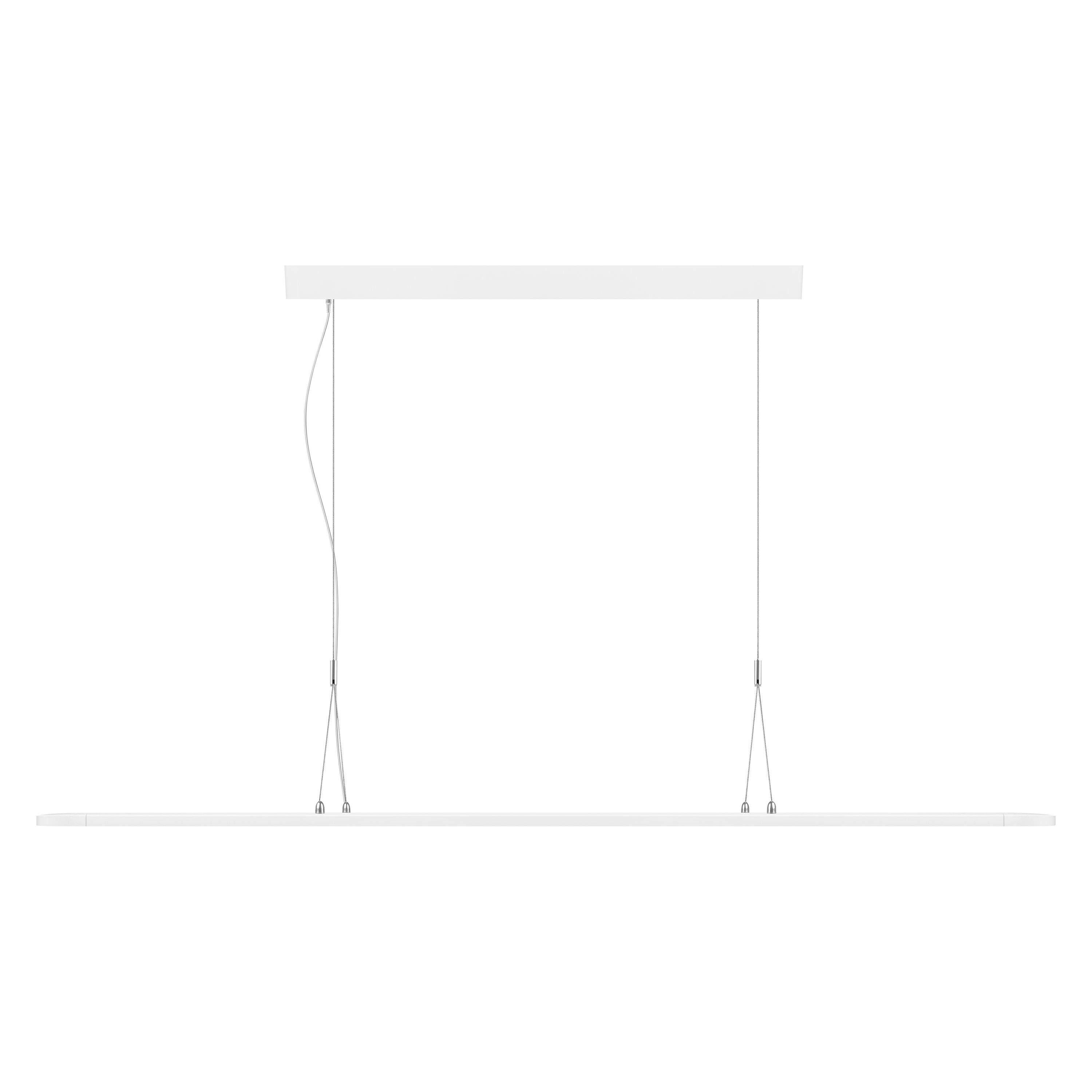

PANEL D/I 1200 36 W 4000 K UGR19 DALI

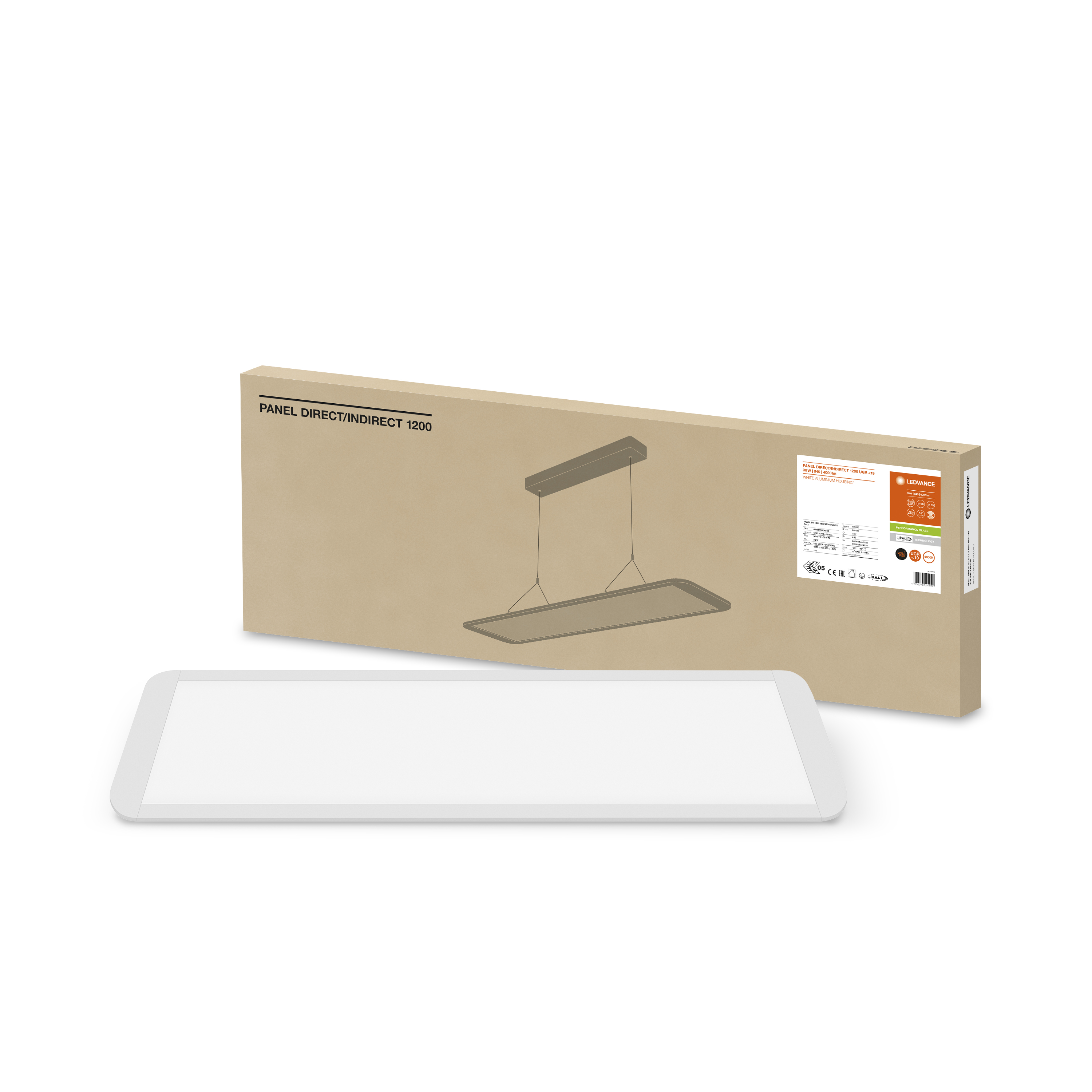

GTIN: 4058075504042 Folding box / 1 Show all packages

Contact sales

Tools

Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
Suspended edge-lit luminaires for direct light emission (70% ) and indirect light emission (30%)
Attractive and functional design for office applications
Good glare reduction (UGR ≤ 19)
Very homogenous light
Low maintenance and low operational costs
External driver for extended flexibility
Special light guide design for low-glare illumination
Easy and quick installation
Low flicker light thanks to special electronic control gear
5 years guarantee

IoT-ready luminaire with DALI-2 technology

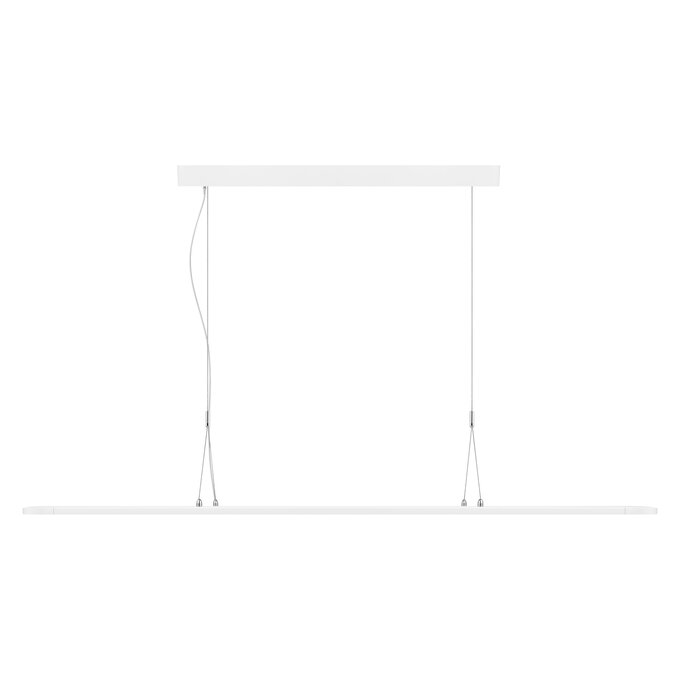

Rectangular (1200 mm x 300 mm) stand-alone luminaires with direct (70 %) and indirect (30 %) light emission
Driver integrated into the remote driver box

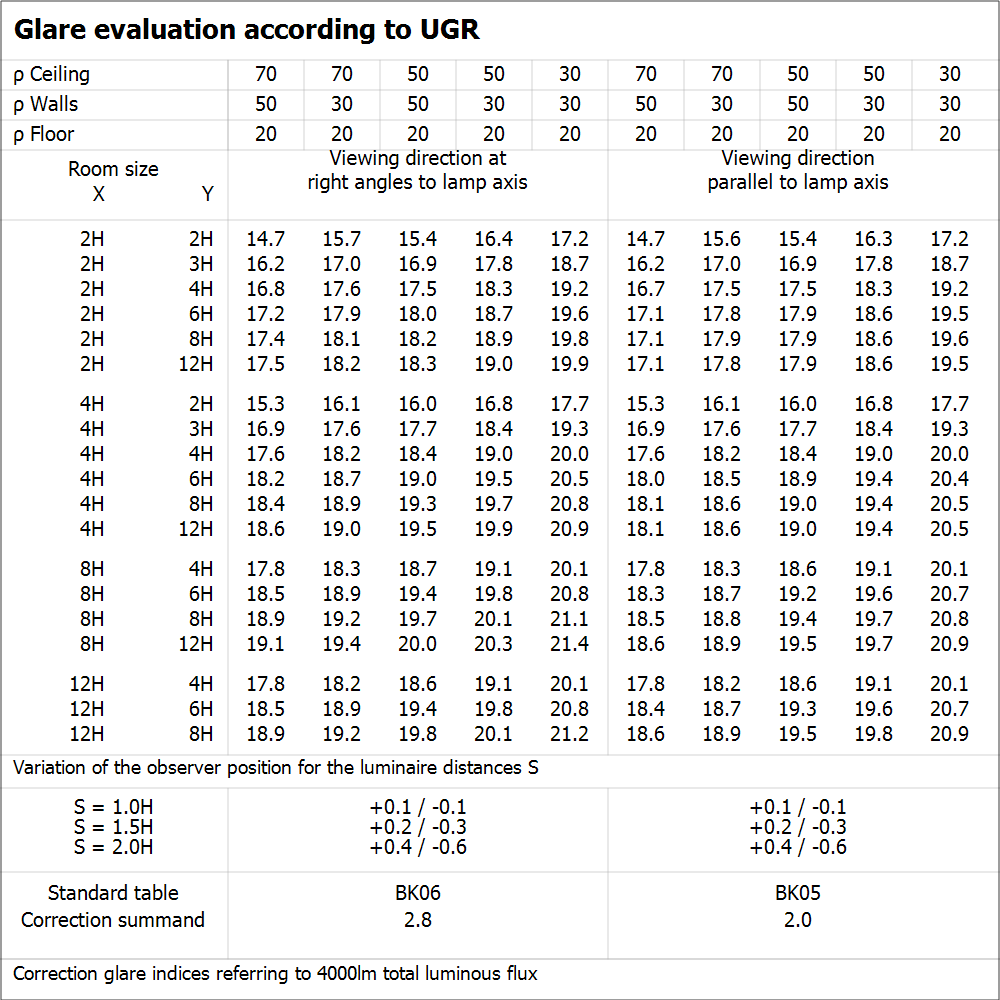

UGR ≤ 19 according to EN12464-1
High luminous efficacy: up to 110 lm/W
Lifetime (L70/B50): 80,000 h (at 25 °C)
Follows the unified LEDVANCE design language (SCALE design)
Very slim aluminum housing

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
The luminaires are not suitable for covering with thermally insulated material.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

Nominal wattage	36.00 W
Nominal voltage	220…240 V
Mains frequency	0/50/60 Hz
Nominal current	230.000 mA
Inrush current	16 A
Inrush current time T_h50	160 µs
Max. number of luminaires per miniature circuit breaker B16	20
Max. number of luminaires per miniature circuit breaker C10	21
Max. number of luminaires per miniature circuit breaker C16	33
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	4000 lm
Luminous efficacy	110 lm/W
Color temperature	4000 K
Light color (designation)	Warm White
Color rendering index Ra	≥80
Standard deviation of color matching	4 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Photobiological safety group acc. to EN62778	RG0
Beam angle	110 °
UGR	< 19

Product color	White
Housing color	White
Body material	Aluminum
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	-20…+45 °C
Type of connection	Terminal
Type of protection	IP20
Protection class IK (shock resistance)	IK03
Dimmable	Yes
Type of dimming	DALI
Mounting type	Suspended
Mounting location	Ceiling
Application environment	Indoor
With light source	Yes
Replaceable light source	No

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

ECG - Output voltage	38 V
Output current	800 mA

Standards	CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign"	No
Replaceable light source (EPREL)	Not replaceable

Added function

VIVARES

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
