LN INDV D 1500 48 W 4000 K ZBVR

GTIN: 4058075521926 Folding box / 1 Show all packages

Contact sales

Tools

Suitable luminaire for VIVARES and other Zigbee 3.0 Light Management Systems
Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
Multiple mounting options
The product family offers full lighting solution for different applications
Energy savings of up to 50 % compared to T5 batten luminaires
Further variants additionally available with DALI ECG, emergency lighting function according to IEC 60598-2-22 or through wiring
Robust structure with IK06
Low flicker light thanks to special electronic control gear
5 years guarantee

IoT-ready luminaire with Zigbee 3.0 technology
Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
Pendant mounting with suspension kit
Linkable into seamless light line with line connection adapter (surface or pendant mounting)
Available with length of 1200 or 1500 mm
Luminous flux up to 5700 lm
Luminous efficacy: up to 125 lm/W
Initial color consistency: 3 SDCM
Glow Wire Test according to IEC 60695-2-12: 850 °C
Versions available with CRI 90
Lifetime (L70/B50): 60,000 h (at 25 °C)

Nominal wattage	48.00 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	290 mA
Inrush current	30 A
Inrush current time T_h50	200 µs
Max. number of luminaires per miniature circuit breaker B16	11
Max. number of luminaires per miniature circuit breaker C10	10
Max. number of luminaires per miniature circuit breaker C16	16
Power factor λ	≥0.90
Total harmonic distortion	≤ 10 %
Protection class	I
Operating mode	Integrated LED driver

Luminous flux	5700 lm
Luminous efficacy	120 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	> 80
Standard deviation of color matching	3 sdcm
Low flicker	Yes
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG0
Beam angle	70 °

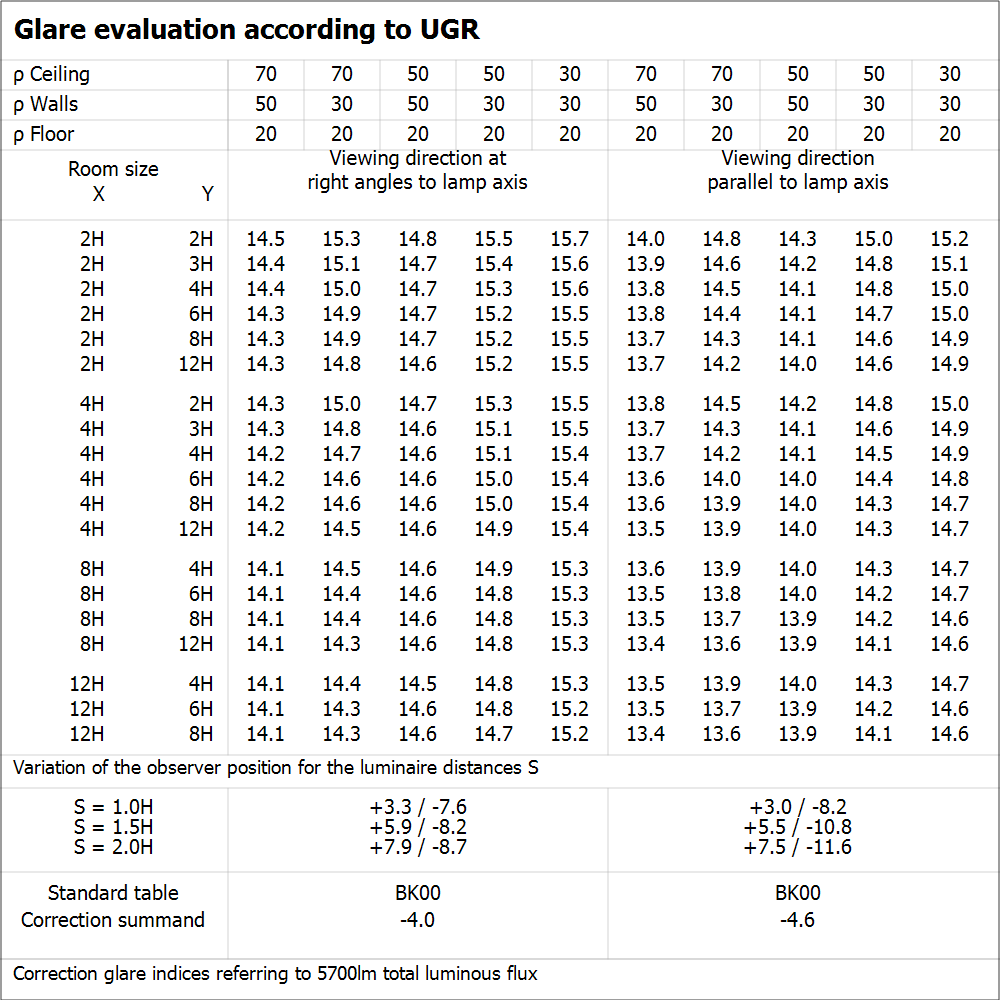

UGR	< 16

Product color	White
Housing color	White
Body material	Aluminum
Cover material	Aluminium
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	850 °C
Mercury content	0.0 mg

Ambient temperature range	-25…+50 °C
Type of connection	Screwless terminal
Type of protection	IP20
Protection class IK (shock resistance)	IK06
Dimmable	Yes
Type of dimming	ZIGBEE
IoT ready	Support of DALI data type PART 251, 252, 253 ¹⁾
Mounting type	Suspended/Surface
Mounting location	Ceiling
Application environment	Indoor
With light source	Yes
Replaceable light source	No

¹⁾ Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Output current

1200 mA

Standards	CE, CB, ENEC, EAC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
