Product benefits

• Homogenous light distribution and reduced glare thanks to the IndiviLED® optics
• Increased light comfort thanks to direct and indirect light emission
• The product family offers full lighting solution for different applications
• Energy savings of up to 50 % compared to T5 batten luminaires
• Robust structure with IK06
• Versions with DALI ECG available
• 5 years guarantee

Areas of application

• Direct replacement for luminaires with fluorescent lamps
• Offices, schools
• General indoor illumination
• Corridors, entrance areas
• Seamless linear lighting
• Shop lighting

Product features

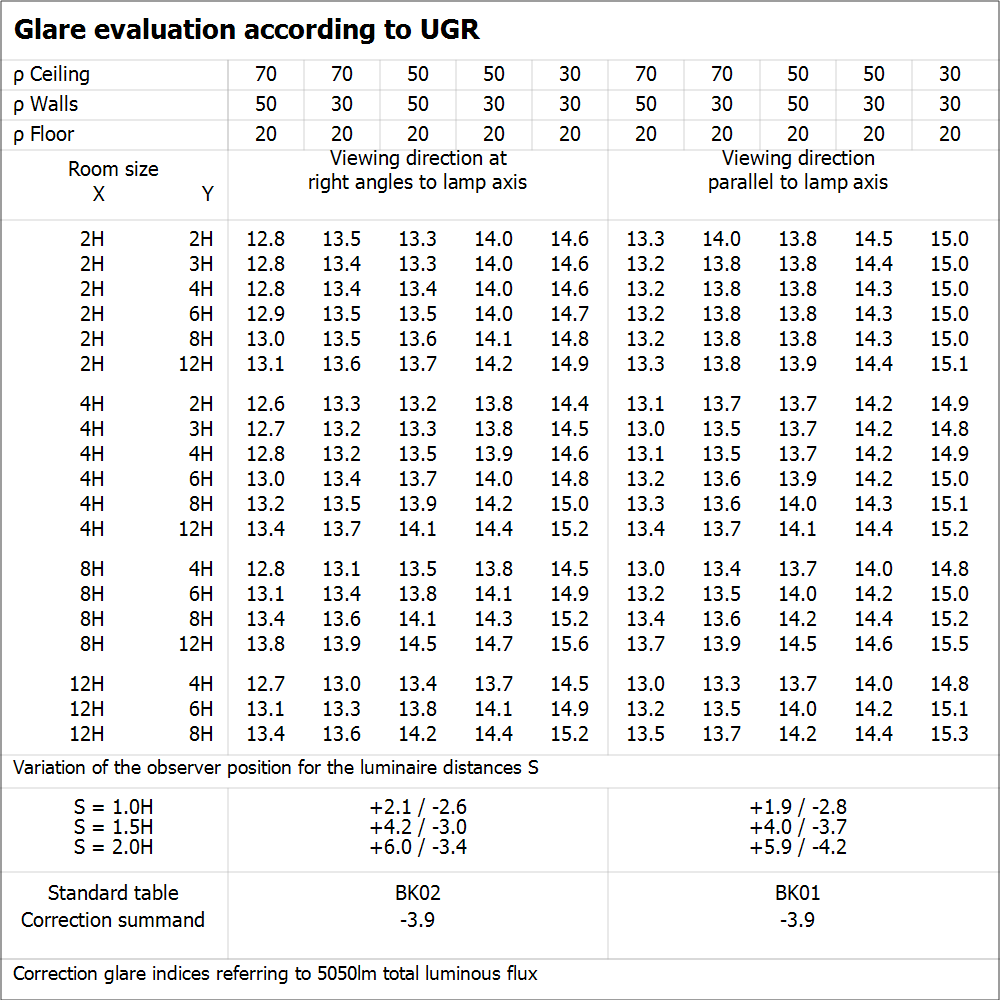

• Each LED with individual lens and reflector for UGR < 16 and homogenous light distribution
• Indirect lighting with 850 lm
• Pendant mounting with suspension kit
• Linkable into seamless light line with line connection adapter (surface or pendant mounting)
• Available with length of 1200 or 1500 mm
• Luminous flux up to 6550 lm
• Luminous efficacy: up to 120 lm/W
• Initial color consistency: 3 SDCM
• Glow Wire Test according to IEC 60695-2-12: 850 °C
• Lifetime (L70/B50): 60,000 h (at 25 °C)

Equipment / Accessories

• Ceiling connection box available
• Suspension kit available
• Line connection adapter available
• Through-wiring cable kit available

Safety advice

• All electrical connections must be made by a qualified person.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

• For Guarantee see www.ledvance.com/guarantee
