LINEAR INDIVILED CORNER CONNECTOR

LN INV CORNER CONNECTOR WT

GTIN: 4099854308093 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick connection of luminaires for light line installations
  • Very solid connector for long operation
Product features
  • Mechanical and electric connector (profile, 5 x 2.5 mm² internal wiring and terminal plug, male-female AC plug)
  • Connector made of aluminum, white powder-coated
  • Available in black and white color
Dimensions & Weight
Length 350 mm
Height 43 mm
Width 350 mm
Product weight 1120.00 g
Materials & Colors
Product color White
Body material Steel
Application & Mounting
Replaceable light source No
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Additional product data
Product remark Available from September 2025
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854308093 Folding box
1		 404 mm x 404 mm x 142 mm 3710.00 g 23.18 dm³
4099854308109 Shipping box
4		 597 mm x 427 mm x 434 mm 7420.00 g 110.63 dm³
User instruction / safety instructions
LN INV accessories
PDF (3.48 MB)
Legal information
LN INV ACC
PDF (1.34 MB)
Declarations of conformity
LN INV
PDF (271.88 KB)

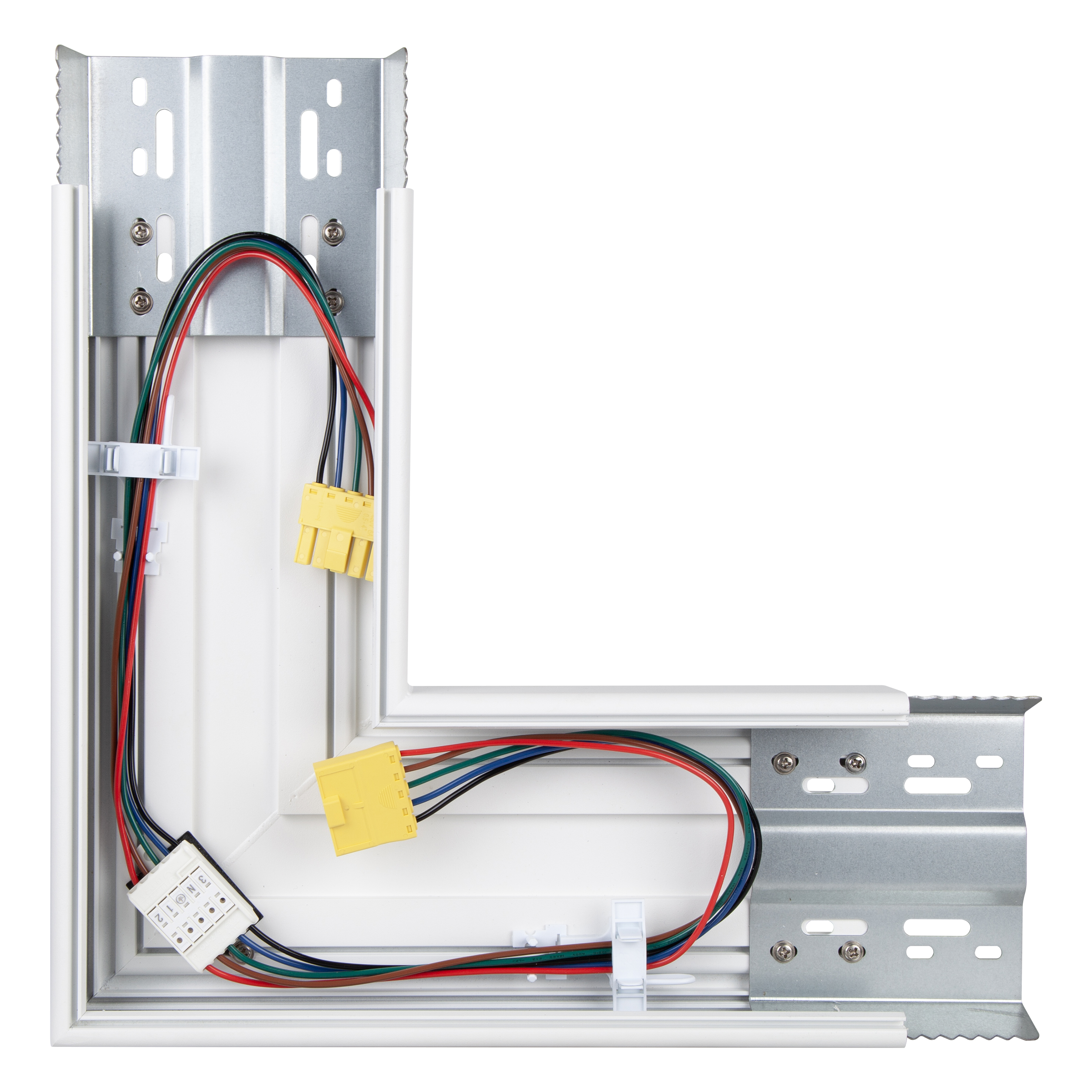

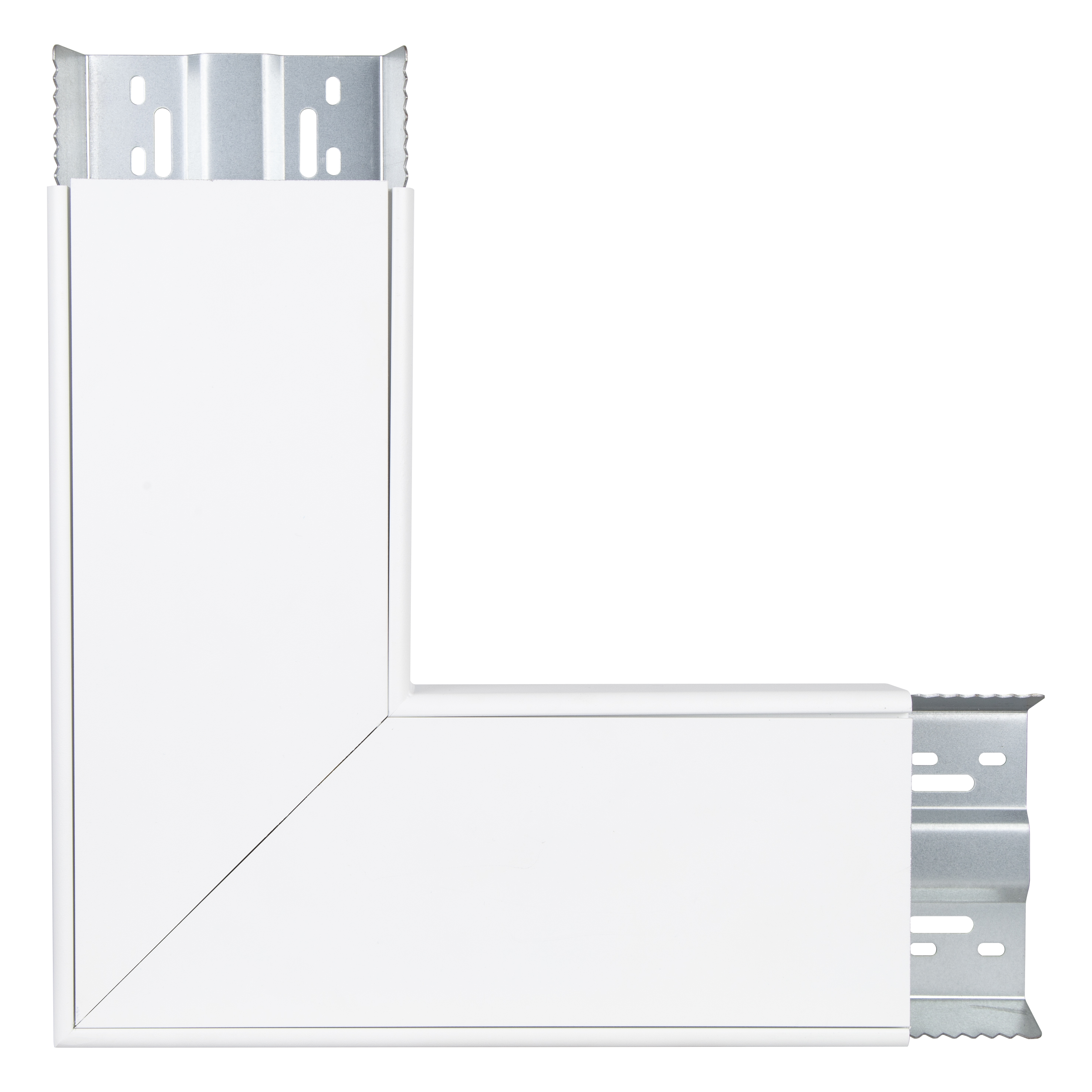

Product image: white background, horizontal
LN INV CORNER CONNECTOR
JPG (1.52 MB)

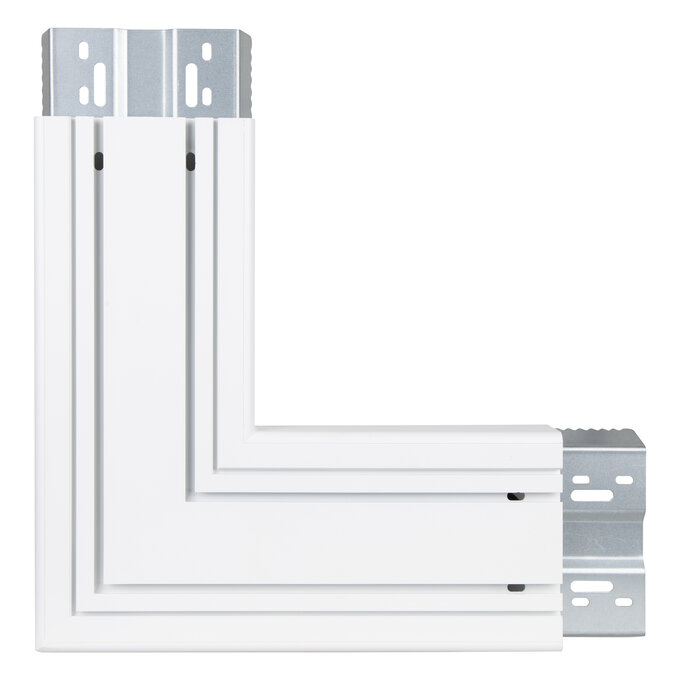

Product image: white background, horizontal, alternative image
