NEW
SPOT COMBO ADJUST
SP CBO ADJ V 5.5W CPS 60DEG IP65 WT
GTIN: 4099854092725
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- White round ring included
- Color temperature adjustment via switch on the back of the spot
- Power select: Brightness adjustment via a switch on the driver
- Coverable with most thermal isolation material according to IEC 60598-2-2
- 5 years guarantee
Areas of application
- Direct replacement for recessed spotlights with halogen lamps
- General illumination
- Hotel rooms and corridors
- Bars, restaurants
- Residential interiors
Product features
- Color temperature switch (CCT): 2700 K, 3000 K, 4000 K
- Power select option available to select between 2 lumen packages
- Type of protection: IP65
- Housing material: polycarbonate (PC)
Equipment / Accessories
- Already equipped with white round ring
- Additional cover rings separately available in round and square shape and in different colors
Safety advice
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 5.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 43.000 mA |
| Inrush current | 8.8 A |
| Inrush current time Th50 | 96 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 79 |
| Max. number of luminaires per miniature circuit breaker C10 | 62 |
| Max. number of luminaires per miniature circuit breaker C16 | 99 |
| Power factor λ | > 0.5 |
| Protection class | II |
| Operating mode | Electronic control gear (ECG) |
Photometrical data
| Luminous flux | 600 lm |
| Luminous efficacy | 109 lm/W |
| Color temperature | 2700 K / 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 90 |
| Standard deviation of color matching | < 6 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 60 ° |
Dimensions & Weight
| Diameter | 81.50 mm |
| Height | 48.00 mm |
| Product weight | 183.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Aluminum |
| Light emitting surface material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Push terminal |
| Type of protection | IP65/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 68 mm |
| Mounting depth | 48 mm |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 39000 h 1) |
| Lifespan L90/B10 at 25 °C | 18000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 100 mA |
| ECG - Output ripple current | < 30 % |
| ECG - Length | 100 mm |
| ECG - Width | 46 mm |
| ECG - Height | 26,0 mm |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854092725 | Folding box 1 |
77 mm x 107 mm x 98 mm | 229.00 g | 0.81 dm³ |
| 4099854092732 | Shipping box 20 |
402 mm x 228 mm x 222 mm | 4932.00 g | 20.35 dm³ |
User instruction / safety instructions
UI SPOT COMBO and ACC
UI SPOT COMBO and ACC
Legal information
Legal Insert SPOT COMBO
Legal Insert SPOT COMBO
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration SP COMBO
CE Declaration SP COMBO
Product image: white background, horizontal

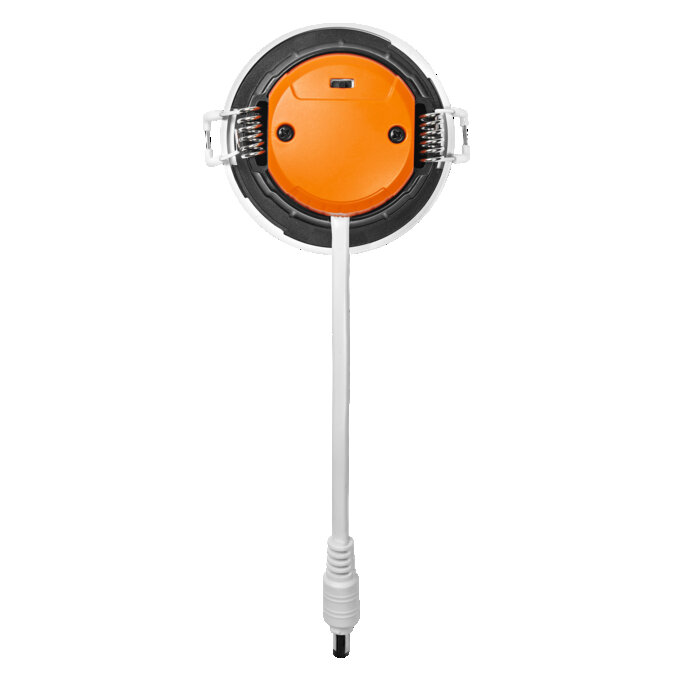

SPOT COMBO ADJ Additional product images
SPOT COMBO ADJ Additional product images

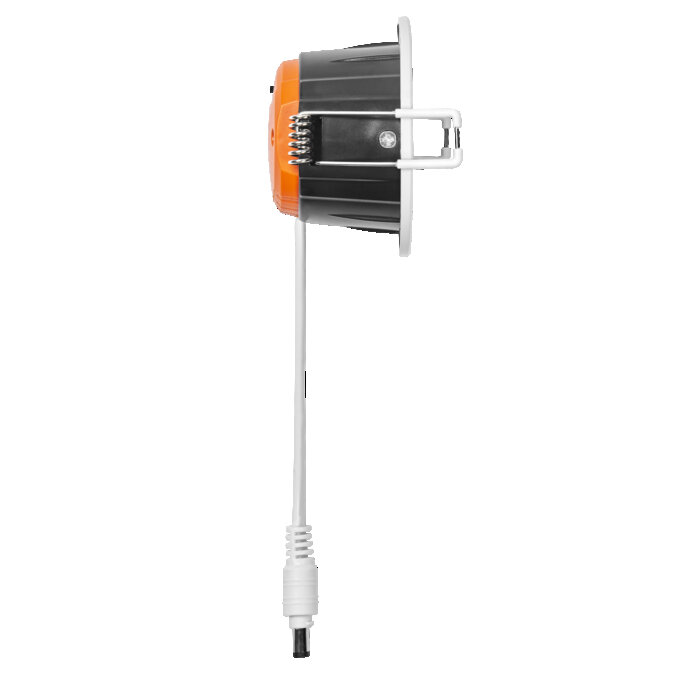

Product image: white background, upright
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT

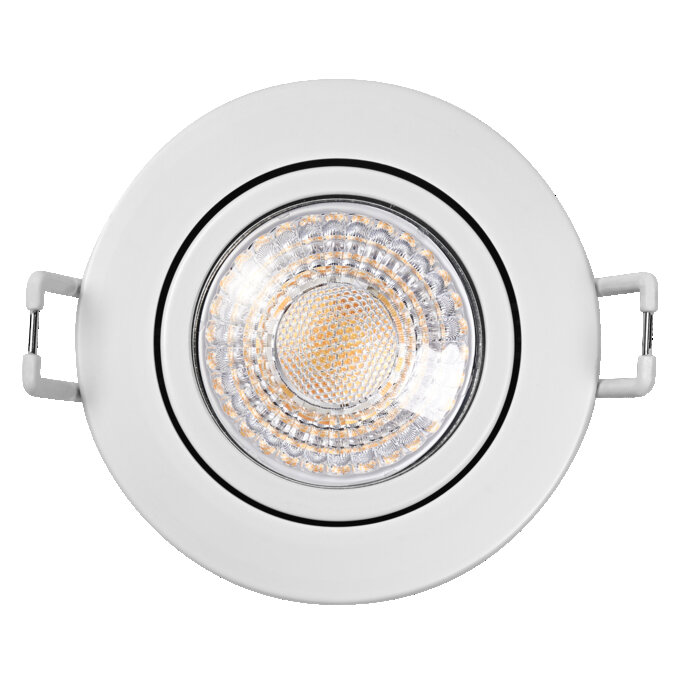

Product image: white background, upright, alternative image
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
Product image: white background, upright, switched on
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT

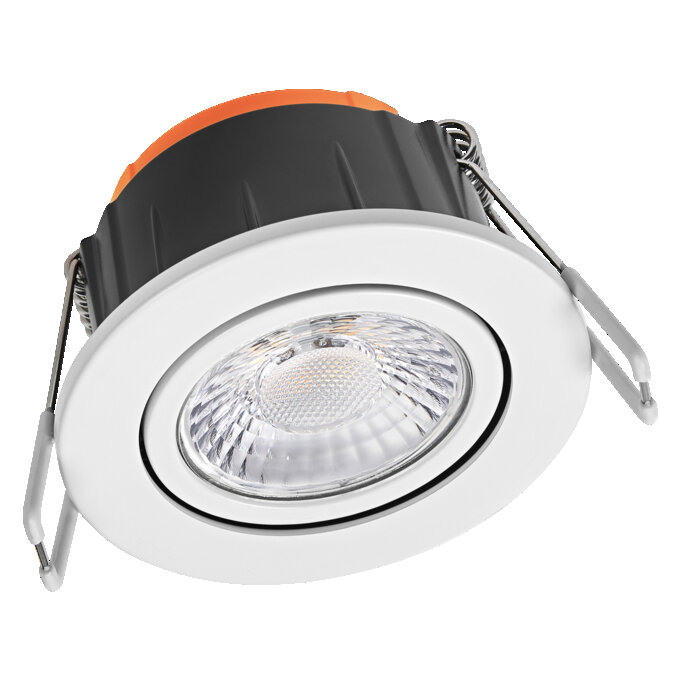

Product image: white background, spacial
SPOT COMBO ADJ Additional product images
SPOT COMBO ADJ Additional product images
Product line drawing with letters
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
Product line drawing with numbers
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
Product line drawing, front, no dimensions
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT

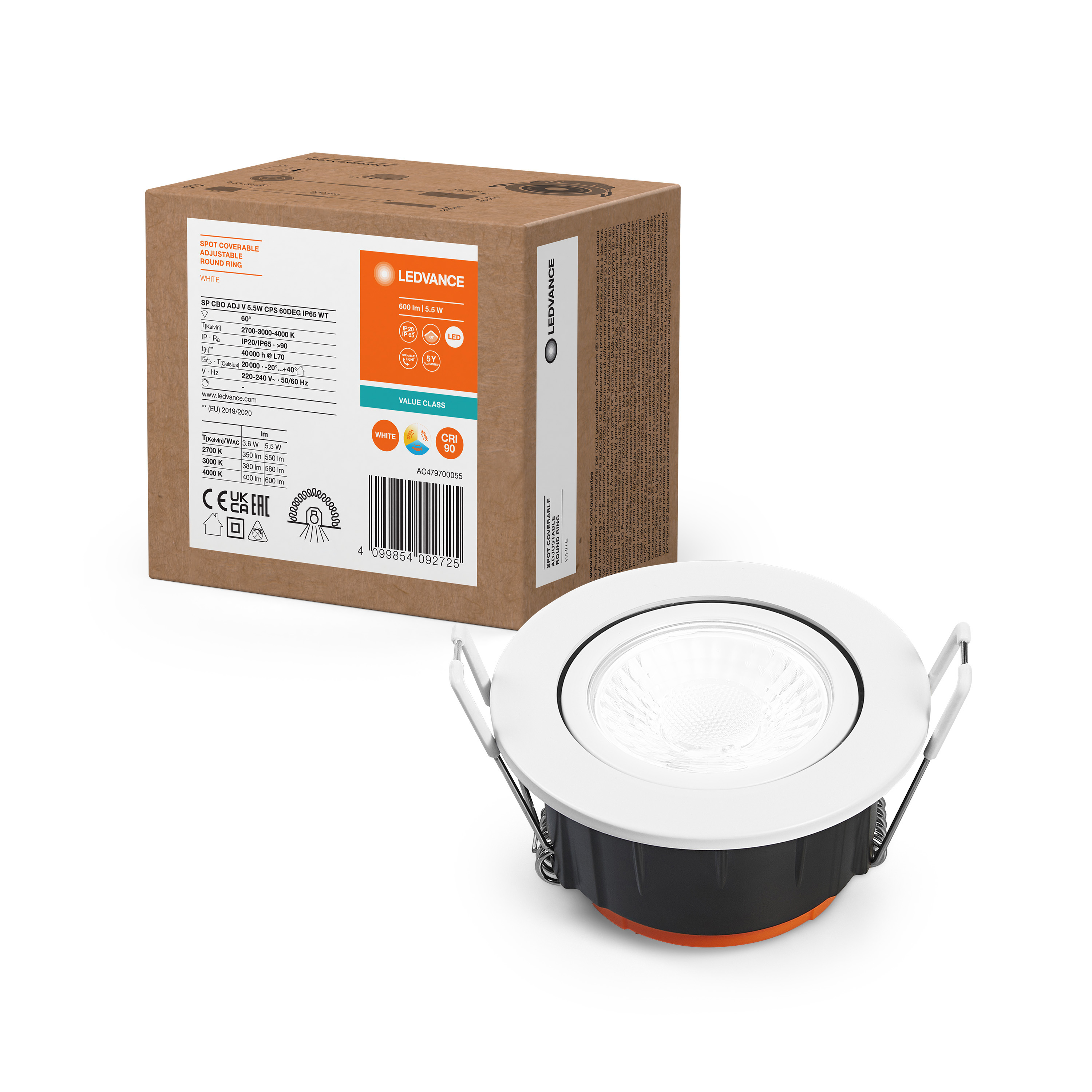

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SPOT CBO ADJ WT
LUM FC SPOT CBO ADJ WT

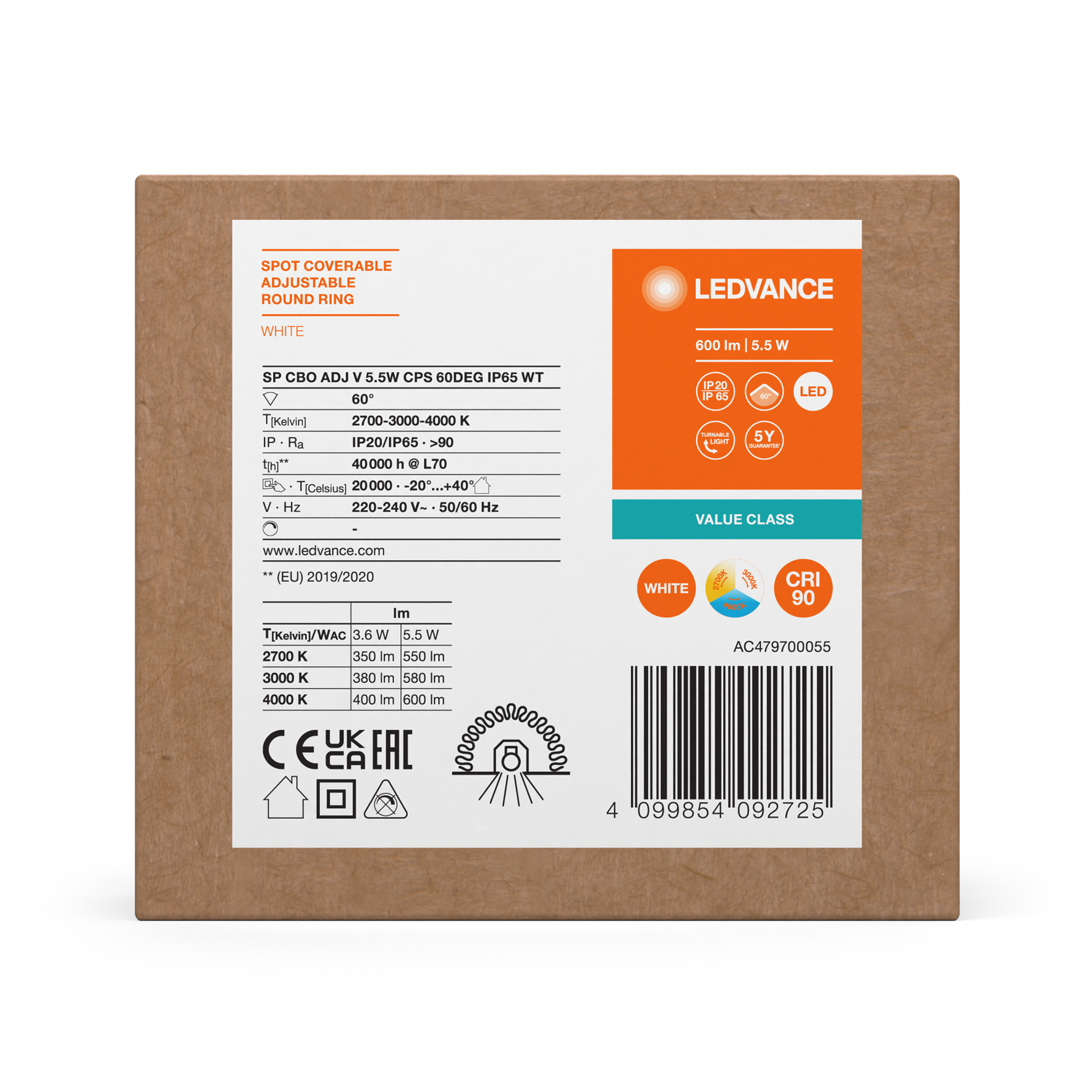

Packaging image, frontal
LUM FC SPOT CBO ADJ WT
LUM FC SPOT CBO ADJ WT

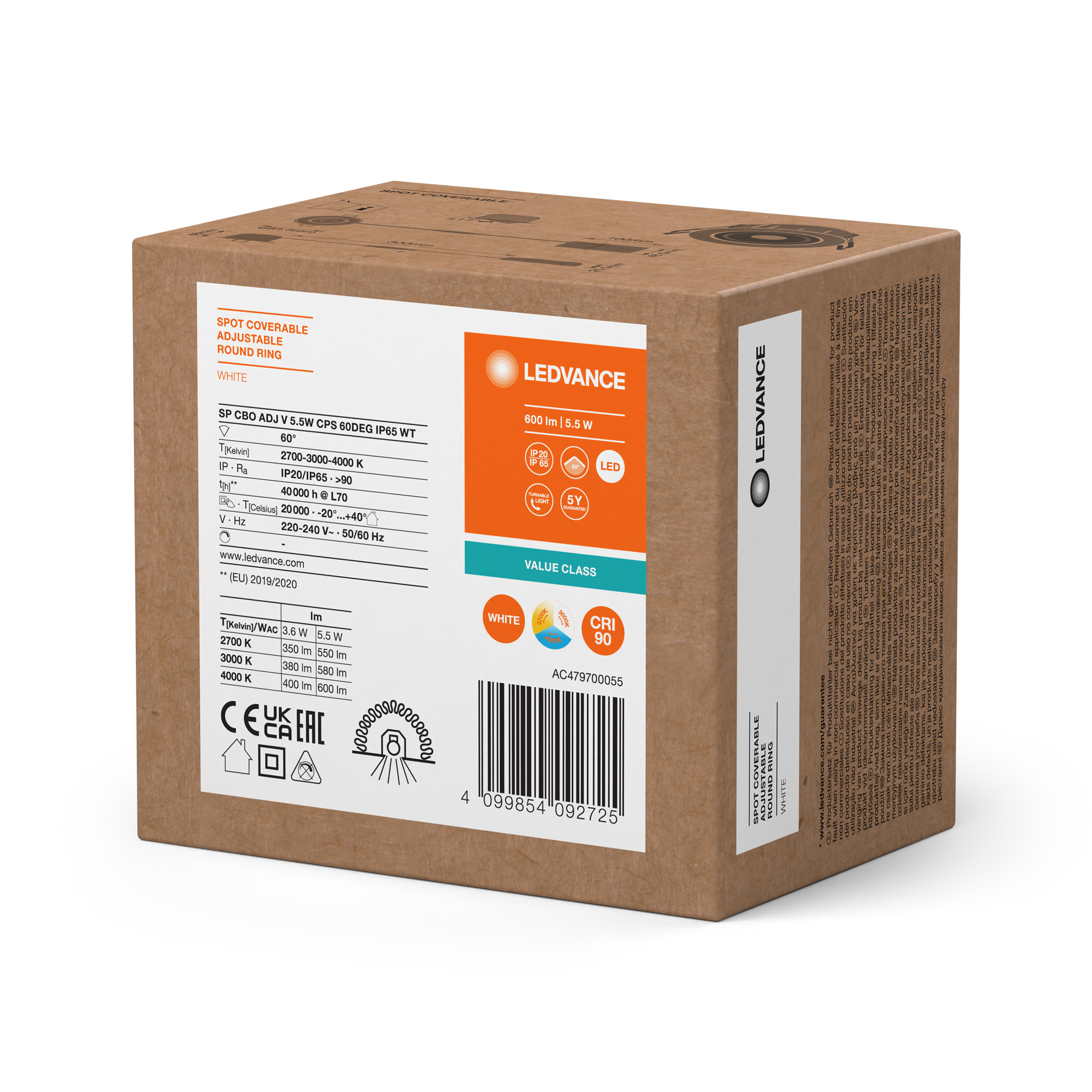

Packaging image, spacial
LUM FC SPOT CBO ADJ WT
LUM FC SPOT CBO ADJ WT
Catalog info 1
CIA 1 SPOT COMBO
CIA 1 SPOT COMBO
Catalog info 2
CIA 2 SPOT COMBO
CIA 2 SPOT COMBO

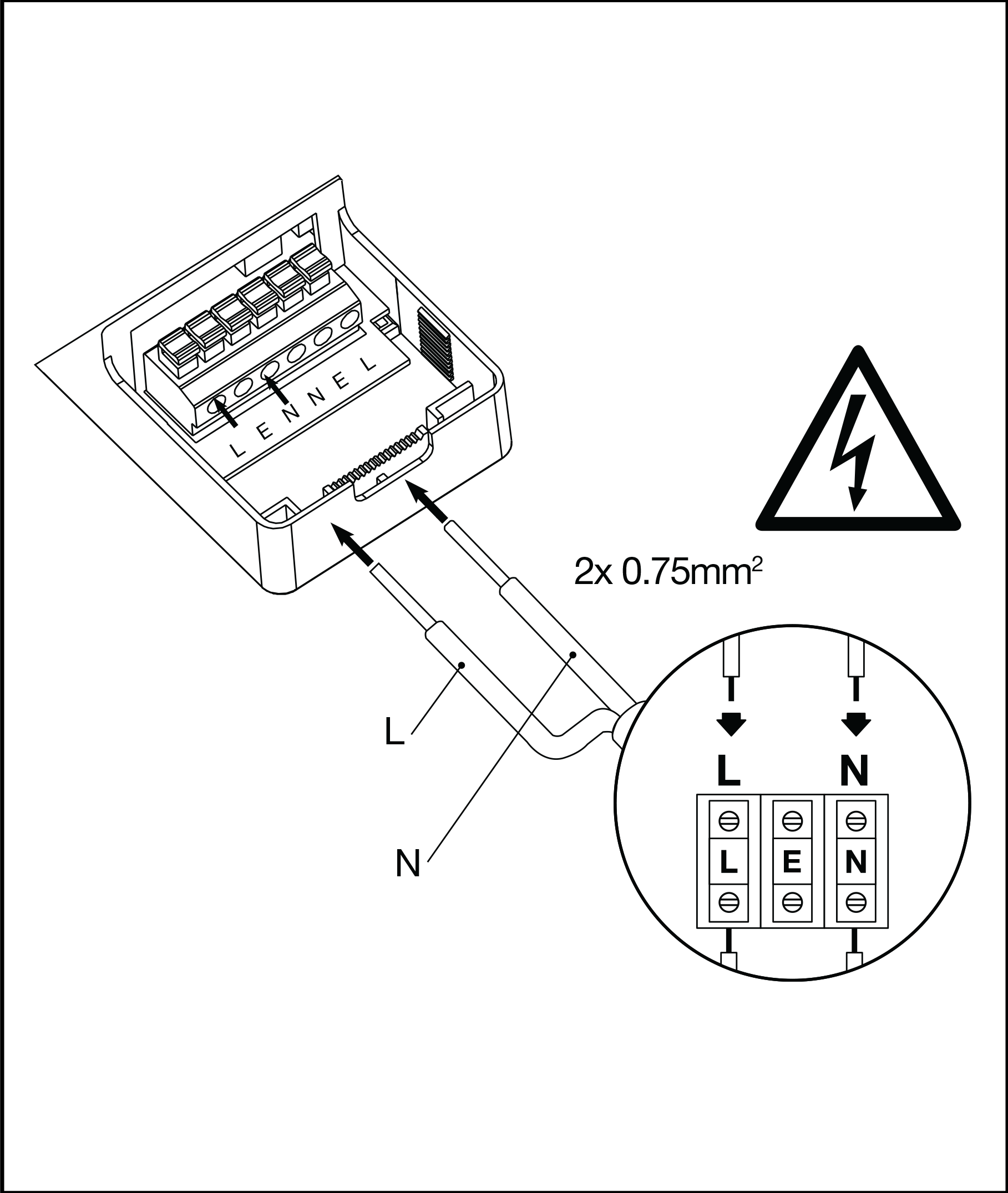

Catalog info 3
CIA 3 SPOT COMBO
CIA 3 SPOT COMBO
IES file (IES)
SP CBO ADJ V 3.6W 927
SP CBO ADJ V 3.6W 927
LDT file (Eulumdat)
SP CBO ADJ V 3.6W 927
SP CBO ADJ V 3.6W 927
ULD file (DIALux)
SP CBO ADJ V 5.5W CPS 60DEG IP65 WT
SP CBO ADJ V 5.5W CPS 60DEG IP65 WT
ROLF file (RELUX)
SPOT COMBO ADJUST V 5.5W CPS 60DEG IP65 WT
SPOT COMBO ADJUST V 5.5W CPS 60DEG IP65 WT

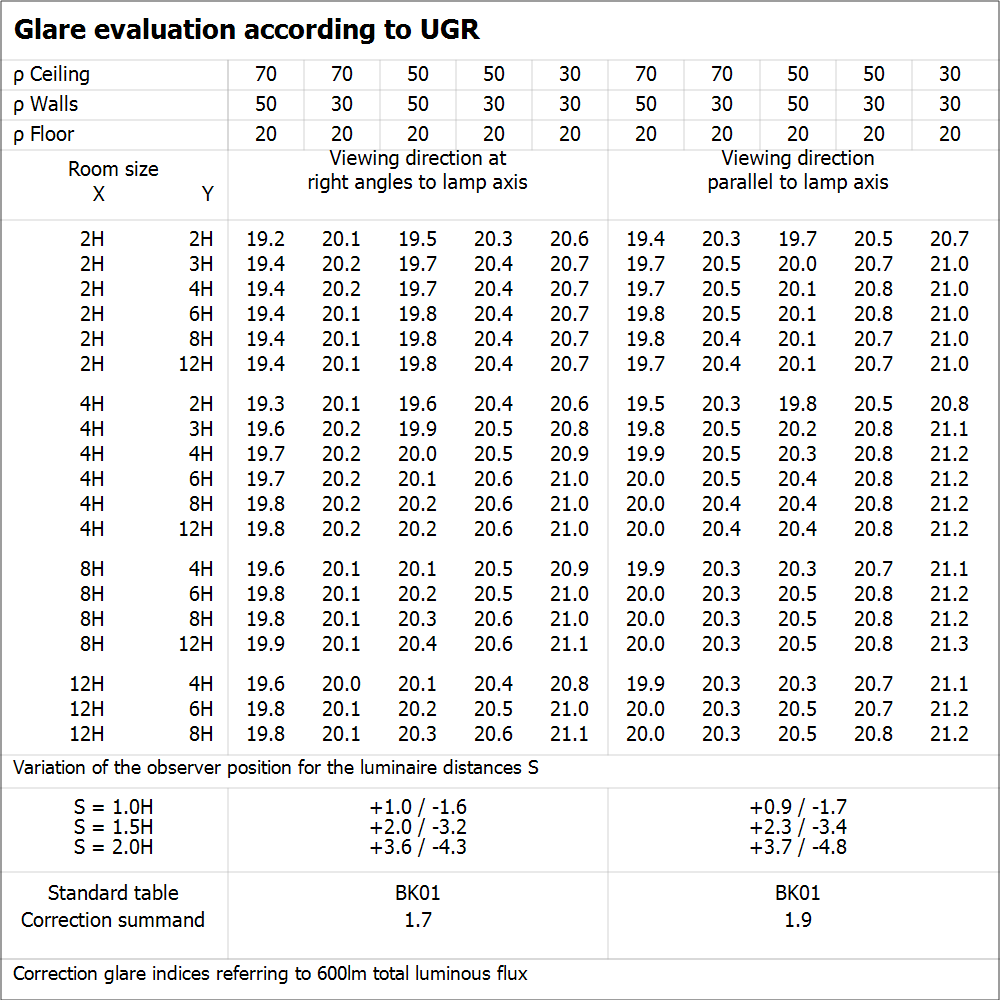

UGR file (UGR table)
SP CBO ADJ V 3.6W 927
SP CBO ADJ V 3.6W 927
Light distribution curve type cone
SP CBO ADJ V 3.6W 927
SP CBO ADJ V 3.6W 927
Light distribution curve type polar
SP CBO ADJ V 3.6W 927
SP CBO ADJ V 3.6W 927
BIM Revit 3D
Spot Combo
Spot Combo
CAD STEP 3D
SP CBO ADJ
SP CBO ADJ

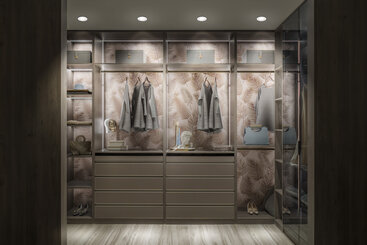

Application pictures Getty
SPOT RING ADJ RD WT 4000K
SPOT RING ADJ RD WT 4000K
Application pictures Getty
SPOT RING ADJ RD WT 2700K
SPOT RING ADJ RD WT 2700K

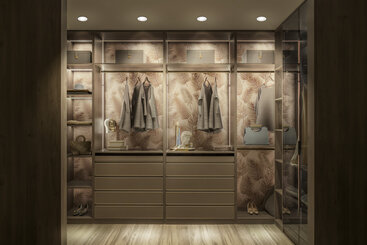

Application pictures Getty
SPOT RING ADJ RD WT 3000K
SPOT RING ADJ RD WT 3000K
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4099854092725 | 7452877 | 4136283 | 3252694 | 941005740 |
