SPOT COMBO FIRE RATED FIX MS

SP CBO FPFIX V 6W MS827 DIM IP65 WT

GTIN: 4099854459894 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Easy color temperature adjustment via switch on the front of the spot
  • Highly versatile due to selectable power steps (Multi Lumen) on the front of the luminaire
  • Can be covered with most insulating materials
  • Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Residential interiors
Product features
  • Adjustable color temperature (Multi Color): 2700 K, 3000 K, 4000 K, 6000 K
  • Version with Multi Lumen function available: power steps selectable
  • Type of protection: IP65 (room side)
  • Housing material: iron
  • Ring material: plastic
Equipment / Accessories
  • Already equipped with white round ring
  • Additional cover rings separately available in round shape and in different colors
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
Electrical data
Nominal wattage 6 W / 4 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 34.000 mA
Inrush current 1.36 A
Inrush current time Th50 200 µs
Max. number of luminaires per miniature circuit breaker B16 281
Max. number of luminaires per miniature circuit breaker C10 237
Max. number of luminaires per miniature circuit breaker C16 380
Power factor λ 0.70
Total harmonic distortion <95 %
Protection class I
Operating mode Integrated LED driver
Photometrical data
Luminous flux 650 lm / 610 lm / 580 lm / 460 lm / 440 lm / 420 lm
Luminous efficacy 110 lm/W / 105 lm/W / 100 lm/W
Color temperature 2700 K / 3000 K / 4000 K / 6000 K
Light color (designation) Warm White, Cool White, Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 60 °
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
6 W 6000 K 650 lm 110 lm/W
6 W 4000 K 650 lm 110 lm/W
6 W 3000 K 610 lm 105 lm/W
6 W 2700 K 580 lm 100 lm/W
4 W 6000 K 460 lm 110 lm/W
4 W 4000 K 460 lm 110 lm/W
4 W 3000 K 440 lm 105 lm/W
4 W 2700 K 420 lm 100 lm/W
Dimensions & Weight
Diameter 86.00 mm
Height 33.00 mm
Product weight 187.00 g
Cable length 110 mm
Materials & Colors
Product color Black
Housing color Black
Body material Plastic|METAL
Cover material Plastic
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug-In connection
Type of protection IP65/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming PHASE CUT
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 70 mm
Mounting depth 33 mm
Adjustable No
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 18 mA
ECG - Output ripple current < 5 %
Certificates & Standards
Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Additional product data
Product remark Available from March 2025
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854459894 Folding box
1		 110 mm x 110 mm x 72 mm 232.00 g 0.87 dm³
4099854459900 Shipping box
45		 566 mm x 346 mm x 259 mm 11140.00 g 50.72 dm³
User instruction / safety instructions
SP CBO FPFIX V 6W MS827 DIM IP65
PDF (3.36 MB)
Legal information
SP CBO DIM IP65 WT
PDF (165.78 KB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
SP CBO FPFIX V 6W MS827 DIM IP65 WTLEDV
PDF (2.19 MB)
Declarations of conformity
SP CBO
PDF (275.94 KB)

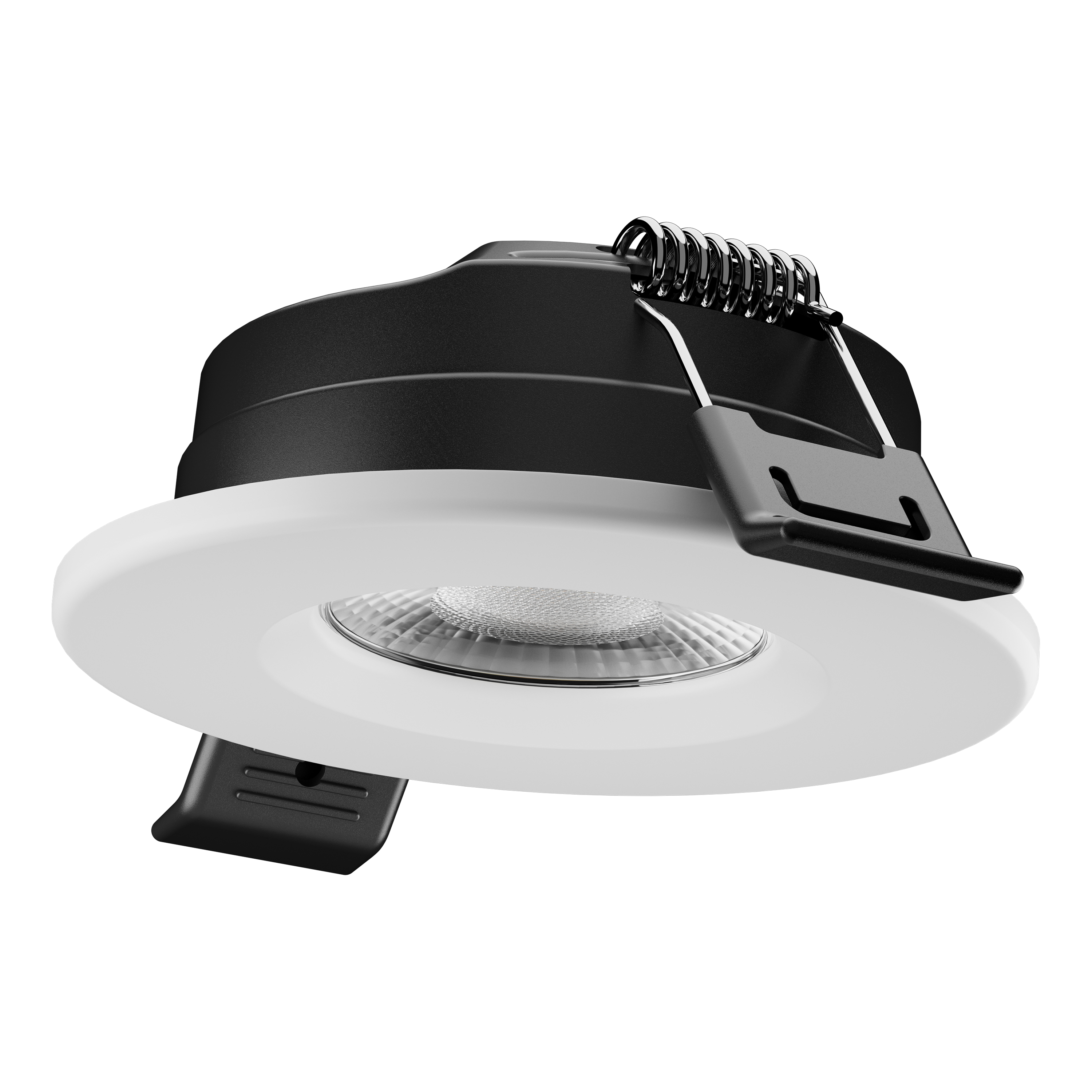

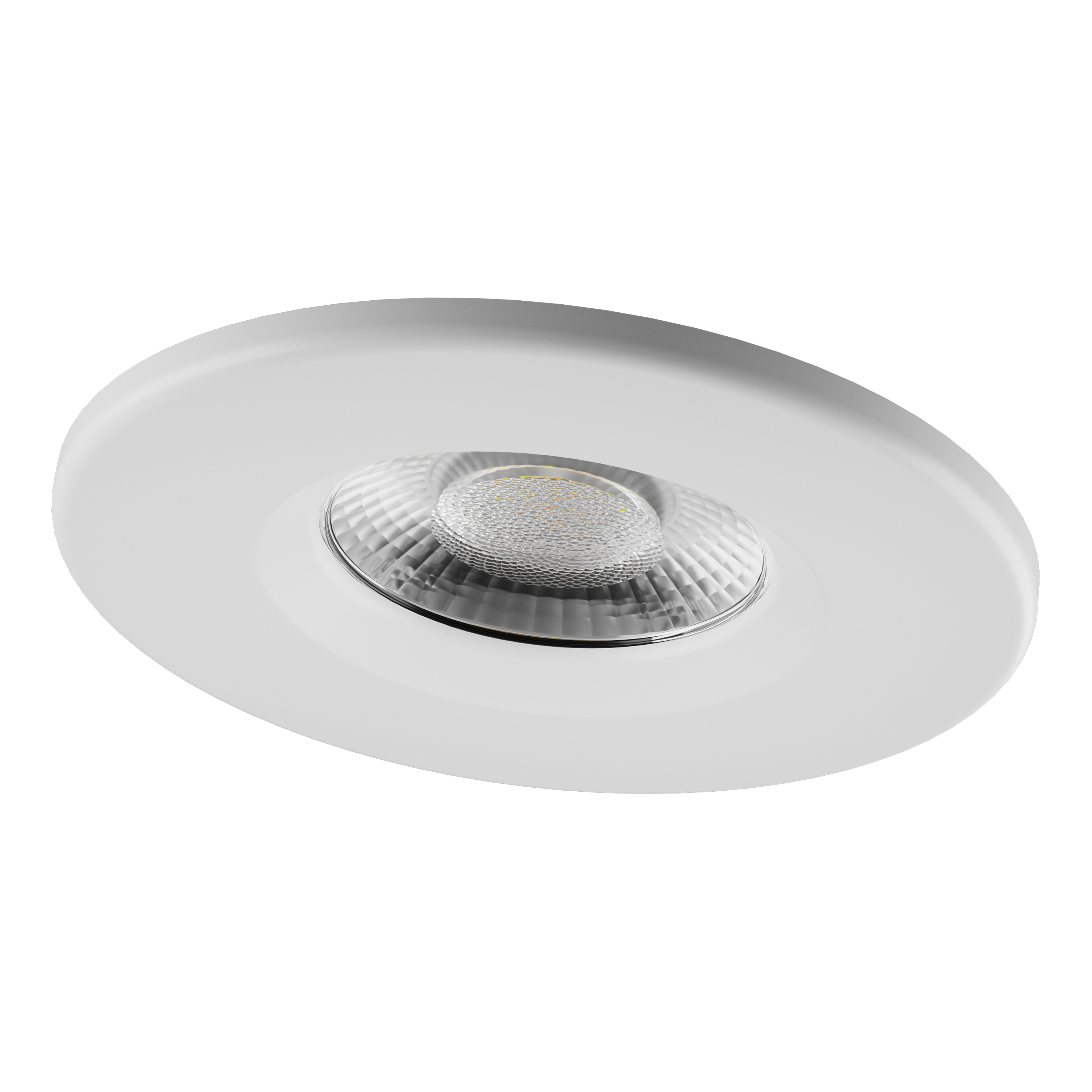

Product image: white background, diagonal
SP CBO FPFIX V 6W MS827 DIM IP65 WT
JPG (1.36 MB)

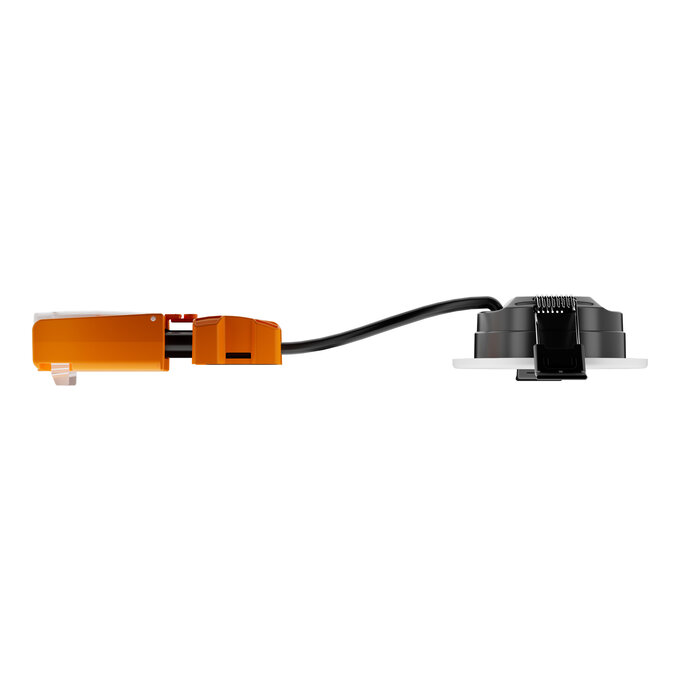

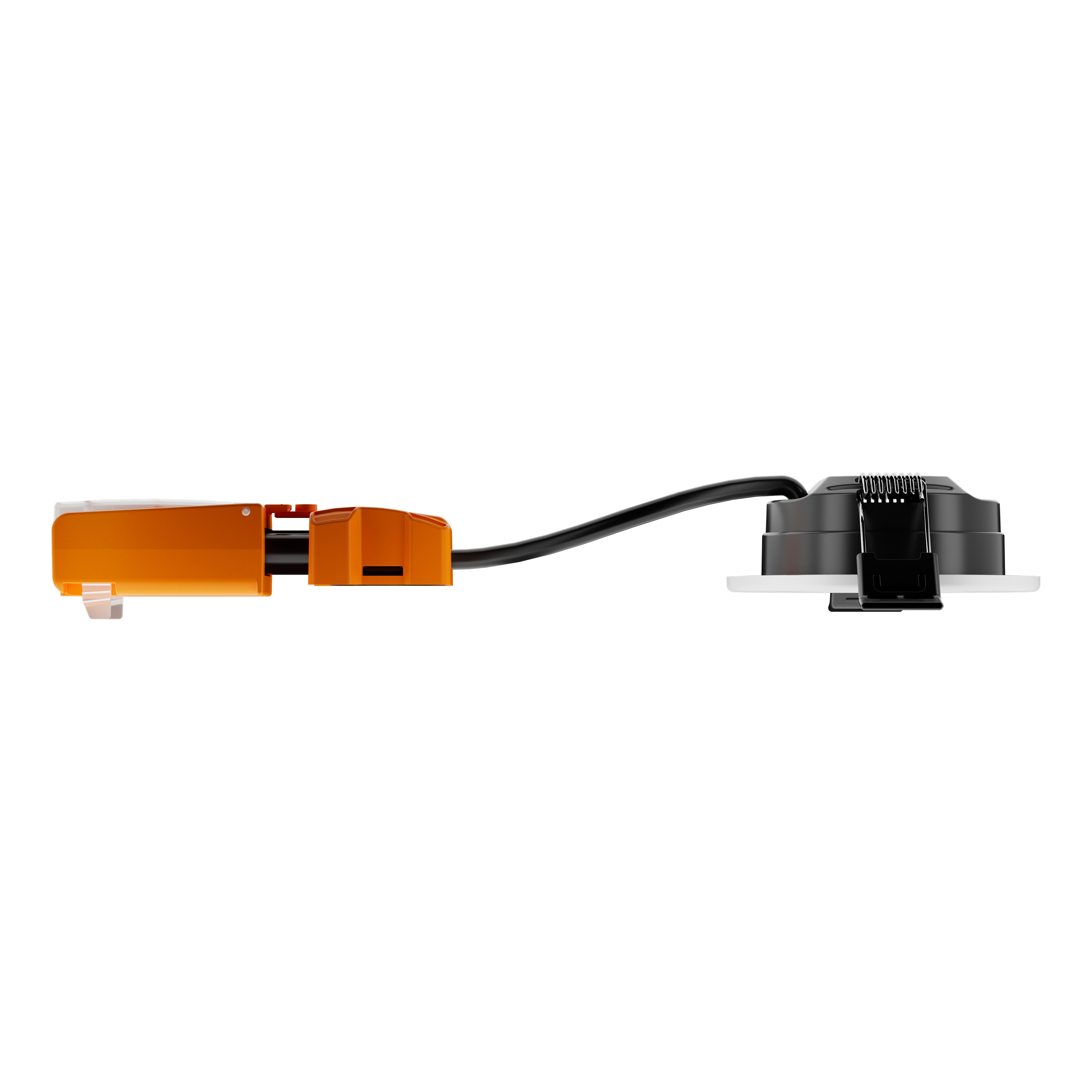

Product image: white background, horizontal
SP CBO FPFIX V 6W MS827 DIM IP65 WT
JPG (1.15 MB)

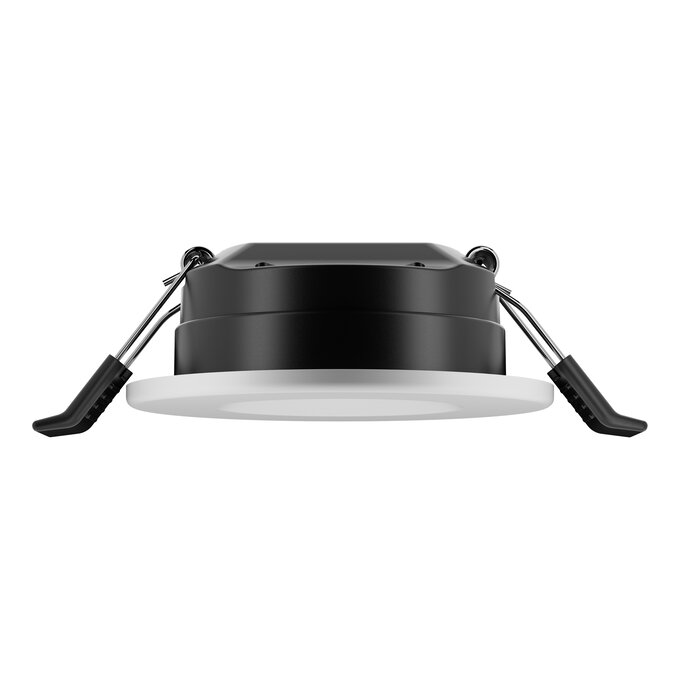

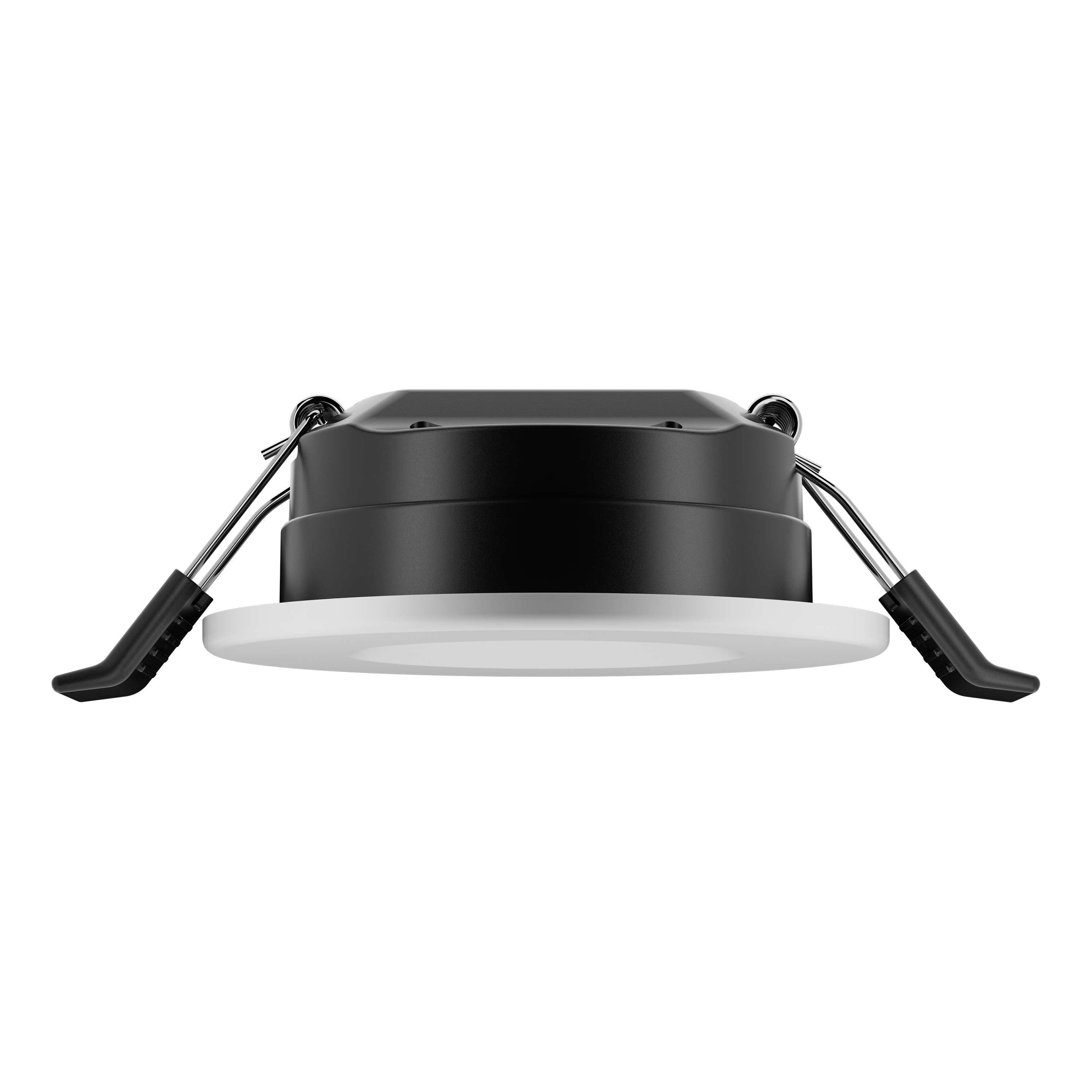

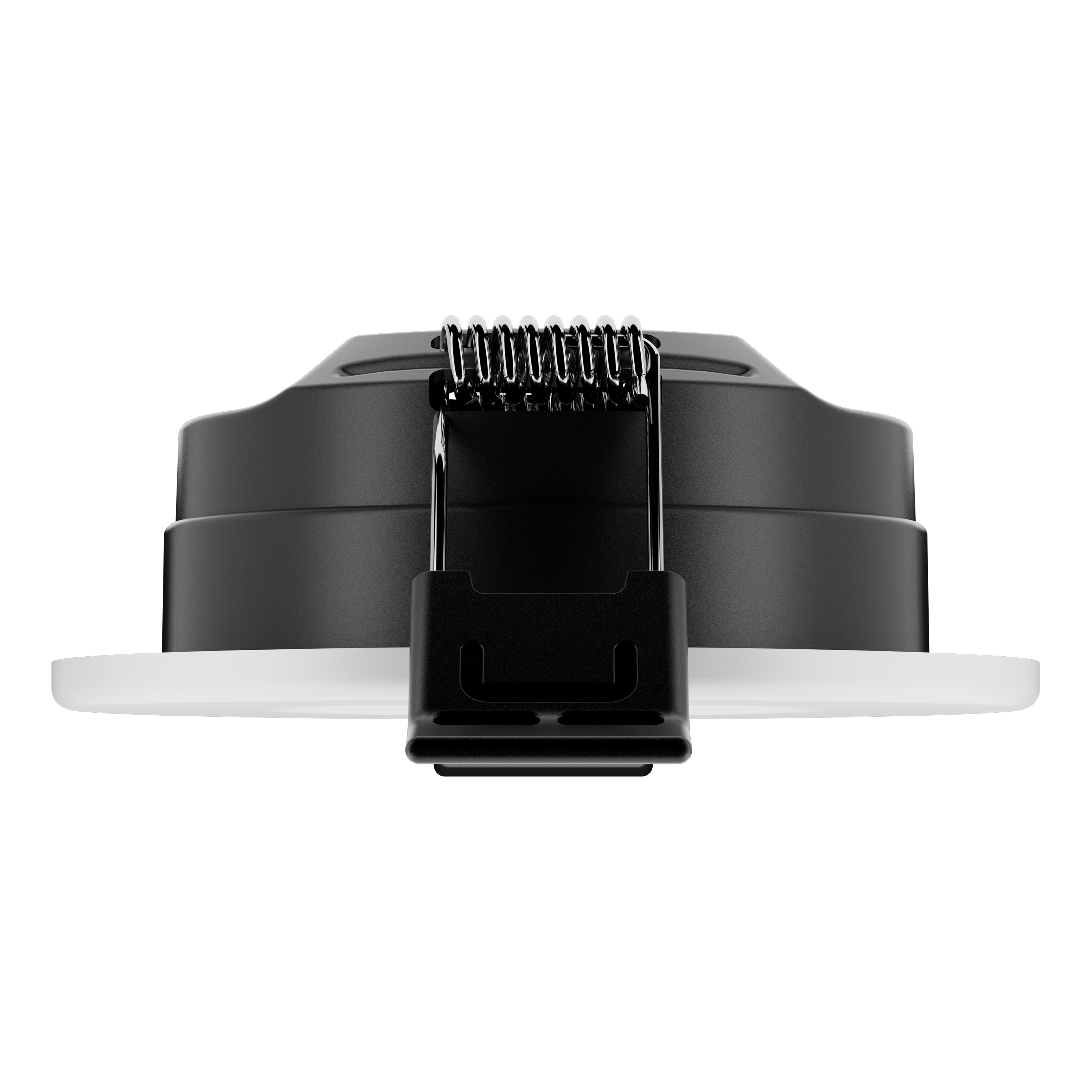

Product image: white background, horizontal, alternative image
SP CBO FPFIX V 6W MS827 DIM IP65 WT
JPG (872.72 KB)
Product image: white background, horizontal, alternative image
SP CBO FPFIX V 6W MS827 DIM IP65 WT
JPG (1.53 MB)

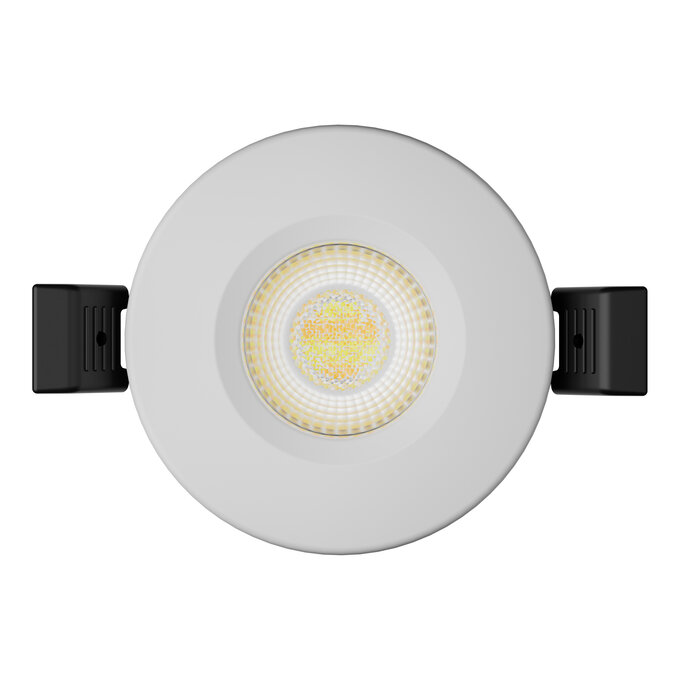

Product image: white background, upright
SP CBO FPFIX V 6W MS827 DIM IP65 WT
JPG (1.96 MB)

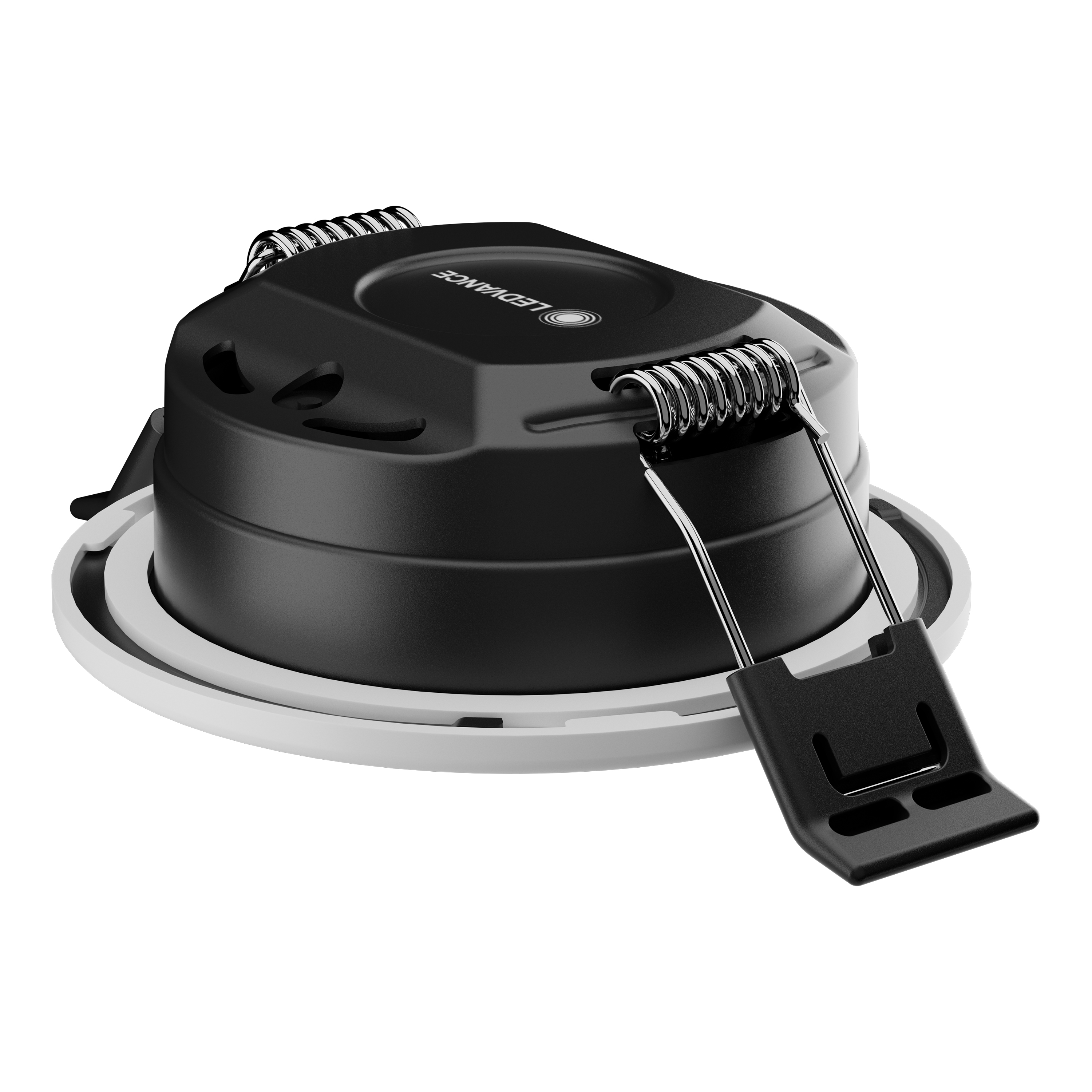

Product image: white background, spacial
