SPOT COMBO FIRE RATED FIX
SP CBO FPFIX E 5W MC827 DIM IP65 WT
GTIN: 4099854459849
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Color temperature adjustment via switch on the back of the spot
- Can be covered with most insulating materials
- Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
Areas of application
- Direct replacement for recessed spotlights with halogen lamps
- General illumination
- Hotel rooms and corridors
- Bars, restaurants
- Residential interiors
Product features
- Adjustable color temperature (Multi Color): 2700 K, 3000 K, 4000 K
- Type of protection: IP65 (room side)
- Housing material: iron
- Ring material: plastic
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 5.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 27.000 mA |
| Inrush current | 1.36 A |
| Inrush current time Th50 | 200 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 281 |
| Max. number of luminaires per miniature circuit breaker C10 | 237 |
| Max. number of luminaires per miniature circuit breaker C16 | 380 |
| Power factor λ | 0.70 |
| Total harmonic distortion | <95 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 560 lm / 510 lm |
| Luminous efficacy | 120 lm/W / 110 lm/W |
| Color temperature | 2700 K / 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 60 ° |
| UGR | < 25 |
Adjustable attributes
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 5 W | 4000 K | 560 lm | 120 lm/W |
| 5 W | 3000 K | 560 lm | 120 lm/W |
| 5 W | 2700 K | 510 lm | 110 lm/W |
Dimensions & Weight
| Diameter | 90.00 mm |
| Height | 32.00 mm |
| Product weight | 139.00 g |
| Cable length | 110 mm |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Plastic|METAL |
| Cover material | Plastic |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug-In connection |
| Type of protection | IP65/IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 70 mm |
| Mounting depth | 32 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 14.5 mA |
| ECG - Output ripple current | < 5 % |
Certificates & Standards
| Standards | CE, CB, ENEC, TÜV SÜD, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854459849 | Folding box 1 |
94 mm x 94 mm x 74 mm | 172.00 g | 0.65 dm³ |
| 4099854459856 | Shipping box 45 |
486 mm x 298 mm x 262 mm | 8340.00 g | 37.94 dm³ |
User instruction / safety instructions
SP CBO FPFIX E 5W MC827 DIM IP65 WTLEDV
SP CBO FPFIX E 5W MC827 DIM IP65 WTLEDV
Legal information
Safety insert G11221844
Safety insert G11221844
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
SP CBO FPFIX E 5W MC827 DIM IP65 WTLEDV
SP CBO FPFIX E 5W MC827 DIM IP65 WTLEDV
Declarations of conformity
SP CBO
SP CBO

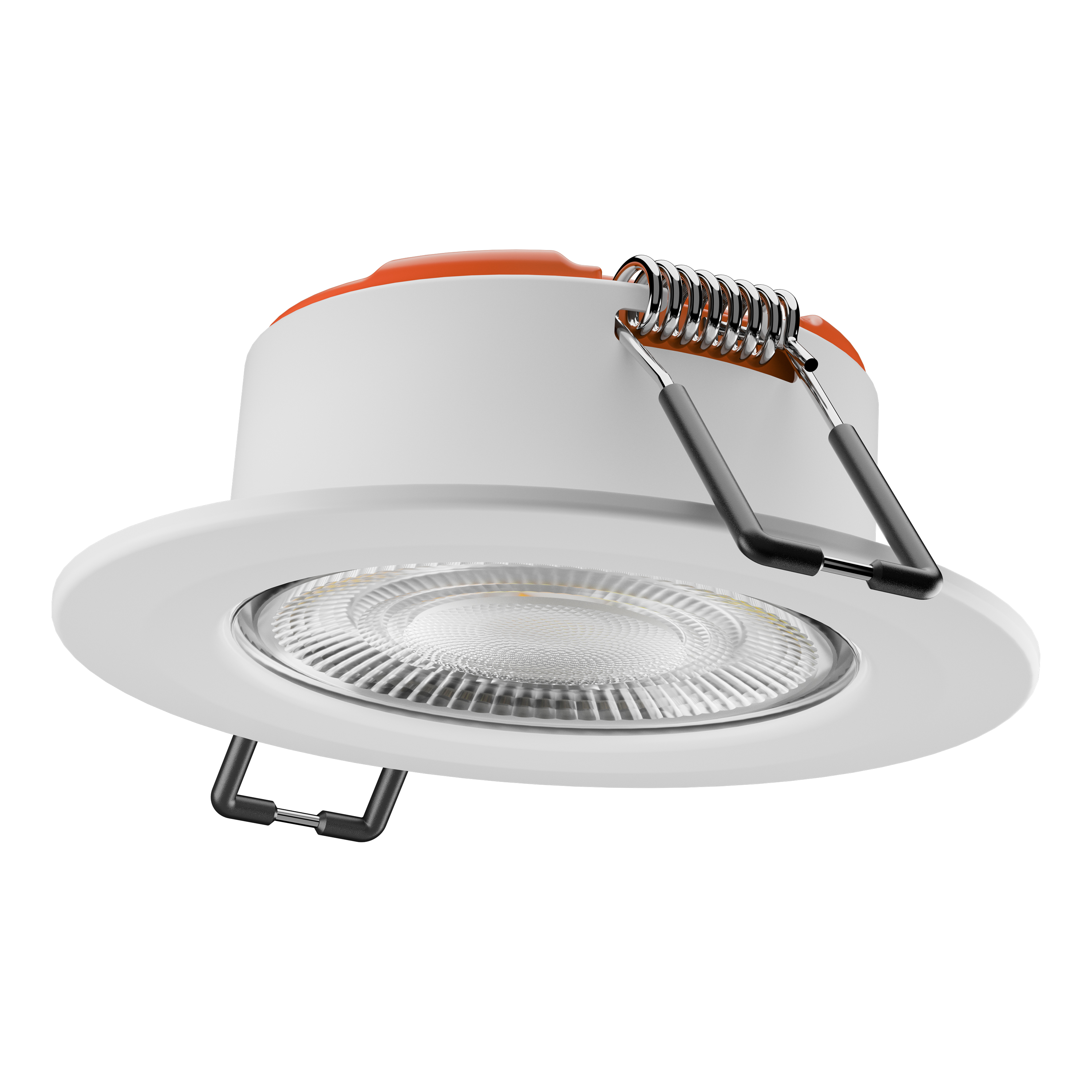

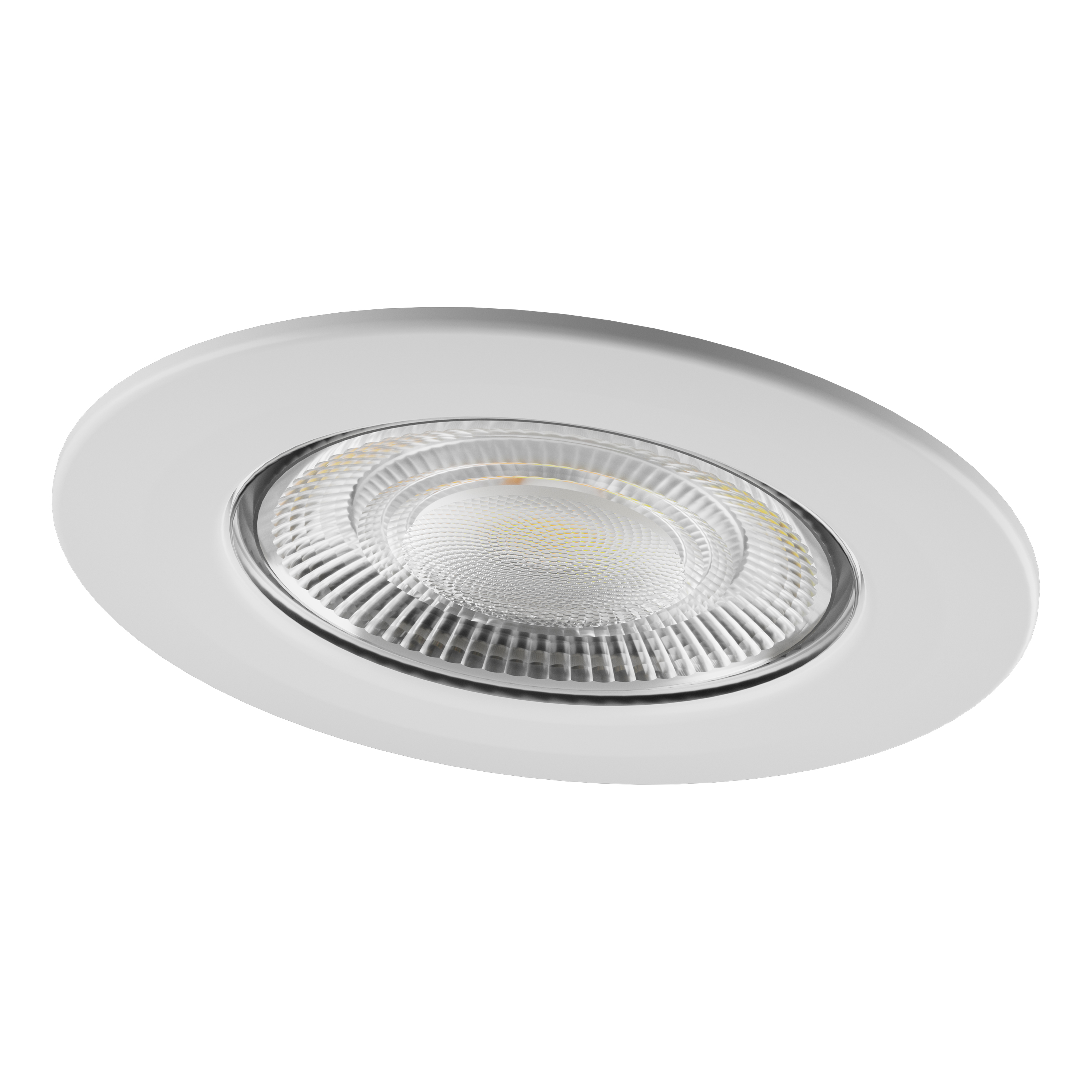

Product image: white background, diagonal
SP CBO FPFIX E 5W MC827 DIM IP65 WT
SP CBO FPFIX E 5W MC827 DIM IP65 WT

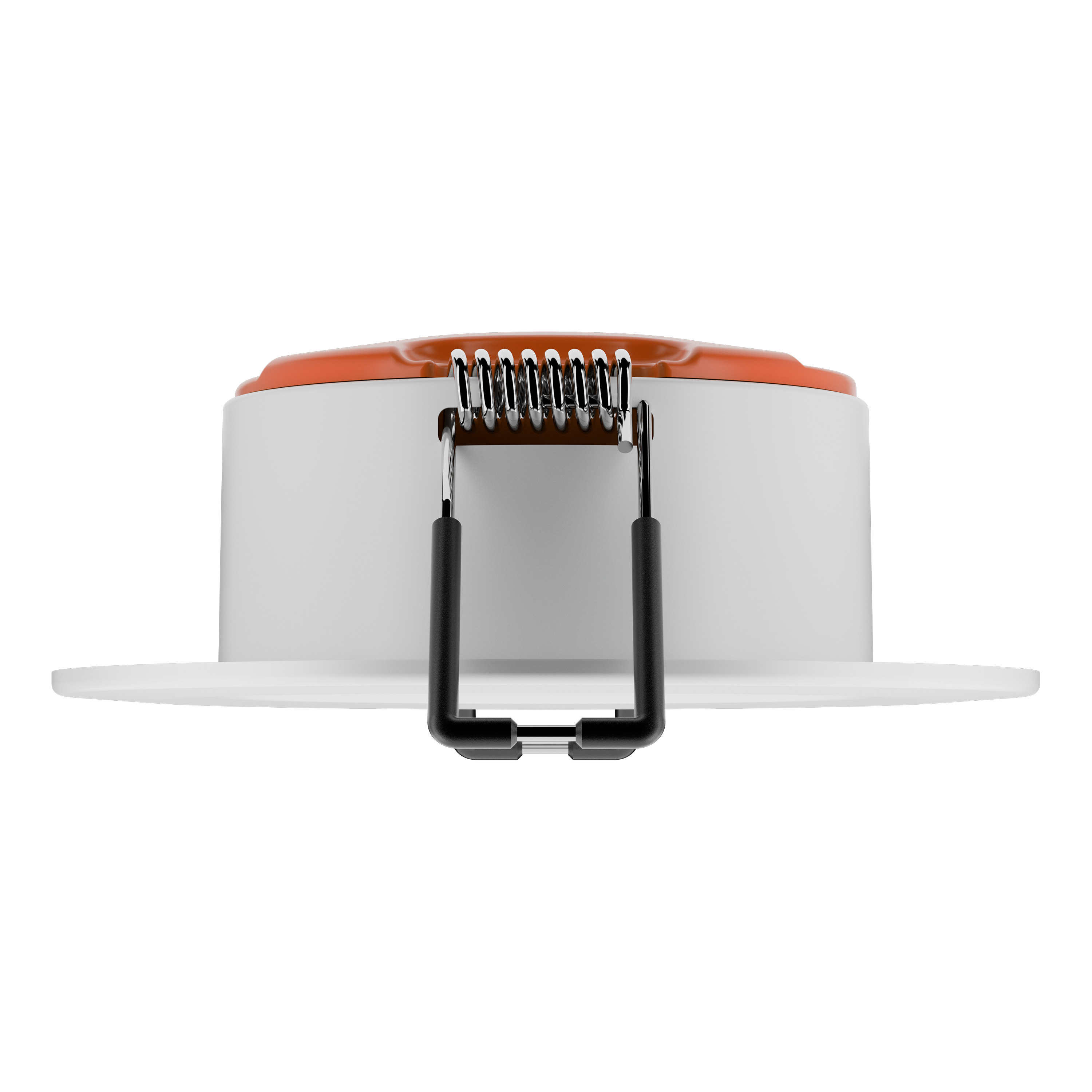

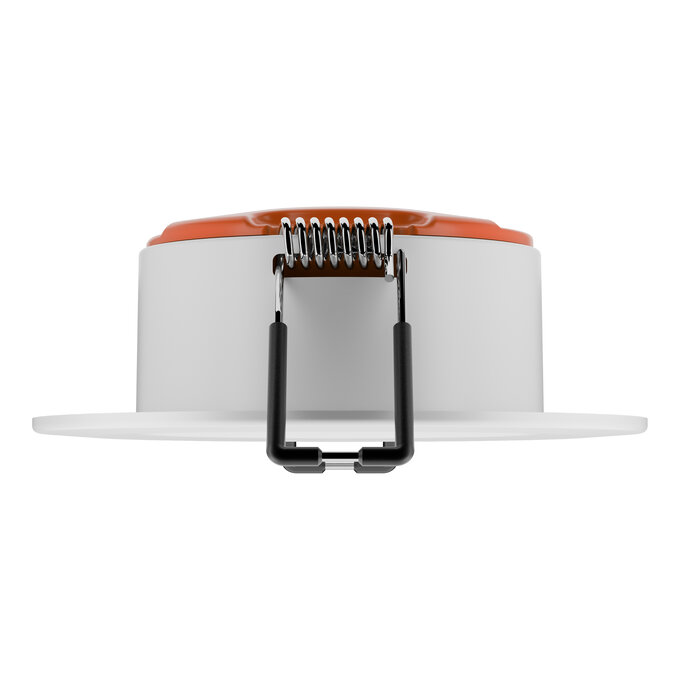

Product image: white background, horizontal
SP CBO FPFIX E 5W MC827 DIM IP65 WT
SP CBO FPFIX E 5W MC827 DIM IP65 WT

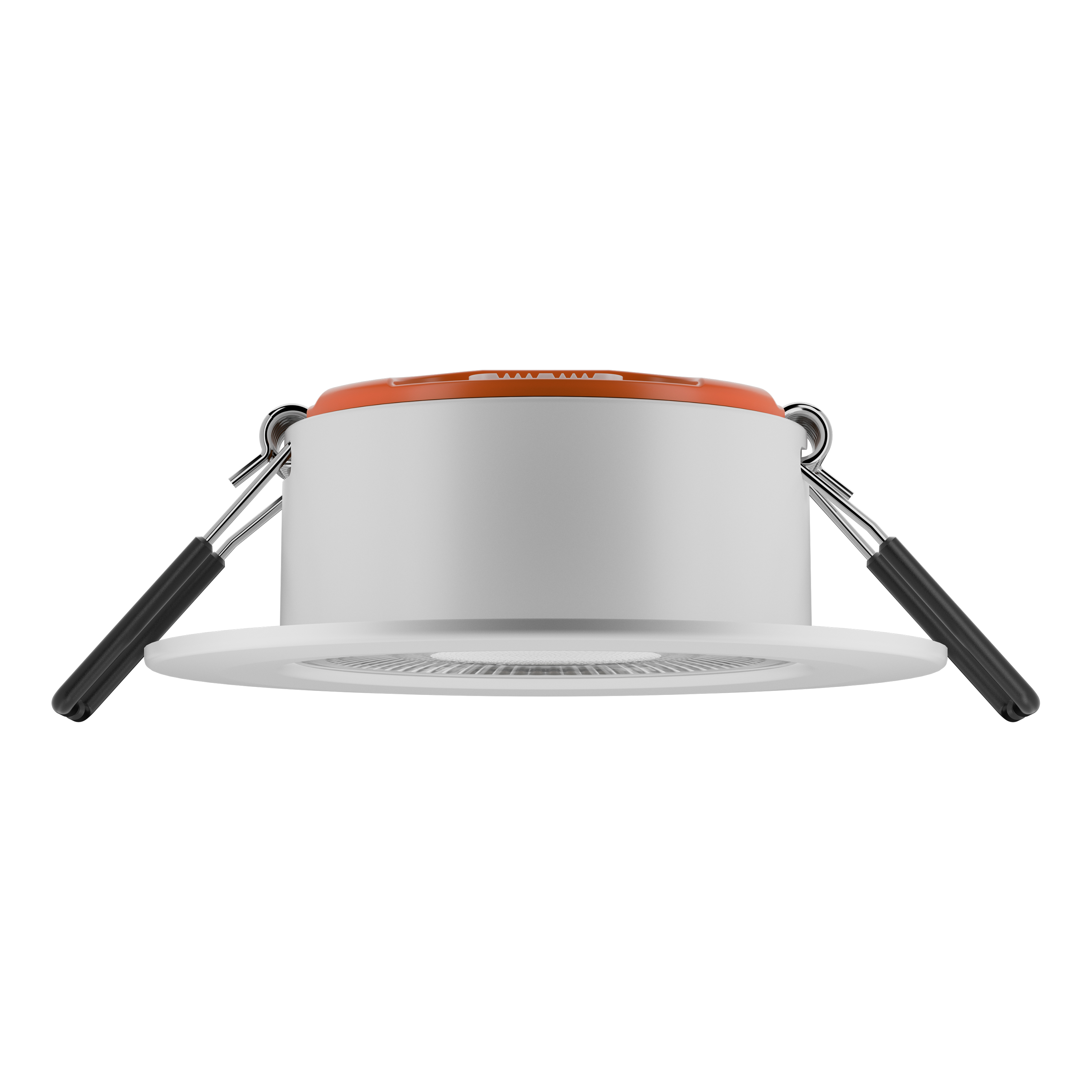

Product image: white background, horizontal, alternative image
SP CBO FPFIX E 5W MC827 DIM IP65 WT
SP CBO FPFIX E 5W MC827 DIM IP65 WT

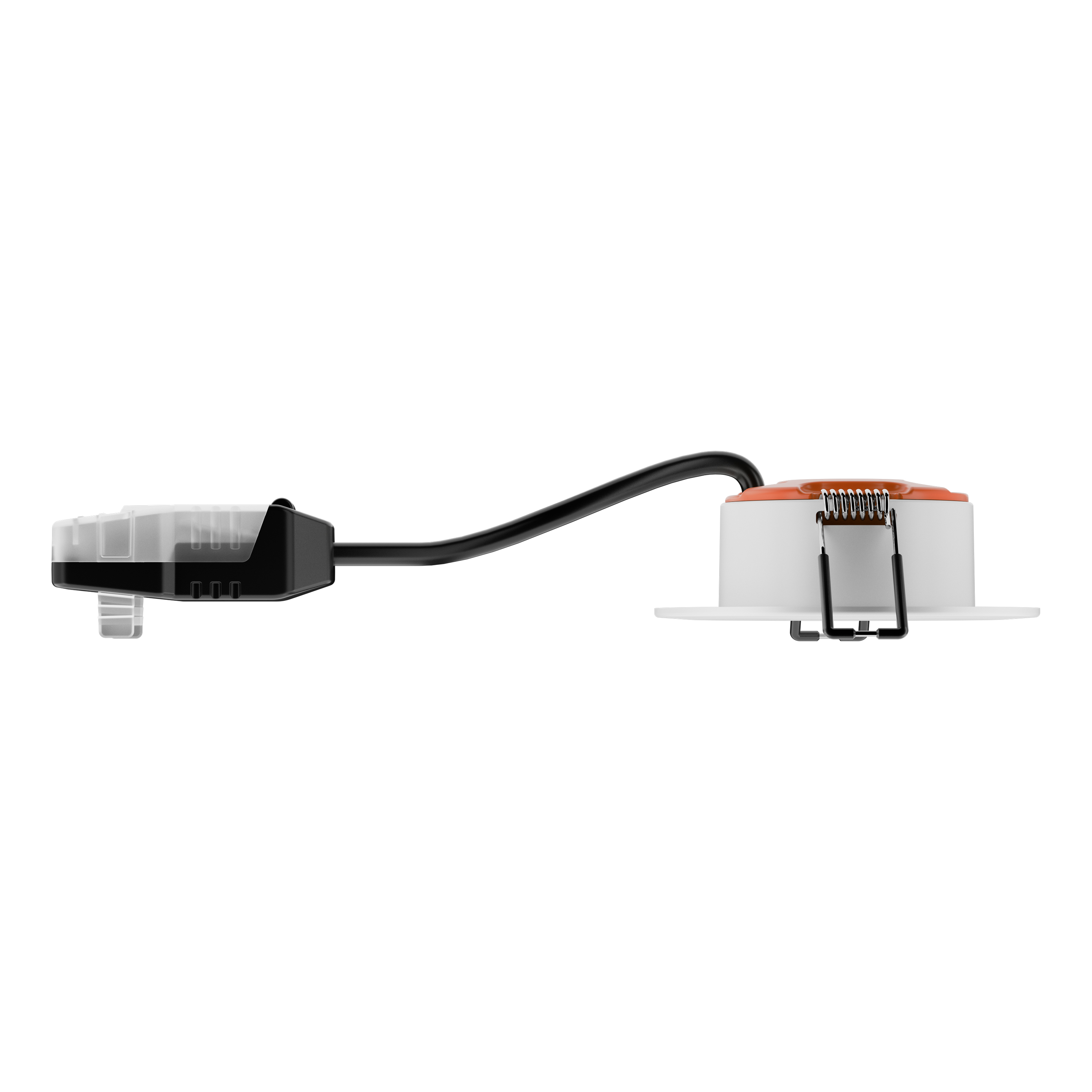

Product image: white background, horizontal, alternative image
SP CBO FPFIX E 5W MC827 DIM IP65 WT
SP CBO FPFIX E 5W MC827 DIM IP65 WT

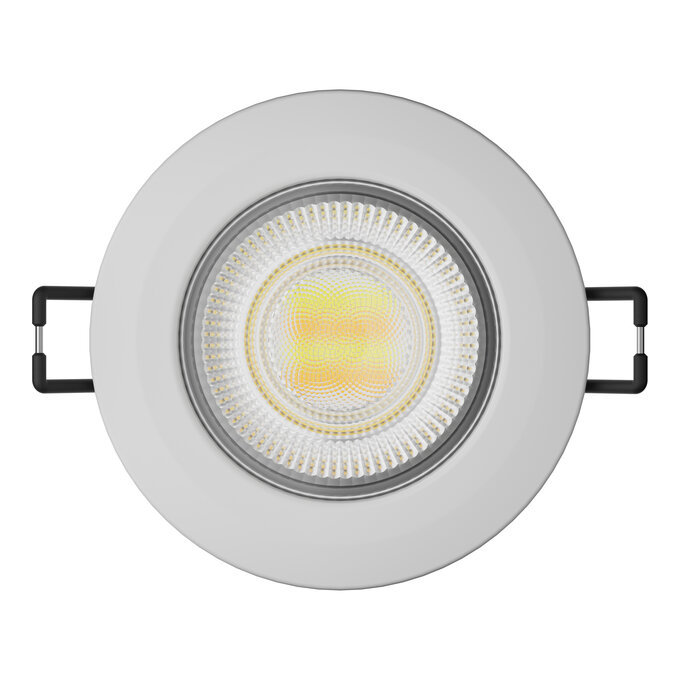

Product image: white background, upright
SP CBO FPFIX E 5W MC827 DIM IP65 WT
SP CBO FPFIX E 5W MC827 DIM IP65 WT

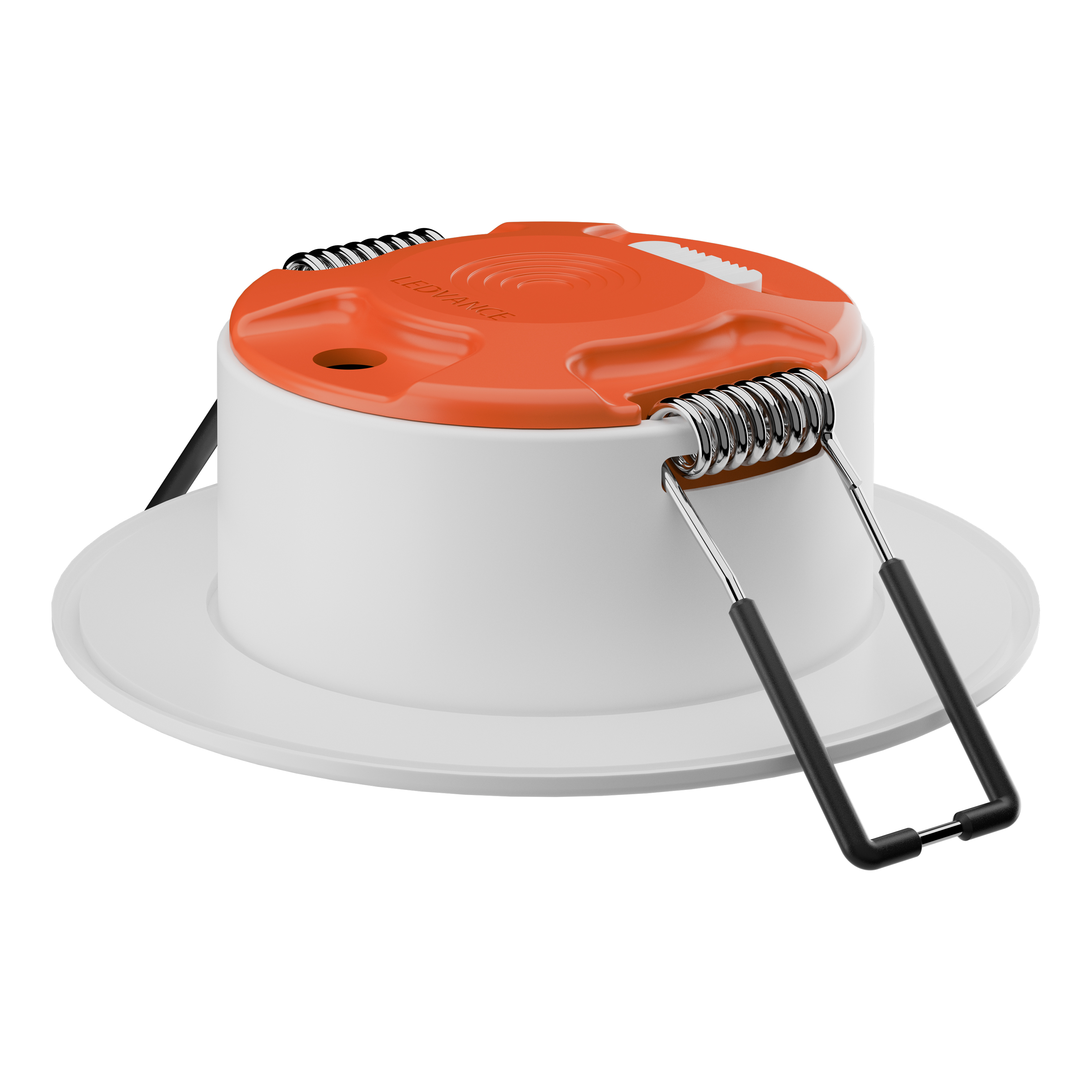

Product image: white background, spacial
