SPOT COMBO DALI ADJUST

SP CBO DA ADJ V 6W MC 930 IP65 WT

GTIN: 4058075846326 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

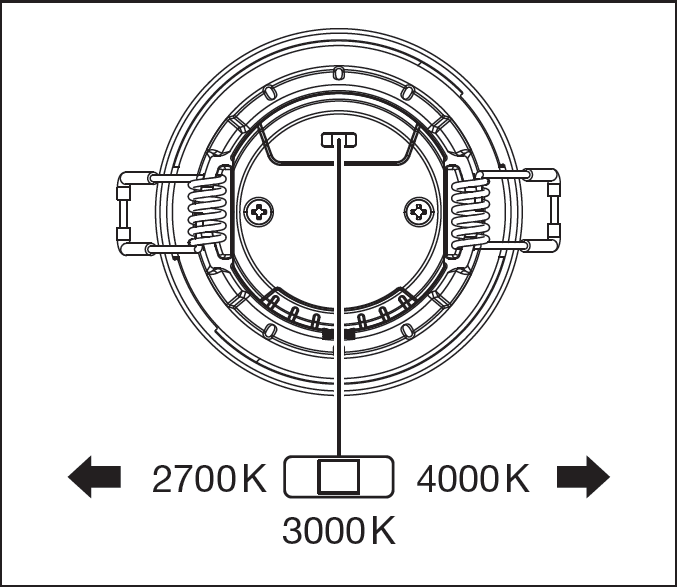

  • Color temperature adjustment via switch on the back of the spot
  • Can be covered with most insulating materials
Areas of application
  • Direct replacement for recessed spotlights with halogen lamps
  • General illumination
  • Hotel rooms and corridors
  • Bars, restaurants
  • Residential interiors
Product features
  • Color temperature switch (CCT): 2700 K, 3000 K, 4000 K
  • Can be controlled with DALI system
  • DALI-2 certified
  • Type of protection: IP65 (room side)
  • Housing material: polycarbonate (PC)
Equipment / Accessories
  • Already equipped with white round ring
  • Additional cover rings separately available in round and square shape and in different colors
References / Links
Electrical data
Nominal wattage 6.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 35.000 mA
Inrush current 7.5 A
Inrush current time Th50 40 µs
Max. number of luminaires per miniature circuit breaker B16 40
Max. number of luminaires per miniature circuit breaker C10 30
Max. number of luminaires per miniature circuit breaker C16 40
Power factor λ 0.50
Total harmonic distortion < 35 %
Protection class III
Operating mode External LED driver
Photometrical data
Luminous flux 540 lm 1)
Luminous efficacy 90 lm/W 2)
Color temperature 2700 K / 3000 K / 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 90
Standard deviation of color matching < 6 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 60 °
UGR < 25
1) 540lm@4000K, 540lm@3000K, 500lm@2700K
2) 90lm/W@4000K, 90lm/W@3000K, 83lm/W@2700K
Dimensions & Weight
Diameter 81.50 mm
Height 48.00 mm
Product weight 285.00 g
Cable length 550 mm
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Cover material Plastic
Light emitting surface material Plastic
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Push terminal
Type of protection IP65/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming DALI2
Dimming range 5…100 %
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 68 mm
Mounting depth 48 mm
Adjustable Yes
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 35000 h 1)
Lifespan L90/B10 at 25 °C 19000 h
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 150 mA
ECG - Output ripple current < 6 %
ECG - Length 180 mm
ECG - Width 44 mm
ECG - Height 32 mm
Certificates & Standards
Standards CE, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Added function MULTI SELECT
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075846326 Folding box
1		 97 mm x 107 mm x 97 mm 362.00 g 1.01 dm³
4058075846333 Shipping box
20		 502 mm x 228 mm x 222 mm 7649.00 g 25.41 dm³
User instruction / safety instructions
SP CBO DA ADJ
PDF (3.68 MB)
Legal information
LSI SPOT COMBO DALI
PDF (2.16 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
SP CBO DA ADJ V 6W MC 930 IP65 WT  LEDV
PDF (260.57 KB)
Product image: white background, upright
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
JPG (770 KB)
Product image: white background, upright, alternative image
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
JPG (751.18 KB)
Product image: white background, spacial
SPOT COMBO ADJ Additional product images
JPG (885.26 KB)
Product line drawing with letters
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
SVG (365.2 KB)
Product line drawing with numbers
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
PNG (41.47 KB)
Product line drawing, front, no dimensions
SP ADJ3.6/5.5W927/30/40 60DEGIP65WT
SVG (271.19 KB)

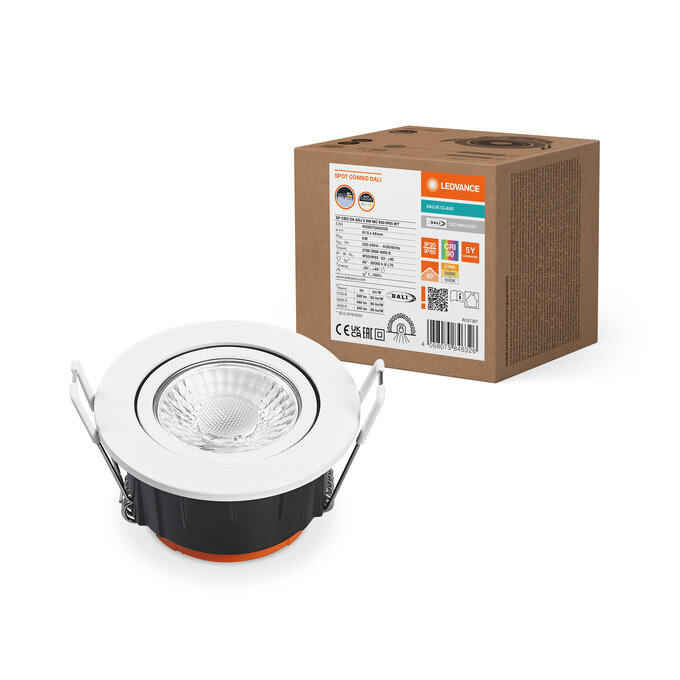

Combo Shot = Product Beauty Shot + Packaging Image
SP CBO DA ADJ V 6W MC 930 IP65 WT
JPG (1.41 MB)
Packaging image, frontal
SP CBO DA ADJ V 6W MC 930 IP65 WT
JPG (1.25 MB)
Packaging image, spacial
SP CBO DA ADJ V 6W MC 930 IP65 WT
JPG (1.74 MB)

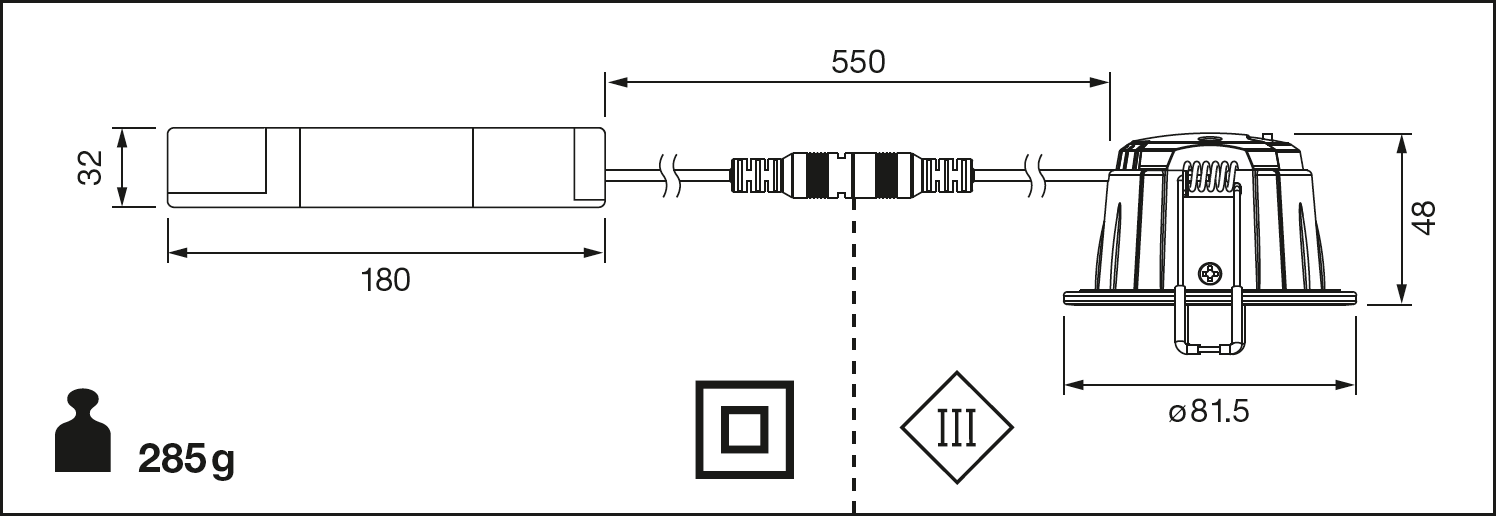

Catalog info 1
CIA1 SP CBO
PNG (39.41 KB)

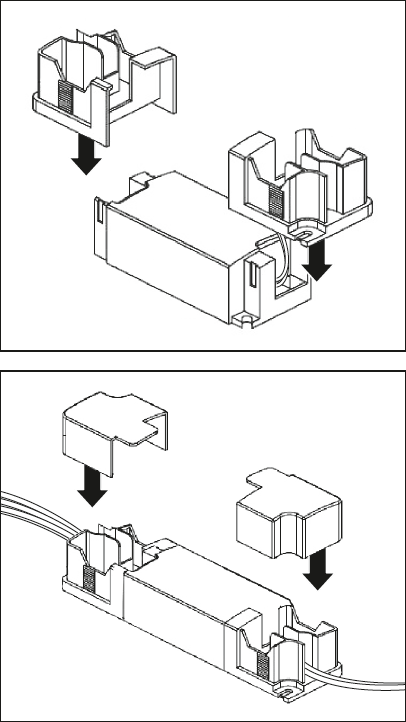

Catalog info 2
CIA2 SP CBO
PNG (100.06 KB)

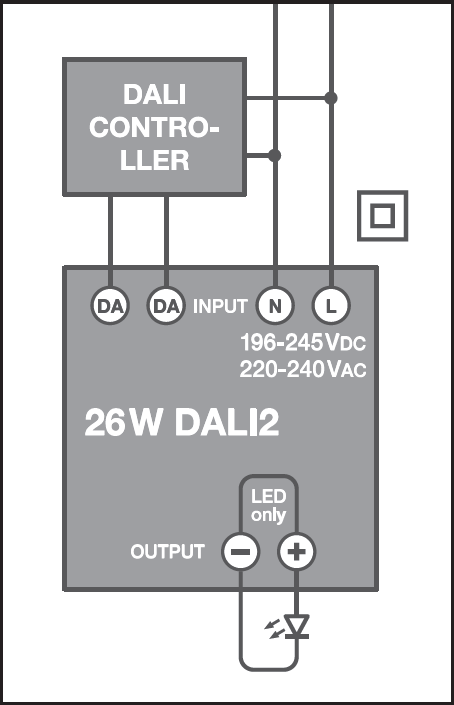

Catalog info 3
