SURFACE MOUNT KIT

PANEL 600 SURFACE MOUNT KIT H75

GTIN: 4058075472914 Folding box / 1 Show all packages
Download data sheet
Contact sales
5-year warranty

PRODUCT DETAILS

Product benefits
  • Ready-to-mount thanks pre-assembled magnetic corners
  • Crossbar for advanced stability
  • H50 version with slim design fits for panels with an overall height of 38 mm (Panel + driver)
Areas of application
  • H75 versions suitable for all LEDVANCE Panels
  • H50 versions suitable only for LEDVANCE Biolux Panel and Panel Protect
Product features
  • Extruded aluminum frame
  • Mount frames available in 75 mm (H75) or 50 mm (H50) height
  • Available in white (like RAL9003) or black (like RAL9005) color
Dimensions & Weight
Length 600.5 mm
Height 75.0 mm
Width 600.5 mm
Product weight 1600.00 g
Materials & Colors
Product color White
Application & Mounting
Mounting type Surface
Mounting location Ceiling
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075472914 Folding box
1		 605 mm x 81 mm x 606 mm 2009.00 g 29.70 dm³
4058075472921 Shipping box
4		 625 mm x 355 mm x 635 mm 9456.00 g 140.89 dm³

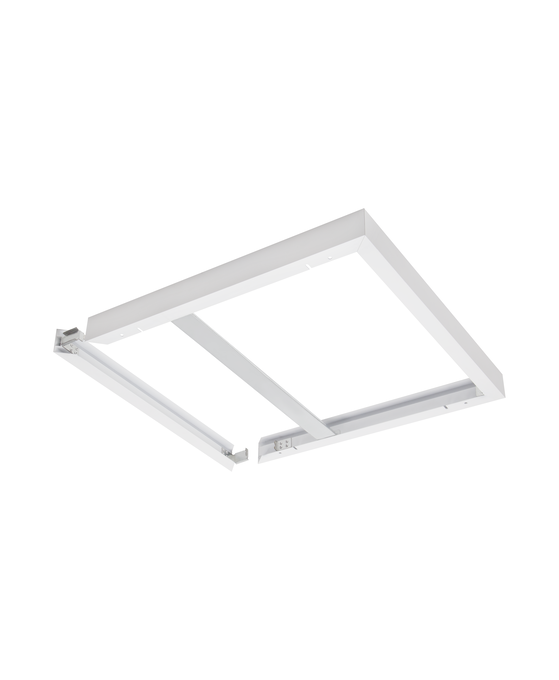

Product image: white background, diagonal
LEDVANCE Panel Surface Mount Kit 600 Montage
TIF (57.9 MB)
Product line drawing with letters
LEDVANCE Panel Surface Mount Kit 600 ml
SVG (12.04 KB)

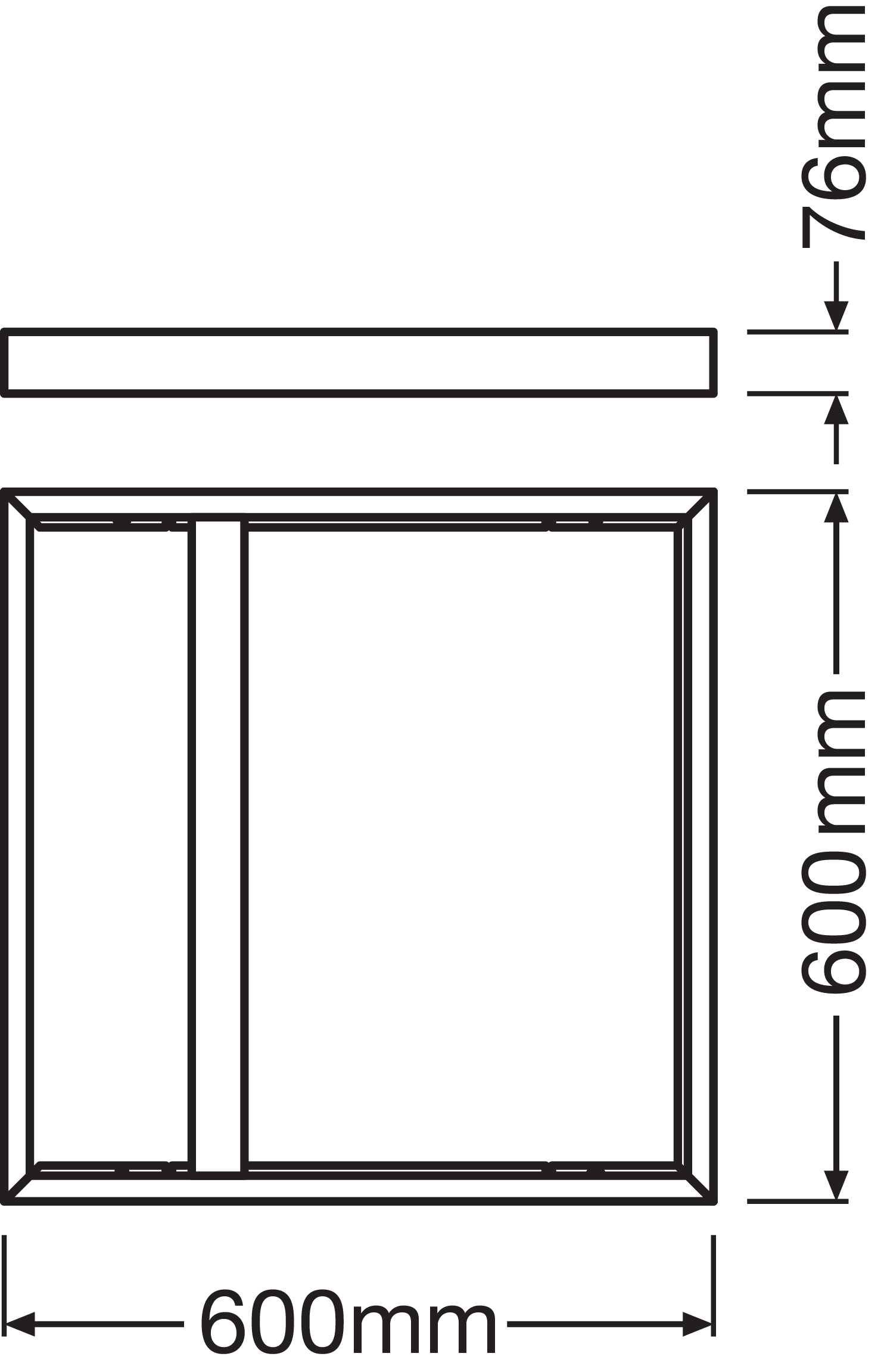

Product line drawing with numbers
PL 600 SURFACE MOUNT KIT H75
PNG (43.76 KB)
Product line drawing, front, no dimensions
LEDVANCE Panel Surface Mount Kit 600 k
SVG (7.2 KB)

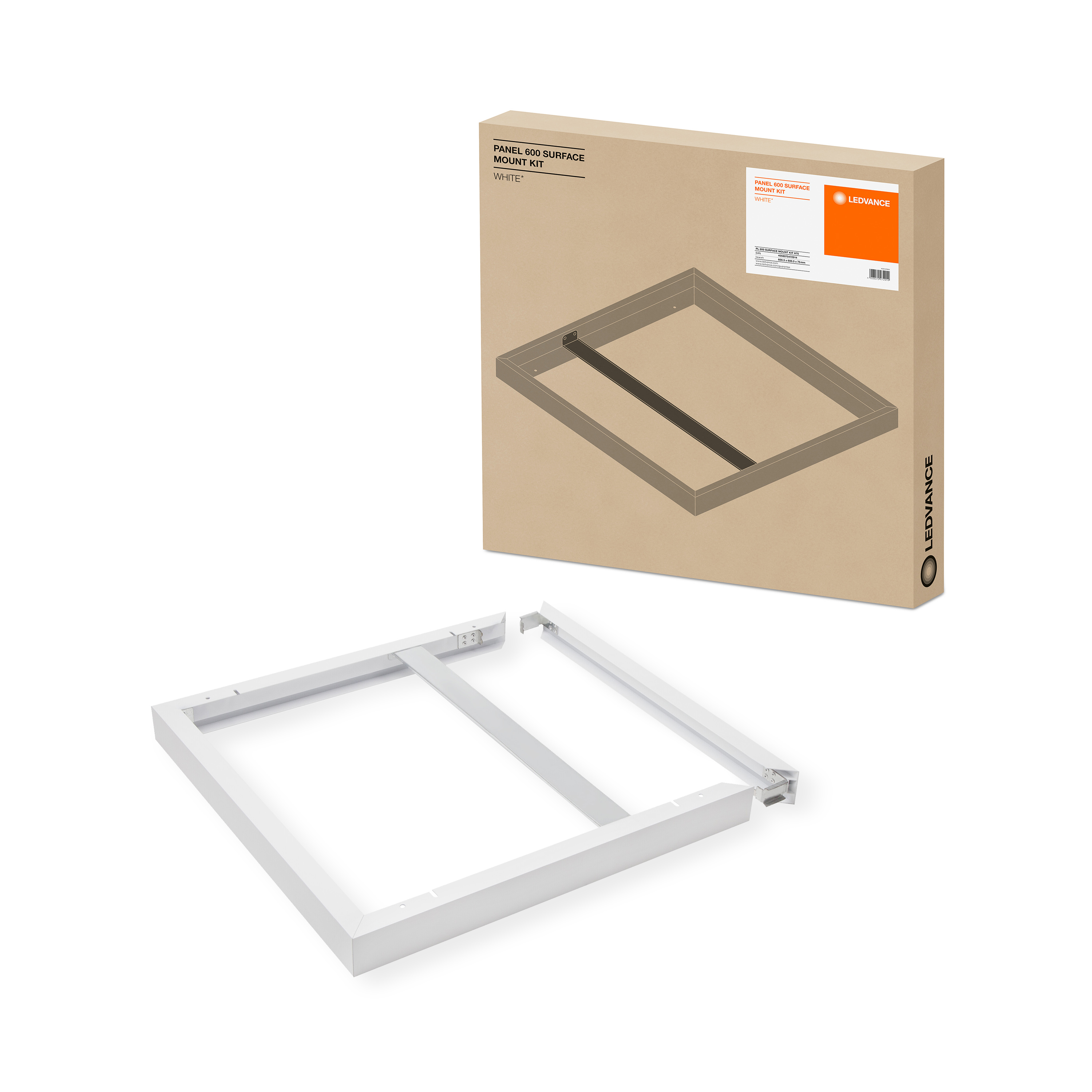

Combo Shot = Product Beauty Shot + Packaging Image
PL 600 SURFACE MOUNT KIT H75 FS1
JPG (960.2 KB)

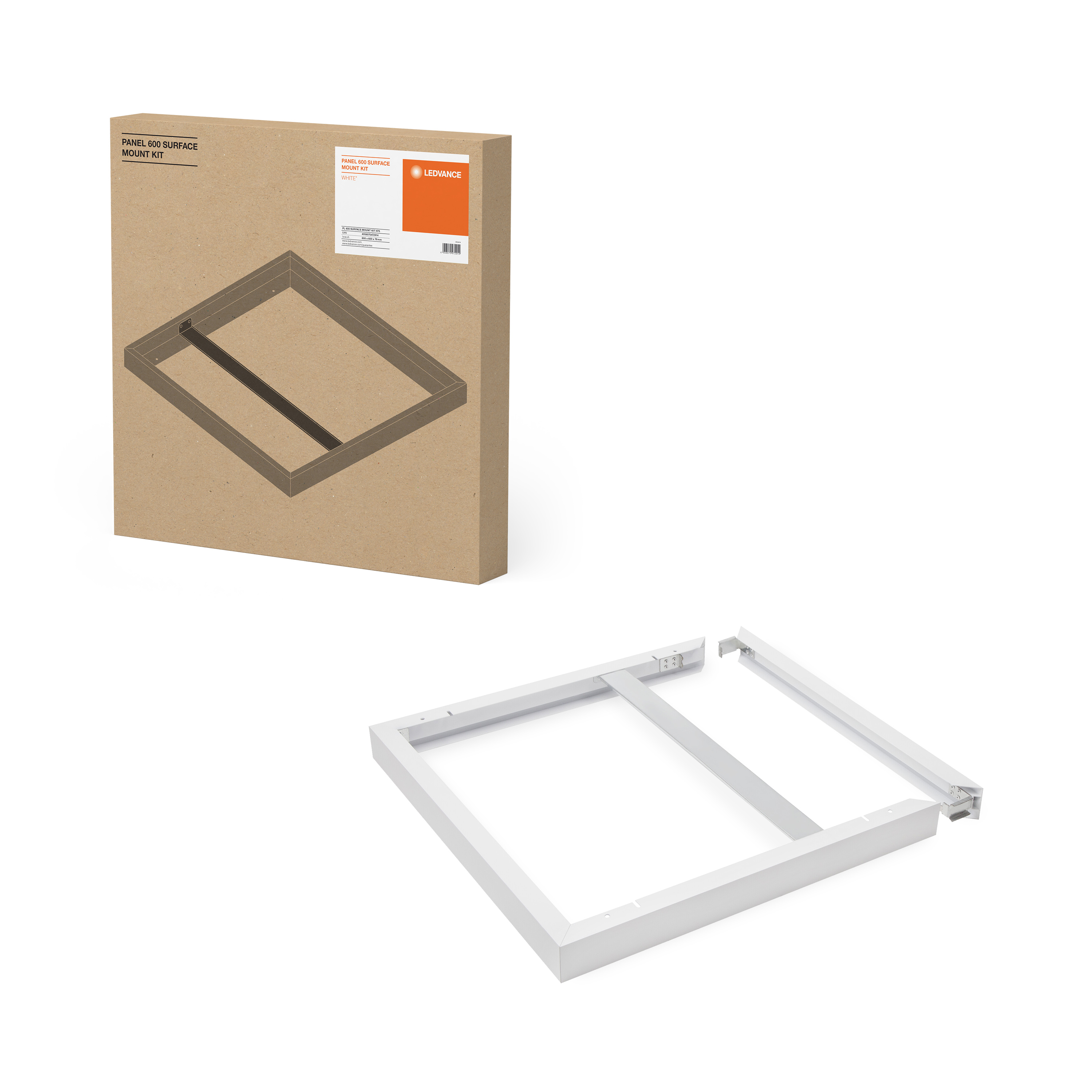

Combo Shot = Product Beauty Shot + Packaging Image
FC1 Panel 600 SURFACE MOUNT KIT WT
JPG (772.65 KB)
Packaging image, frontal
FC1 Panel 600 SURFACE MOUNT KIT WT
JPG (1.85 MB)

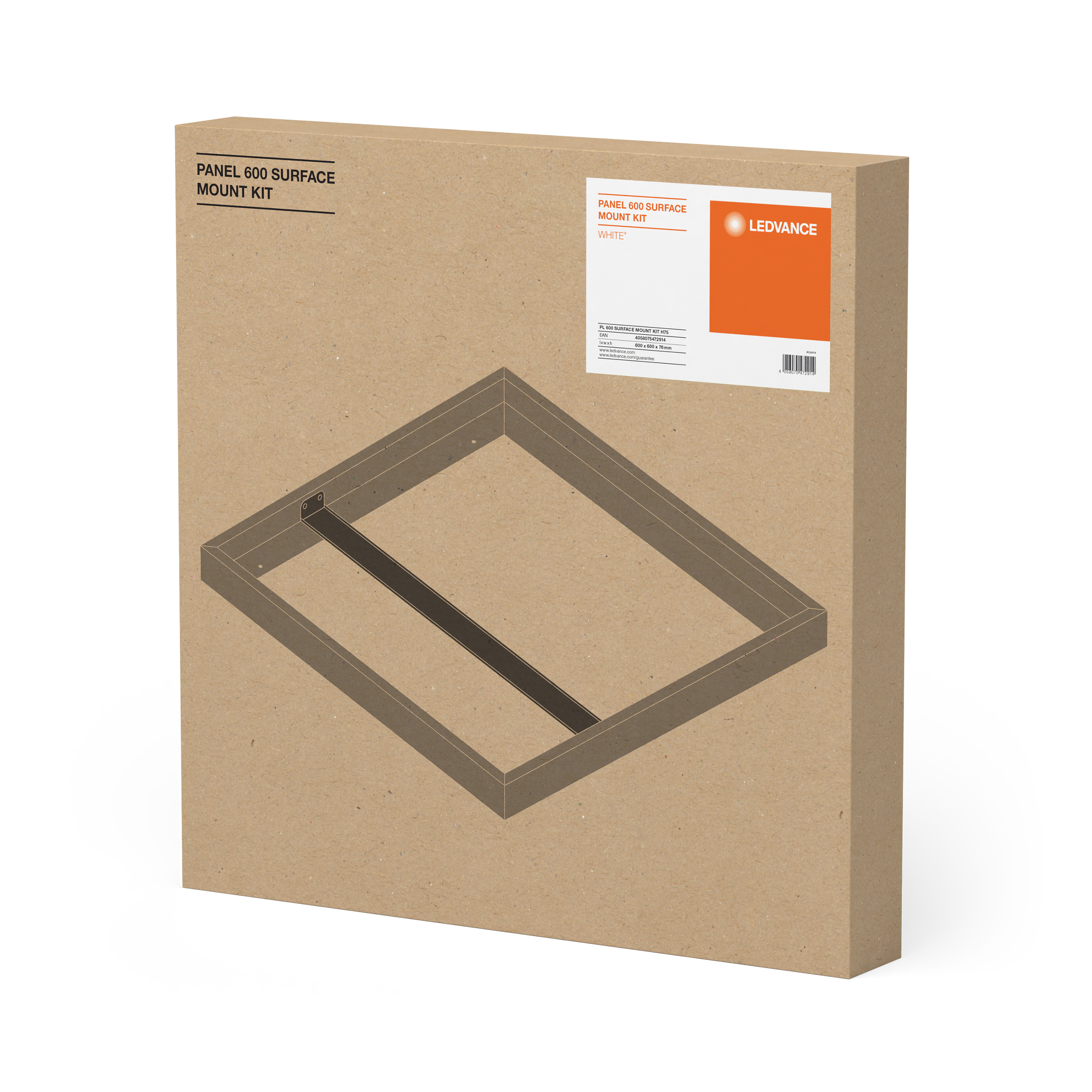

Packaging image, spacial
Panel 600.5 SURFACE MOUNT KIT H75 MiCh
TIF (1.64 MB)
Tender documents
SURFACE MOUNT KIT 600 SURFACE MOUNT KIT H75-EN
TXT (636 B)

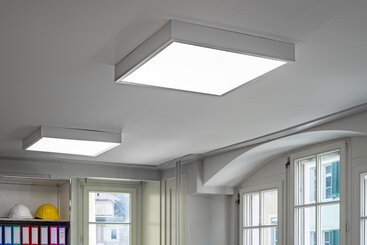

Application pictures

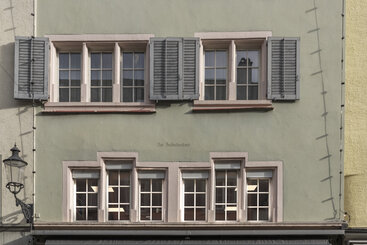

Case Study - VIVARES ZIGBEE Construction Company Office Valda & Partner GmbH
JPG (6.93 MB)
Application pictures

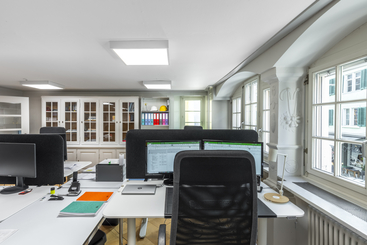

Case Study - VIVARES ZIGBEE Construction Company Office Valda & Partner GmbH
JPG (5.02 MB)
Application pictures

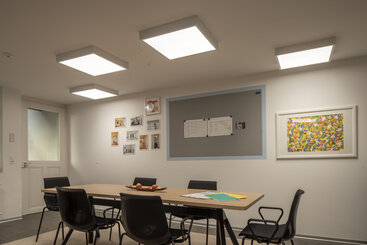

Case Study - VIVARES ZIGBEE Construction Company Office Valda & Partner GmbH
JPG (5.19 MB)
Application pictures

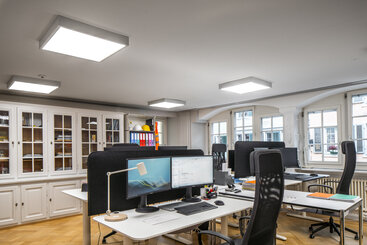

Case Study - VIVARES ZIGBEE Construction Company Office Valda & Partner GmbH
JPG (4.85 MB)
Application pictures

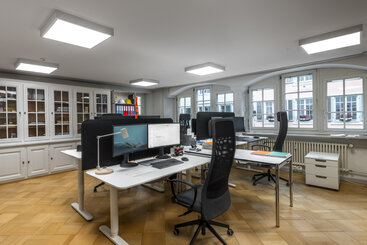

Case Study - VIVARES ZIGBEE Construction Company Office Valda & Partner GmbH
JPG (3.46 MB)
Application pictures

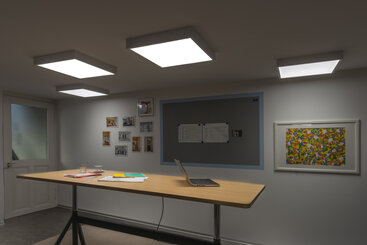

Case Study - VIVARES ZIGBEE Construction Company Office Valda & Partner GmbH
JPG (3.11 MB)
Application pictures
Case Study - VIVARES ZIGBEE Construction Company Office Valda & Partner GmbH
JPG (3.98 MB)
Application pictures
Case Study - VIVARES ZIGBEE Construction Company Office Valda & Partner GmbH
JPG (3.93 MB)
Application pictures
Case Study - VIVARES Zigbee Construction Company Office Valda & Partner GmbH
JPG (6.61 MB)
EAN SEG number STK number EFO number ELDAS number
4058075472914 7019239 4125446 3001104 941902150
