PANEL 1200x300 RECESSED MOUNT FRAME | RECESSED MOUNT FRAME | LEDVANCE

RECESSED MOUNT FRAME

PANEL 1200x300 RECESSED MOUNT FRAME

GTIN: 4058075472976 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Seamless installation into plasterboard, wood and metal ceilings from 8 to 30 mm thickness

Product features

Extruded aluminum frame

Dimensions & Weight

Length	1231 mm
Height	76 mm
Width	331 mm
Product weight	1610.00 g

Materials & Colors

Product color

White

Application & Mounting

Mounting type	Recessed
Mounting location	Ceiling

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075472976	Folding box 1	1,238 mm x 102 mm x 357 mm	3762.00 g	45.08 dm³
4058075472983	Shipping box 4	1,257 mm x 422 mm x 380 mm	16493.00 g	201.57 dm³

User instruction / safety instructions
PANEL RECESSED MOUNT FRAME

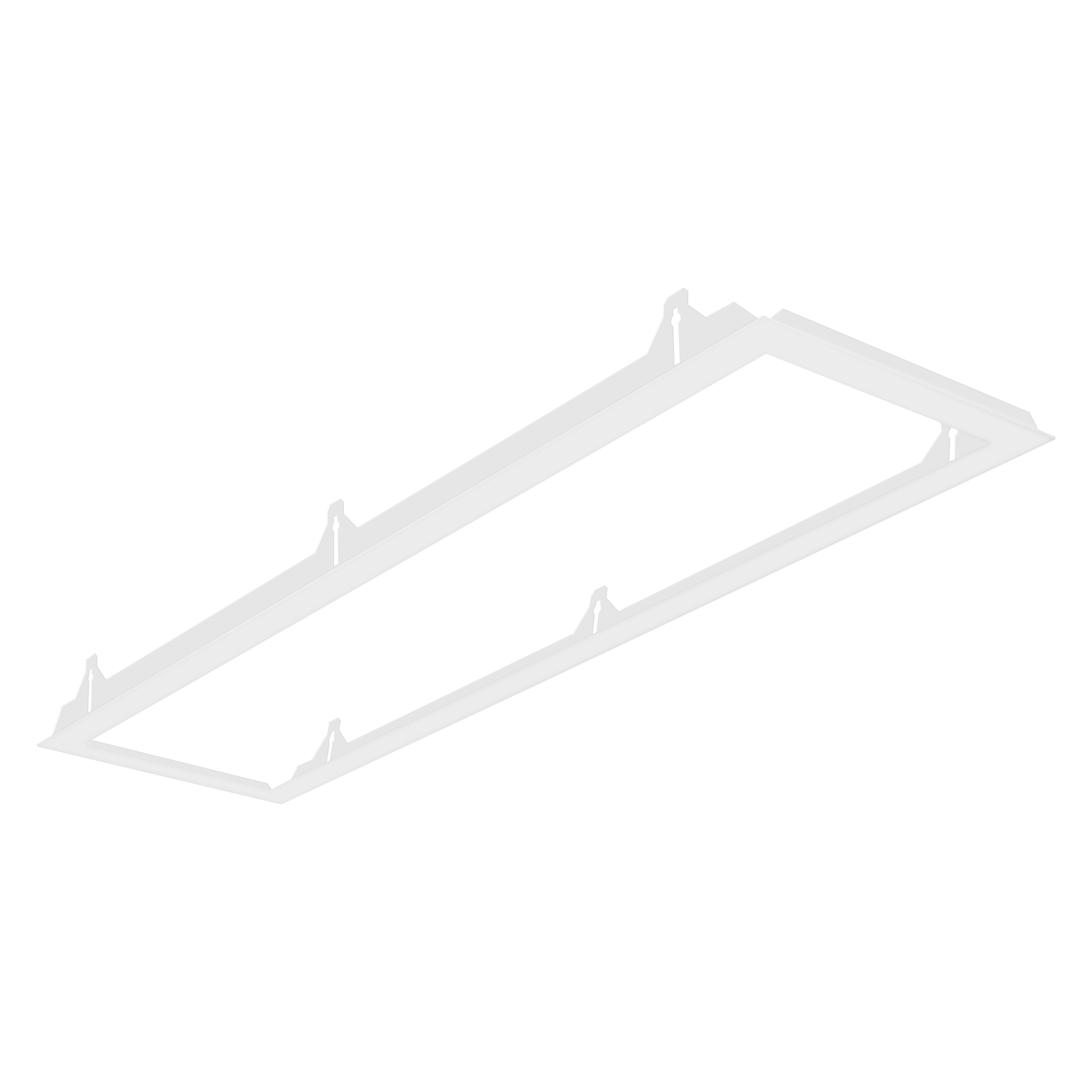

Product image: white background, diagonal
PL 1200x300 RECESSED MOUNT FRAME

JPG (777.75 KB)

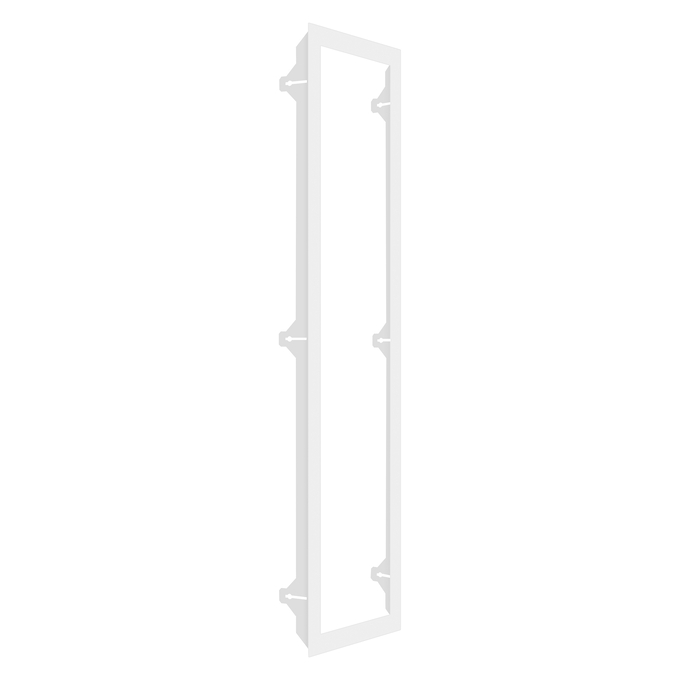

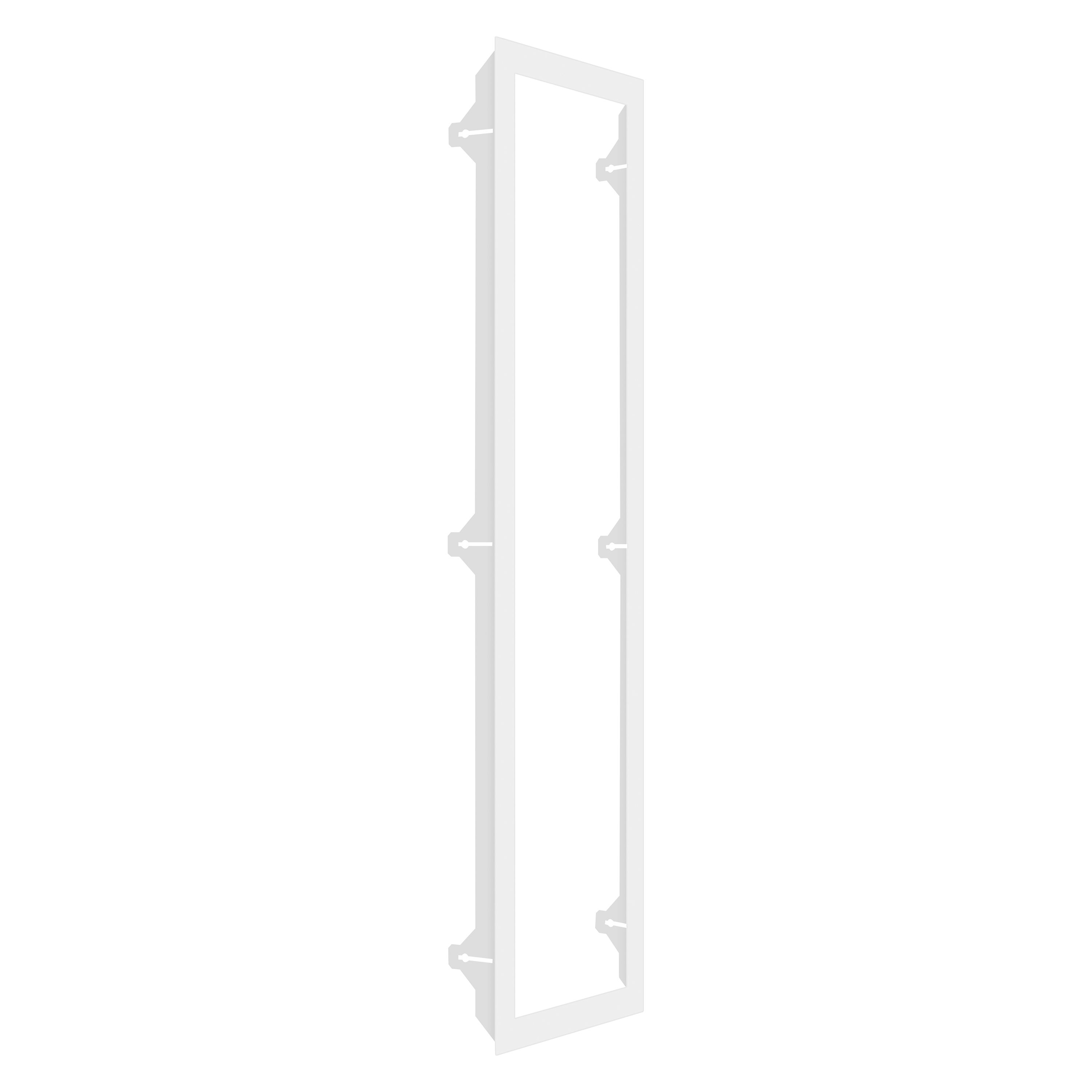

Product image: white background, upright
PL 1200x300 RECESSED MOUNT FRAME

JPG (727.16 KB)

Product line drawing with letters
PL 1200x300 RECESSED MOUNT FRAME

Product line drawing with numbers
PL 1200x300 RECESSED MOUNT FRAME

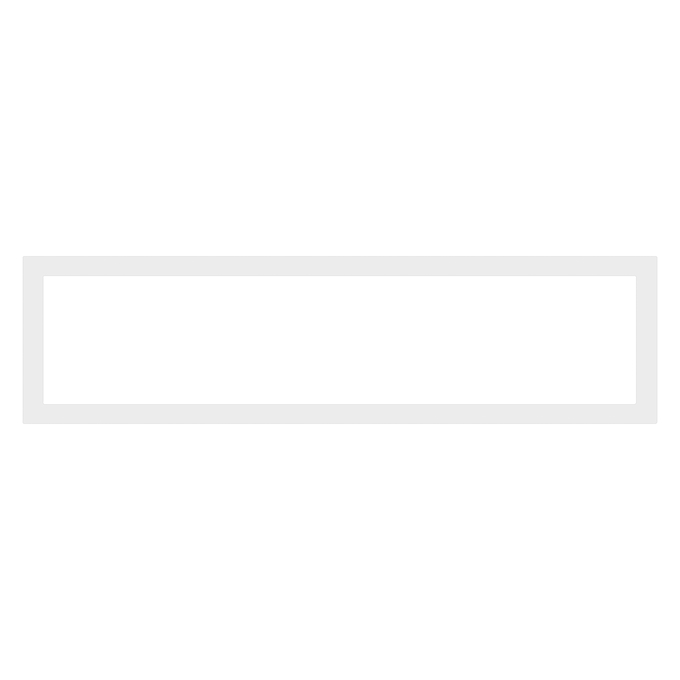

Product line drawing, front, no dimensions
PL 1200x300 RECESSED MOUNT FRAME

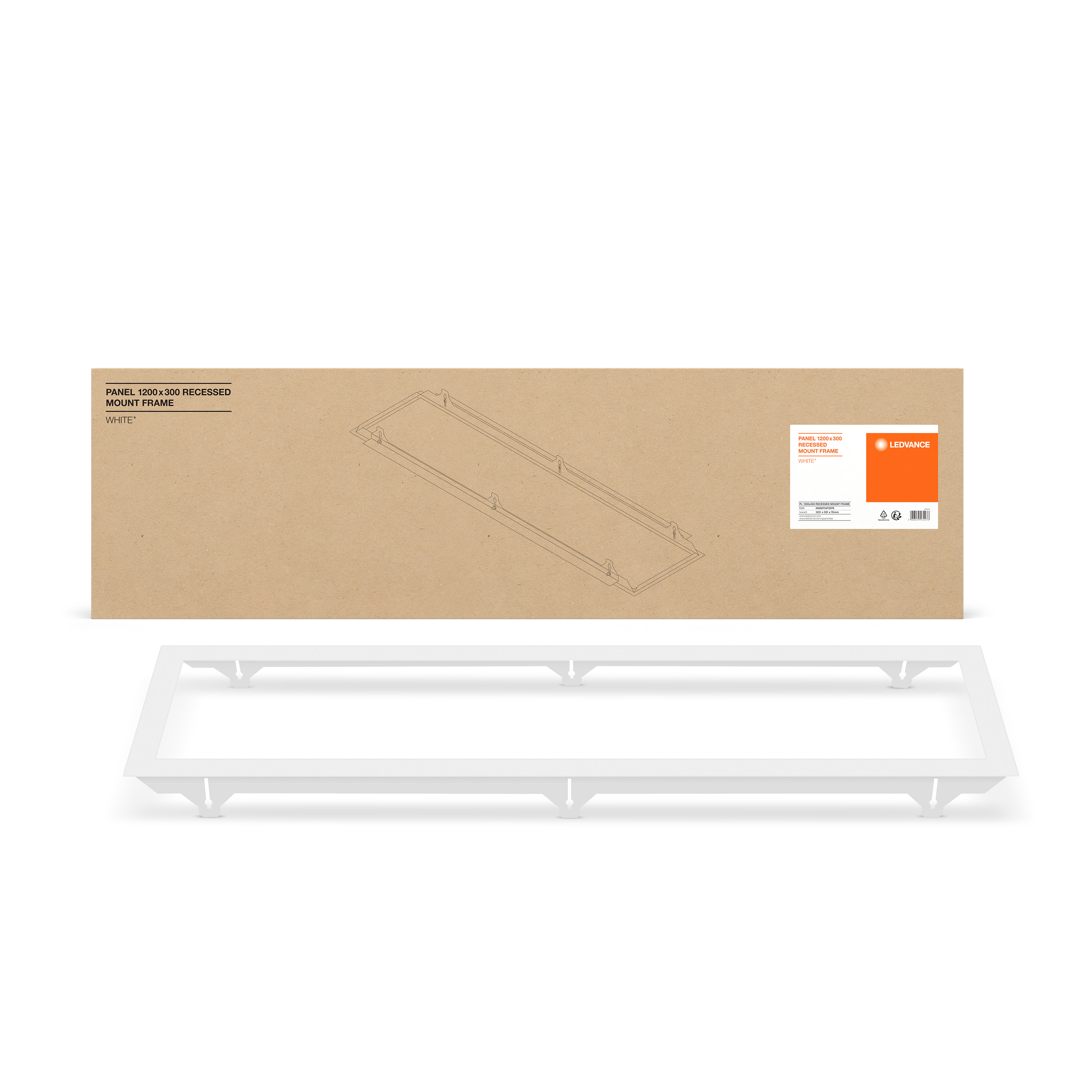

Combo Shot = Product Beauty Shot + Packaging Image
PANEL 1200x300 RECESSED MOUNT FRAME

JPG (774.26 KB)

Packaging image, frontal
PANEL 1200x300 RECESSED MOUNT FRAME

JPG (739.08 KB)

Packaging image, spacial
Panel 1200x300 Recessed Mount Frame MiCh

TIF (767.99 KB)

Tender documents
RECESSED MOUNT FRAME 1200x300 RECESSED MOUNT FRAME-EN

EAN	SEG number	STK number	EFO number	ELDAS number
4058075472976	7019241	4125448	3001111	941902120
