LB FLEX 1200 P 42W 840 VW

LOW BAY FLEX 1200

GTIN: 4058075676084 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Economical thanks to high luminous efficacy up to 155 lm/W
Easy and quick installation thanks to toolless connector box with 5- and 7-pole terminals
Modern and robust design
5 years guarantee

Areas of application

Replacement for luminaires with mercury vapor or metal halide lamps
Warehouses
Logistics halls
Industrial and storage facilities
Discounters, supermarkets
Sports halls
Indoor sports facilities

Product features

Different luminous flux and beam angle for mounting heights of ~ 4 m to ~10 m in 4000 K
Through-wiring cable already installed
Long Lifetime (L80/B10): up to 100,000 h
High color consistency: ≤ 3 SDCM

Equipment / Accessories

Suspension kit, ball-proof cover and angulation mounting kit available as separate accessory

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	42 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	190 mA
Inrush current	31.31 A
Inrush current time T_h50	282 µs
Max. number of luminaires per miniature circuit breaker B16	18
Max. number of luminaires per miniature circuit breaker C10	30
Max. number of luminaires per miniature circuit breaker C16	30
Power factor λ	≥0.90
Total harmonic distortion	≤ 20 %
Protection class	I
Operating mode	Electronic control gear (ECG)

Photometrical data

Luminous flux	6510 lm
Luminous efficacy	155 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	≥80
Standard deviation of color matching	< 3 sdcm
Low flicker	Yes
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG1
Beam angle	120 °

Dimensions & Weight

Length	1236 mm
Height	65.00 mm
Width	115.00 mm
Product weight	3400.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Steel
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-25…+50 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal
Type of protection	IP23
Protection class IK (shock resistance)	IK08
Dimmable	No
Mounting type	Surface/Suspended
Mounting location	Ceiling
Application environment	Indoor
Adjustable	No
With light source	Yes

Lifespan

Lifespan L70/B50 at 25 °C	100000 h ¹⁾
Lifespan L80/B10 at 25 °C	100000 h ¹⁾
Lifespan L90/B10 at 25 °C	83000 h
Number of switching cycles	50000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	370 mA
ECG - Output ripple current	< 10 %

Certificates & Standards

Standards	CE, CB, ENEC, TÜV SÜD, EAC, UKCA, EPD
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
EPD	LEDV-00020-V01.01-EN
Replaceable light source (EPREL)	Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075676084	Folding box 1	106 mm x 1,282 mm x 154 mm	4255.00 g	20.93 dm³
4058075676091	Shipping box 3	1,312 mm x 488 mm x 143 mm	13901.00 g	91.56 dm³

Product image	Product name	EAN
	LB FLEX SUSPENSION KIT	4058075693722

User instruction / safety instructions
UI Lowbay Flex

PDF (6.19 MB)

Legal information
Legal Insert LB FLEX

PDF (595.54 KB)

Legal information
LS Insert LB FLEX DALI

PDF (2.69 MB)

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Declarations of conformity
EU Declaration of conformity LB FLEX

PDF (298.78 KB)

EPD
ENVIRONMENTAL PRODUCT DECLARATION LOW BAY FLEX

PDF (682.28 KB)

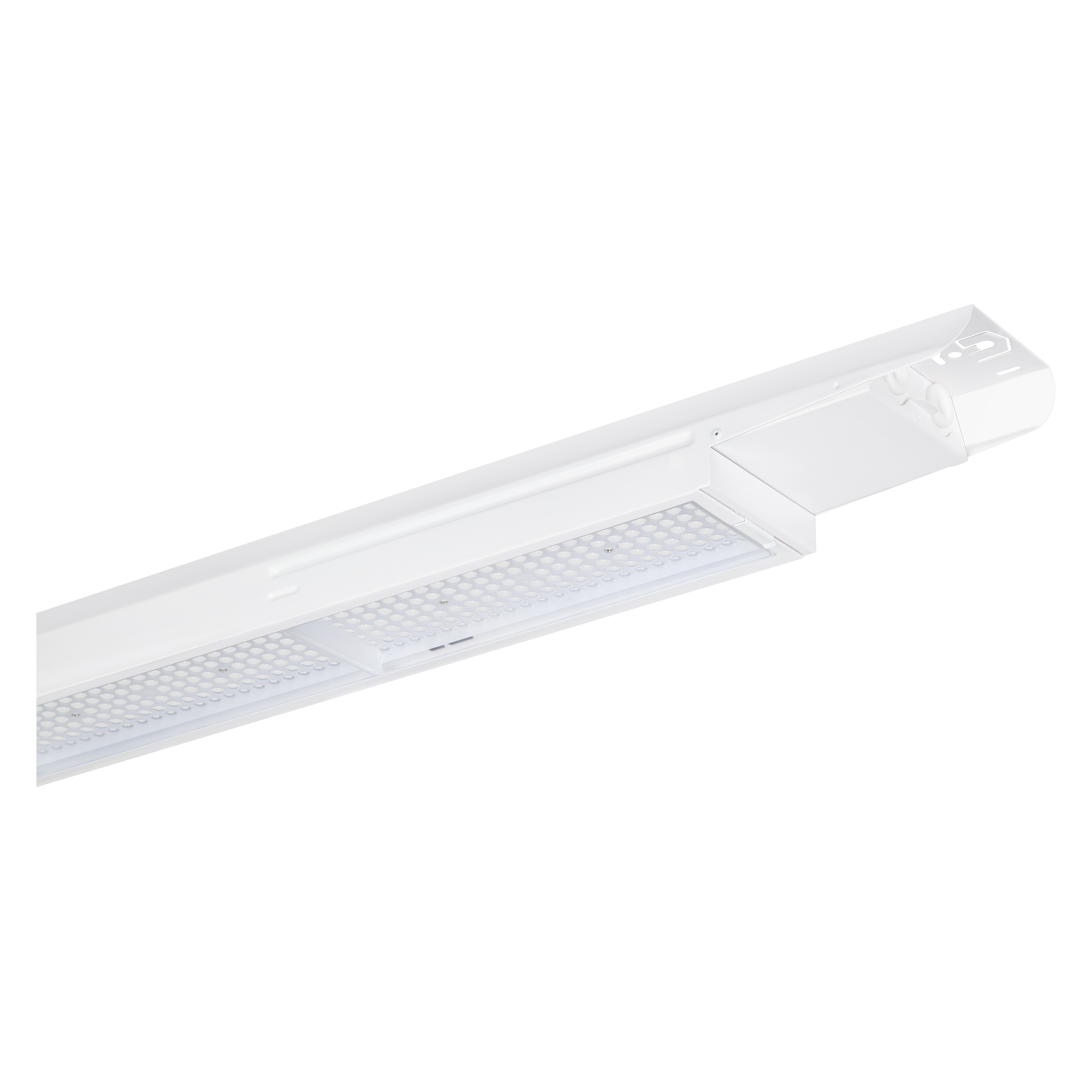

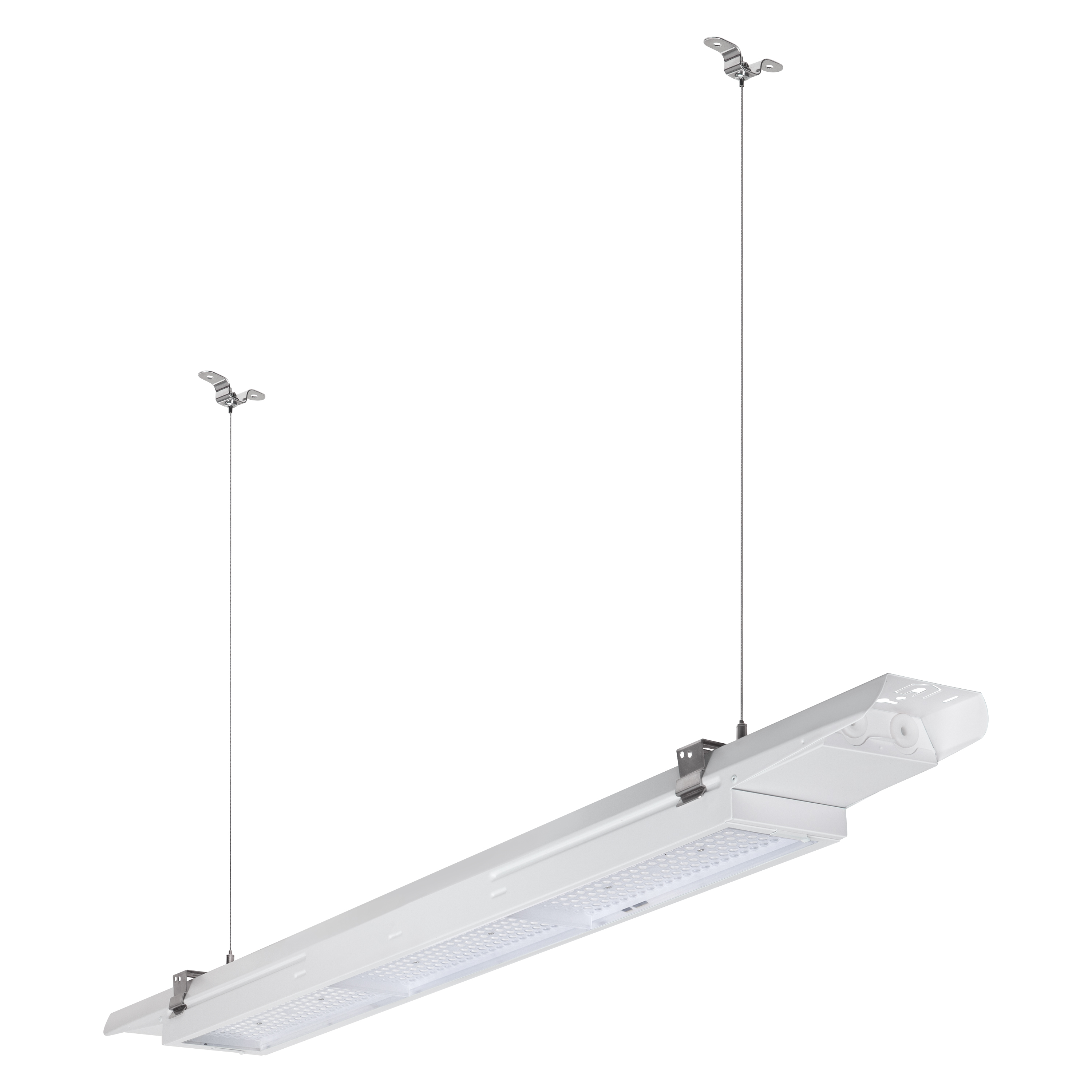

Product image: white background, diagonal
LOW BAY FLEX 1200

JPG (992.19 KB)

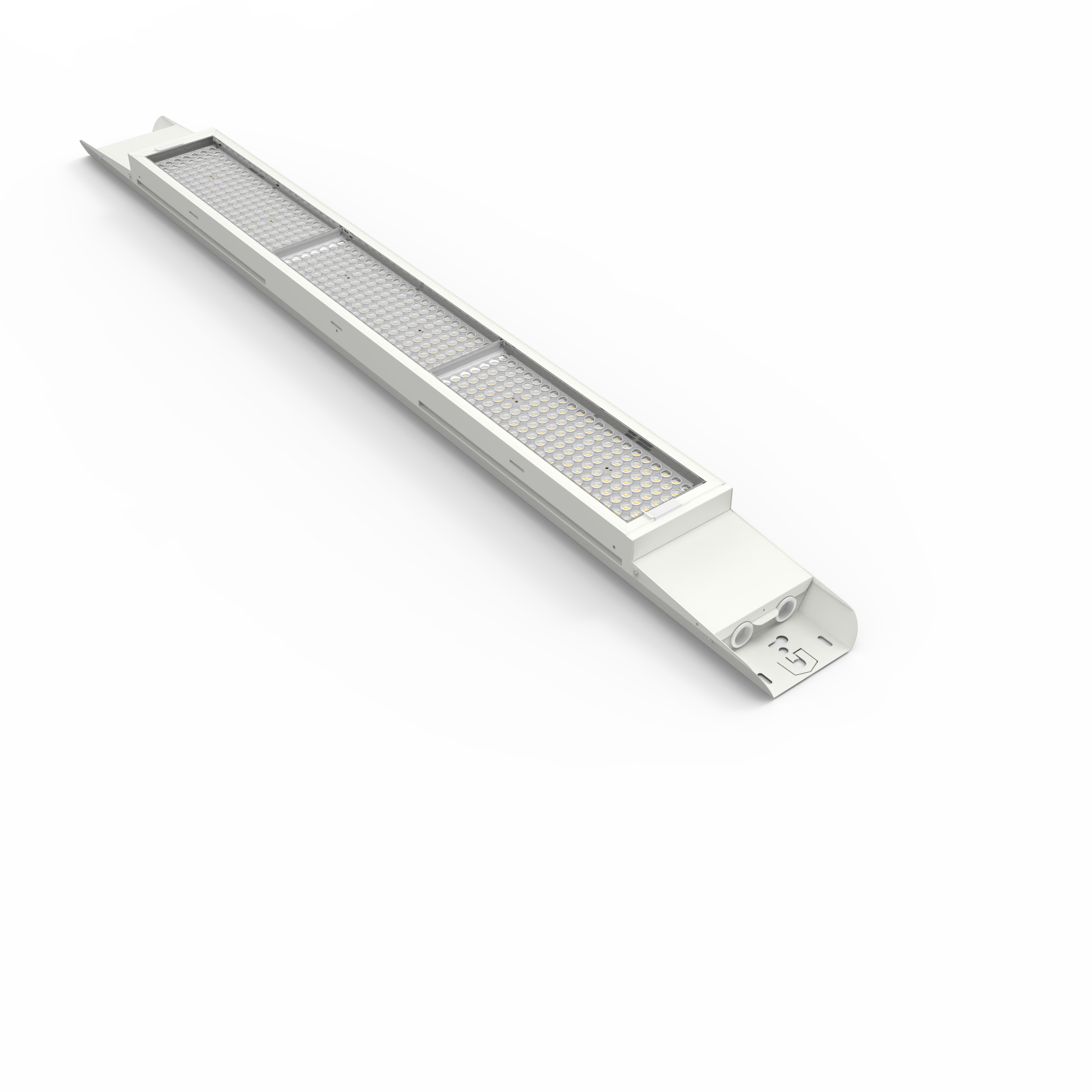

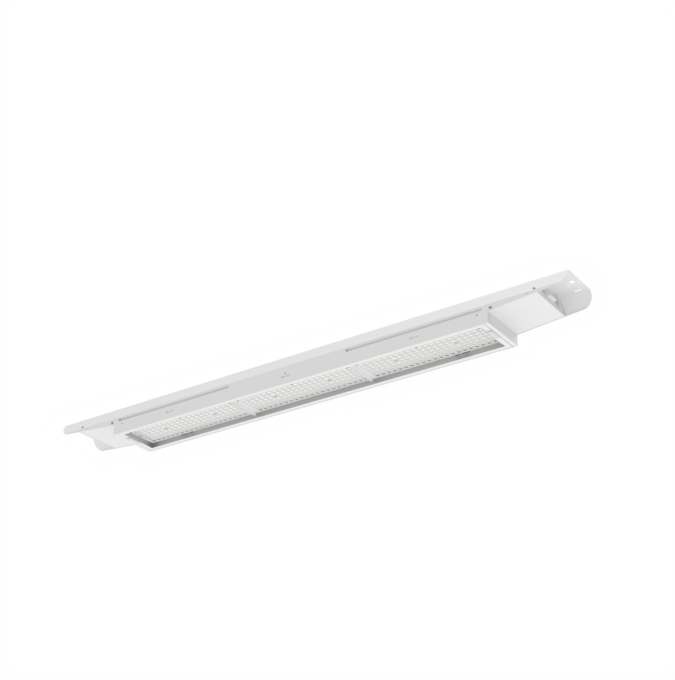

Product image: white background, diagonal
LB FLEX 1200

PNG (2.22 MB)

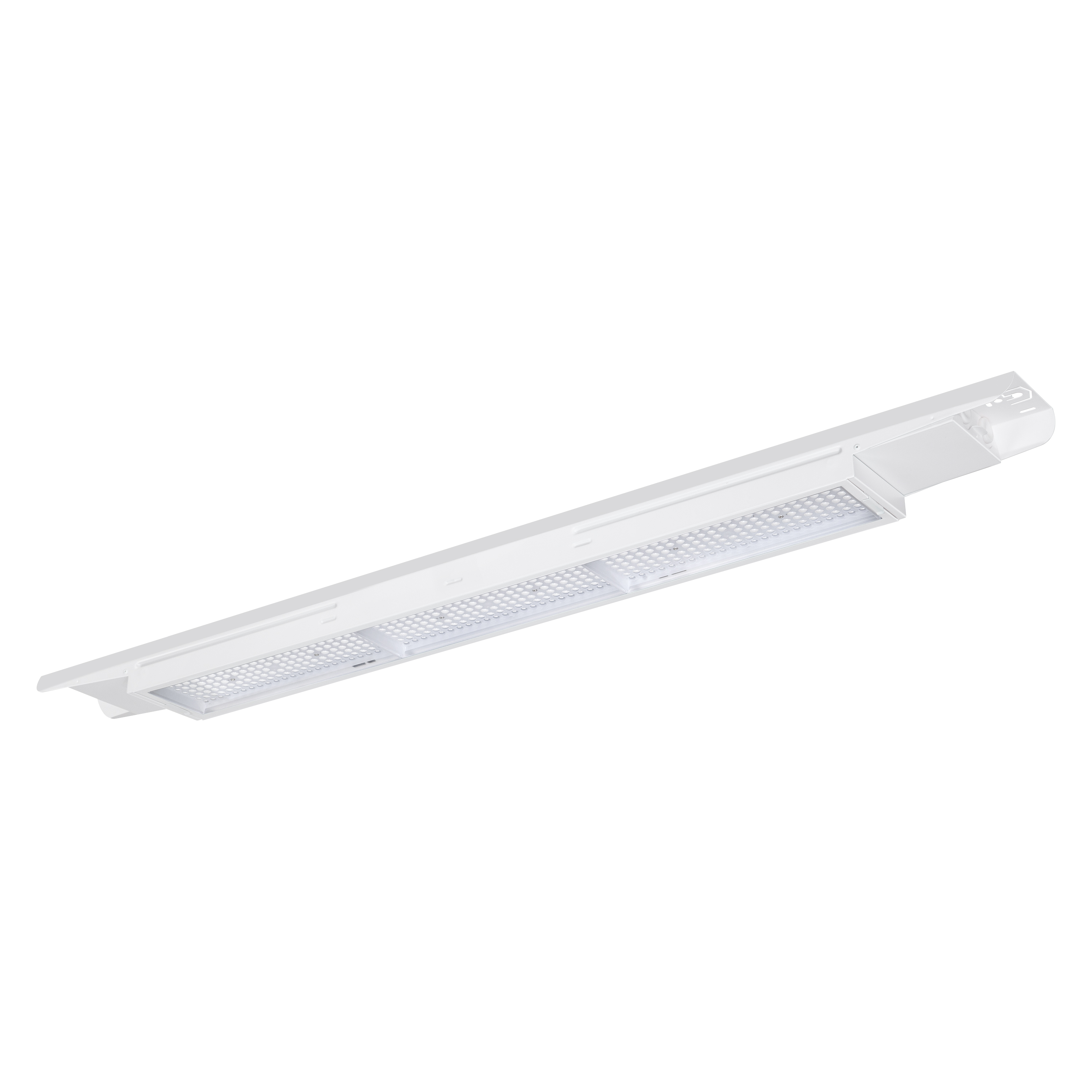

Product image: white background, diagonal, alternative image
LOW BAY FLEX 1200

JPG (972.79 KB)

Product image: white background, diagonal, alternative image
LOW BAY FLEX 1200

JPG (887.02 KB)

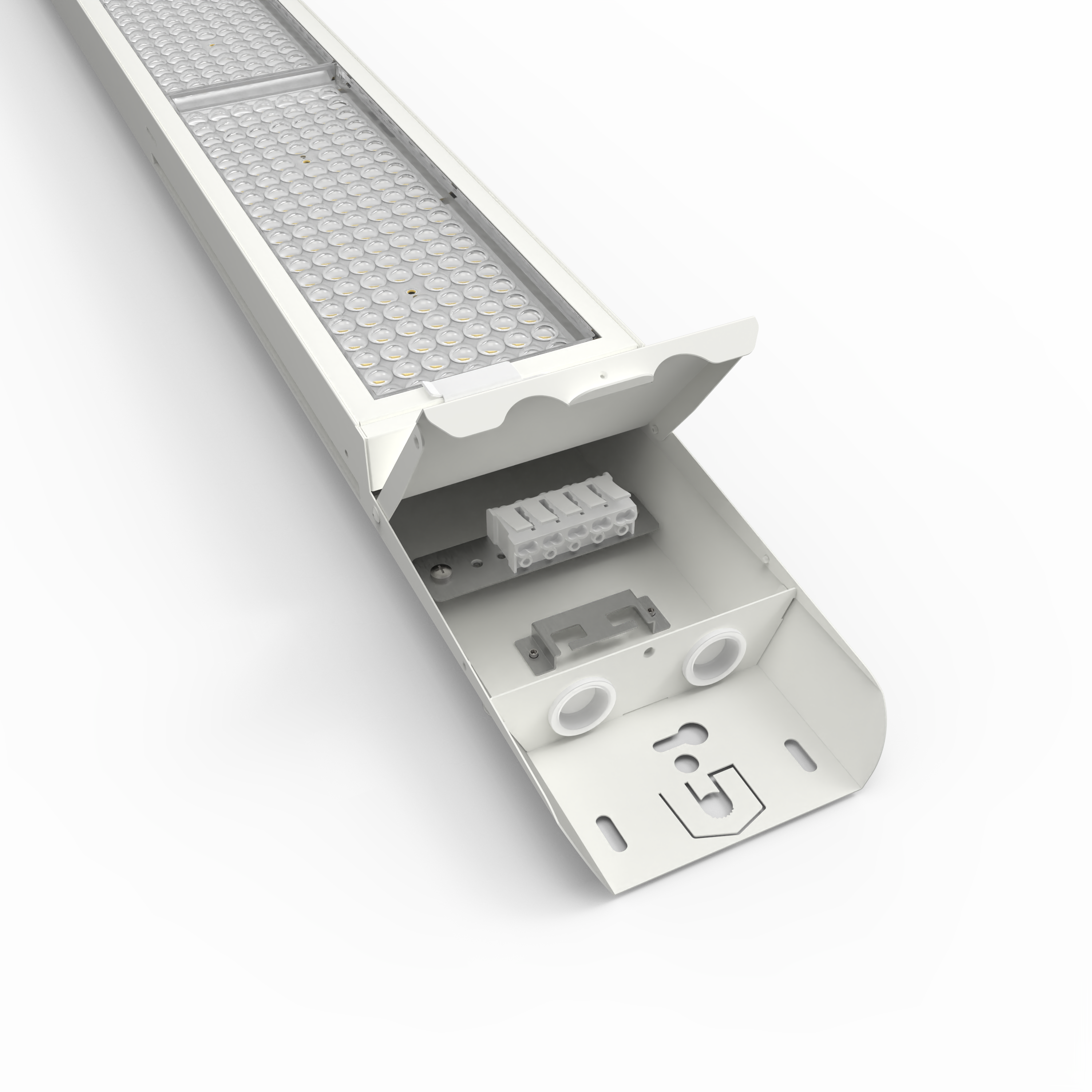

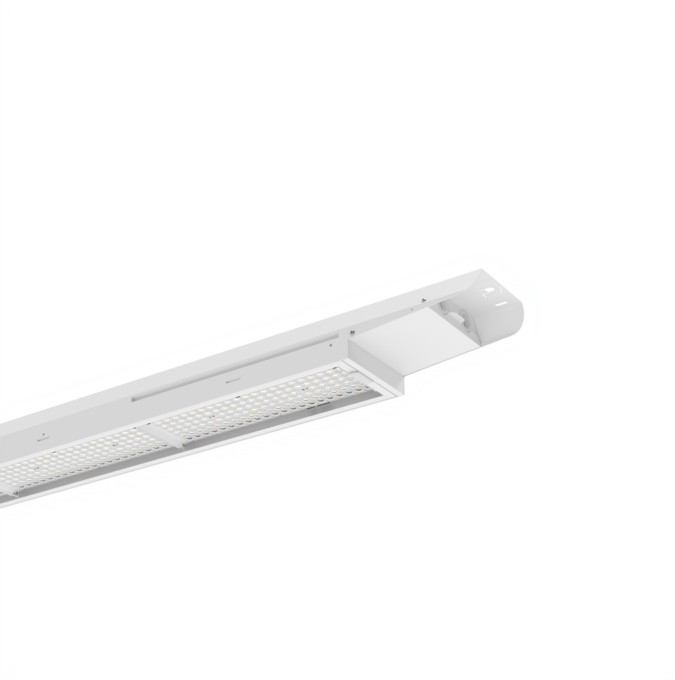

Product image: white background, diagonal, alternative image
LB FLEX 1500 Endcap open

PNG (4.78 MB)

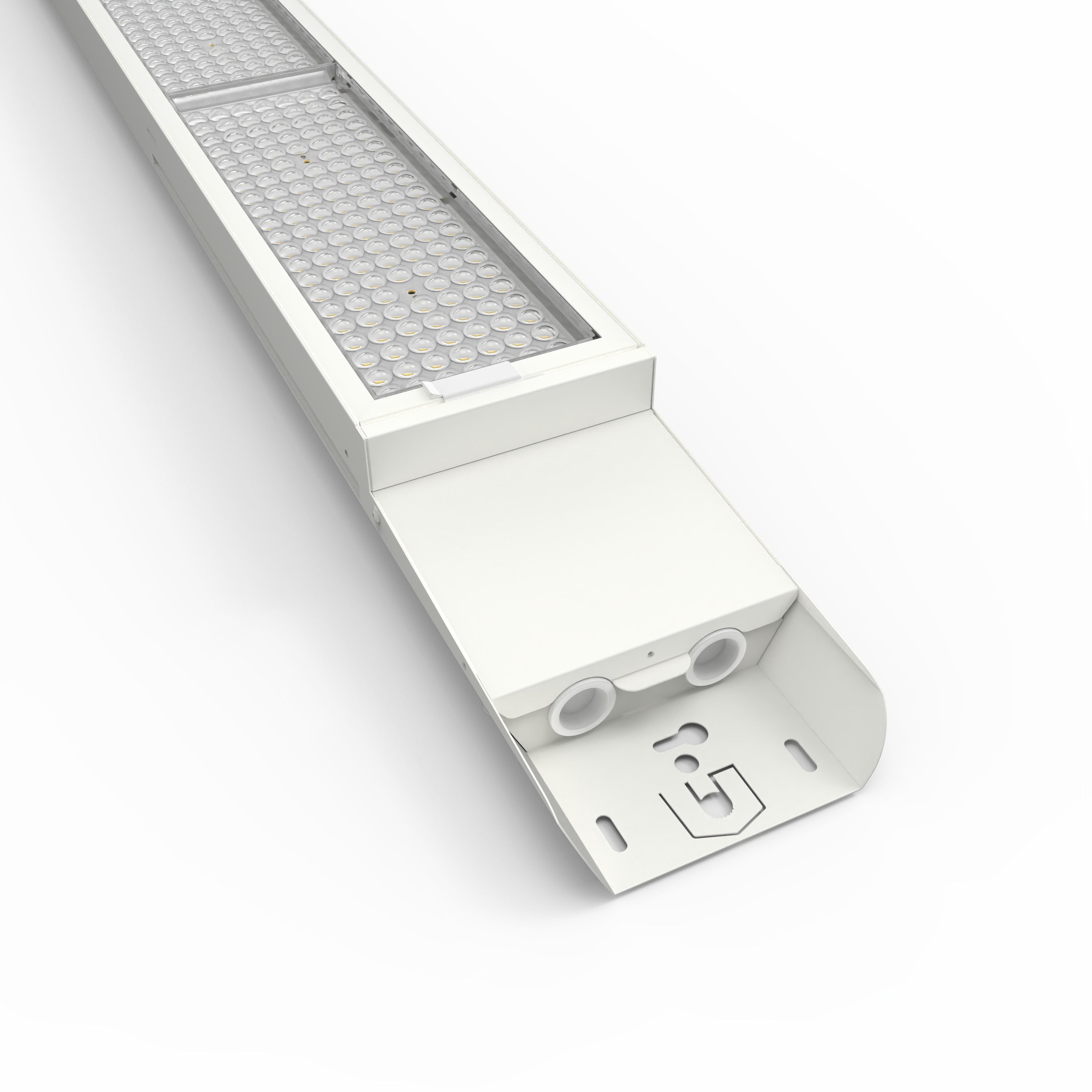

Product image: white background, diagonal, alternative image
LB FLEX 1500 Endcap closed

PNG (4.39 MB)

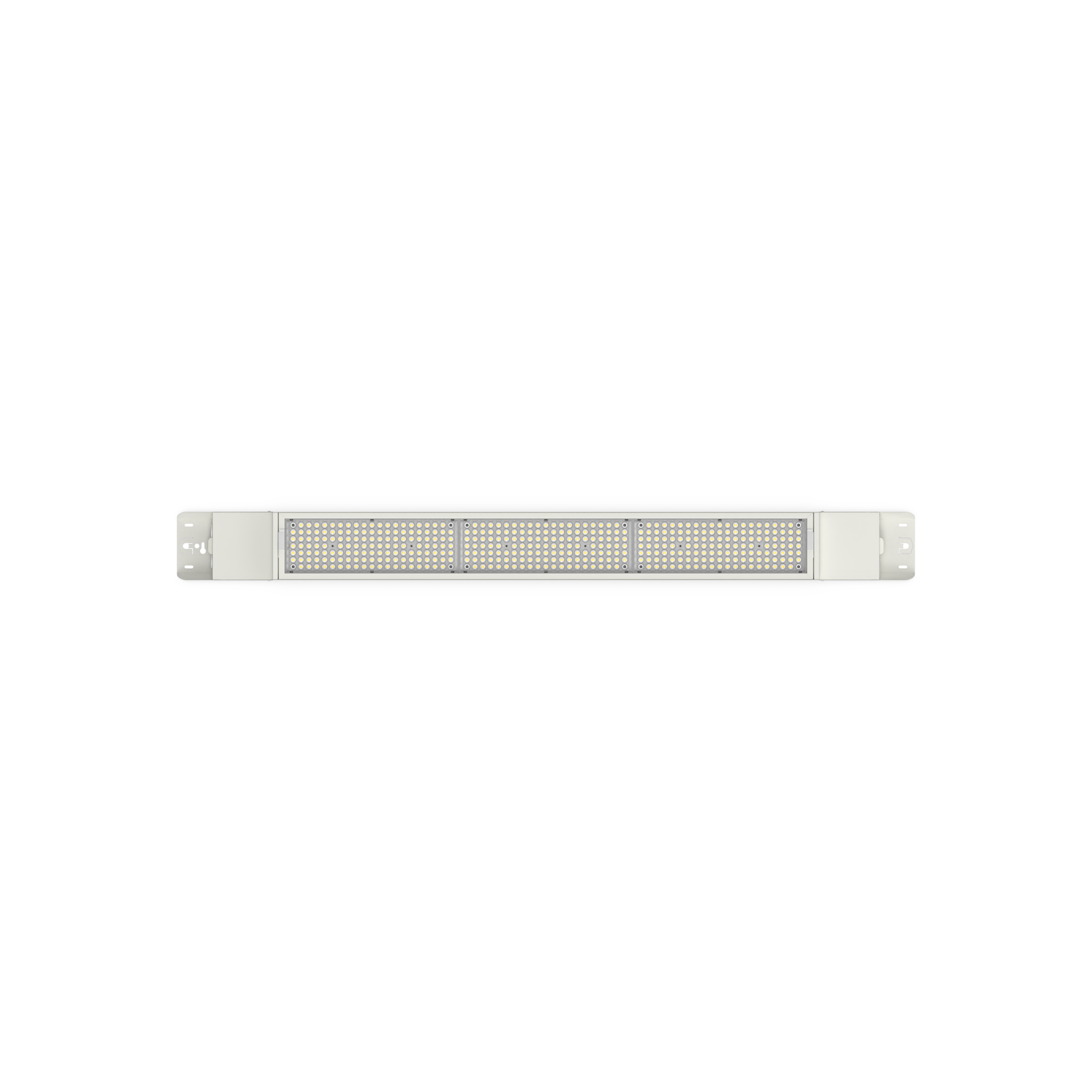

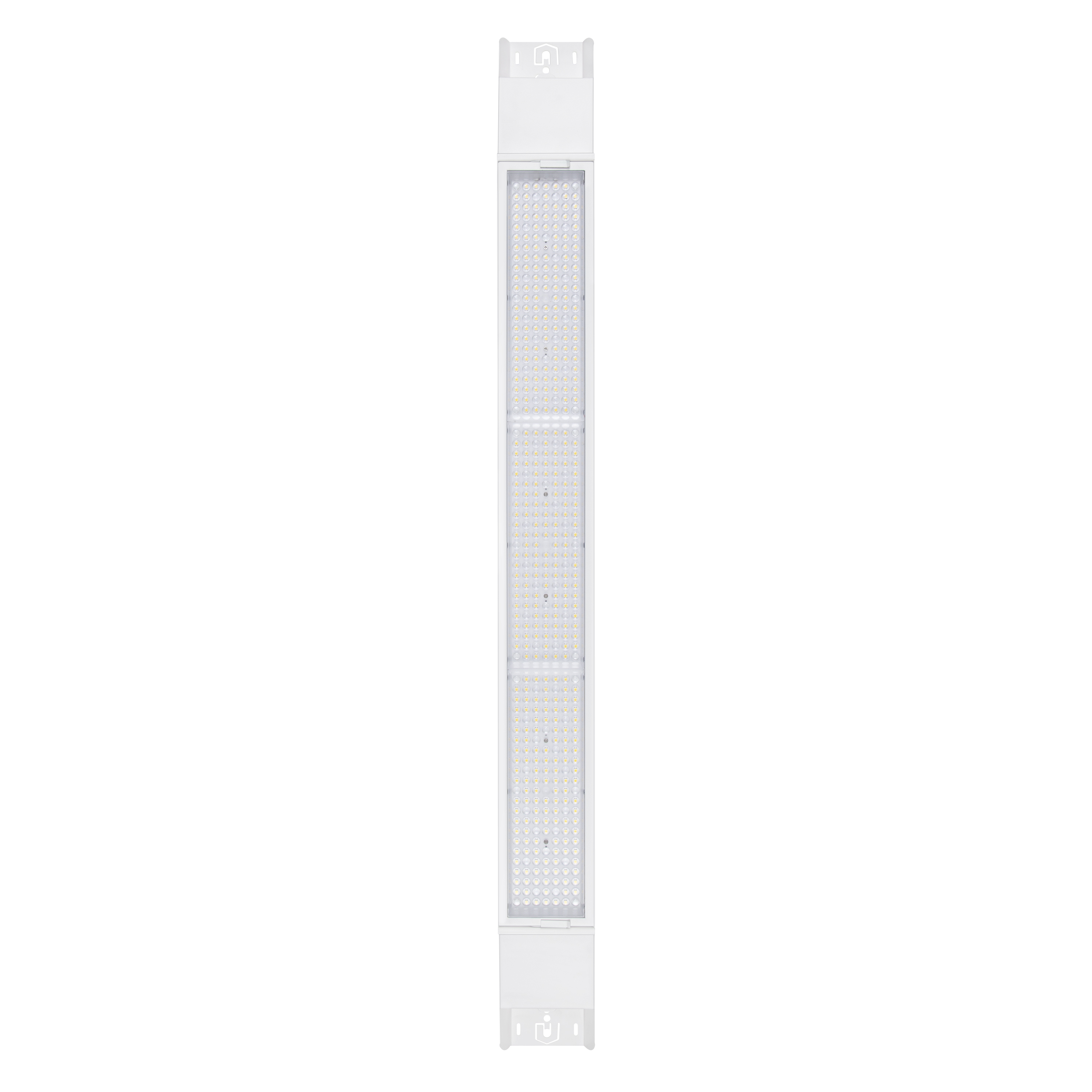

Product image: white background, horizontal
LB FLEX 1200

PNG (664.95 KB)

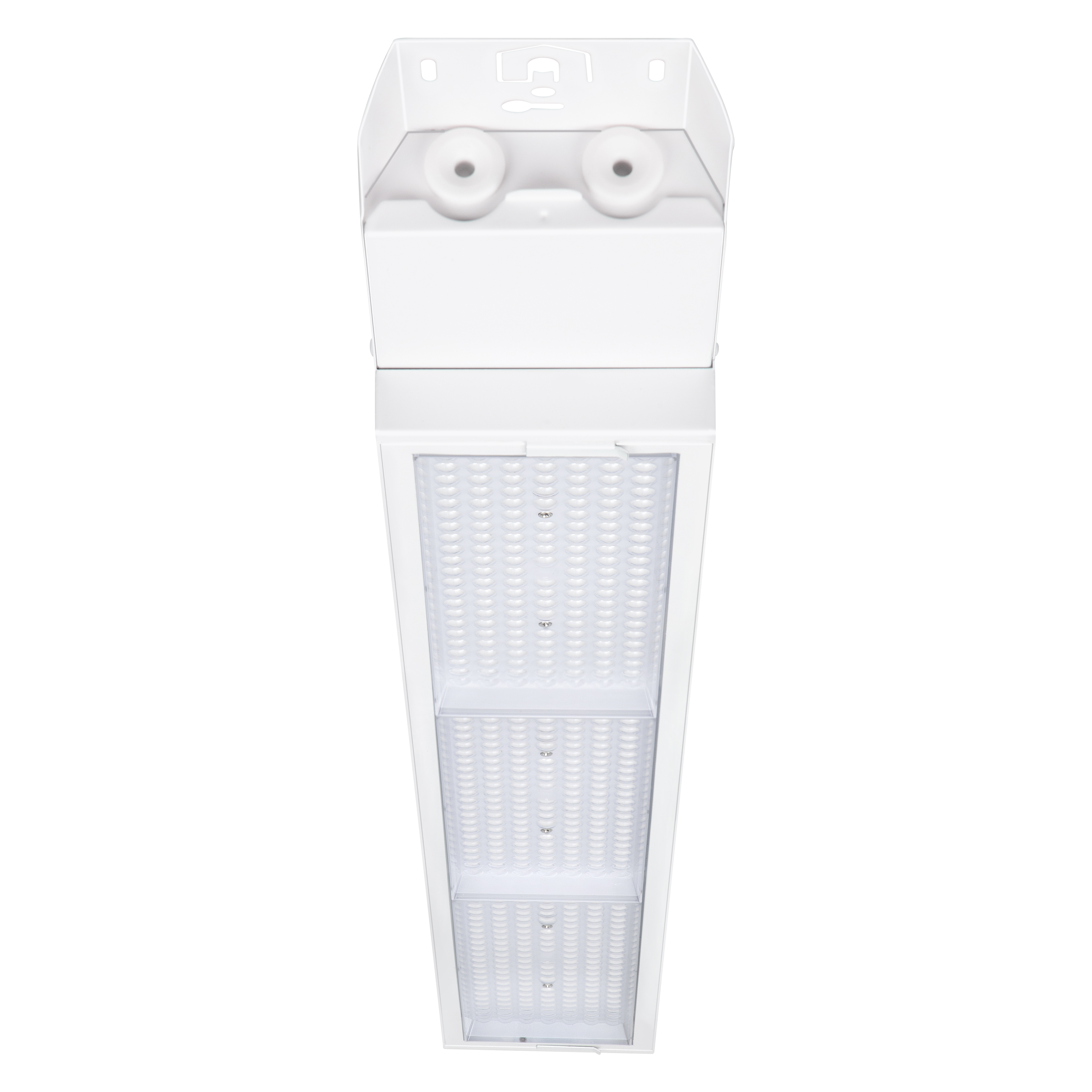

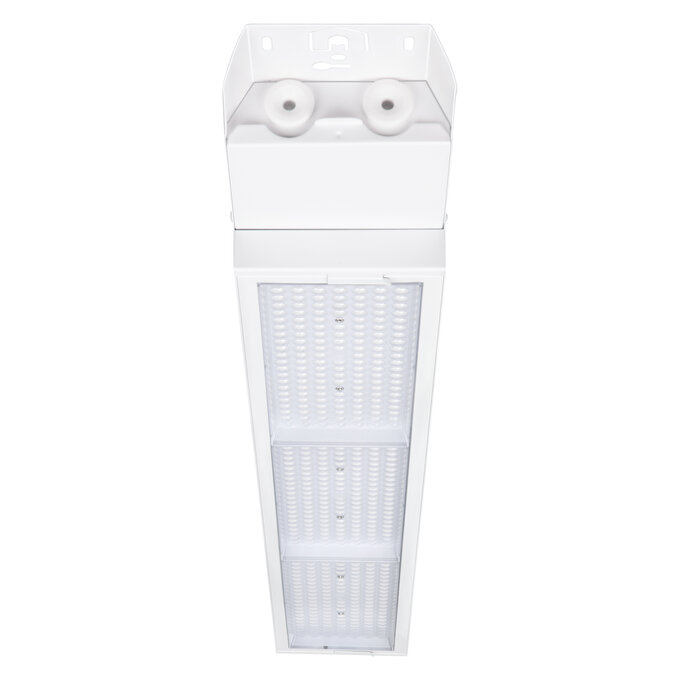

Product image: white background, upright
LOW BAY FLEX 1200

JPG (971.88 KB)

Product image: white background, upright
LOW BAY FLEX 1200

JPG (1.38 MB)

Product line drawing with letters
LOW BAY FLEX 1200

SVG (383.82 KB)

Product line drawing with numbers
LOW BAY FLEX 1200

SVG (389.54 KB)

Product line drawing - technical
LOW BAY FLEX 1200

SVG (379.4 KB)

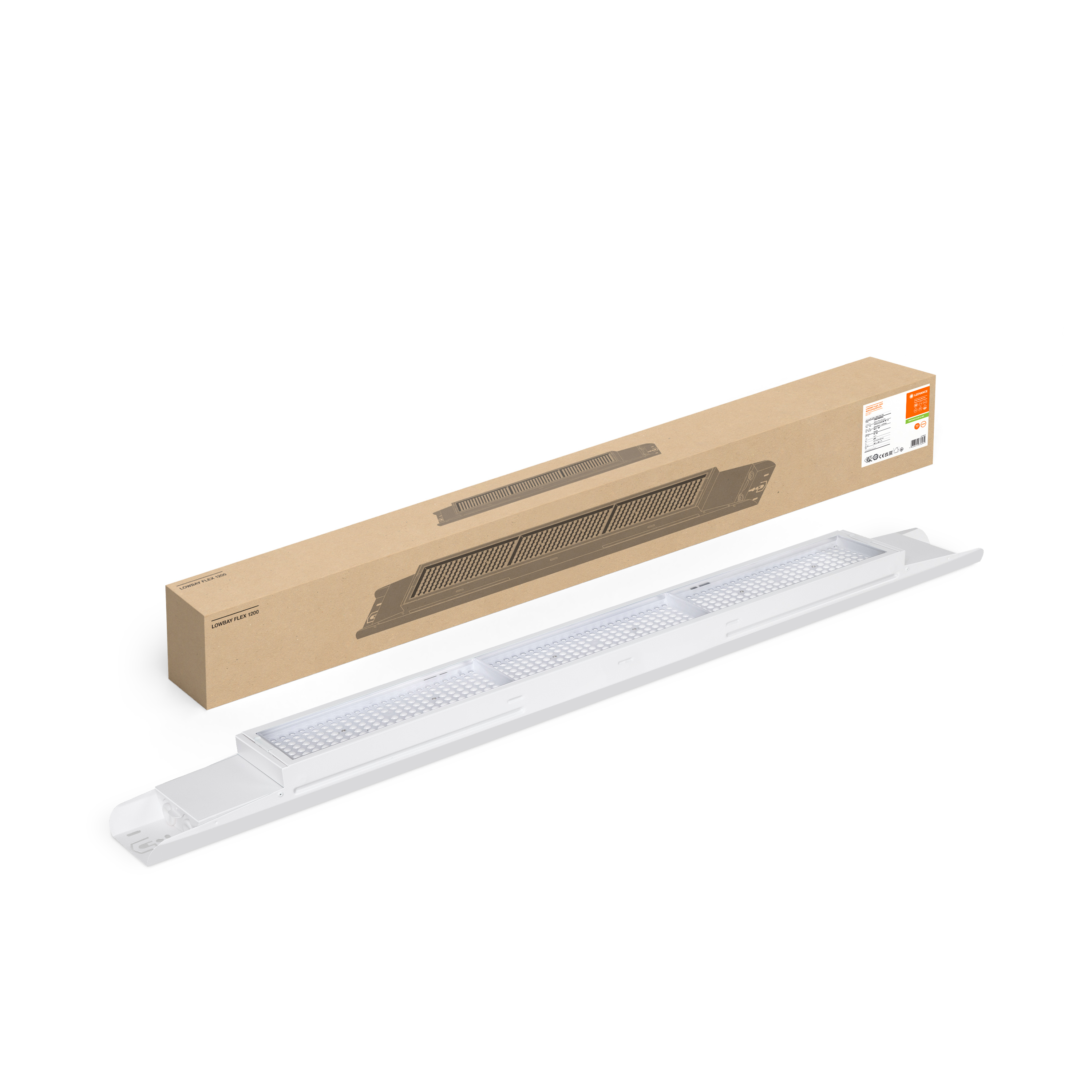

Combo Shot = Product Beauty Shot + Packaging Image
LB FLEX 1200 P 42W 840 VW

JPG (920.95 KB)

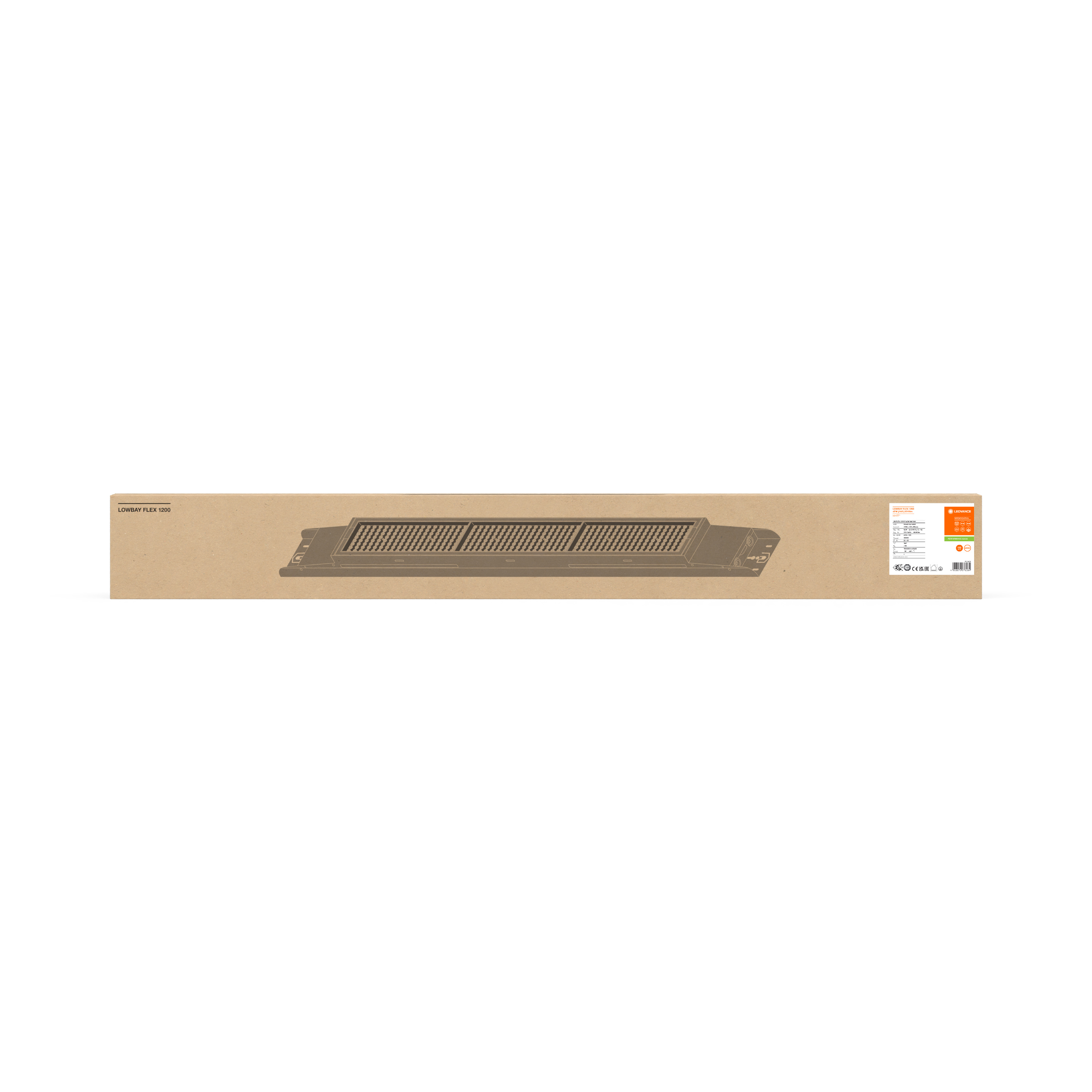

Packaging image, frontal
LB Flex 1200 P 42W 840 VW

JPG (760.79 KB)

Packaging image, spacial
LowBay Flex 1200 P WT MiCh

JPG (805.35 KB)

Catalog info 1
Lowbay 1200 1500 ON OFF

PNG (122.18 KB)

Catalog info 2
Lowbay 1200 1500 TH

PNG (138.64 KB)

Catalog info 3
Lowbay 1200 1500 mounting1

PNG (270.34 KB)

Catalog info 4
Lowbay 1200 1500 mounting2

PNG (129.18 KB)

IES file (IES)
LB FLEX 1200 P 42W 840 VW

IES (10.7 KB)

IES file (IES)
LB FLEX 1200 P 42W 840 VW

IES (10.73 KB)

IES file (IES)
LB FLEX 1200 P 42W 840 VW WITH BP COVER

IES (10.73 KB)

LDT file (Eulumdat)
LB FLEX 1200 P 42W 840 VW

LDT (7.85 KB)

LDT file (Eulumdat)
LB FLEX 1200 P 42W 840 VW

LDT (7.97 KB)

LDT file (Eulumdat)
LB FLEX 1200 P 42W 840 VW WITH BP COVER

LDT (5.94 KB)

ULD file (DIALux)
LB FLEX 1200 P 42W

ULD (169.47 KB)

ROLF file (RELUX)
LB FLEX 1200 P

ROLF (276.23 KB)

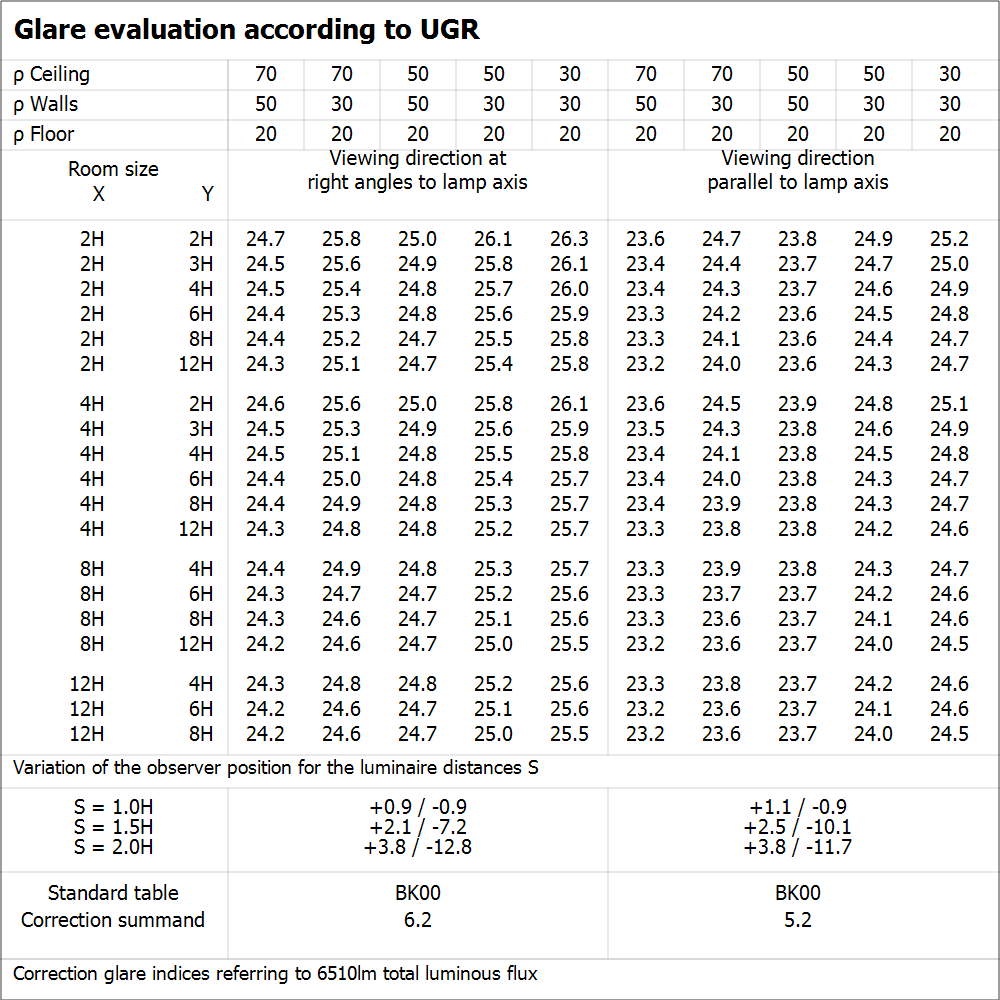

UGR file (UGR table)
LB FLEX 1200 P 42W 840 VW

PNG (61.33 KB)

UGR file (UGR table)
LB FLEX 1200 P 42W 840 VW WITH BP COVER

PNG (61.69 KB)

Light distribution curve type cone
LB FLEX 1200 P 42W 840 VW

SVG (16.77 KB)

Light distribution curve type cone
LB FLEX 1200 P 42W 840 VW WITH BP COVER

SVG (16.77 KB)

Light distribution curve type polar
LB FLEX 1200 P 42W 840 VW

SVG (17.39 KB)

Light distribution curve type polar
LB FLEX 1200 P 42W 840 VW WITH BP COVER

SVG (17.4 KB)

BIM Revit 3D
LOW BAY FLEX

ZIP (2.83 MB)

CAD STEP 3D
LB FLEX 1200

STEP (2.42 MB)

Tender documents
LOW BAY FLEX 1200 P 42W 840 VW-EN

TXT (1.37 KB)

Application pictures

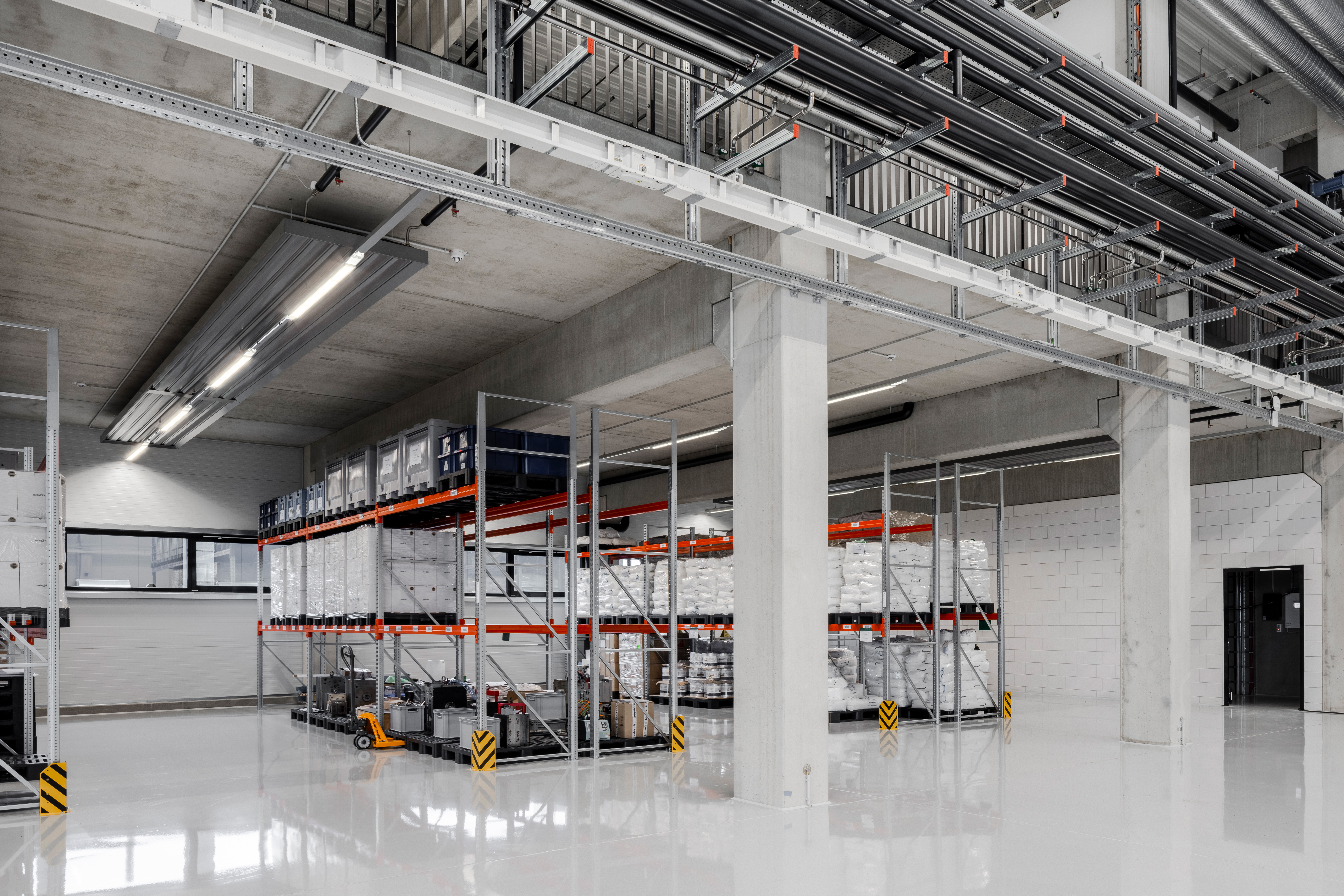

LEDVANCE luminaires LowBay Storage Corner

JPG (12.1 MB)

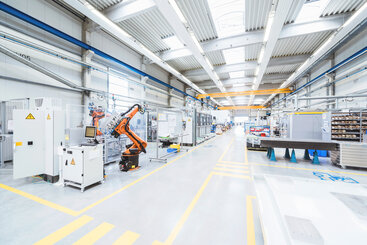

Application pictures
