FLOODLIGHT 150
FL 150 P 100W 15KLM 840 PS SY100 BK
GTIN: 4099854306280
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Breather membrane to optimize air exchange, without compromising IP protection
- Highly versatile due to selectable power steps (Multi Lumen) on the housing
- Robust cable gland with integrated waterstop function
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- Bright, robust and durable
- Energy savings of up to 90 % compared to halogen lamp floodlights
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP66)
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
- Public areas
- Building facades
- Construction areas
- Parking
Product features
- High luminous efficacy: up to 150 lm/W
- Type of protection: IP66
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
- Reflector-based, symmetric light distribution with 100° x 100° beam angle
- Mounting bracket with 30° angle and wide rotation area
Safety advice
- Max. wind load surface 0.070 m²
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 100 W / 83 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 443/368 mA |
| Inrush current | 30 mA |
| Inrush current time Th50 | 452 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 5 |
| Max. number of luminaires per miniature circuit breaker C10 | 6 |
| Max. number of luminaires per miniature circuit breaker C16 | 9 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Surge capability (L-N) | 4 kV |
| Surge capability (L/N-Ground) | 6 kV |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 15000 lm / 12500 lm |
| Luminous efficacy | 150 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 5 sdcm |
| Stroboscope effect metric (SVM) | ≤0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 100 ° x 100 ° |
Dimensions & Weight
| Length | 266.00 mm |
| Height | 343.00 mm |
| Width | 55.00 mm |
| Product weight | 2820.00 g |
| Cable length | 1000 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Corrosion resistance class acc. to EN 12944 | C4 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Pole, Floor, Ceiling |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 75000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 480 mA |
| ECG - Output ripple current | < 20 % |
Certificates & Standards
| Standards | CE, CB, ENEC, EAC, UKCA, EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00030-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Added function | MULTI SELECT |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854306280 | Folding box 1 |
72 mm x 285 mm x 370 mm | 3072.00 g | 7.59 dm³ |
| 4099854306297 | Shipping box 3 |
301 mm x 234 mm x 397 mm | 9752.00 g | 27.96 dm³ |
User instruction / safety instructions
G11193710_UI_Floodligh t_65W-200W
G11193710_UI_Floodligh t_65W-200W
Legal information
Insert_LSI_Floodlight_ 69W-167W_G11195968
Insert_LSI_Floodlight_ 69W-167W_G11195968
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11205496
Safety Insert G11205496
Legal information
Legal Insert FLOODLIGHT LUMS
Legal Insert FLOODLIGHT LUMS
Declarations of conformity
FLOODLIGHT GEN4
FLOODLIGHT GEN4
EPD
FLOODLIGHT GEN 4 MP PHOTOCELL
FLOODLIGHT GEN 4 MP PHOTOCELL

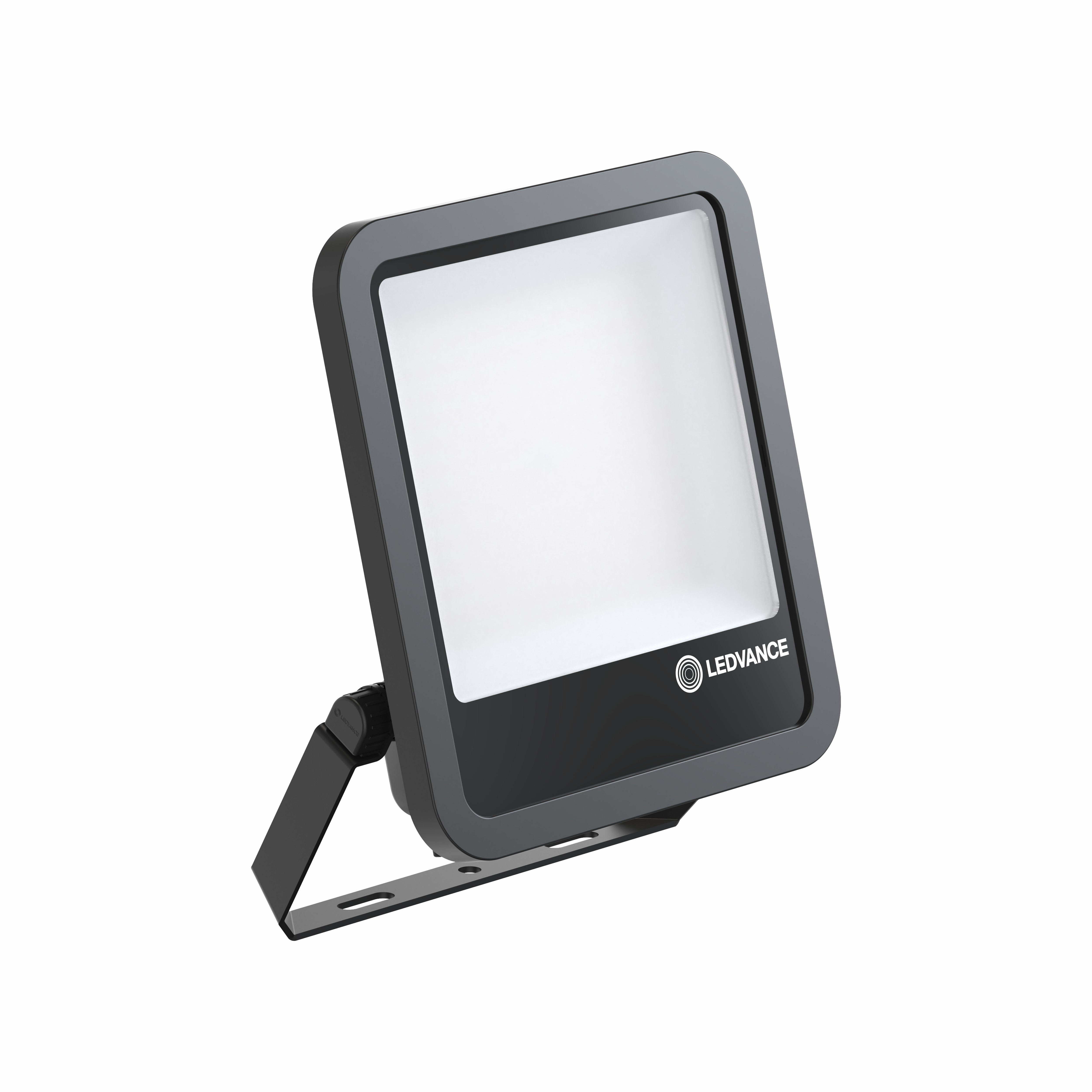

Product image: white background, diagonal
FL 150 P 100W 15KLM BK
FL 150 P 100W 15KLM BK

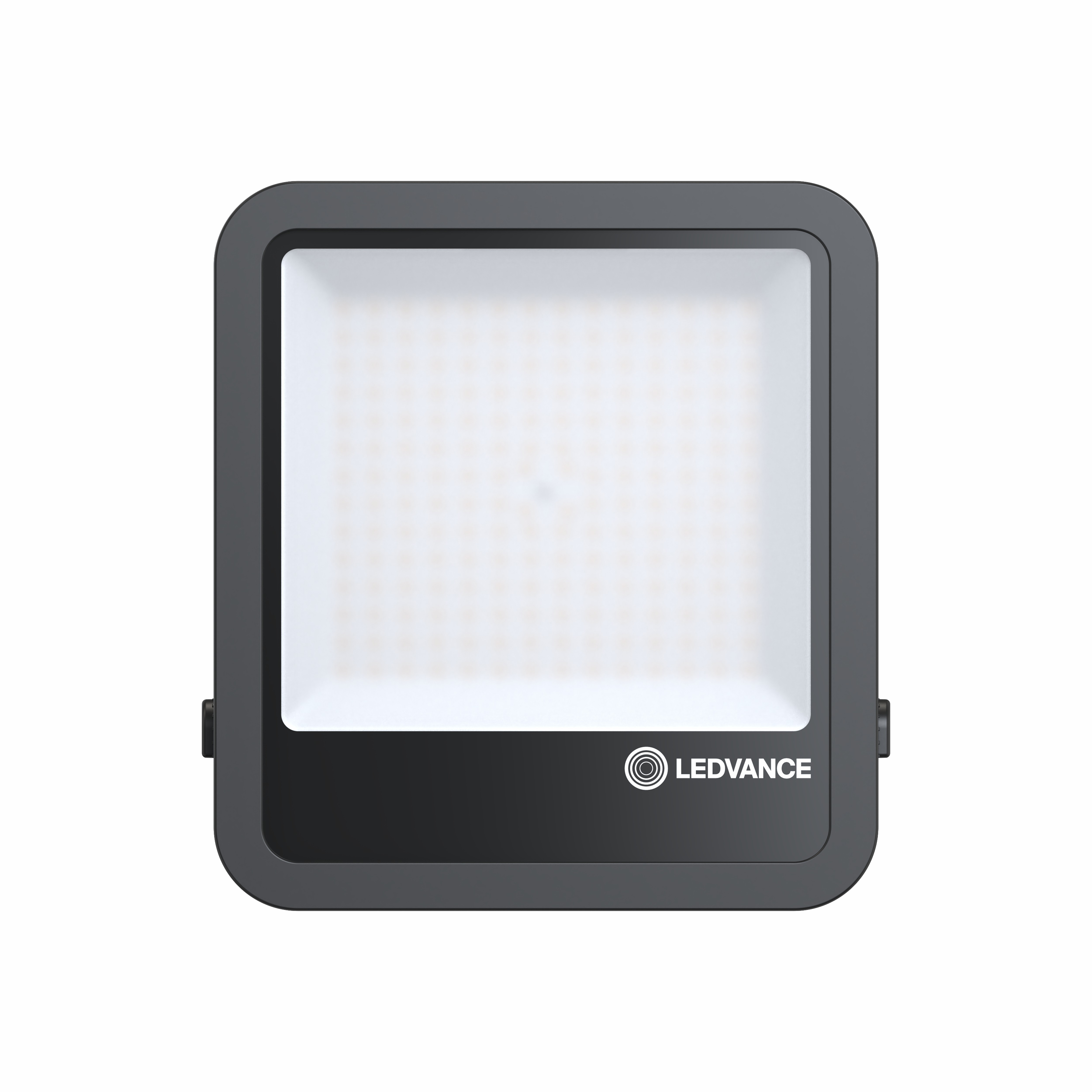

Product image: white background, upright
FL 150 P 100W 15KLM BK
FL 150 P 100W 15KLM BK
Product line drawing with letters
FL 150P SY100
FL 150P SY100
Product line drawing with numbers
FL 150P SY100
FL 150P SY100
Product line drawing, front, no dimensions
FL 150P SY100
FL 150P SY100

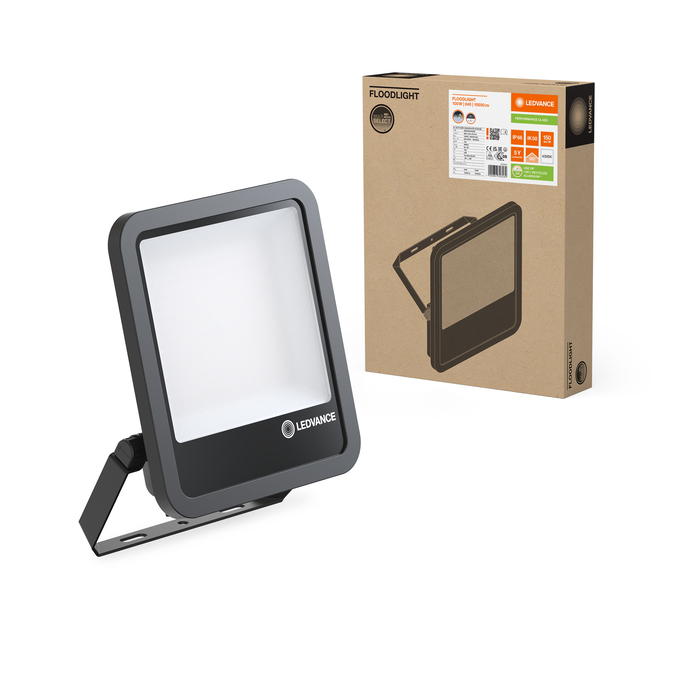

Combo Shot = Product Beauty Shot + Packaging Image
