FLOODLIGHT HIGH MAST 300W LUMINAIRE HEAD
FL H M LUM V 300W 740 ASYM 110X30
GTIN: 4099854196065
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 140lm/W
- Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
- 5 years guarantee
- Symmetric and asymmetric light distribution for various application areas
Areas of application
- Replacement for luminaires with mercury vapor or metal halide lamps
- Outdoor use (IP66)
- Suitable for high mast applications
- Lighting of large areas
- Construction areas
- Industry
Product features
- Cover made of high quality glass
- High-power floodlight with up to 140 lm/W
- Lifetime (L80/B50): up to 100,000 h (at 25 °C)
- Joint or separate installation with floodlight high mast power supply
- Highly-transparent, tempered glass diffusor
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 300.00 W |
| Nominal voltage | 345 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 810.000 mA |
| Inrush current time Th50 | 988 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 4 |
| Max. number of luminaires per miniature circuit breaker C10 | 4 |
| Max. number of luminaires per miniature circuit breaker C16 | 7 |
| Power factor λ | > 0.90 |
| Protection class | I |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 36000 lm |
| Luminous efficacy | 120 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | 70 |
| Standard deviation of color matching | 5 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0,4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 110 ° x 30 ° |
Dimensions & Weight
| Length | 479.00 mm |
| Height | 243.00 mm |
| Width | 389.00 mm |
| Product weight | 8650.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Tempered glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -40…+50 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | Yes |
| Mounting type | Surface |
| Mounting location | Wall, Pole, Floor |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 100000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, ENEC, EMC, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854196065 | Shipping box 1 |
553 mm x 416 mm x 165 mm | 9297.00 g | 37.96 dm³ |
User instruction / safety instructions
Floodlight High Mast
Floodlight High Mast
User instruction / safety instructions
FL H M LUM V_POWER SUPPLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD
FL H M LUM V_POWER SUPPLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD
Legal information
FL H M LUM V
FL H M LUM V
Legal information
FL H M
FL H M
Legal information
FL H M LUM V_POWER SUPPLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD
FL H M LUM V_POWER SUPPLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD
Declarations of conformity
CE Declaration FL H M
CE Declaration FL H M
Certificates
FL H M
FL H M
Certificates
FL H M LUM V
FL H M LUM V

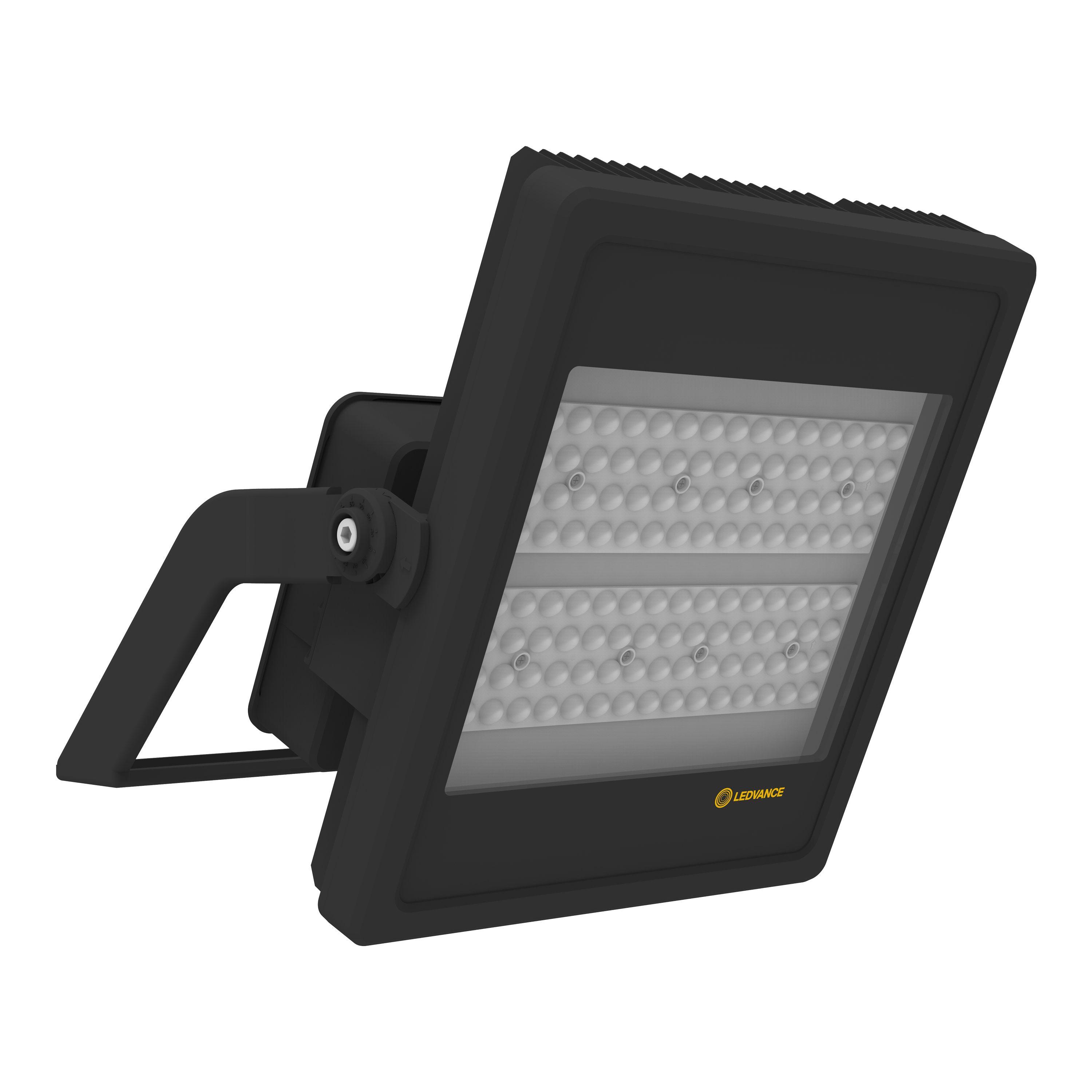

Product image: white background, spacial
FL H M LUM V 300W ASYM
FL H M LUM V 300W ASYM

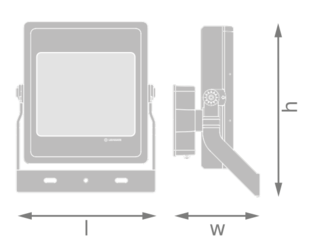

Product line drawing with letters
FL H M LUM V 300W
FL H M LUM V 300W
Product line drawing with numbers
FL H M LUM V 300W
FL H M LUM V 300W

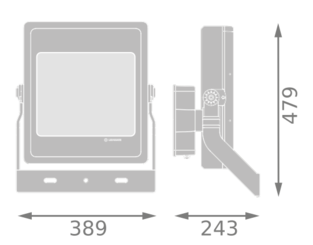

Product line drawing - technical
FL H M LUM V 300W SYM/ASYM
FL H M LUM V 300W SYM/ASYM
IES file (IES)
FL H M LUM V 300W 740 ASYM 110X30
FL H M LUM V 300W 740 ASYM 110X30
LDT file (Eulumdat)
FL HIGH MAST V 300W 740 ASYM 110x30
FL HIGH MAST V 300W 740 ASYM 110x30
ULD file (DIALux)
FL H M V 300W 740 ASYM 110X30
FL H M V 300W 740 ASYM 110X30
ROLF file (RELUX)
FL H M LUM V 300W 740 ASYM 110X30
FL H M LUM V 300W 740 ASYM 110X30

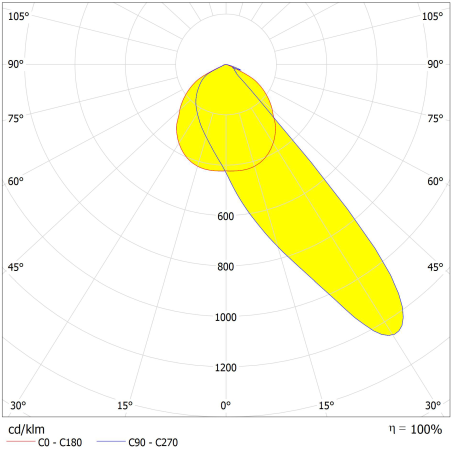

Light distribution curve type polar
