FLOODLIGHT HIGH MAST POWER SUPPLY
FL H M POWER SUPPLY V 500W DALI
GTIN: 4099854198724
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Highly robust and durable
- Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
- 5 years guarantee
Areas of application
- Outdoor use (IP66)
- Suitable for high mast applications
- Lighting of large areas
- Construction areas
- Industry
Product features
- Power supply for floodlight high mast luminaire heads
- Joint or separate installation with floodlight high mast power supply
- M16 cable gland for mains cable
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 500.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | I |
Dimensions & Weight
| Length | 317.00 mm |
| Height | 61.00 mm |
| Width | 201.00 mm |
| Product weight | 3650.00 g |
Materials & Colors
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -40…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of protection | IP66/IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | DALI |
| Mounting location | Wall, Pole, Floor |
| With light source | No |
| Replaceable light source | No |
Lifespan
| Number of switching cycles | 100000 |
Certificates & Standards
| Standards | CE, LVD, EMC, ROHS, REACH, SLR, ENEC |
| Luminaire with limited surface temperature, "D sign" | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854198724 | Folding box 1 |
230 mm x 70 mm x 328 mm | 3793.00 g | 5.28 dm³ |
| 4099854198731 | Shipping box 4 |
348 mm x 306 mm x 260 mm | 15673.00 g | 27.69 dm³ |
User instruction / safety instructions
Floodlight High Mast
Floodlight High Mast
User instruction / safety instructions
FL H M LUM V_POWER SUPPLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD
FL H M LUM V_POWER SUPPLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD
Legal information
FL H M
FL H M
Legal information
FL H M LUM V_POWER SUPPLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD
FL H M LUM V_POWER SUPPLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD
Declarations of conformity
CE Declaration FL H M
CE Declaration FL H M
Certificates
FL H M
FL H M
Certificates
FL H M LUM V
FL H M LUM V

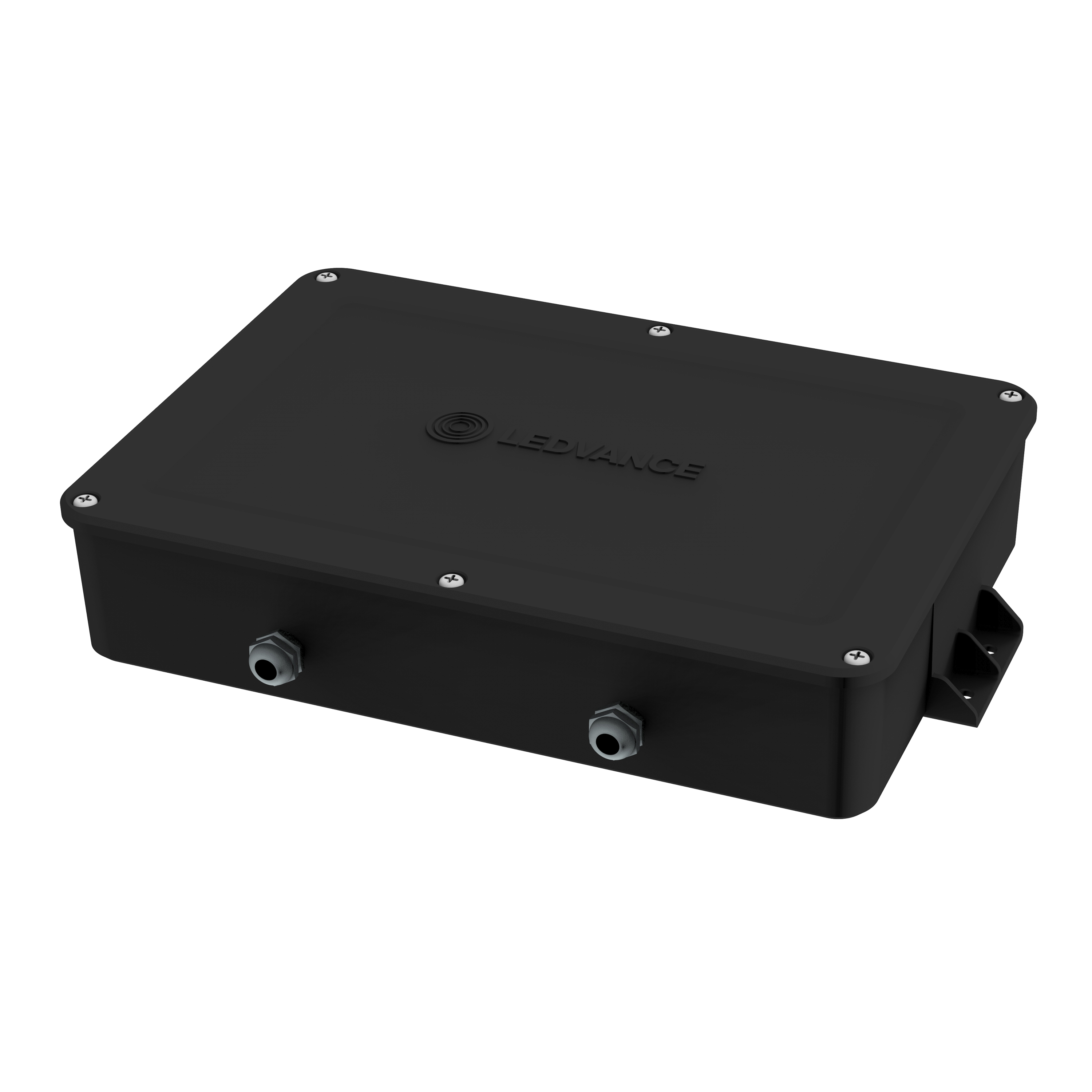

Product image: white background, spacial
FL H M POWER SUPPLY V
FL H M POWER SUPPLY V

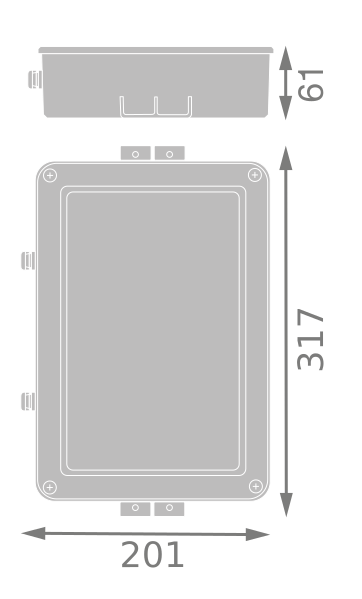

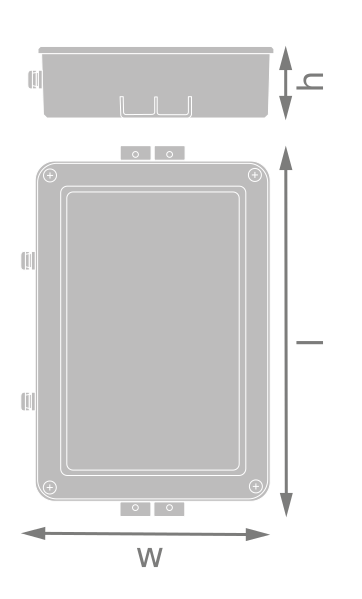

Product line drawing with letters
