ECO HP FLOOD 500W 857 VN 61000LM BK

ECO HIGH POWER FLOODLIGHT

GTIN: 4058075372610 Shipping box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Energy savings of up to 90 % compared to halogen lamp floodlights
Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
Homogeneous light output
5 years guarantee

Areas of application

Direct replacement for luminaires using HID lamps
Sports facilities
Industry
Lighting of large areas

Product features

Rotational symmetric light distribution for high mast area lighting
Various versions with different types of light distribution available
Mounting bracket for up to 180° tilting
Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	500.00 W
Nominal voltage	100…240 V
Mains frequency	50…60 Hz
Nominal current	2550.000 mA
Inrush current	150 A
Inrush current time T_h50	500 µs
Max. number of luminaires per miniature circuit breaker B16	1
Max. number of luminaires per miniature circuit breaker C10	1
Max. number of luminaires per miniature circuit breaker C16	1
Power factor λ	> 0.95
Total harmonic distortion	< 20 %
Protection class	I
Operating mode	Mains voltage

Photometrical data

Luminous flux	61000 lm
Luminous efficacy	122 lm/W
Color temperature	5700 K
Light color (designation)	Daylight
Color rendering index Ra	≥80
Standard deviation of color matching	< 5 sdcm
Luminous intensity	-
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-
Photobiological safety group acc. to EN62778	RG2
Photobiological safety group acc. to EN62471	RG2
Beam angle	30 °

Dimensions & Weight

Length	575.00 mm
Height	152.00 mm
Width	604.00 mm
Product weight	17500.00 g
Cable length	1000 mm

Materials & Colors

Product color	Black
Housing color	Black
RAL Color (most similar)	RAL 9005
Body material	Aluminum
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-40…+45 °C
Type of connection	Cable, 3-pole
Type of protection	IP65
Protection class IK (shock resistance)	IK08
Dimmable	No
Mounting type	Surface
Mounting location	Ceiling
Application environment	Outdoor
Adjustable	Yes
With light source	No
Replaceable light source	No

Lifespan

Lifespan L70/B50 at 25 °C	50000 h ¹⁾
Number of switching cycles	100000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards	CE, EAC, RoHS, REACH
Luminaire with limited surface temperature, "D sign"	No
Replaceable light source (EPREL)	Not replaceable

Additional product data

Number of illuminants

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075372610	Shipping box 1	675 mm x 650 mm x 230 mm	18859.00 g	100.91 dm³

User instruction / safety instructions
UI ECO HP FLOOD 500W BK

PDF (4.16 MB)

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Declarations of conformity
CE Declaration of Conformity ECO CLASS HP FLOODLIGHT

PDF (328.81 KB)

Product image: white background, diagonal
HP FLOODLIGHT 500W

TIF (31.72 MB)

Product line drawing with letters
HP FLOOD 500W

SVG (4.15 MB)

Product line drawing with numbers
HP FLOODLIGHT 500W

SVG (4.15 MB)

Product line drawing, front, no dimensions
HP FLOOD 500W

SVG (4.15 MB)

LDT file (Eulumdat)
ECOHPFLOOD 500W 857VN61000LM BK

LDT (86.38 KB)

Light distribution curve type polar
ECO CLASS HP FLOODLIGHT VERY NARROW

SVG (1.72 MB)

Application pictures

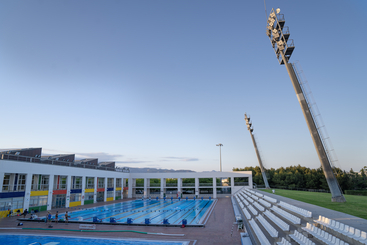

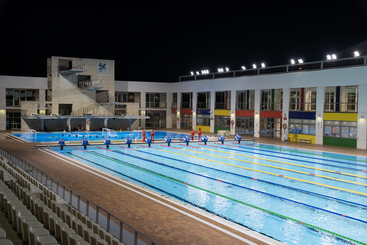

Municipal Pools of Son Hugo Outdoor Pool2

JPG (15.11 MB)

Application pictures

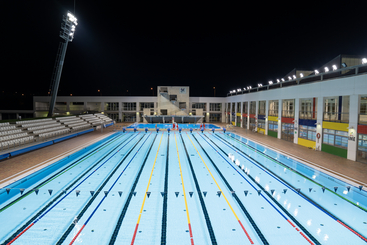

Municipal Pools of Son Hugo Outdoor Pool3

JPG (13.99 MB)

Application pictures

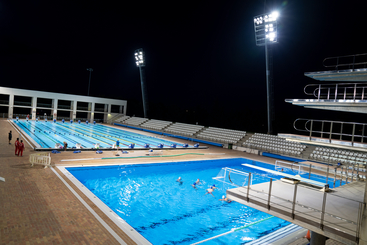

Municipal Pools of Son Hugo Outdoor Pool4
