Product benefits

• Energy savings of up to 90 % compared to halogen lamp floodlights
• Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
• Bright, robust and durable
• Homogeneous luminance distribution and reduced glare
• No upper light output ratio (ULOR 0%) when mounted at 0° tilt
• Key hole to ensure ease of installation
• 5 years guarantee

Areas of application

• Direct replacement for luminaires using HID lamps
• Outdoor use (IP66)
• Parking
• Public areas
• Industry

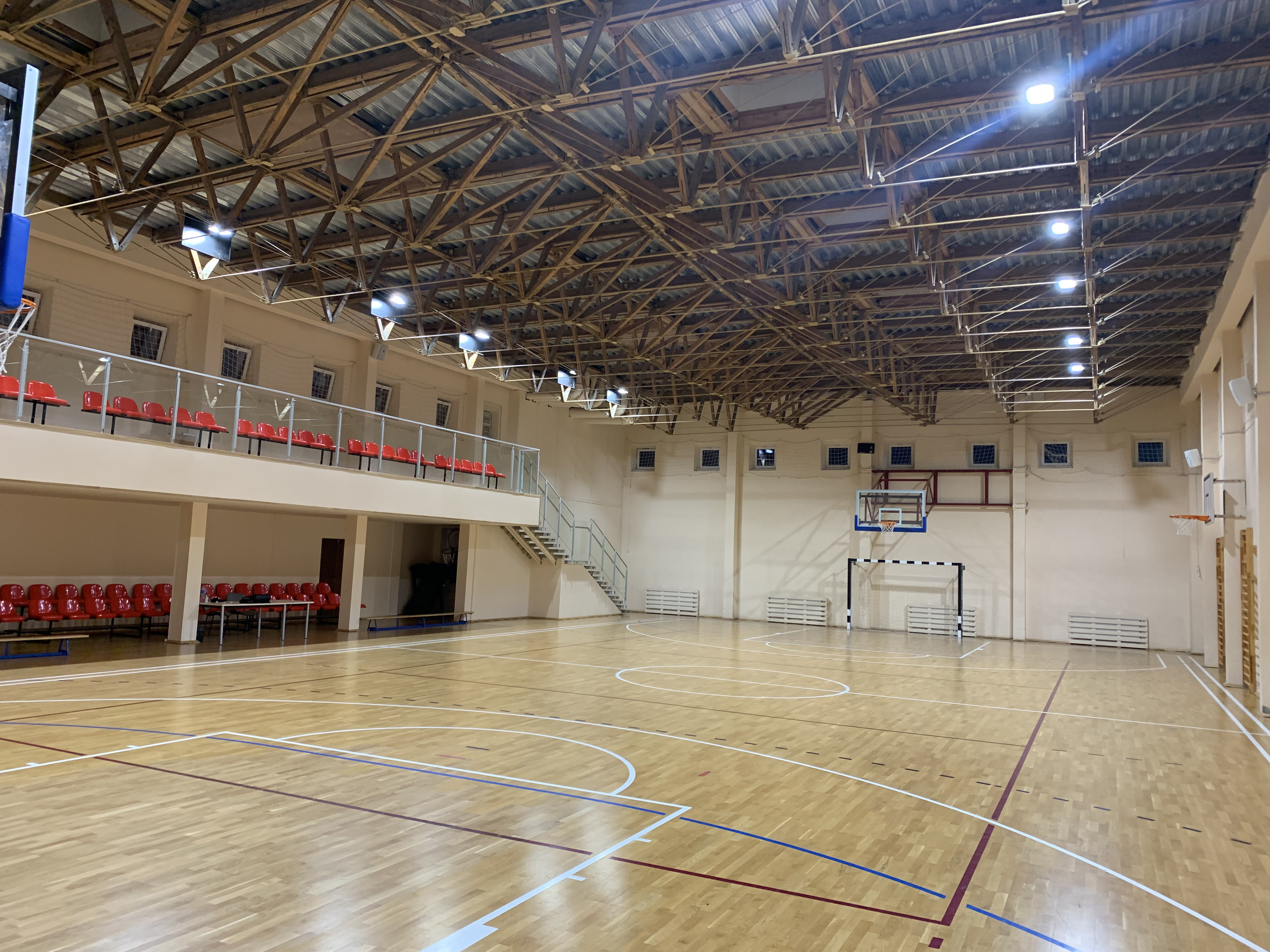

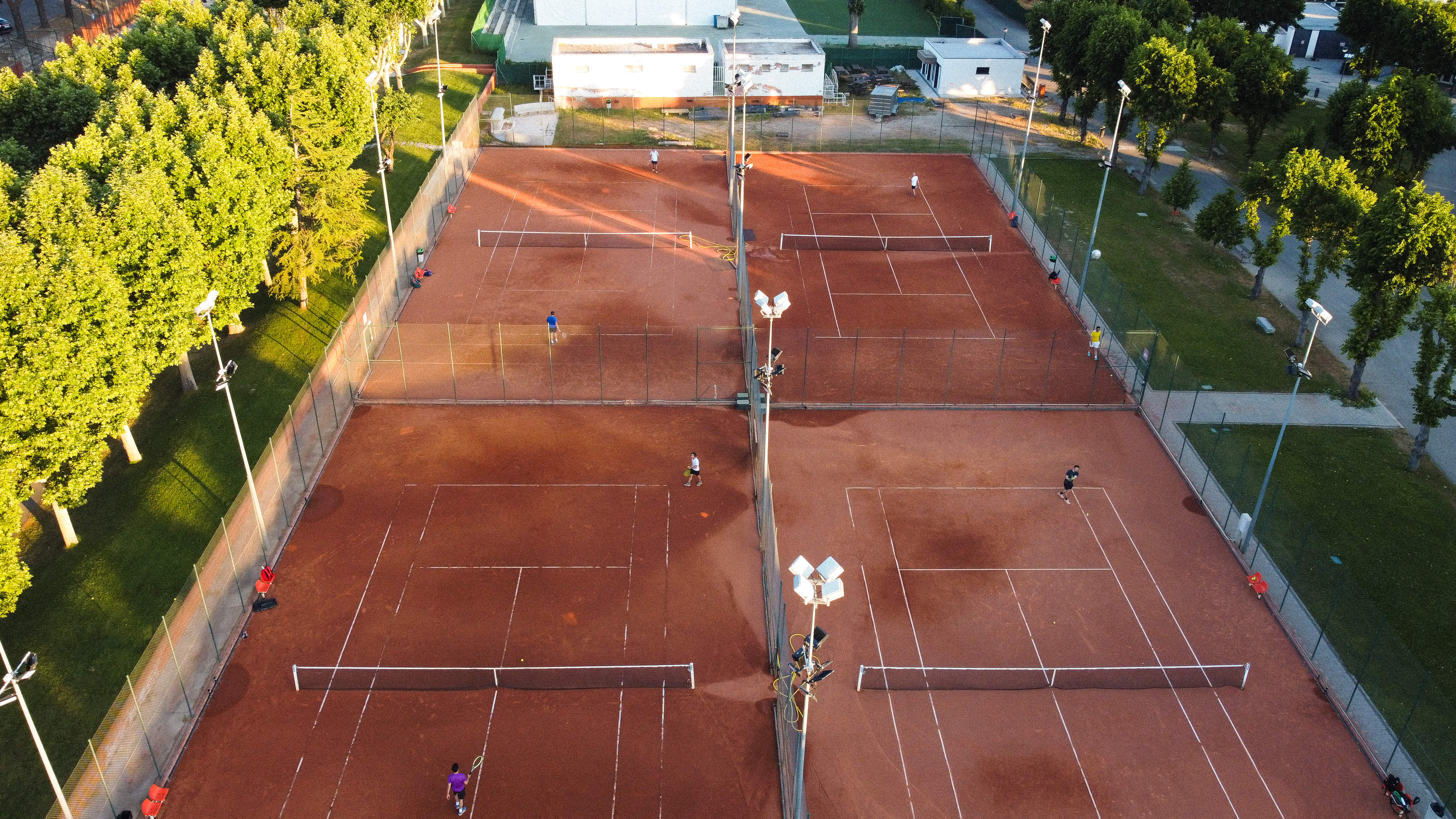

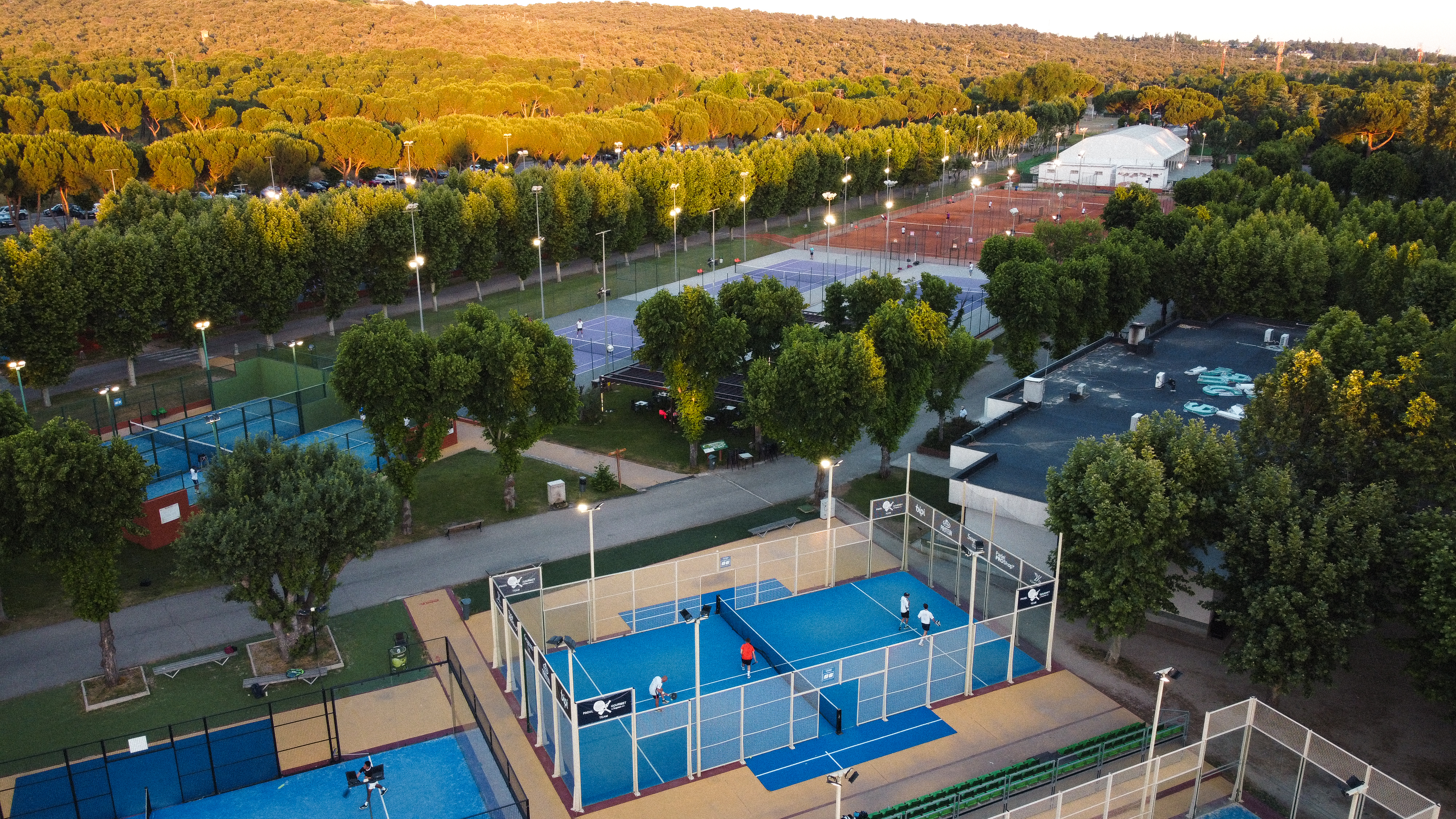

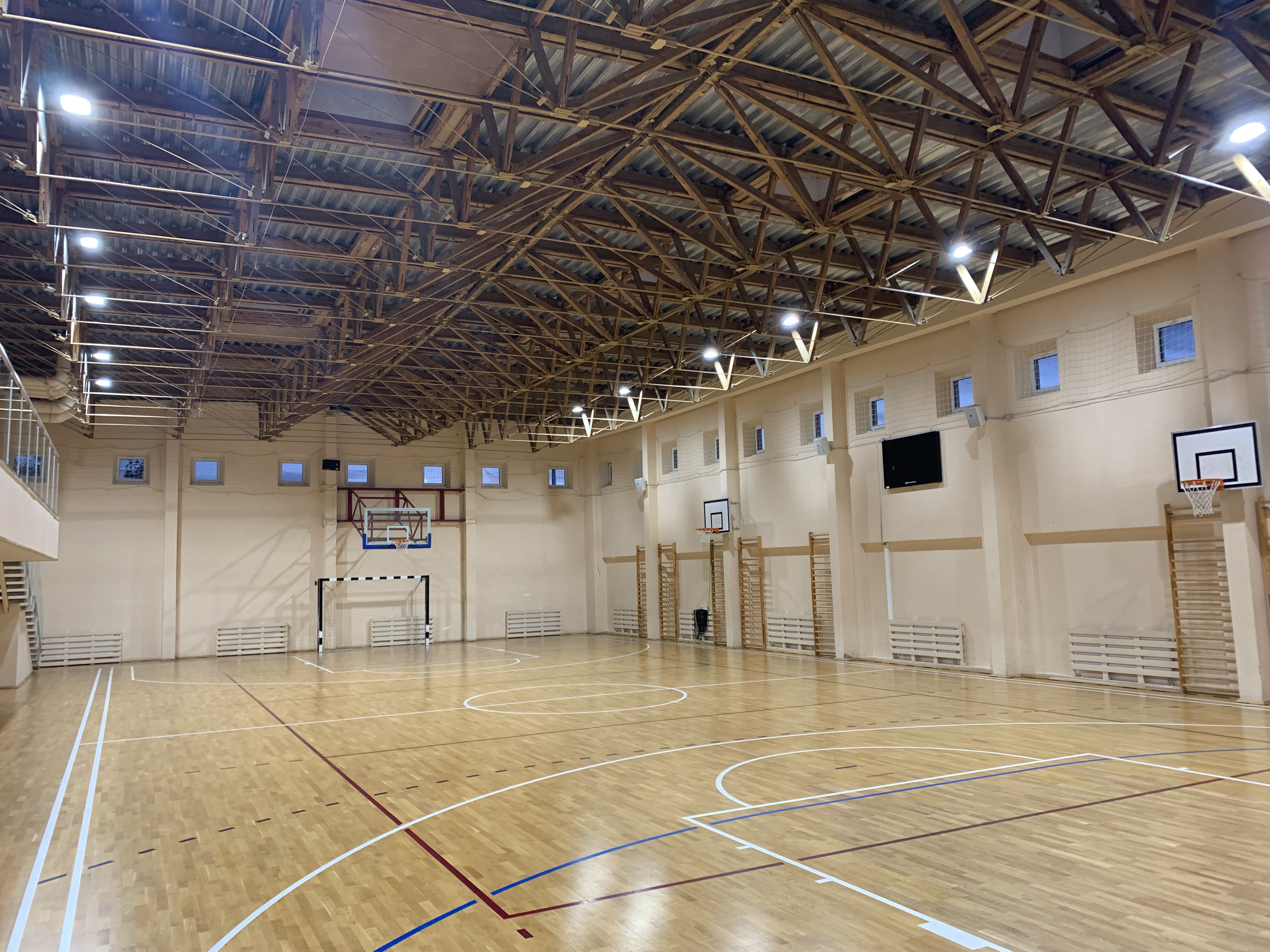

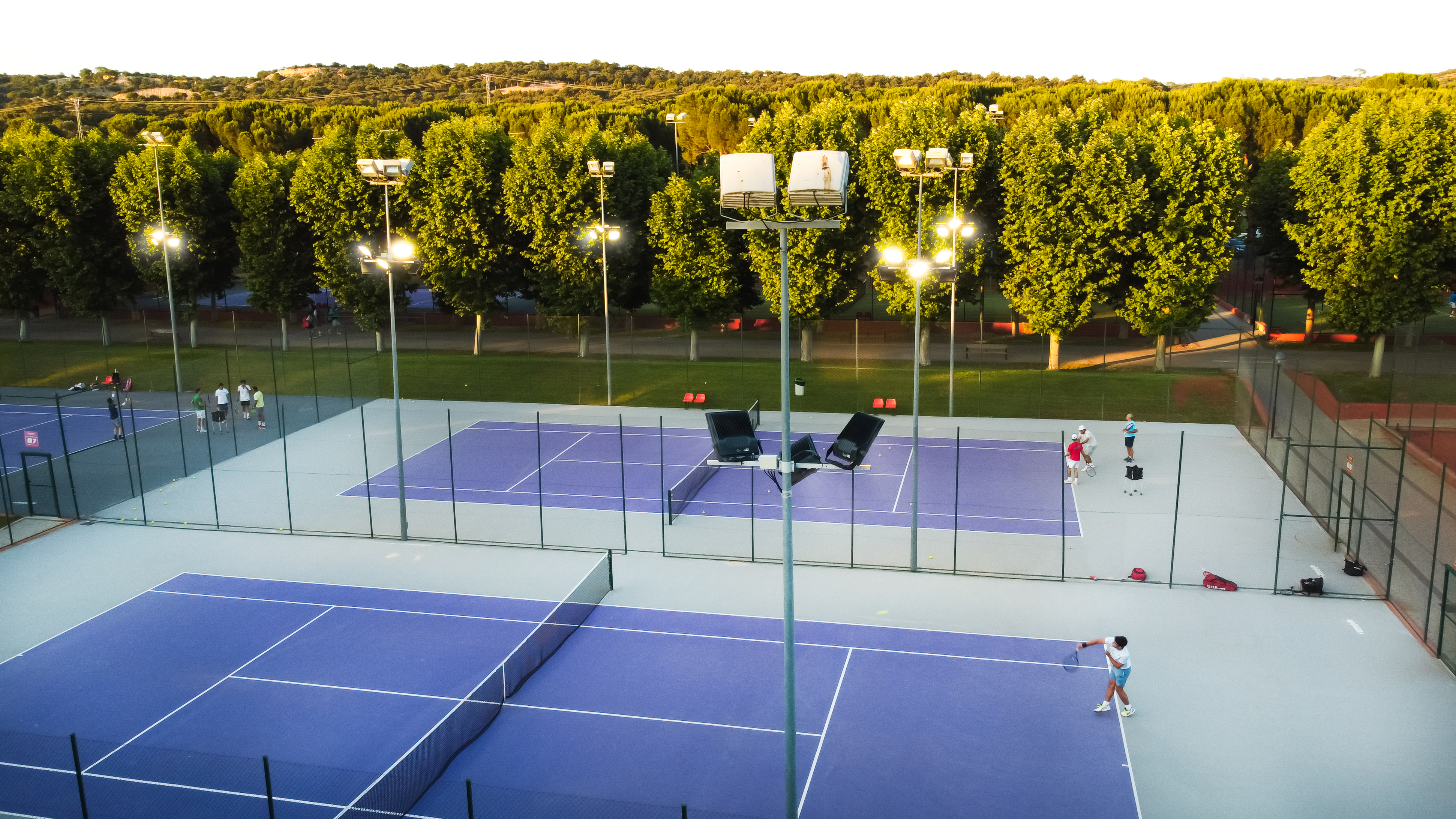

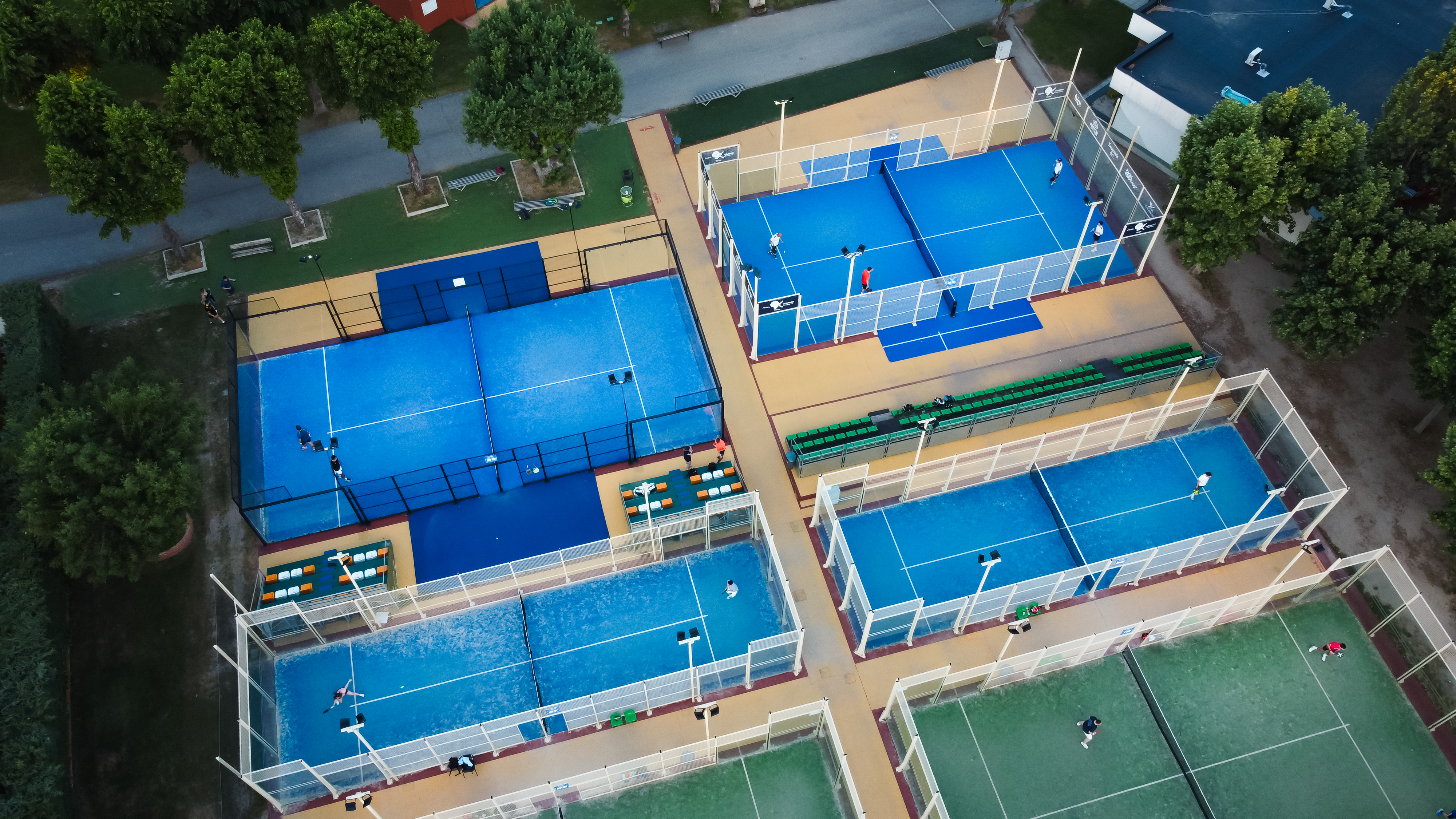

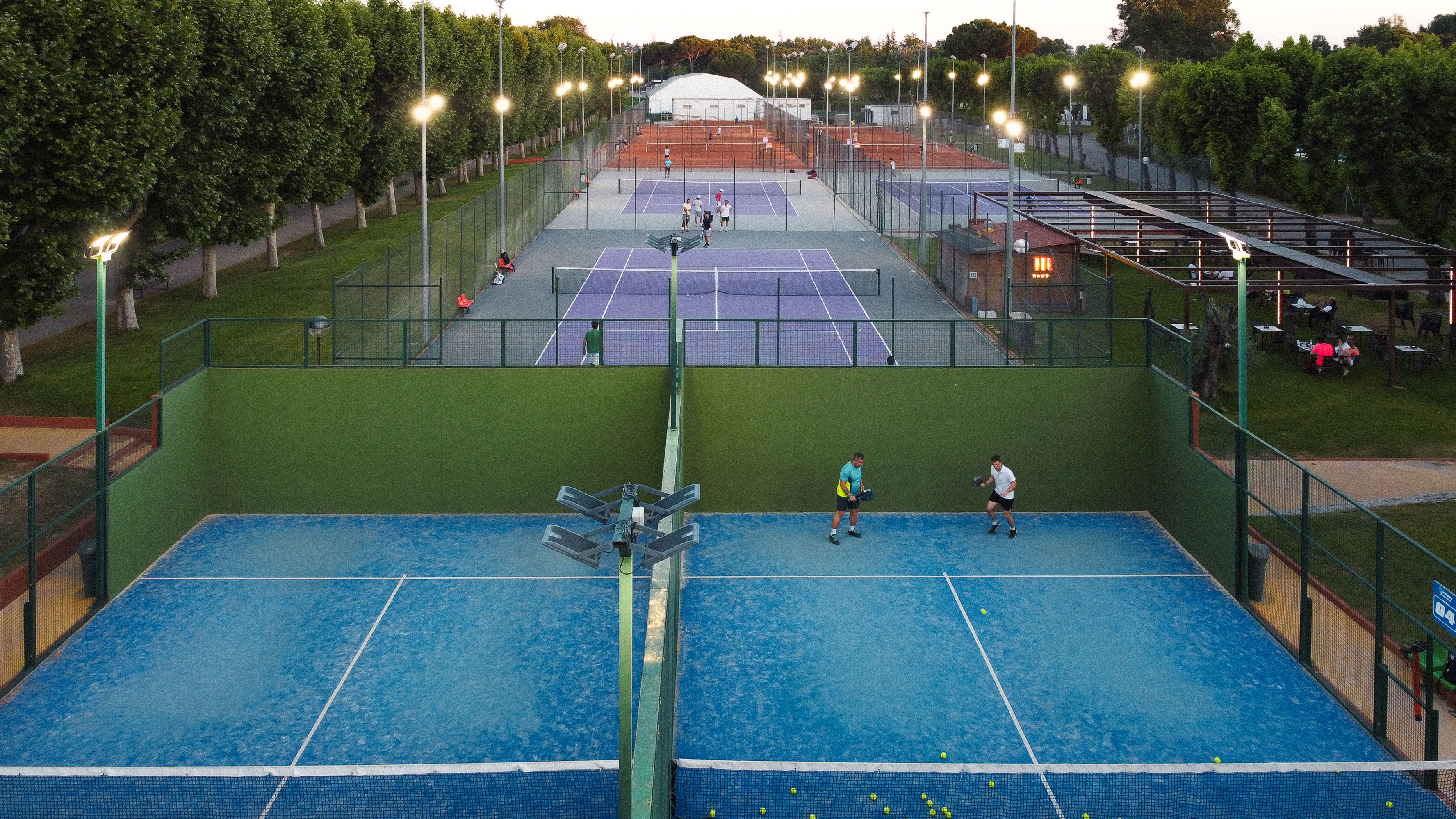

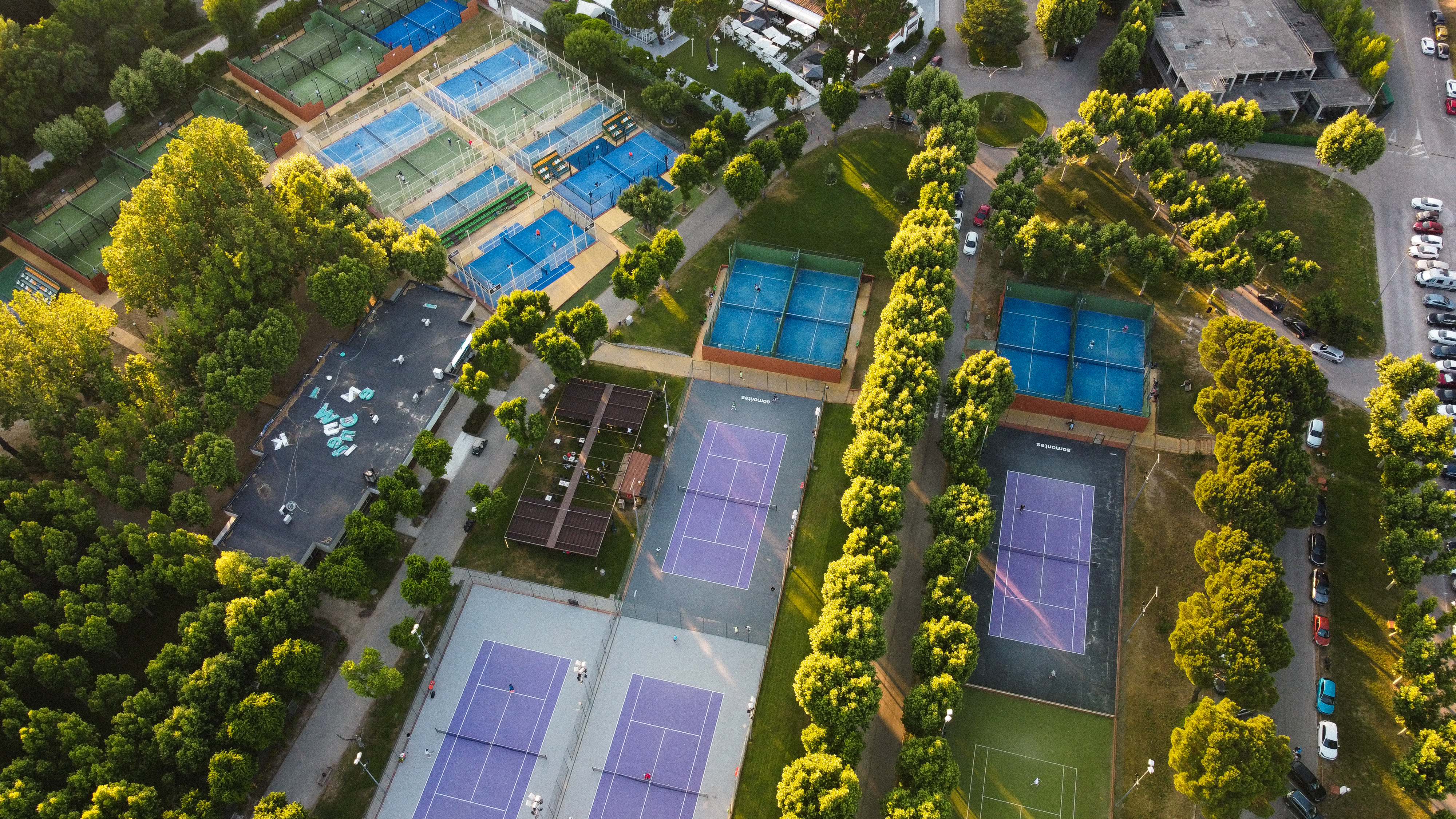

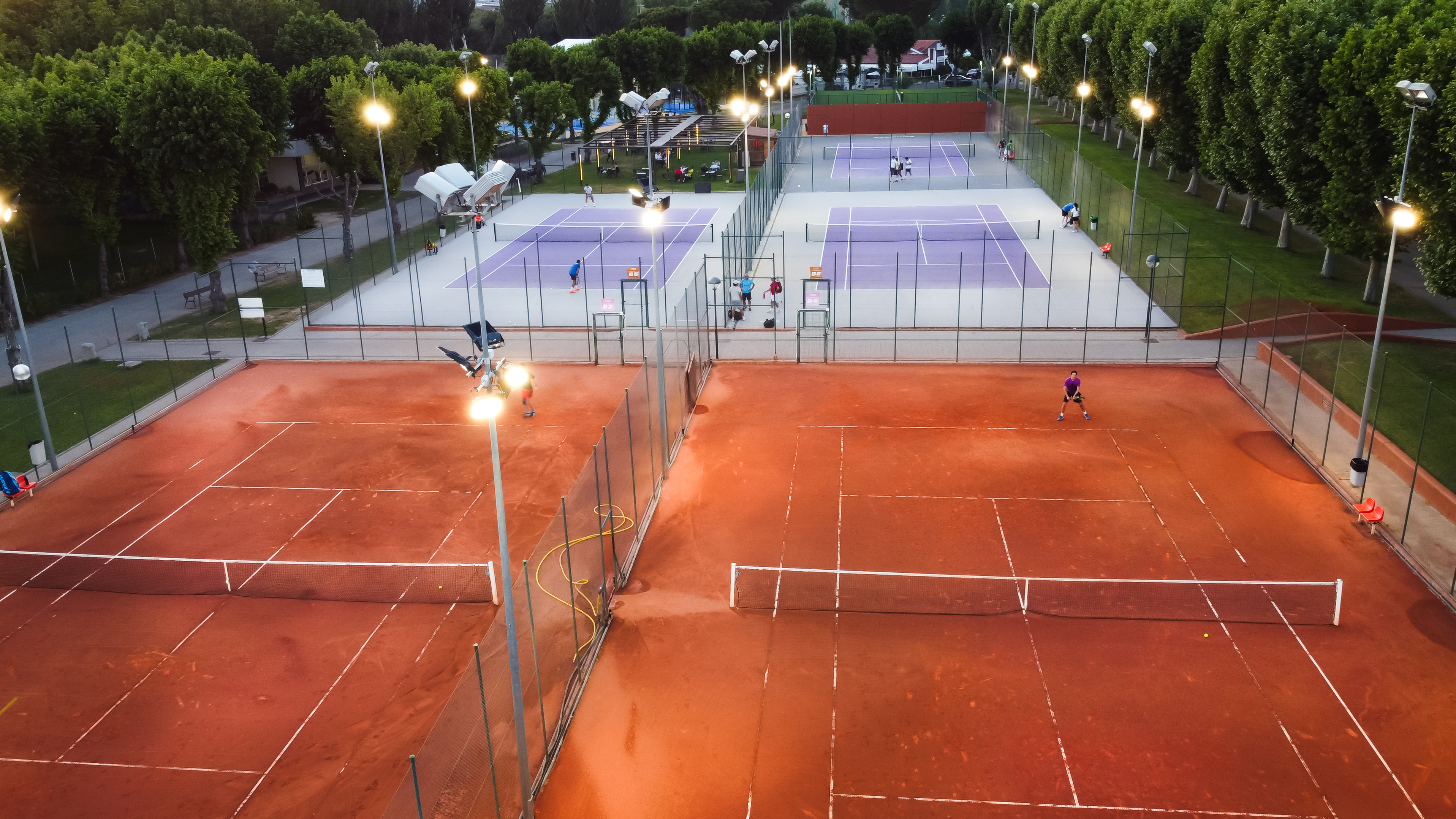

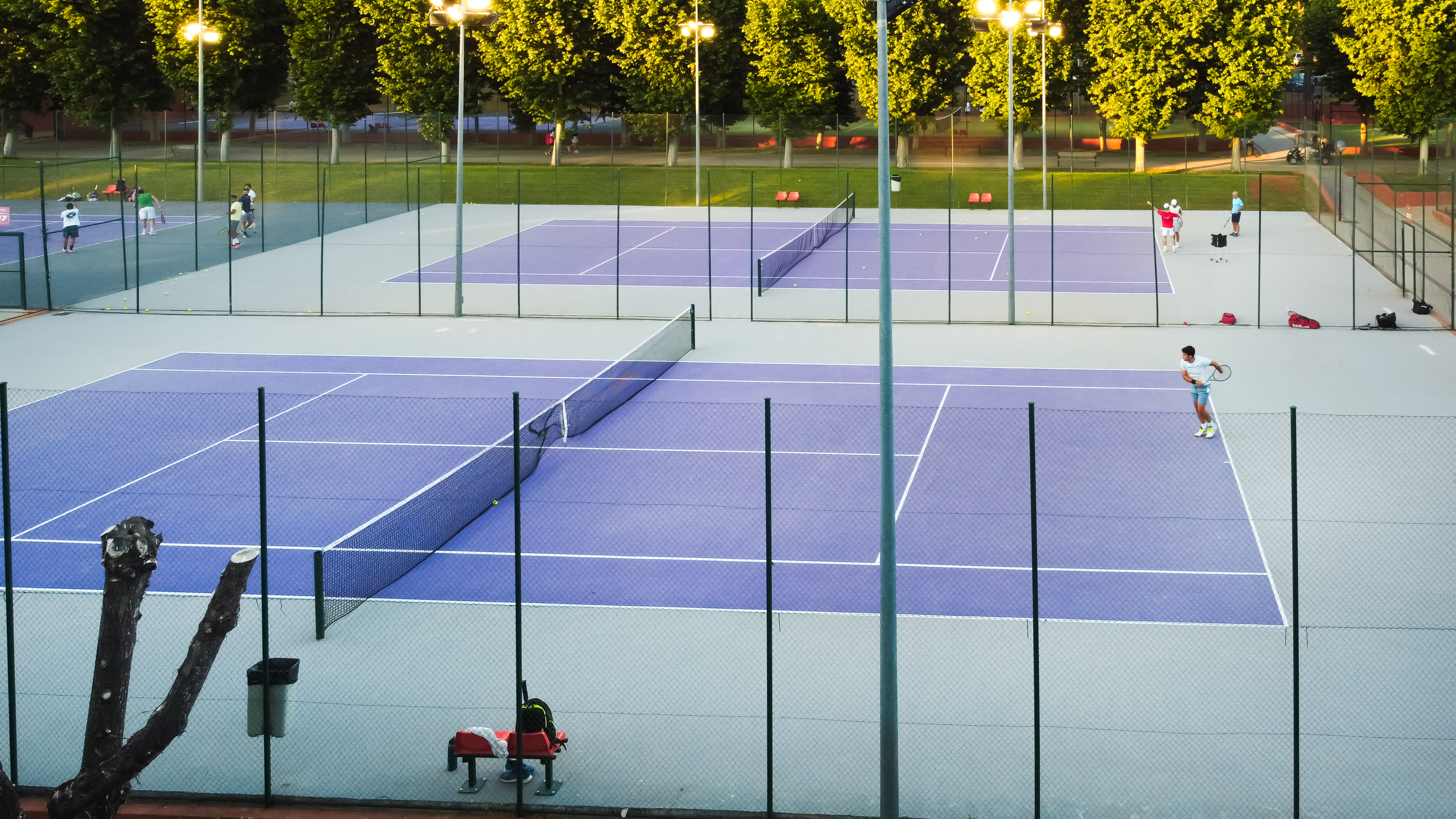

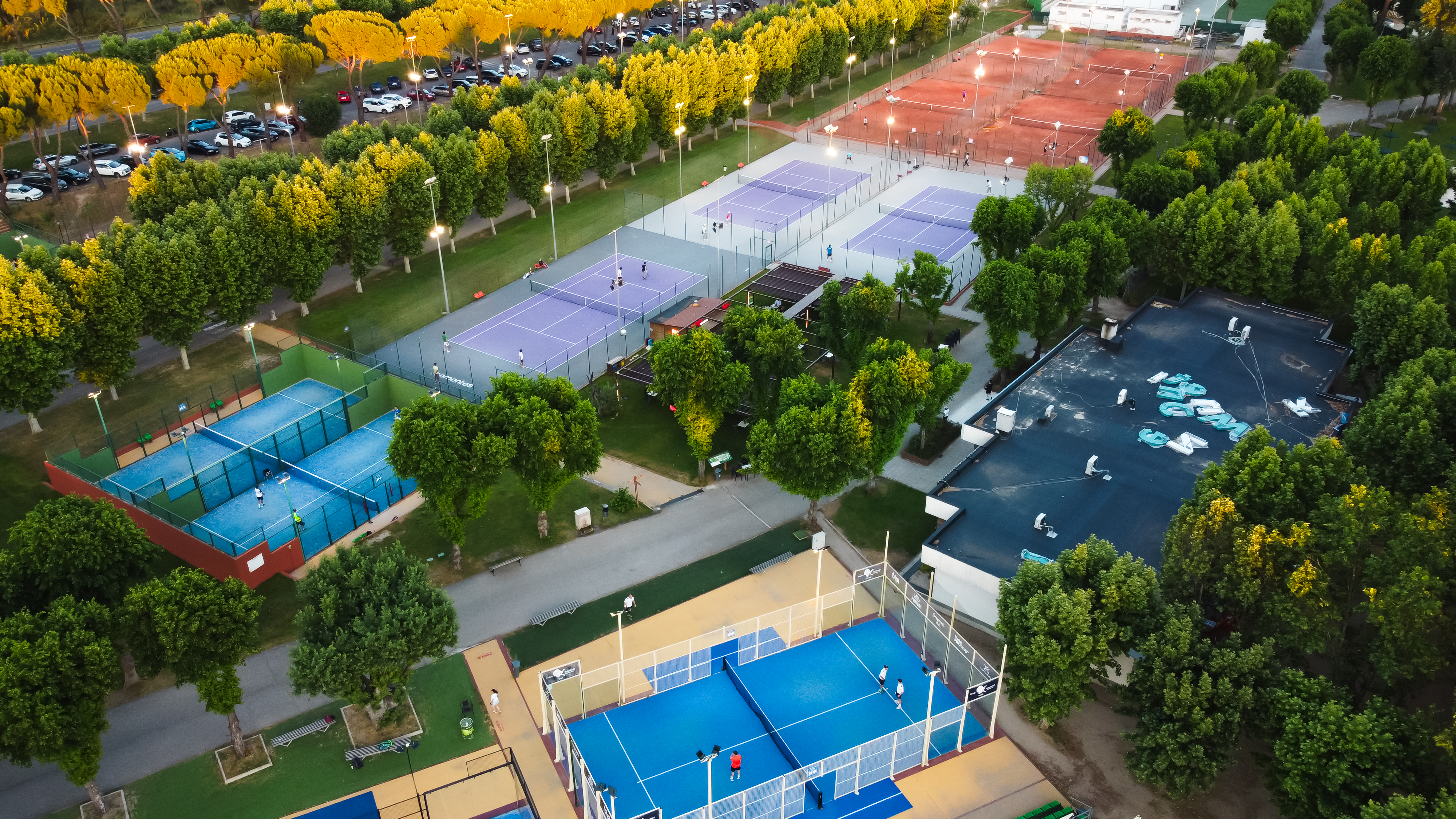

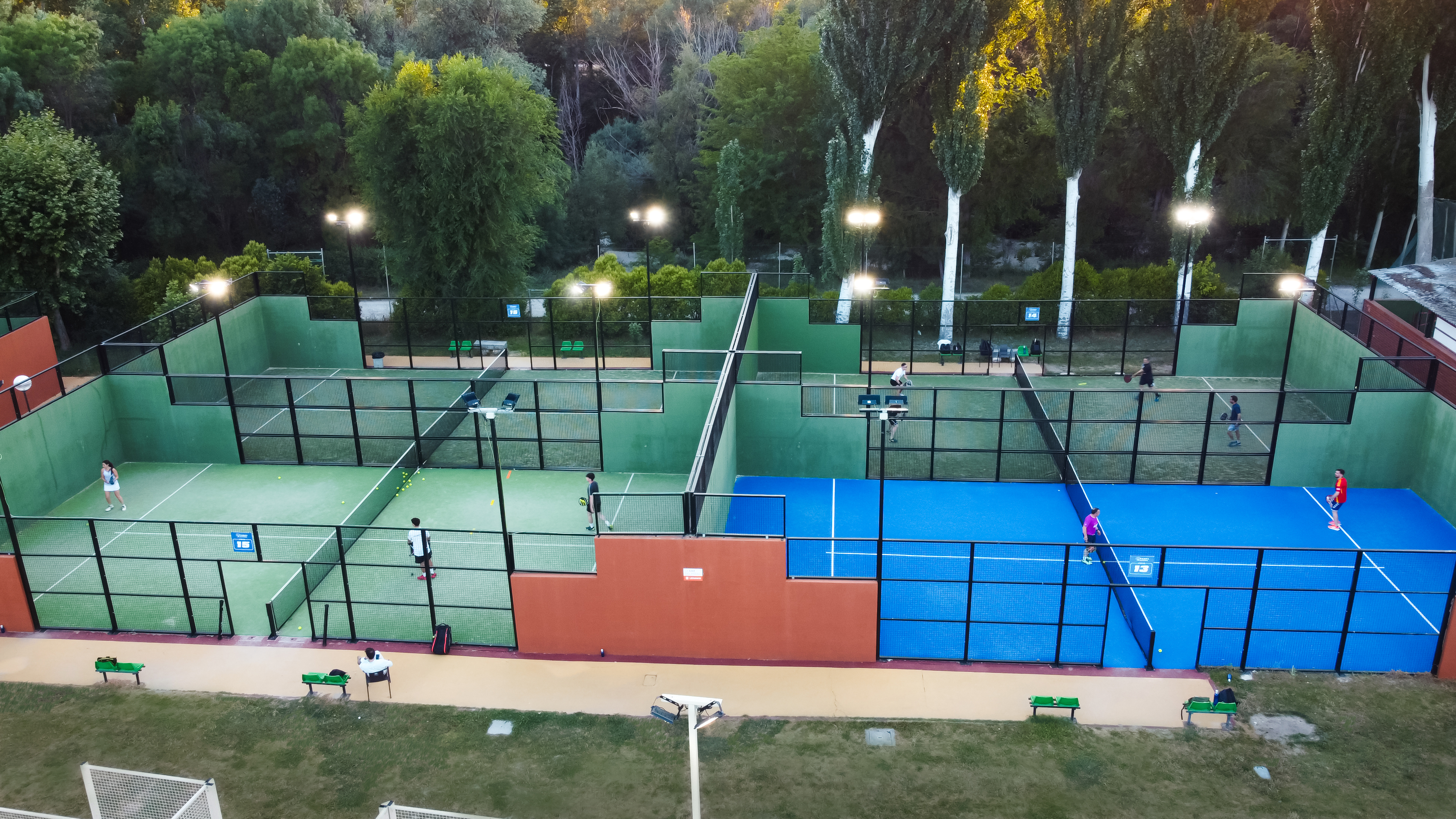

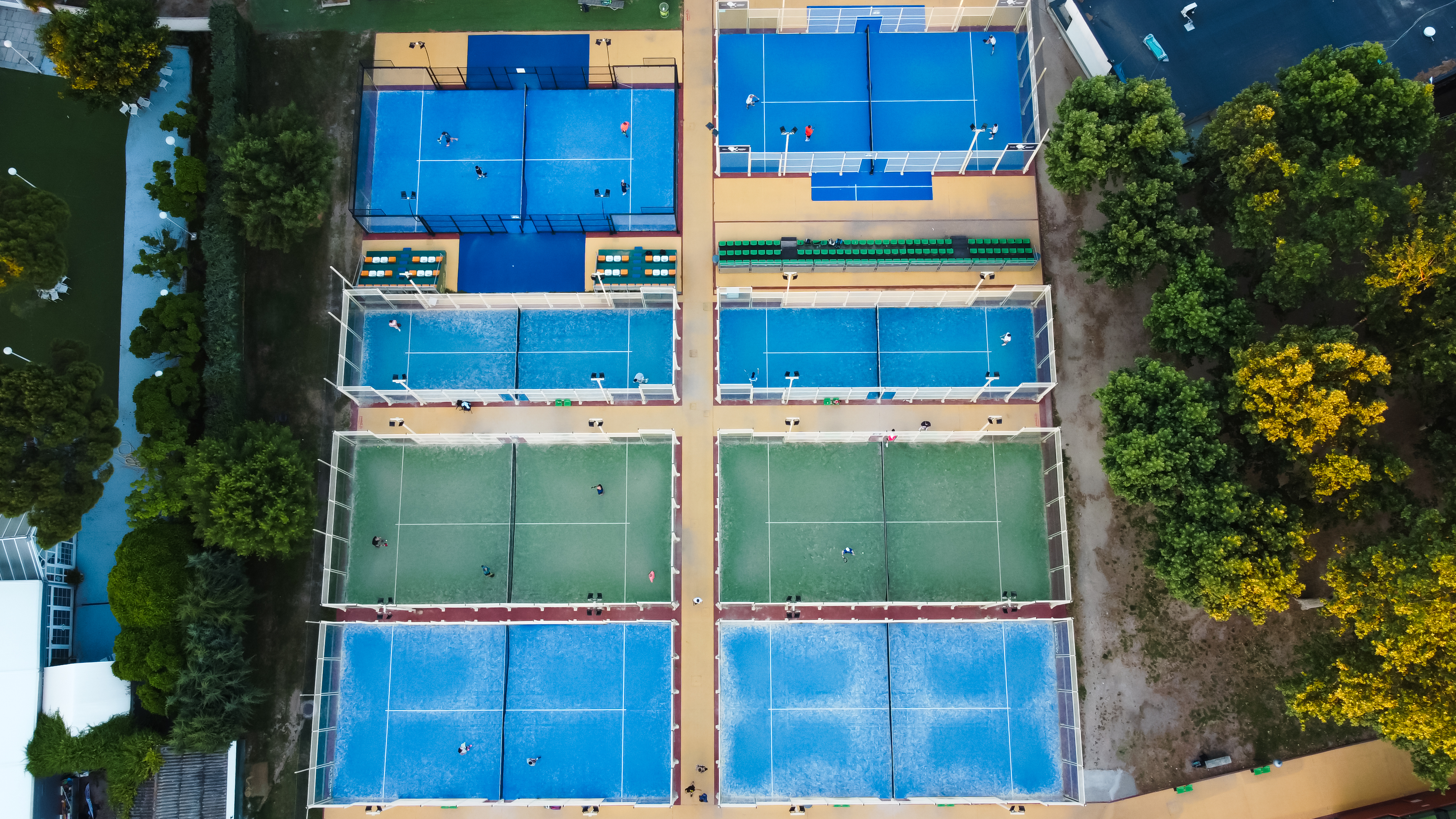

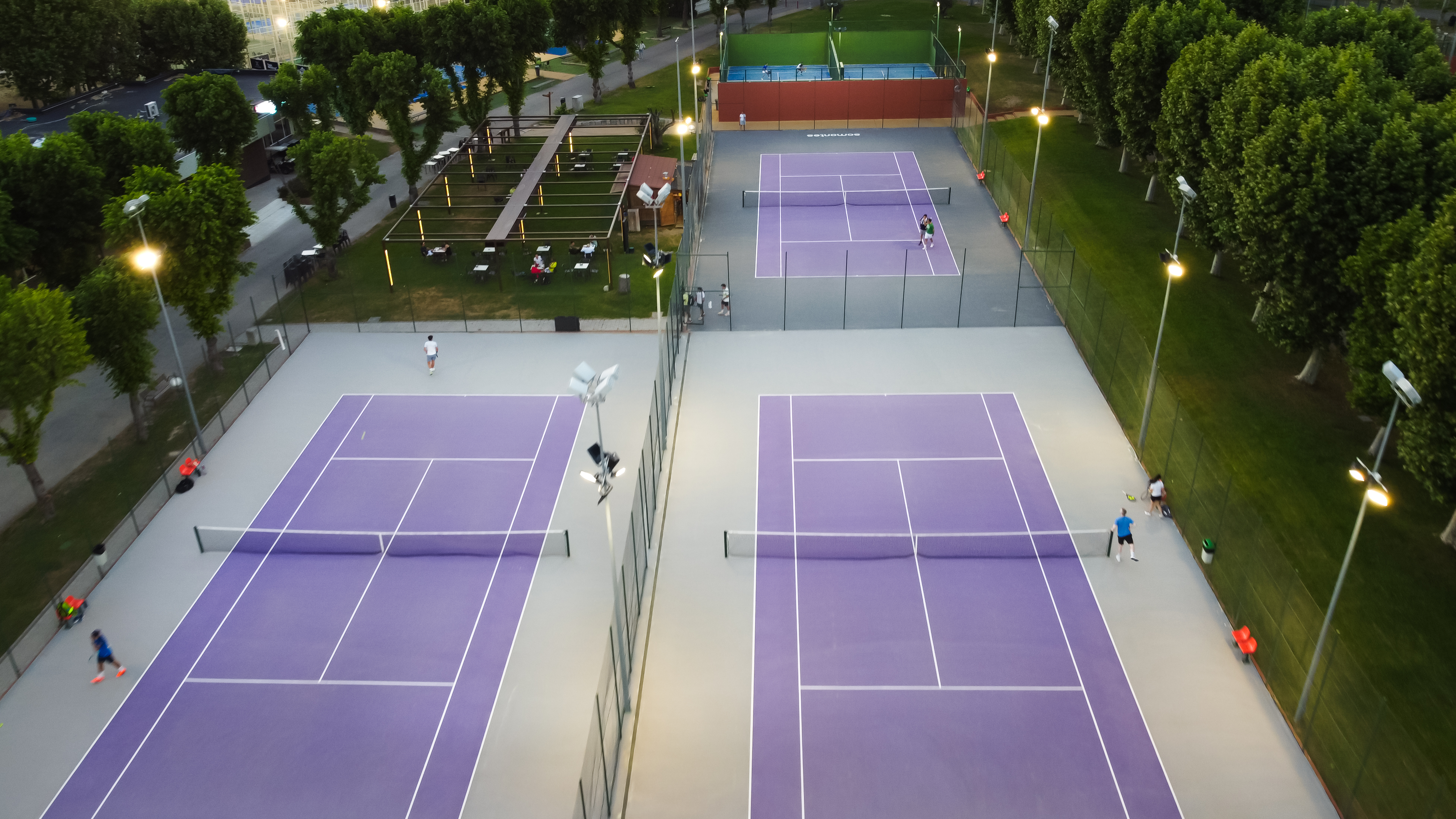

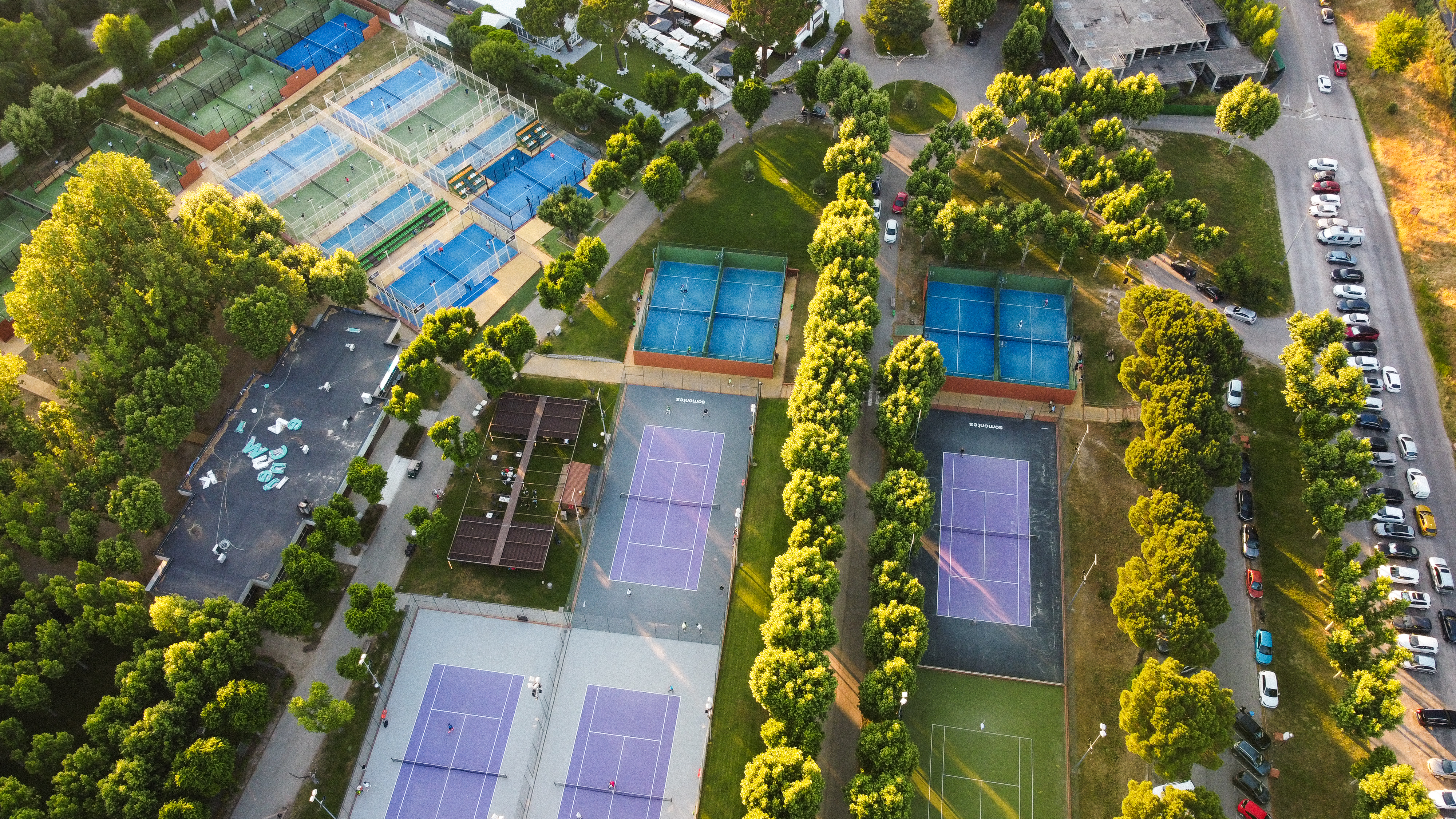

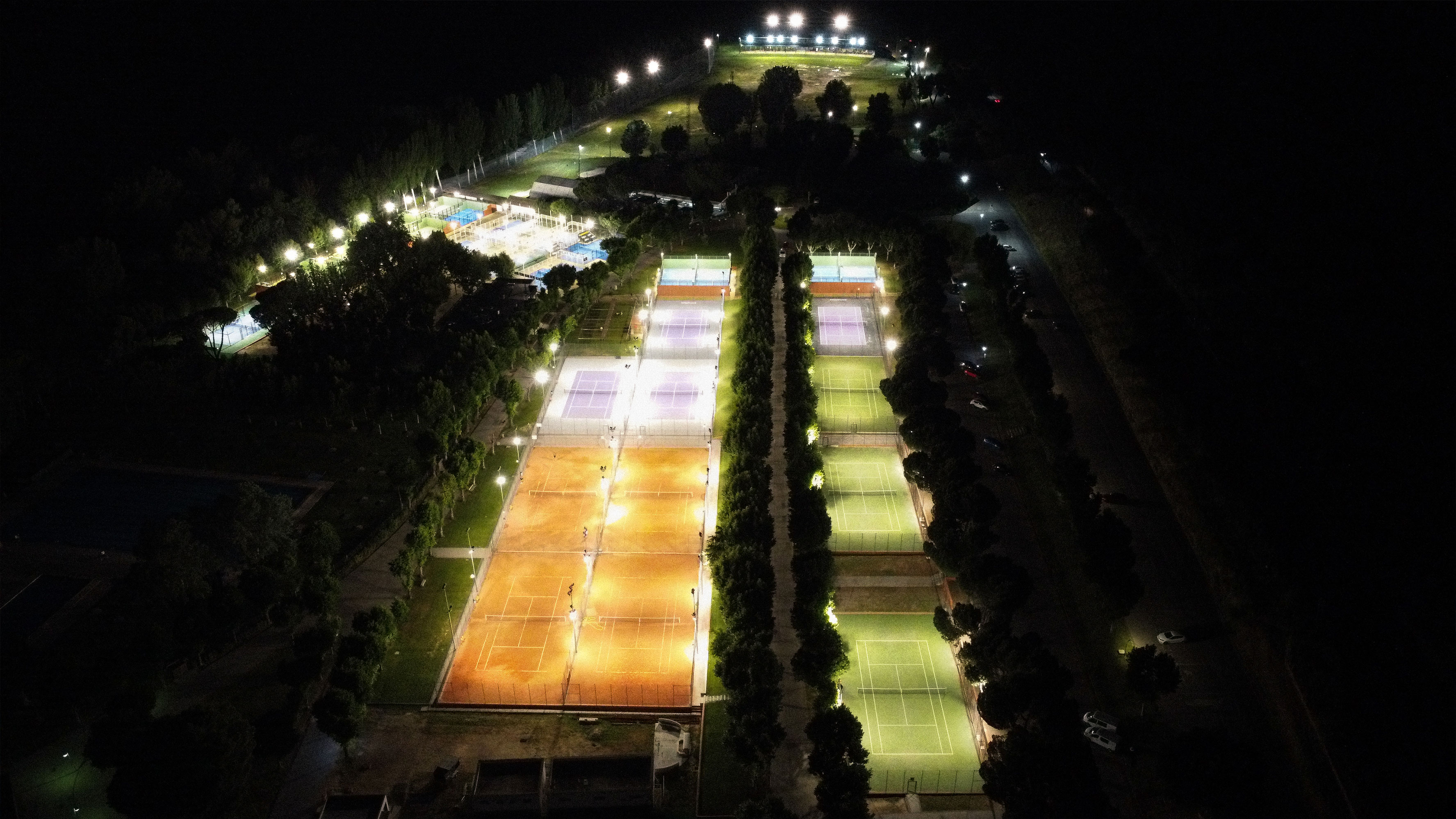

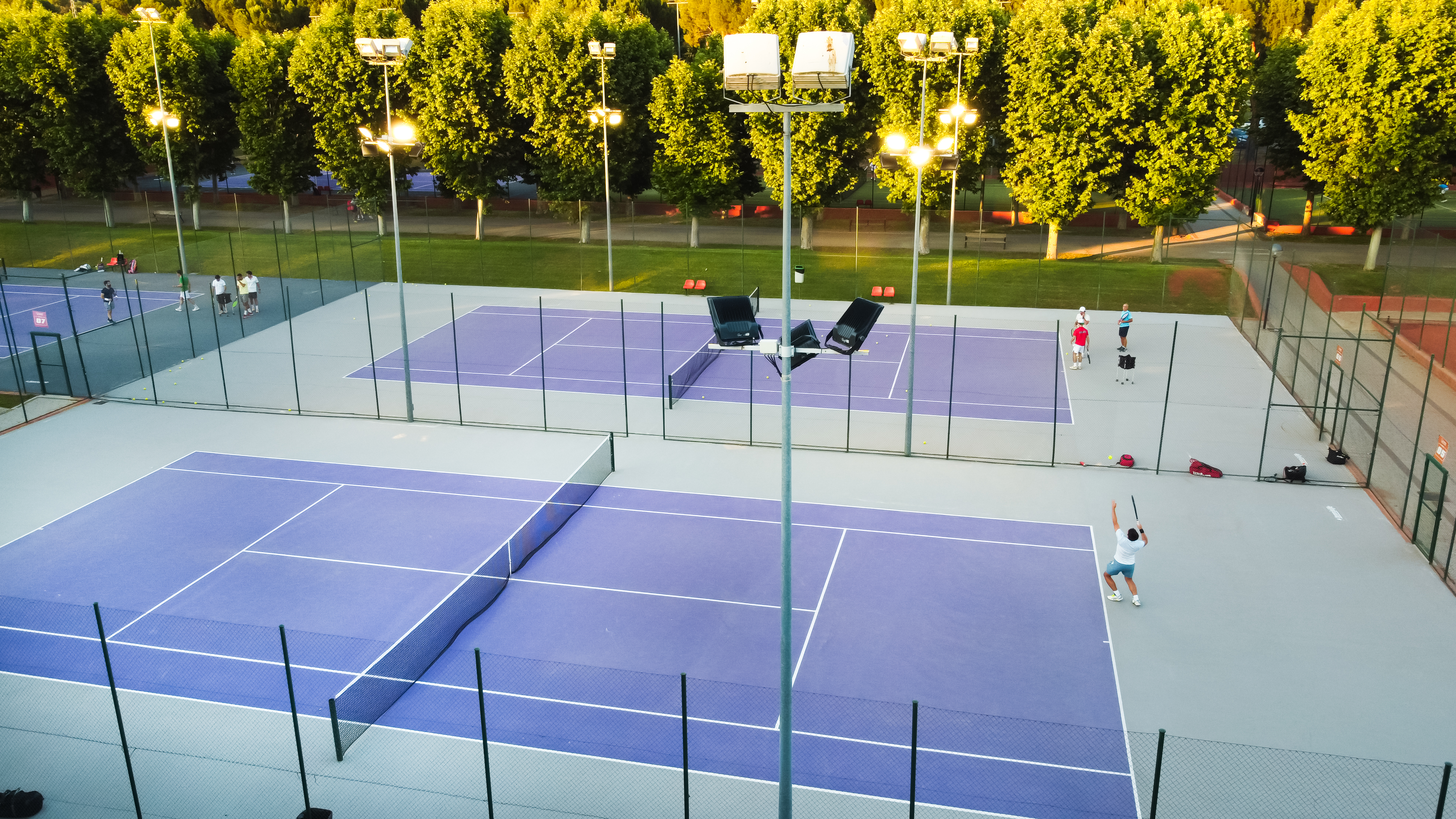

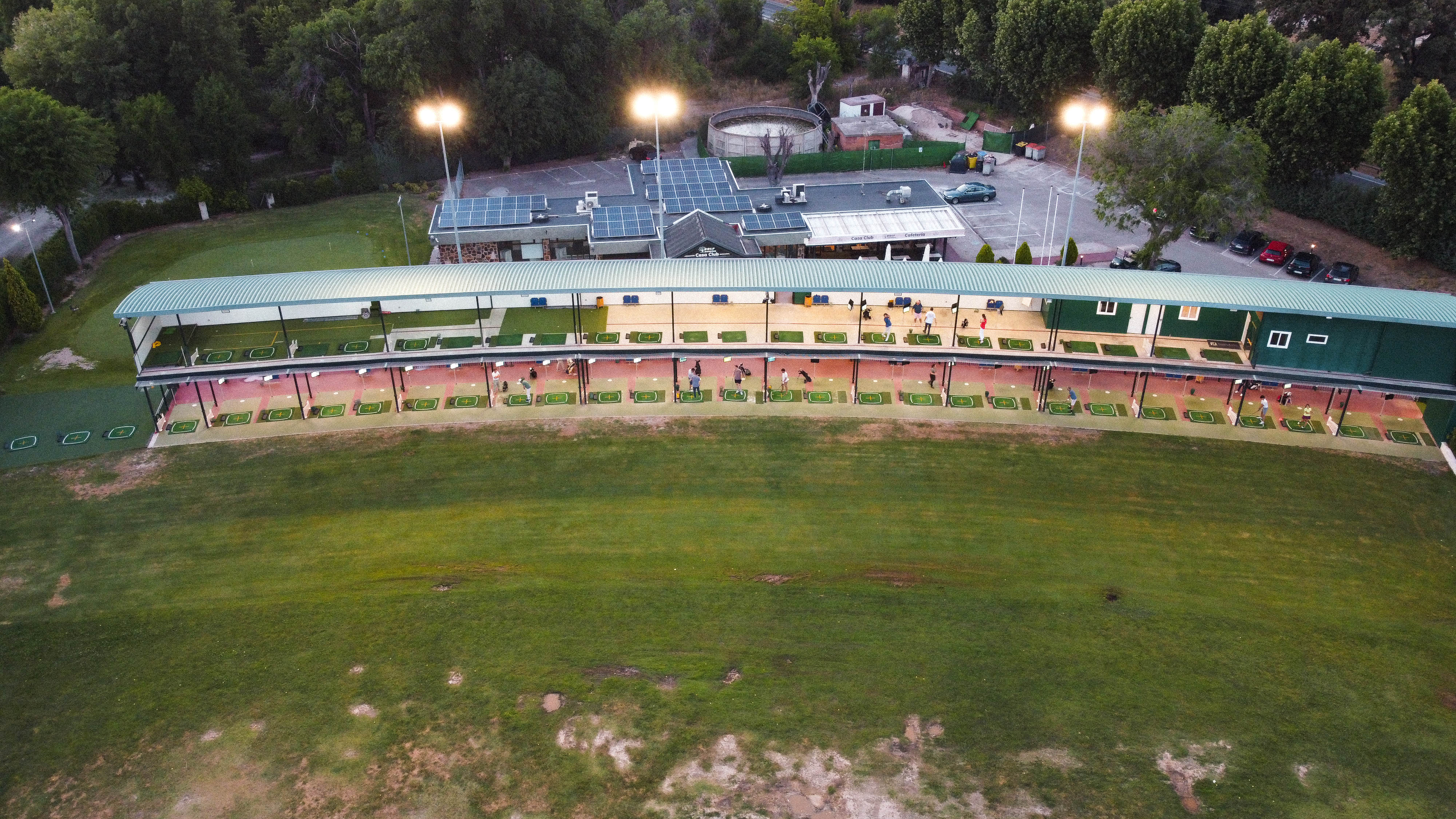

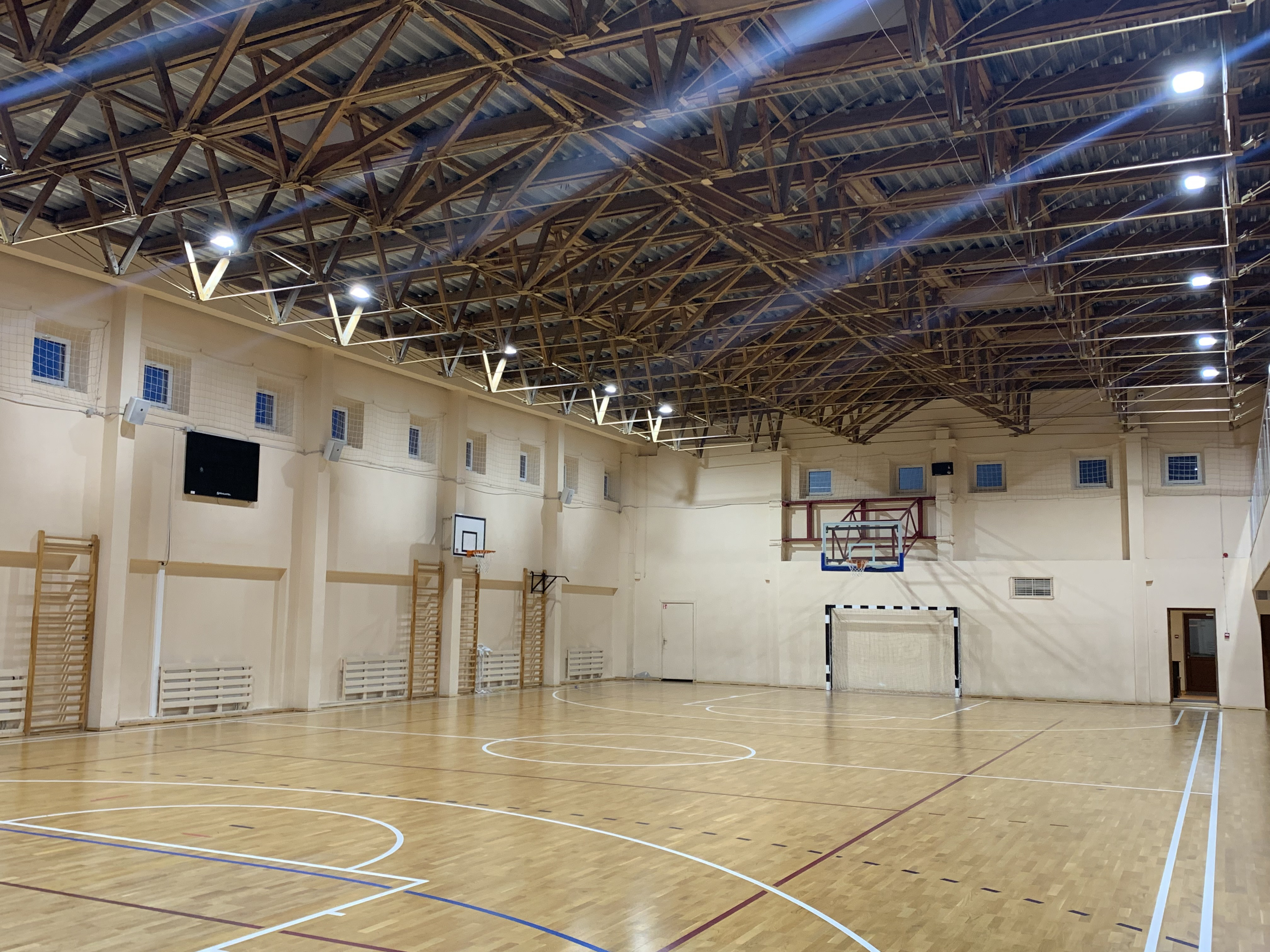

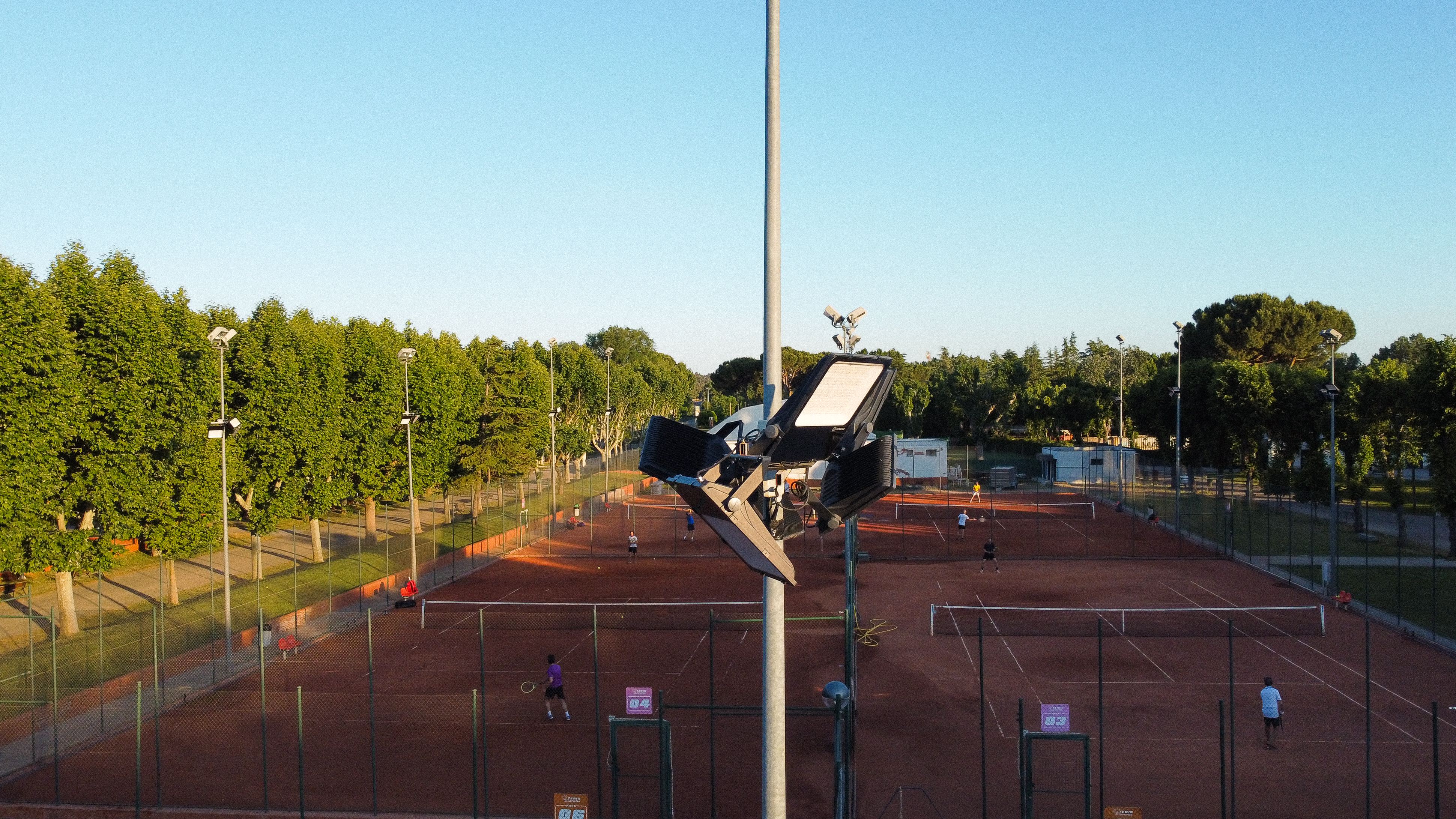

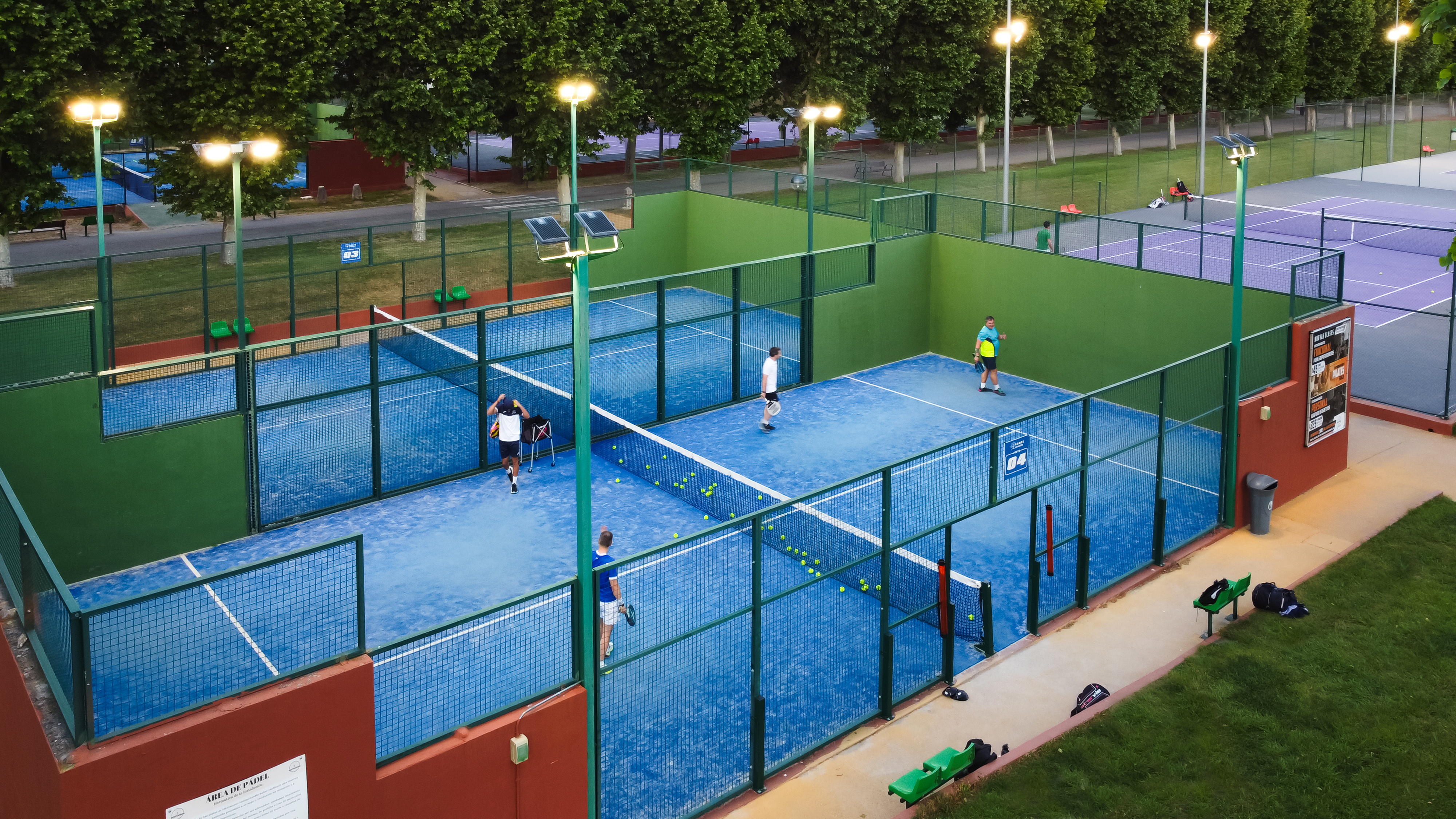

• Sports facilities
• Architectural lighting
• D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust

Product features

• High luminous efficacy: up to 140 lm/W
• Asymmetric light distribution for various application areas

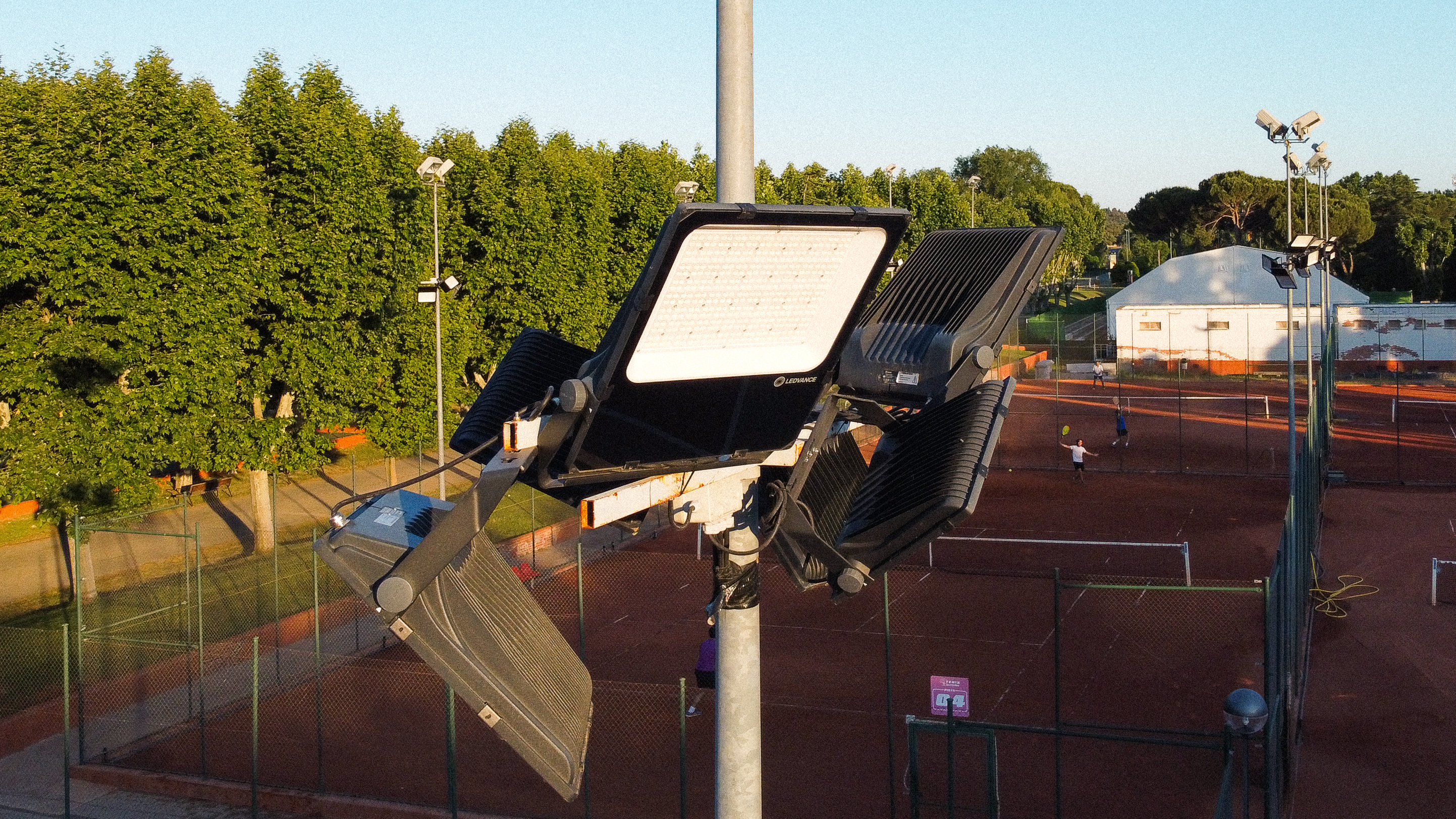

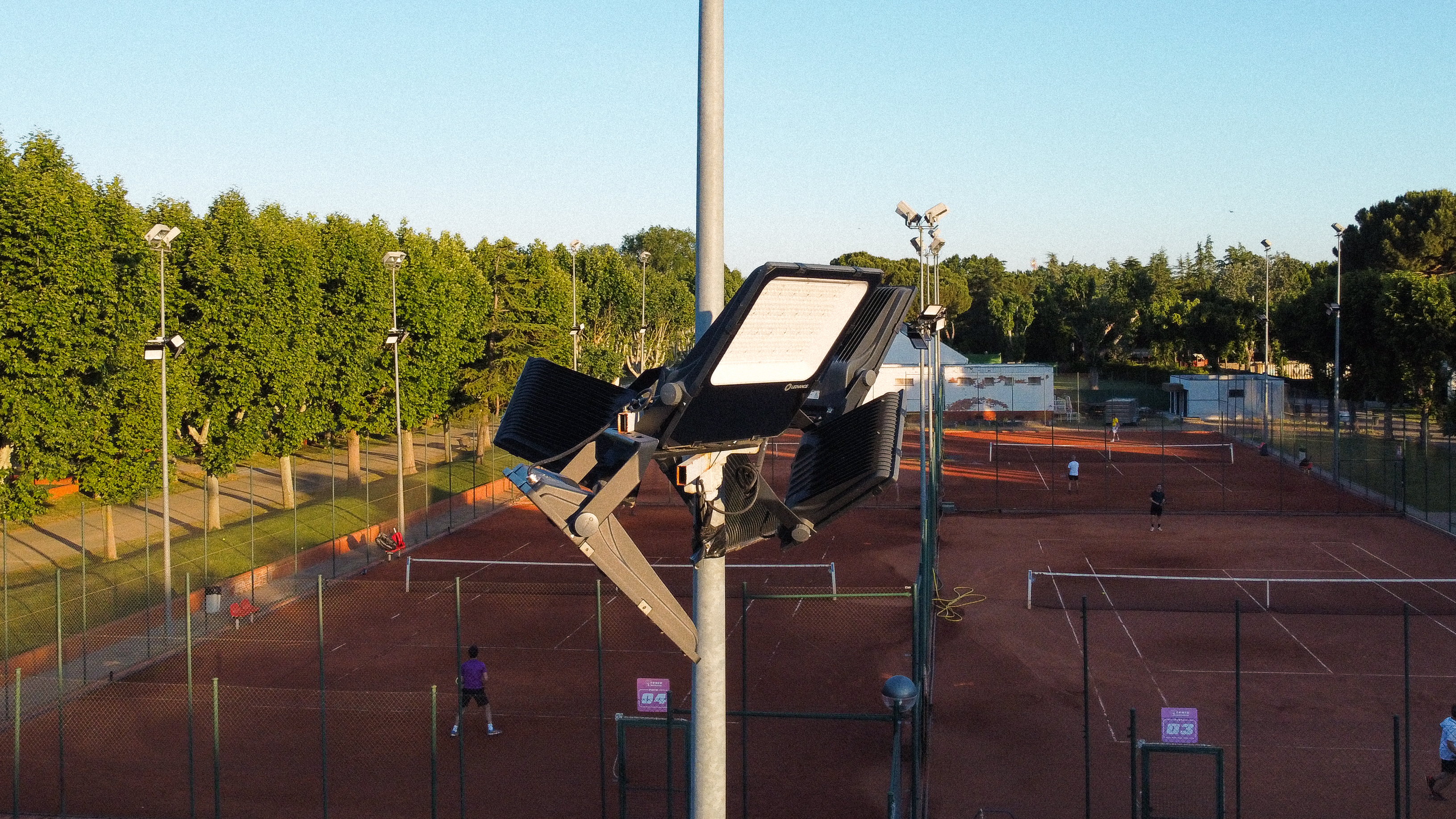

• Angled (45°) mounting bracket and up to 180° tilting
• Type of protection: IP66
• Impact resistance: IK08
• Ambient temperature in operation: -30…+50 °C
• High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
• Integrated breather for preventing condensation inside the luminaire
• Connection via 2 m cable, wiring required

Safety advice

• All electrical connections must be made by a qualified person.
• The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
• Terminal block not included. Installation must be made by a qualified person.
• Caution, risk of electric shock.
• Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.

References / Links

• For Guarantee see www.ledvance.com/guarantee
