EM EXIT E 0.7W 30M 3H EM/AC AT | EMERGENCY EXIT SIGN | LEDVANCE

NEW

EMERGENCY EXIT SIGN

EM EXIT E 0.7W 30M 3H EM/AC AT

GTIN: 4099854230714 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Easy maintenance with automatic test function or integrated test switch
Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function

Areas of application

Emergency illumination of escape routes
Antipanic lighting
Offices, education, public buildings

Product features

Viewing distance: 30 m
Battery discharge time: 3 h
Battery technology: LiFePO4
Function test: manual (MA) or automatic (AT)
With integrated test switch for manual testing
Operation mode: maintained (M) or non-maintained (NM)

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	0.70 W
Nominal voltage	220…240 V
Mains frequency	50/60 Hz
Nominal current	34.000 mA
Inrush current	6.5 A
Inrush current time T_h50	2.8 µs
Max. number of luminaires per miniature circuit breaker B16	115
Max. number of luminaires per miniature circuit breaker C10	92
Max. number of luminaires per miniature circuit breaker C16	147
Power factor λ	0.25
Protection class	II
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	20 lm
Luminous efficacy	25 lm/W
Color temperature	5700 K
Light color (designation)	Cool Daylight
Color rendering index Ra	> 70
Low flicker	Yes
Flickering metric (Pst LM)	≤ 1
Stroboscope effect metric (SVM)	≤ 0,4
Photobiological safety group acc. to EN62778	RG0

Dimensions & Weight

Length	313.00 mm
Height	42.00 mm
Width	212.00 mm
Product weight	510.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Polycarbonate (PC)\|Polymethylmethacrylate (PMMA)
Cover material	Polycarbonate (PC)/Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	0…+45 °C
Temperature range at storage	0…+35 °C
Type of connection	Terminal
Type of protection	IP20
Dimmable	No
Mounting type	Surface
Mounting location	Ceiling, Wall
Application environment	Indoor
Mounting depth	0 mm
Adjustable	No
With light source	Yes
Replaceable light source	No

Lifespan

Number of switching cycles

50000

Control gear

Output current	260 mA
ECG - Output ripple current	8 %

BATTERY

Type of Battery	LiFePO4
Battery size [GMS]	Others
Nominal voltage of battery	3.2 V
Nominal capacity of battery	1100 mAh
Battery charging time	24 h

Emergency lighting

Type of Emergency Lighting (EL)	EL unit (battery and controller) for decentral operation included
Area of emergency application	Emergency exit signage
Type of emergency light operation	Maintained, Non-maintained
Type of emergency operation test	Automatic
Wattage in emergency operation mode	0.7 W
Luminous flux in emergency operation mode	20 lm
Battery life in emergency operation mode	3 h
Integrated test switch	Yes

Certificates & Standards

Standards	CE, CB, EAC, UKCA, ENEC
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No

Additional product data

Product remark

Available from March 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854230714	Folding box 1	218 mm x 45 mm x 317 mm	630.00 g	3.11 dm³
4099854230721	Shipping box 10	330 mm x 275 mm x 450 mm	6780.00 g	40.84 dm³

Product image	Product name	EAN
	EM EXIT PICTO BLANK	4099854261374
	EM EXIT PICTO LEFT RIGHT	4099854261336
	EM EXIT PICTO UP	4099854261350
	EM EXIT PICTO DOWN	4099854261312

Product image	Product name	EAN
	EM EXIT FLAG KIT	4099854232145
	EM EXIT RECESSED KIT	4099854232121
	EM EXIT SUSPENSION KIT	4099854232169

User instruction / safety instructions
EM EXIT

Legal information
Informationstext 18 Abs 4 ElektroG

PDF (435.15 KB)

Legal information
Safety Insert G11218810

PDF (244.72 KB)

Legal information
Legal Insert G11231524

PDF (768.75 KB)

Declarations of conformity
EM EXIT SIGN E 0.7W 30M 3H EM/AC AT

PDF (290.54 KB)

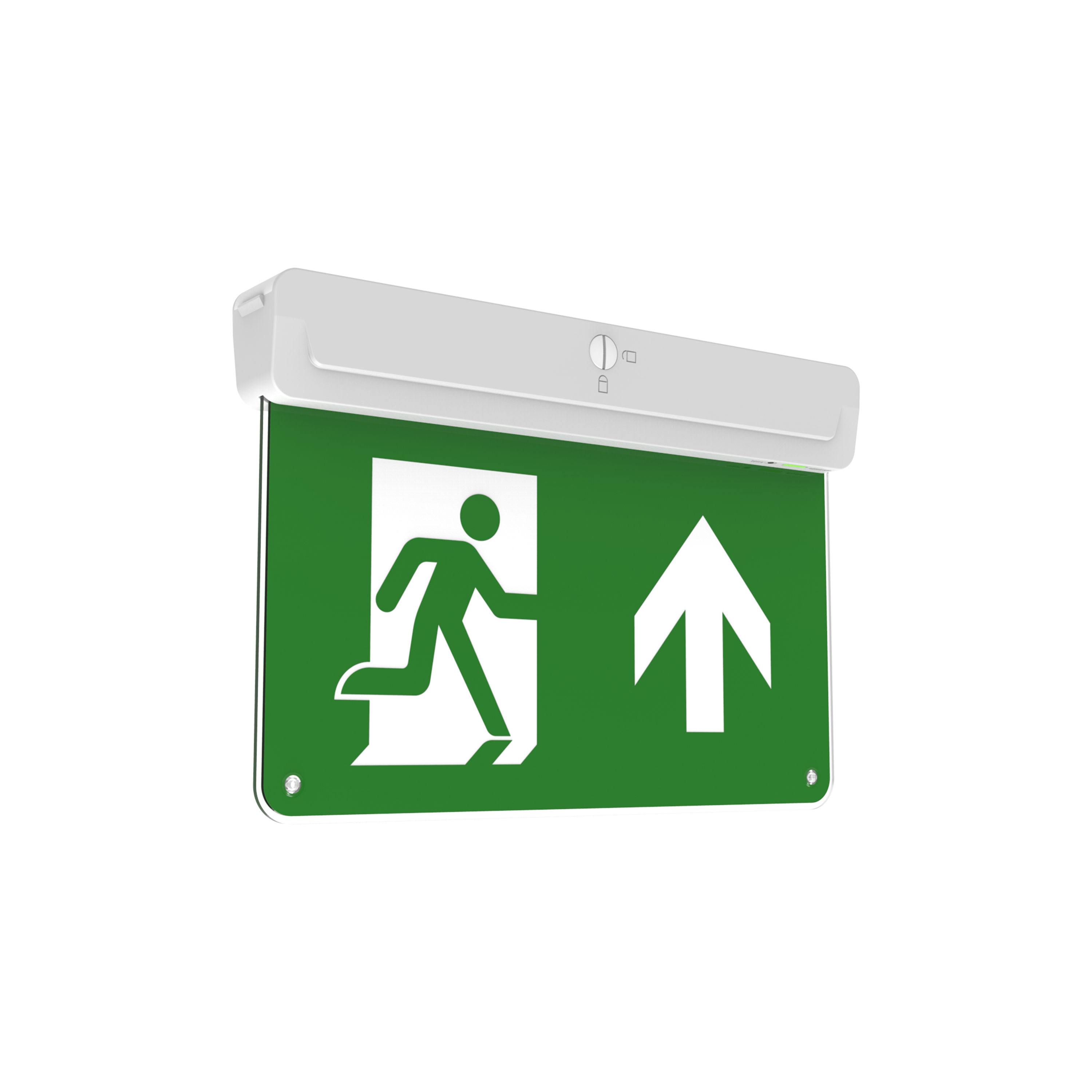

Product image: white background, diagonal
EM EXIT E 0,7W 30M 3H EM/AC AT

JPG (988.01 KB)

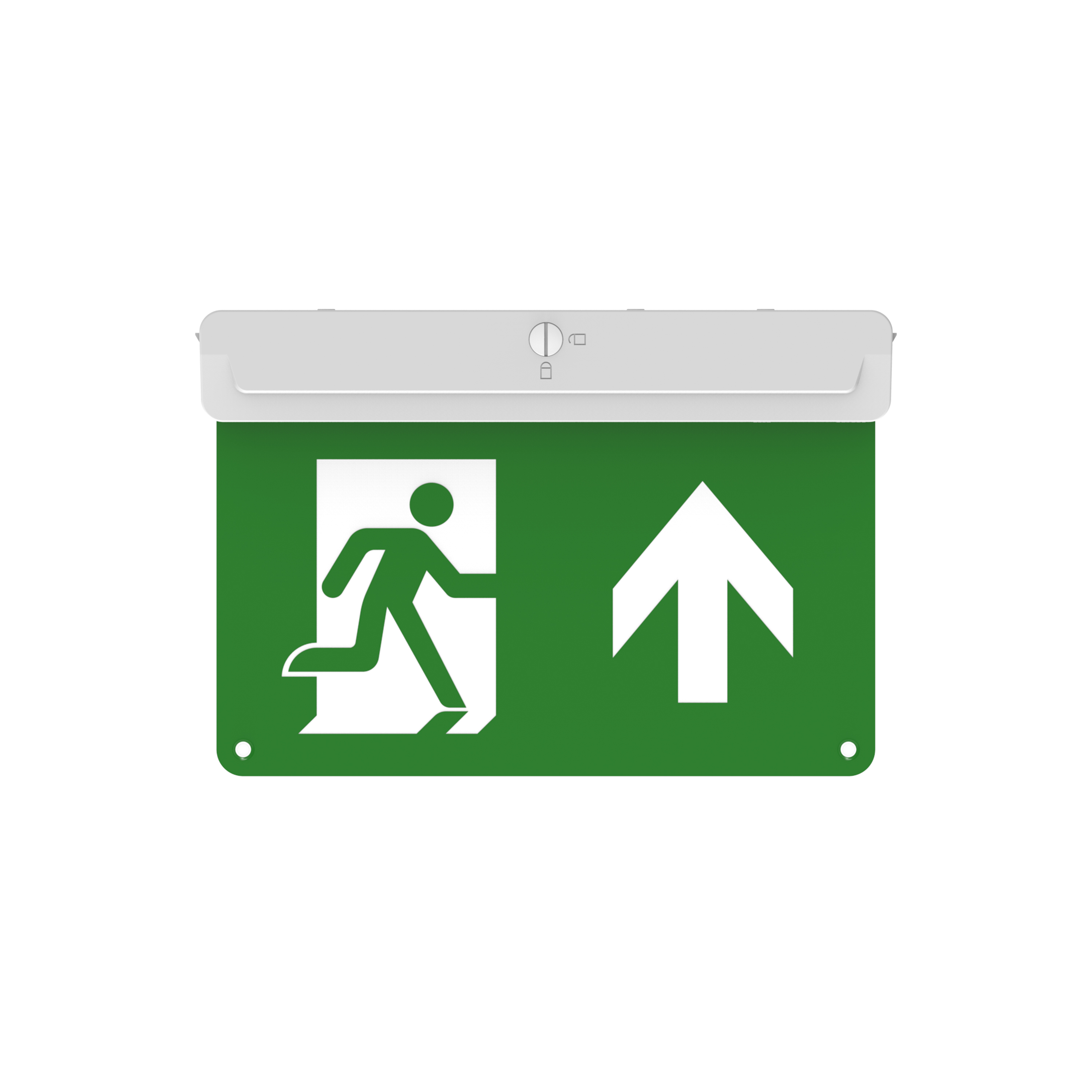

Product image: white background, horizontal
EM EXIT E 0,7W 30M 3H EM/AC AT

JPG (966.66 KB)

Product line drawing with letters
EM EXIT SIGN E 0.7W 30M 3H EM/AC AT

Product line drawing with numbers
EM EXIT SIGN E 0.7W 30M 3H EM/AC AT

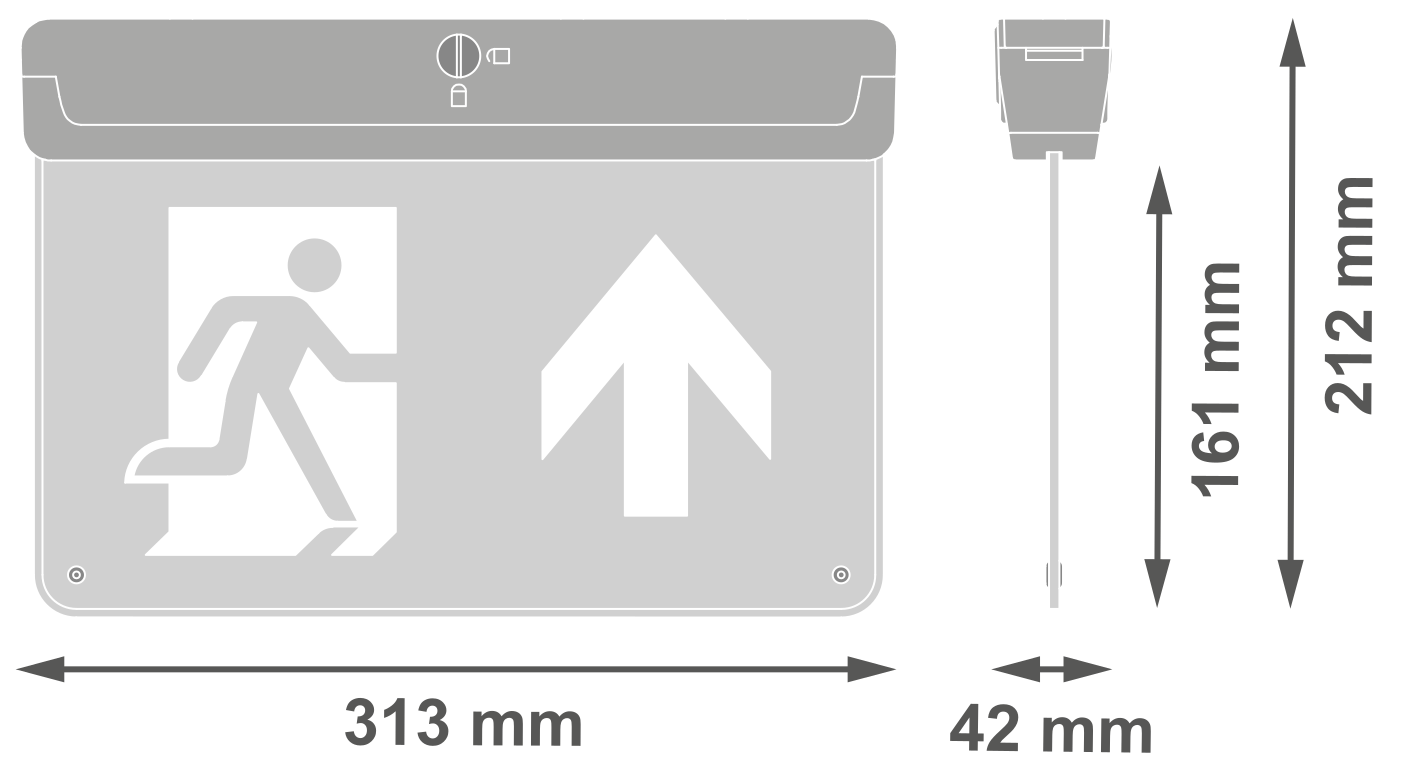

Product line drawing - technical
