DOWNLIGHT COMFORT DALI UGR19

DL CMFT DA D100 P 13W MS 940 U19 WT

GTIN: 4099854490927 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • Homogenous light distribution and reduced glare UGR ≤ 19
  • Energy savings thanks to high system efficacy: up to 120 lm/W
  • Highly versatile due to Multi Select functions
  • High color rendering index CRI > 90
  • External driver for extended flexibility and easy installation
  • Through wiring possible via additional connector box accessory
  • Type of protection: IP44
  • Easy installation with fast connection
  • Further variants with DALI-2 driver, Zigbee driver or Emergency Conversion Kit available
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Aluminum luminaires with 4 different cut-outs and mirror-finished reflector UGR ≤ 19
  • Very homogenous light distribution
  • External driver with Multi Lumen function of up to 5000 lm
  • Multi Color function
  • Consistent lighting color ≤ 3 SDCM
  • Lifetime (L70/B50) 100,000 h at 25 °C
Equipment / Accessories
  • Surface mounting frame options available
  • Security rope for luminaire included
  • External control gear included
  • Suitable for use with seperate Emergency Conversion Box
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Electrical data
Nominal wattage 13 W / 10 W / 7 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 60/51.7/41.6 mA
Inrush current 24.8 A
Inrush current time Th50 6.2 µs
Max. number of luminaires per miniature circuit breaker B16 30
Max. number of luminaires per miniature circuit breaker C10 24
Max. number of luminaires per miniature circuit breaker C16 38
Power factor λ ≥0.90
Total harmonic distortion ≤ 15 %
Protection class III
Operating mode External LED driver
Photometrical data
Luminous flux 1430 lm / 1100 lm / 770 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K / 4000 K
Reference control setting of contained light source (Kelvin) 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 90
Standard deviation of color matching ≤3 sdcm
Luminous intensity -
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 55 °
UGR < 19
Adjustable attributes
Nominal wattage Color temperature Luminous flux Luminous efficacy
13 W 3000 K   1300 lm 100 lm/W
13 W 4000 K 1430 lm 110 lm/W
10 W 3000 K   1000 lm 100 lm/W
10 W 4000 K 1100 lm 110 lm/W
7 W 3000 K   700 lm 100 lm/W
7 W 4000 K 770 lm 110 lm/W
Dimensions & Weight
Diameter 116.00 mm
Height 65.20 mm
Product weight 300.00 g
Materials & Colors
Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP44/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming DALI
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting type Recessed
Mounting location Ceiling, Wall
Application environment Indoor
Mounting width 100 mm
Mounting diameter 100 mm
Mounting depth 65 mm
With light source Yes
Replaceable light source No
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 40000 h
Number of switching cycles 30000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
Output current 400/300/200 mA
ECG - Output ripple current ≤ 10 %
ECG - Length 164 mm
ECG - Width 45 mm
ECG - Height 25 mm
Recommended control gear DR DALI-P-30/220-240/700
Emergency lighting
Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included, Optional EL unit (battery and controller) for decentral operation available separately
Type of emergency operation test None
Wattage in emergency operation mode 3 W
Luminous flux in emergency operation mode 301 lm
Certificates & Standards
Standards ENEC, CE, UKCA, EAC, CB
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Added function MULTI SELECT, VIVARES
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Tripnehyl Phosphate (115-86-6)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854490927 Folding box
1
185 mm x 185 mm x 100 mm 389.00 g 3.42 dm³
4099854490934 Shipping box
12
390 mm x 390 mm x 330 mm 5292.00 g 50.19 dm³
User instruction / safety instructions
DL CMFT DA
Legal information
Informationstext 18 Abs 4 ElektroG
Legal information
DL CMFT DALI
Legal information
Safety Insert G11207793
Legal information
DL SLIM ALU DA_CMFT DA
Legal information
EM Insert DL CMFT
Declarations of conformity
DL CMFT

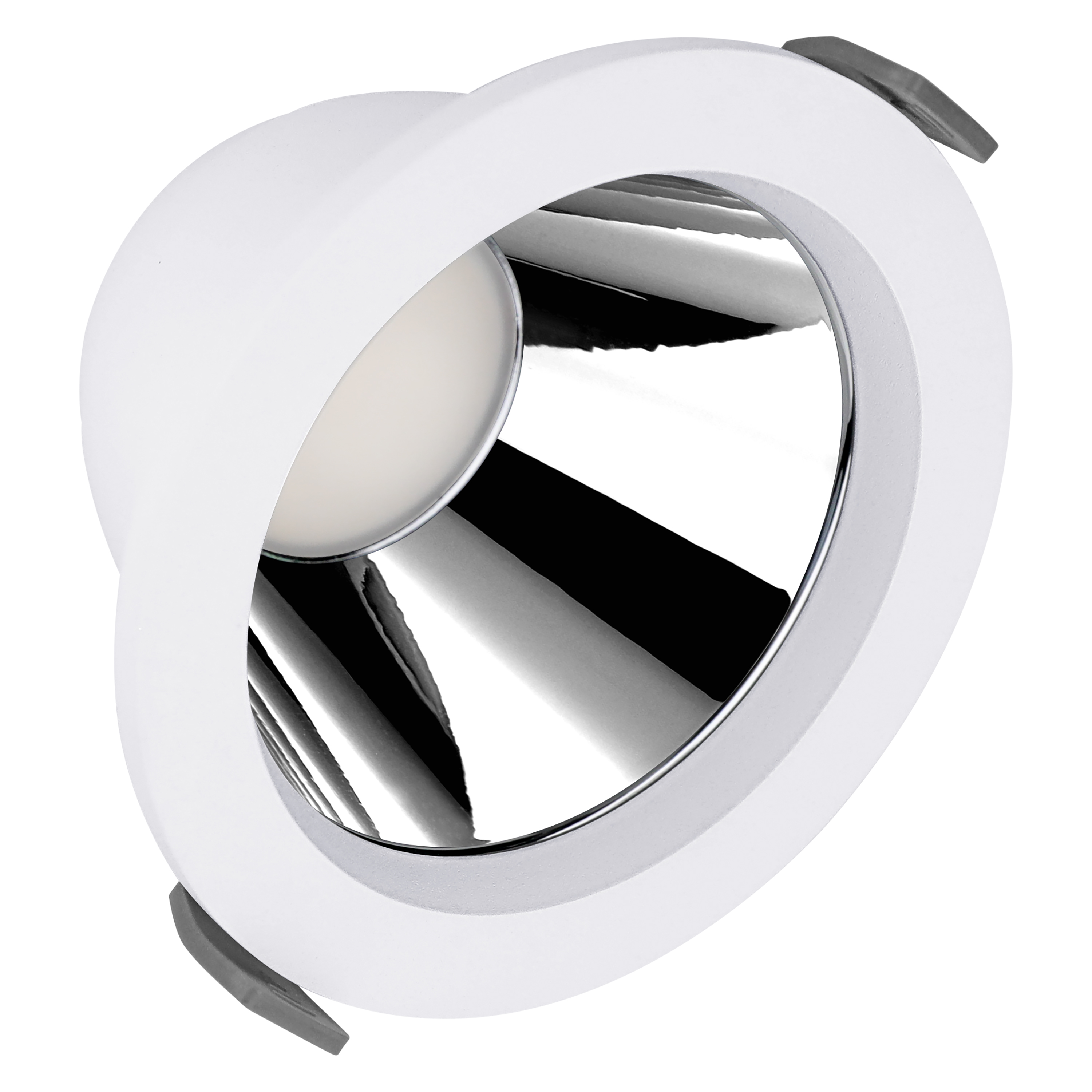

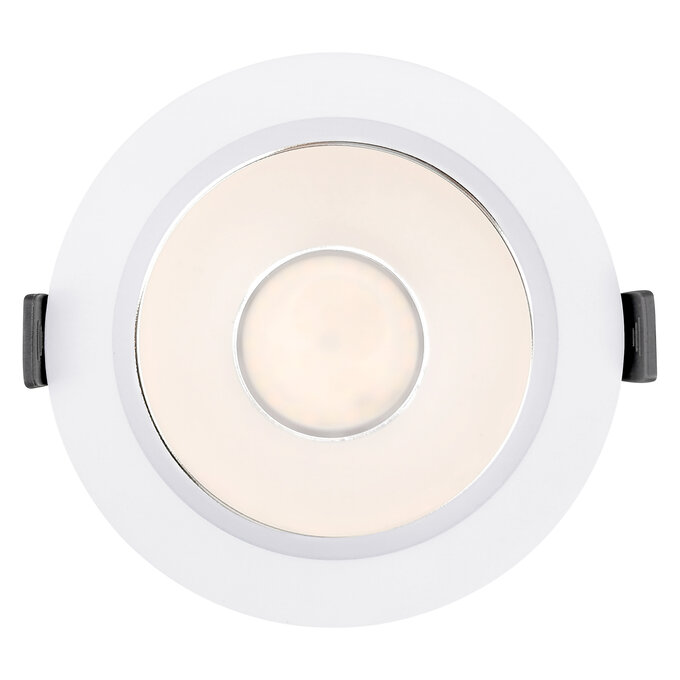

Product image: white background, diagonal
DL CMFT D100 UGR

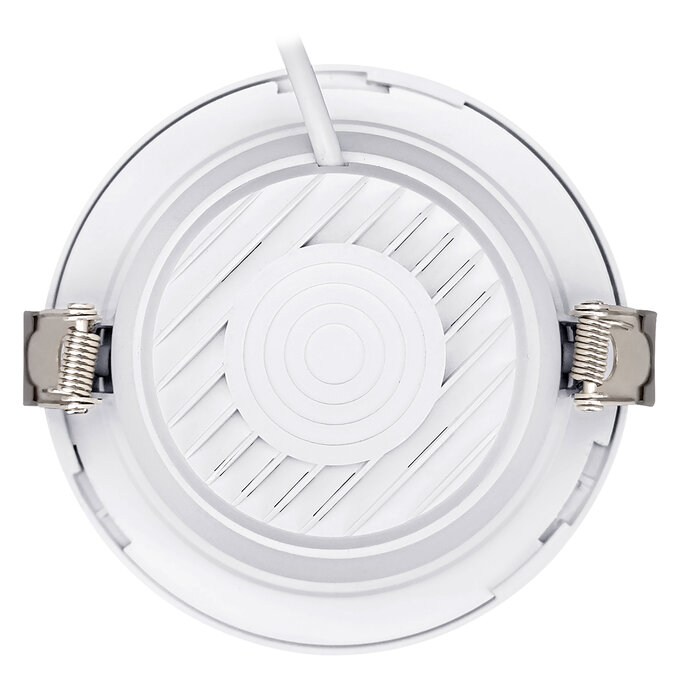

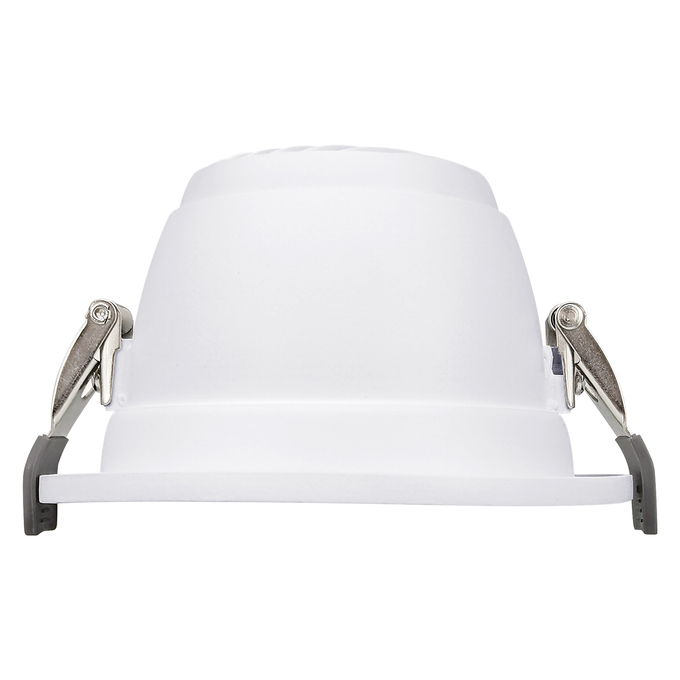

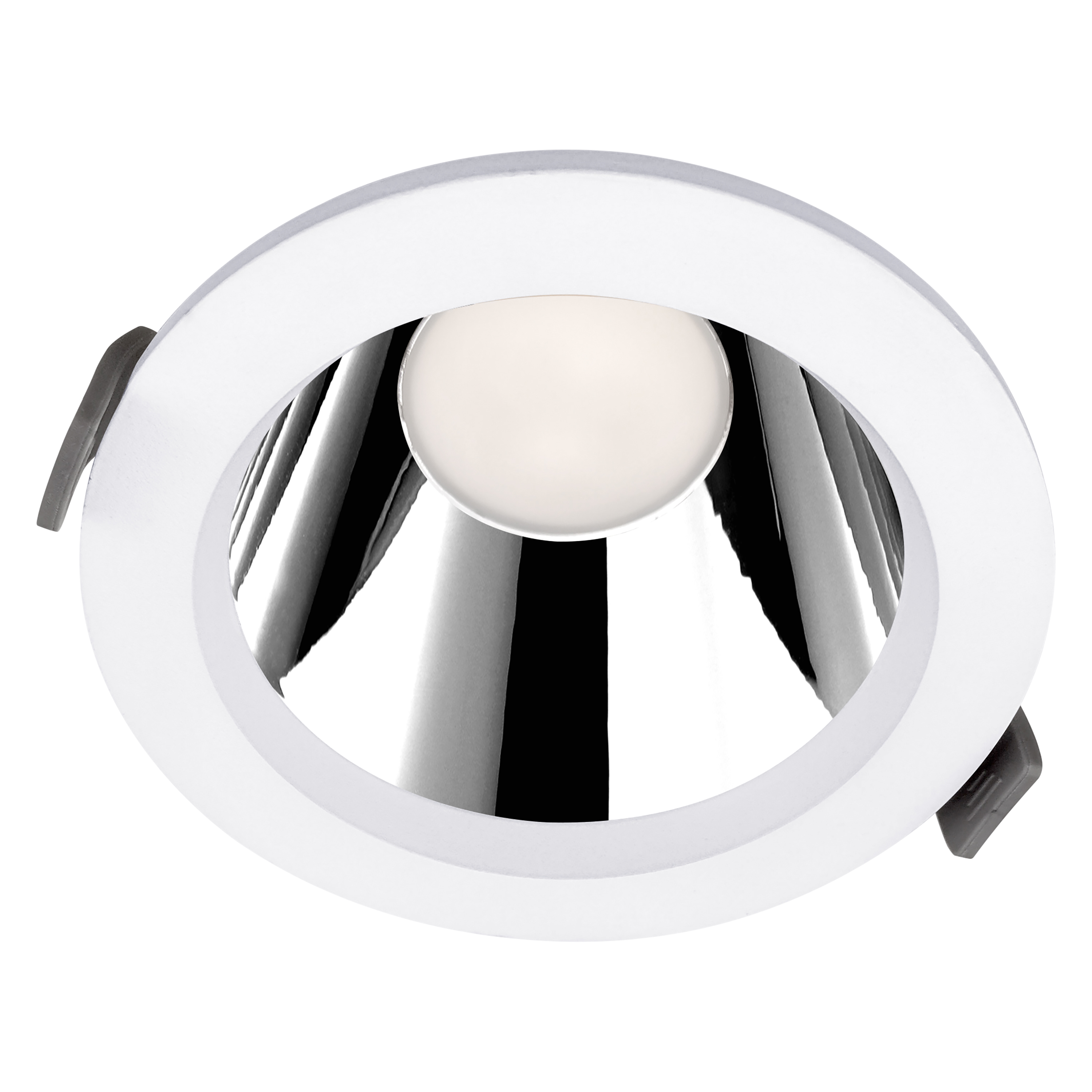

Product image: white background, upright
