DP MAX MOUNTING TUBE CLAMPS

DP MAX MOUNTING TUBE CLAMPS V4A

GTIN: 4099854583384 BAG / 2 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Very high corrosion resistance (V4A steel)
  • Easy installation as mounting brackets can be positioned freely on the luminaire
  • Easy installation
Areas of application
  • Indoor and outdoor
  • Suitable for DAMP PROOF MAX
Product features
  • Mounting bracket for up to 180° tilting
Dimensions & Weight
Diameter 100.00 mm
Length 147 mm
Height 117 mm
Width 117 mm
Product weight 172.00 g
Materials & Colors
Product color Silver
Body material Steel
Application & Mounting
Mounting type Surface
Mounting location Luminaire
Replaceable light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854583384 BAG
2		 90 mm x 90 mm x 150 mm 348.00 g 1.22 dm³
4099854583391 Shipping box
40		 380 mm x 220 mm x 300 mm 7521.00 g 25.08 dm³

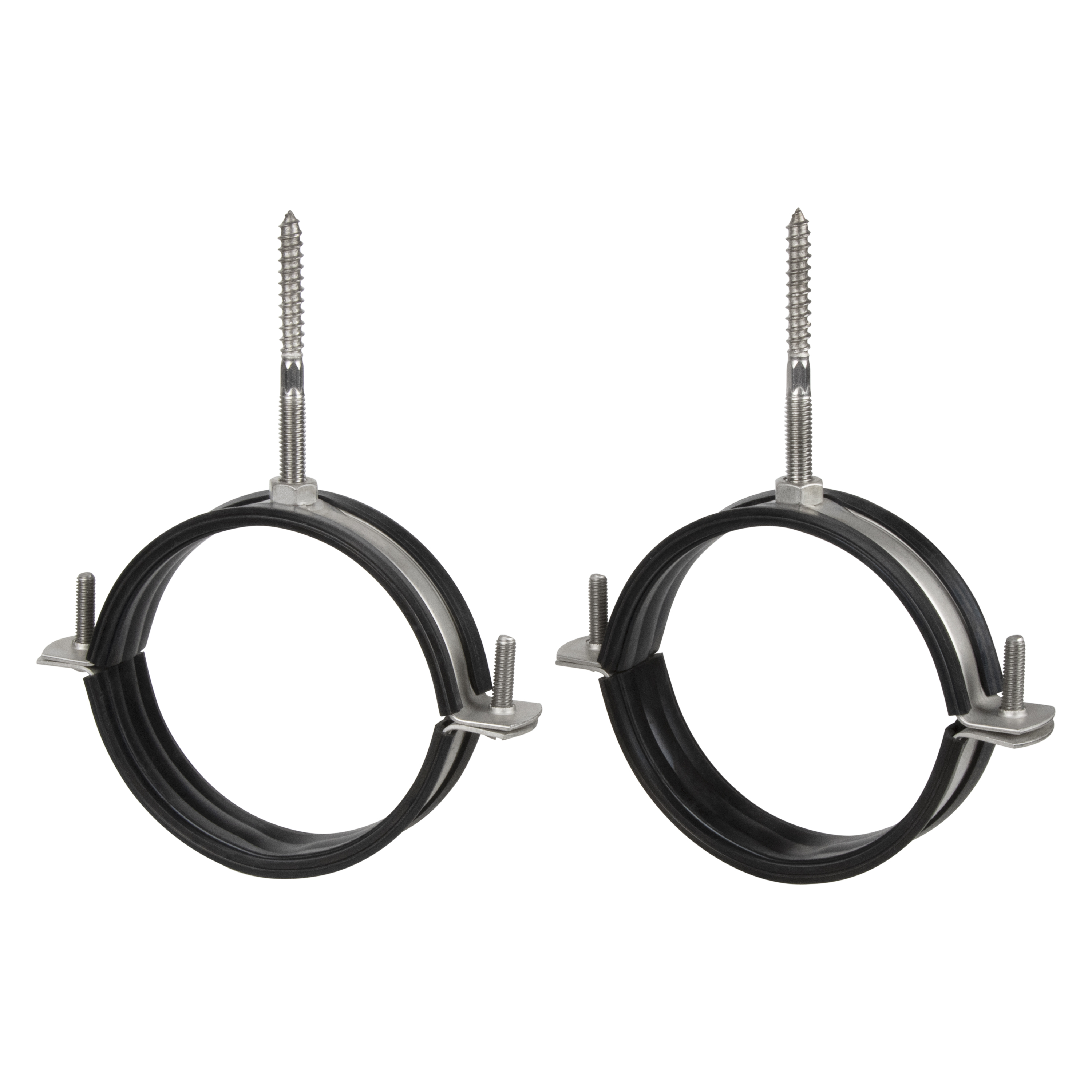

Product image: white background, spacial
DP MAX MOUNTING TUBE CLAMPS V4A
JPG (1.29 MB)
Product line drawing with letters
DP MAX MOUNTING TUBE CLAMPS
SVG (17.8 KB)
Product line drawing with numbers
DP MAX MOUNTING TUBE CLAMPS
SVG (21.37 KB)
Product line drawing - technical
DP MAX MOUNTING TUBE CLAMPS
SVG (8.04 KB)
