Phase out
DAMP PROOF HOUSING EMERGENCY
DP HOUSING EM 1500 P 1XLAMP IP65
GTIN: 4099854148927
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation

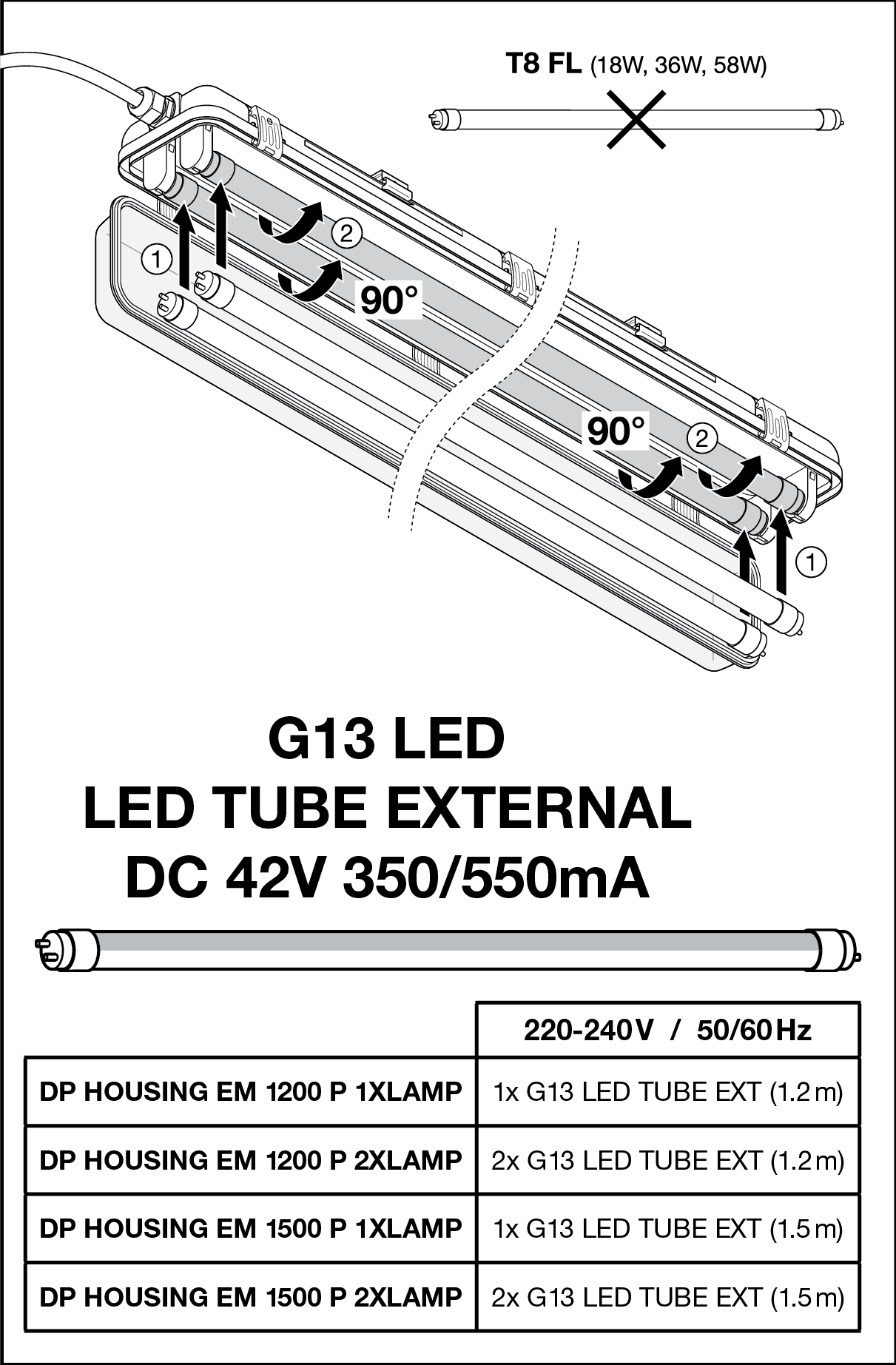

- Prewired for easy installation of LED TUBE T8 EXTERNAL SYSTEM
- Toolless installation
- Robust housing
- Sustainable solution thanks to exchangeable light sources
- 5 years guarantee
Areas of application
- Parking lots, warehouses, production areas
- Emergency lighting for single battery systems
- Dimmable installations
- Car parks and underpasses
- Garages
Product features
- Luminaire housing, available for 1 or 2 T8 LED tubes
- Dimmable EXTERNAL SYSTEM Driver, Emergency unit and Battery are already installed
- Suitable for LEDVANCE LED TUBE T8 EXTERNAL SYSTEM
- DALI 2.0 interface for light management system integration
- Integrated electrical fuse
- Type of protection: IP65
Equipment / Accessories

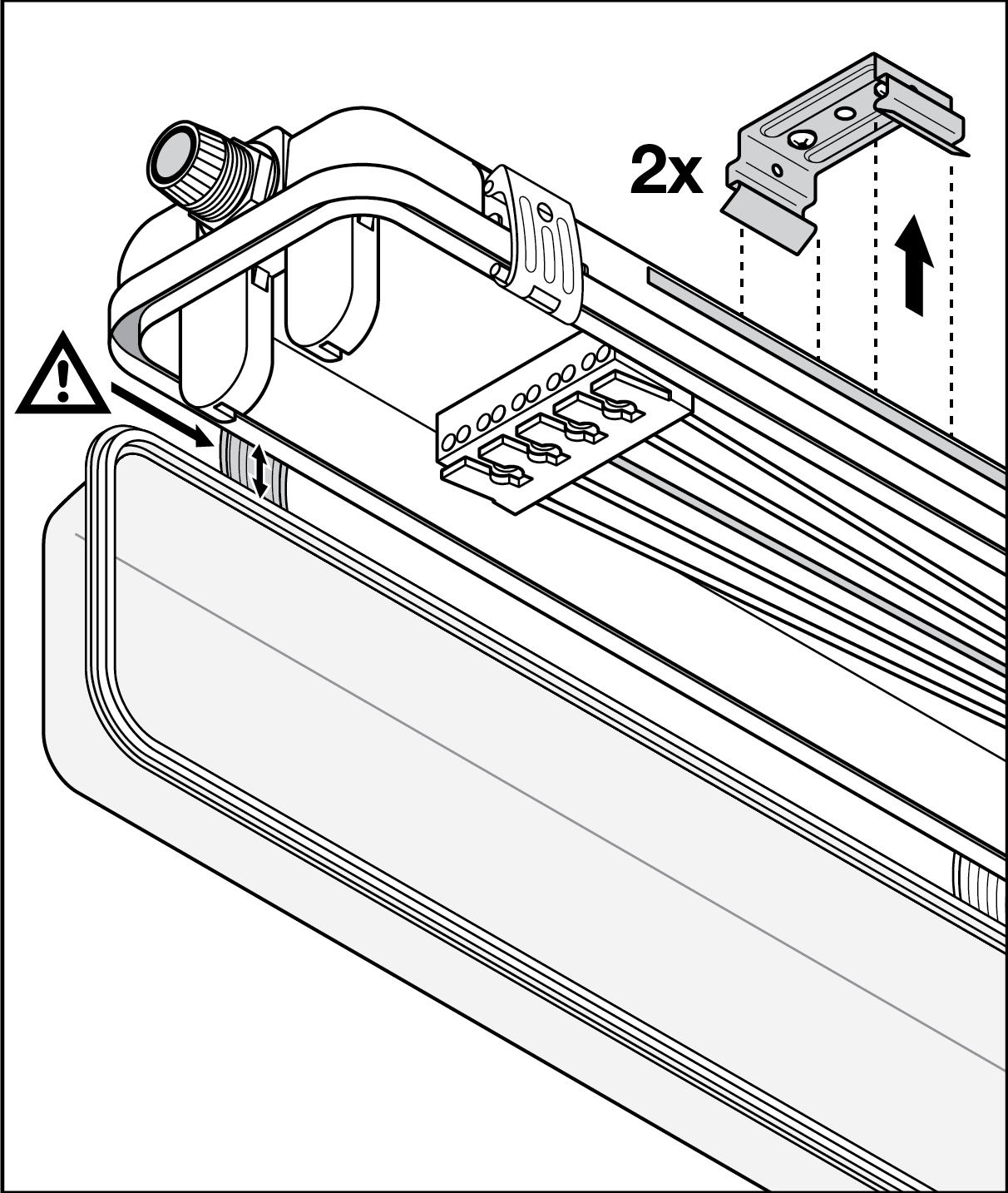

- Stainless steel clamps and M20 cable gland included
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
Dimensions & Weight
| Length | 1585.00 mm |
| Height | 70.00 mm |
| Width | 65.00 mm |
| Product weight | 1407.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| RAL Color (most similar) | RAL 7040 |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | +5…+40 °C |
| Temperature range at storage | -20…+80 °C |

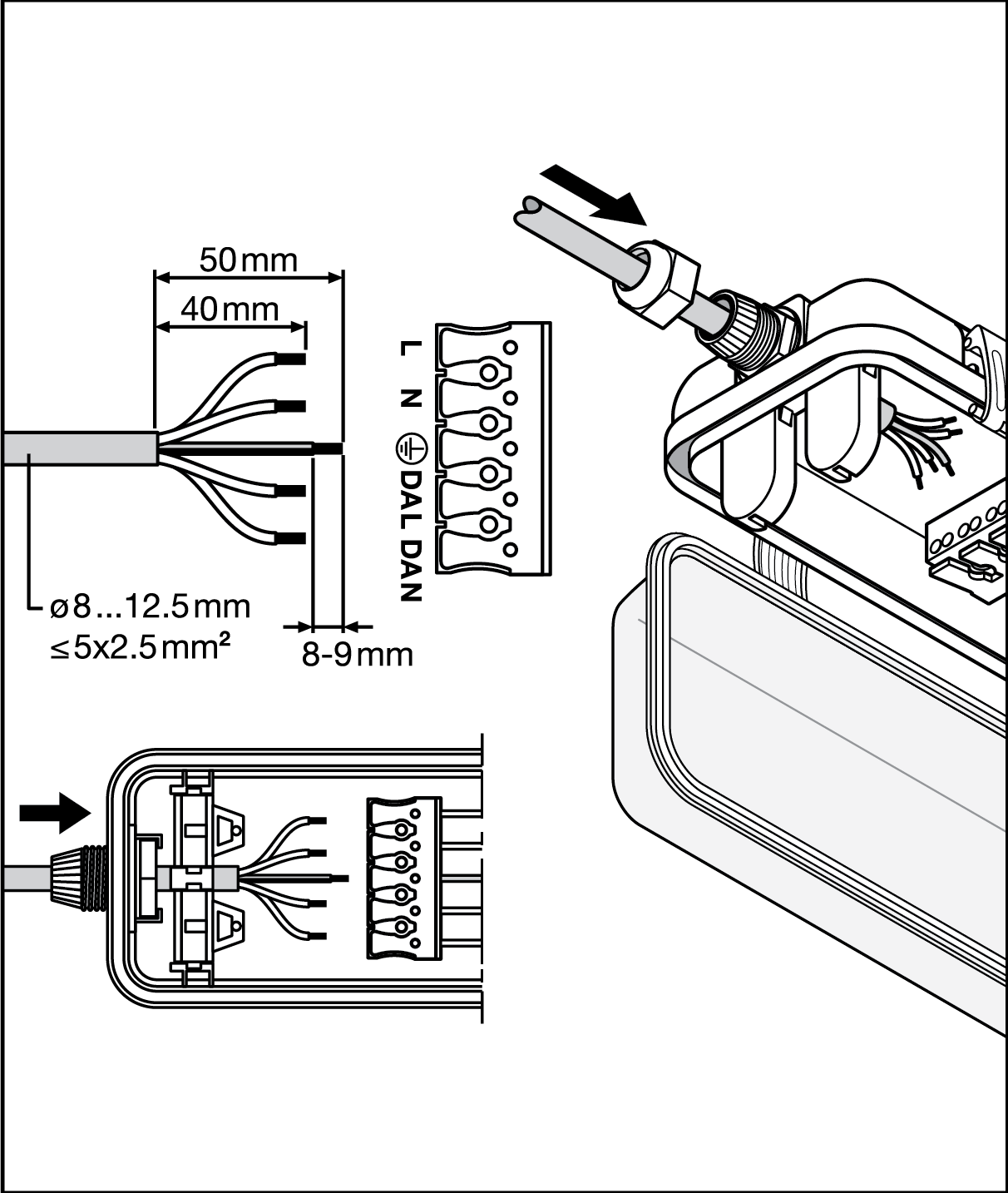

| Type of connection | Screwless terminal, 5-Pole (L, N, PE, DA+, DA-) |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Type of dimming | DALI2 |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | G13 |
Control gear
| ECG - Output ripple current | ≤ 5 % |
BATTERY
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 3.2 V |
| Battery charging time | >12 h |
Emergency lighting
| Area of emergency application | Anti-panic lighting, Escape route lighting |
| Type of emergency light operation | Maintained |
| Type of emergency operation test | Automatic |
| Wattage in emergency operation mode | 3,0 W |
| Luminous flux in emergency operation mode | 330 lm |
| Battery life in emergency operation mode | 3 h |
Certificates & Standards
| Standards | CE, TÜV Rheinland, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854148927 | Folding box 1 |
1,572 mm x 68 mm x 75 mm | 1572.00 g | 8.02 dm³ |
| 4099854148934 | Shipping box 6 |
1,592 mm x 216 mm x 162 mm | 10442.00 g | 55.71 dm³ |
User instruction / safety instructions

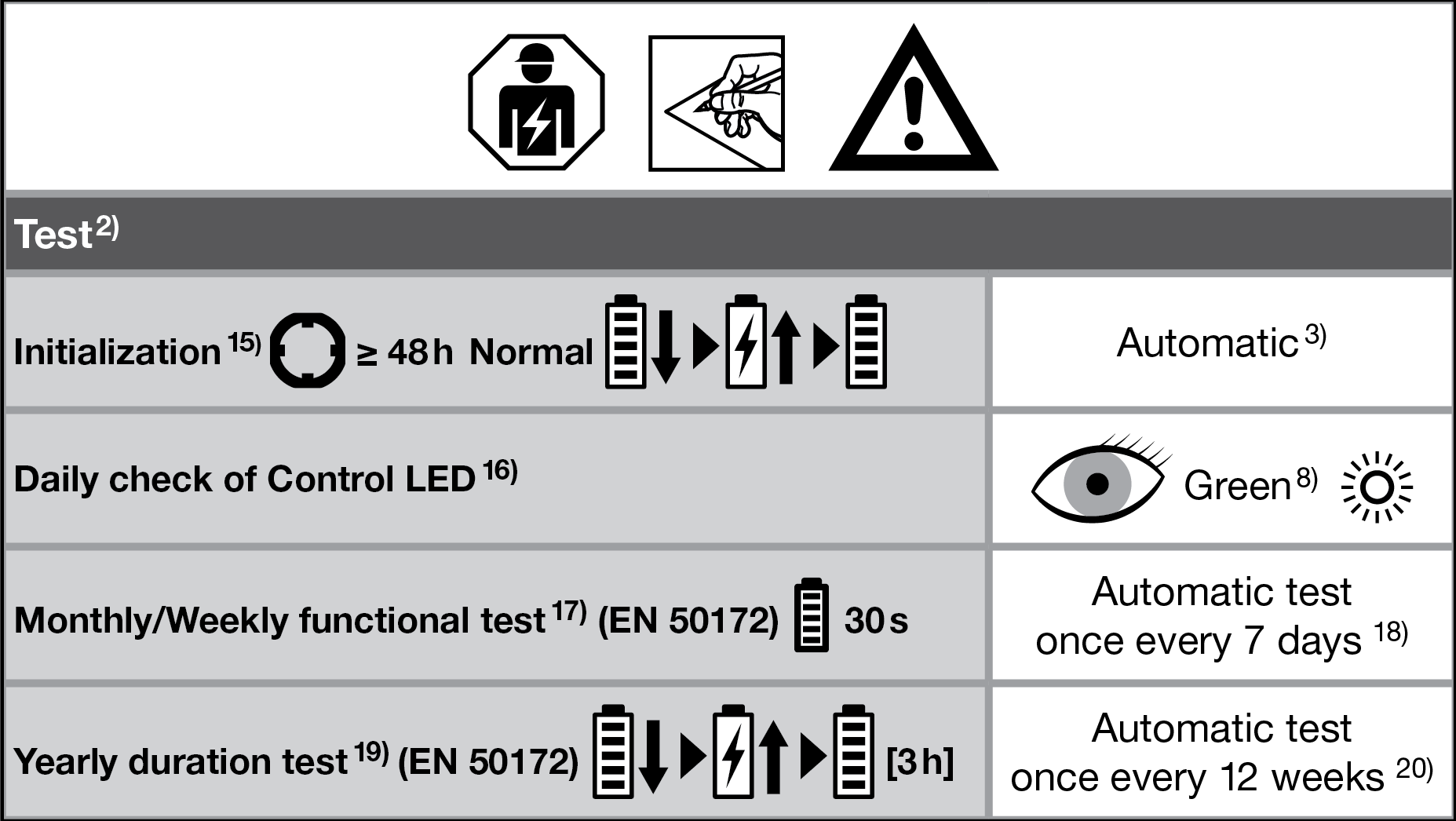

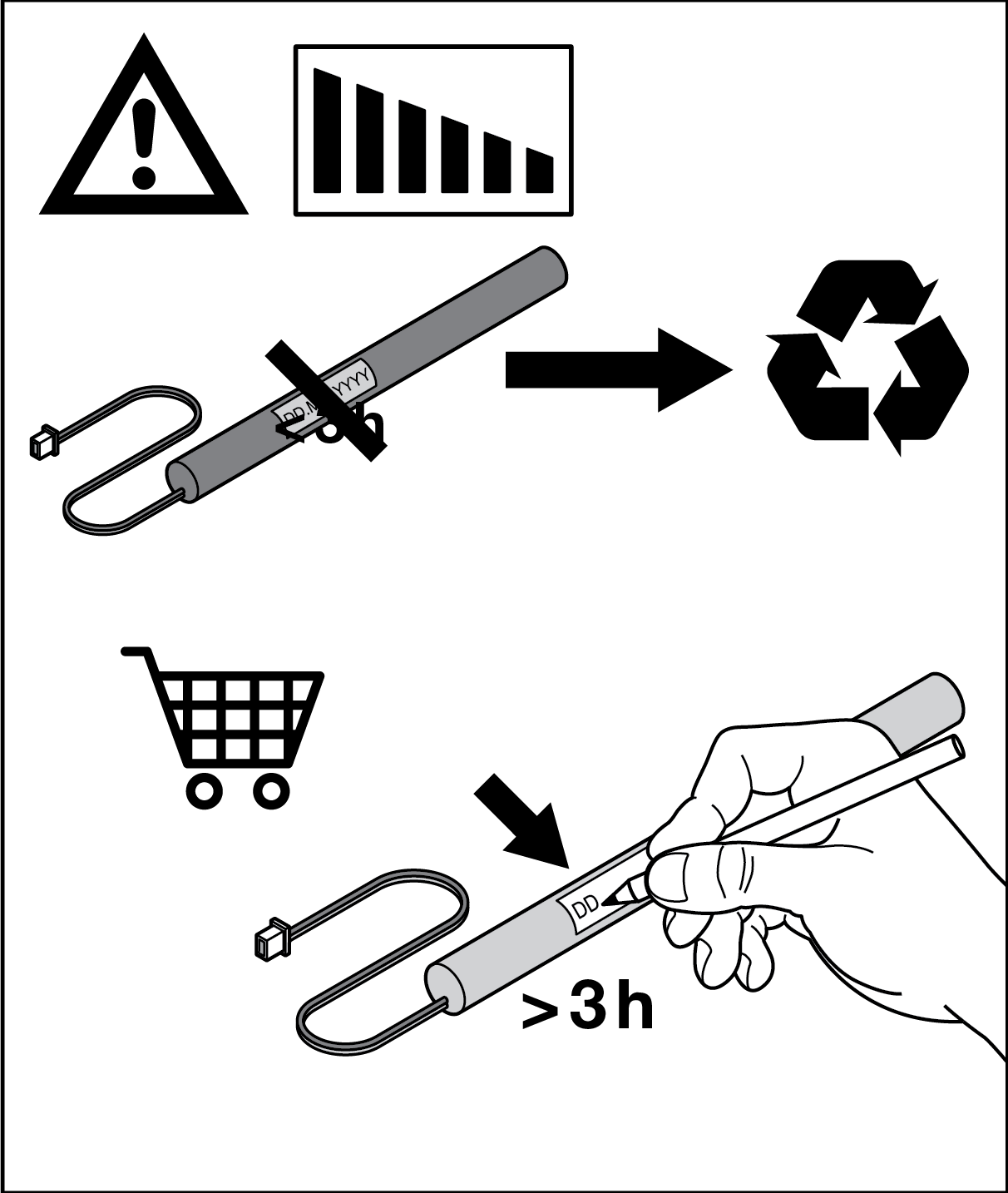

UI DP HOUSING EM
UI DP HOUSING EM
Legal information
LI DP HOUSING EM
LI DP HOUSING EM
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration DP HOUSING EM
CE Declaration DP HOUSING EM

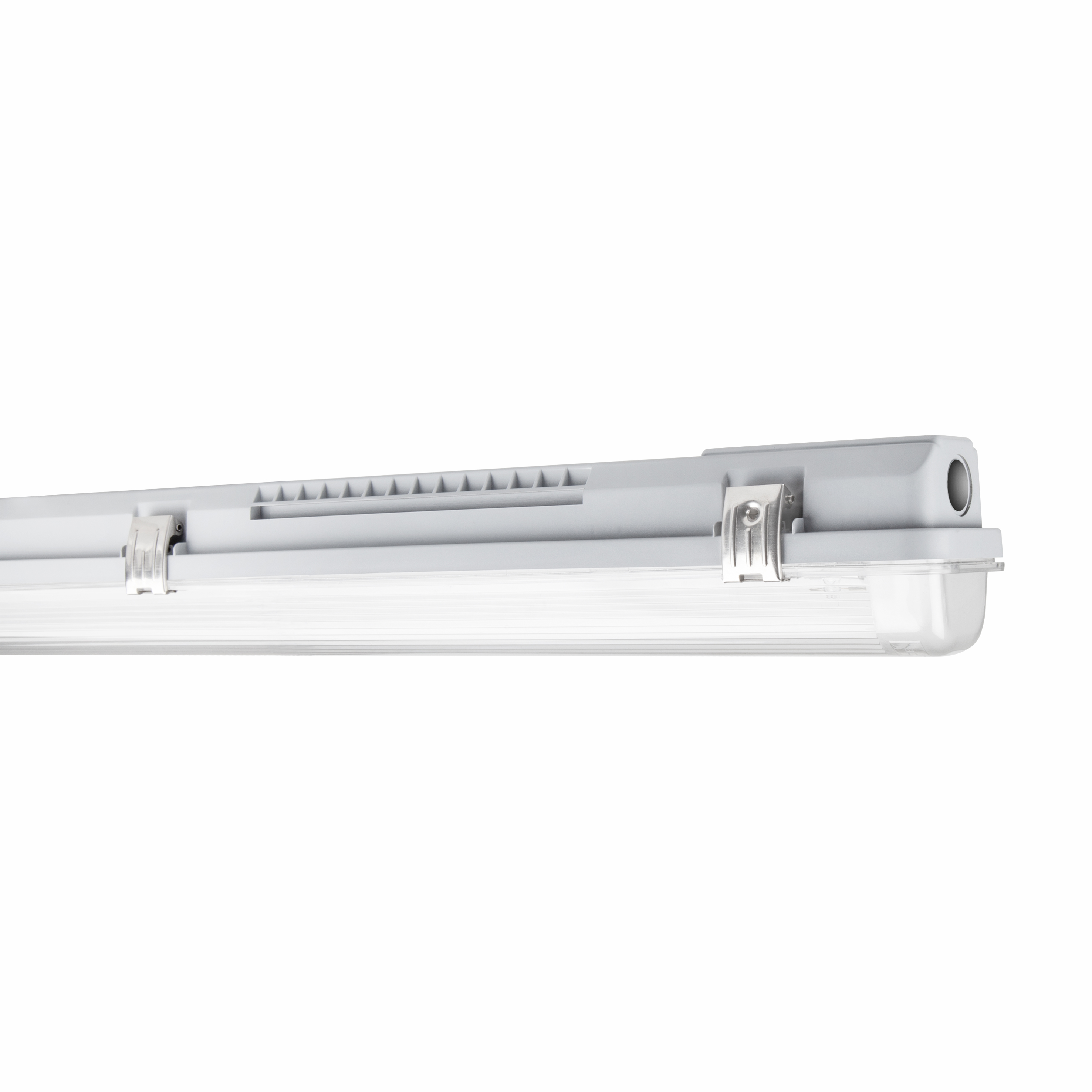

Product image: white background, diagonal
DP HOUSING 1500 P 1XLAMP IP65
DP HOUSING 1500 P 1XLAMP IP65

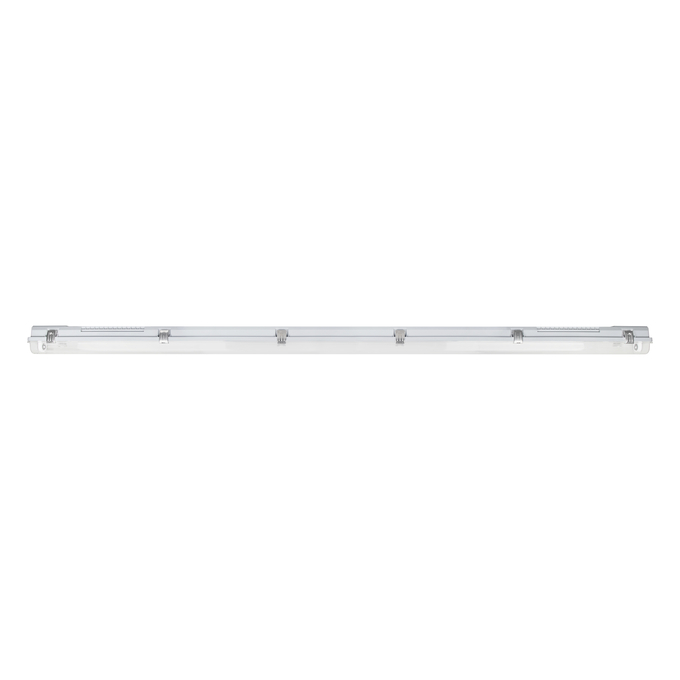

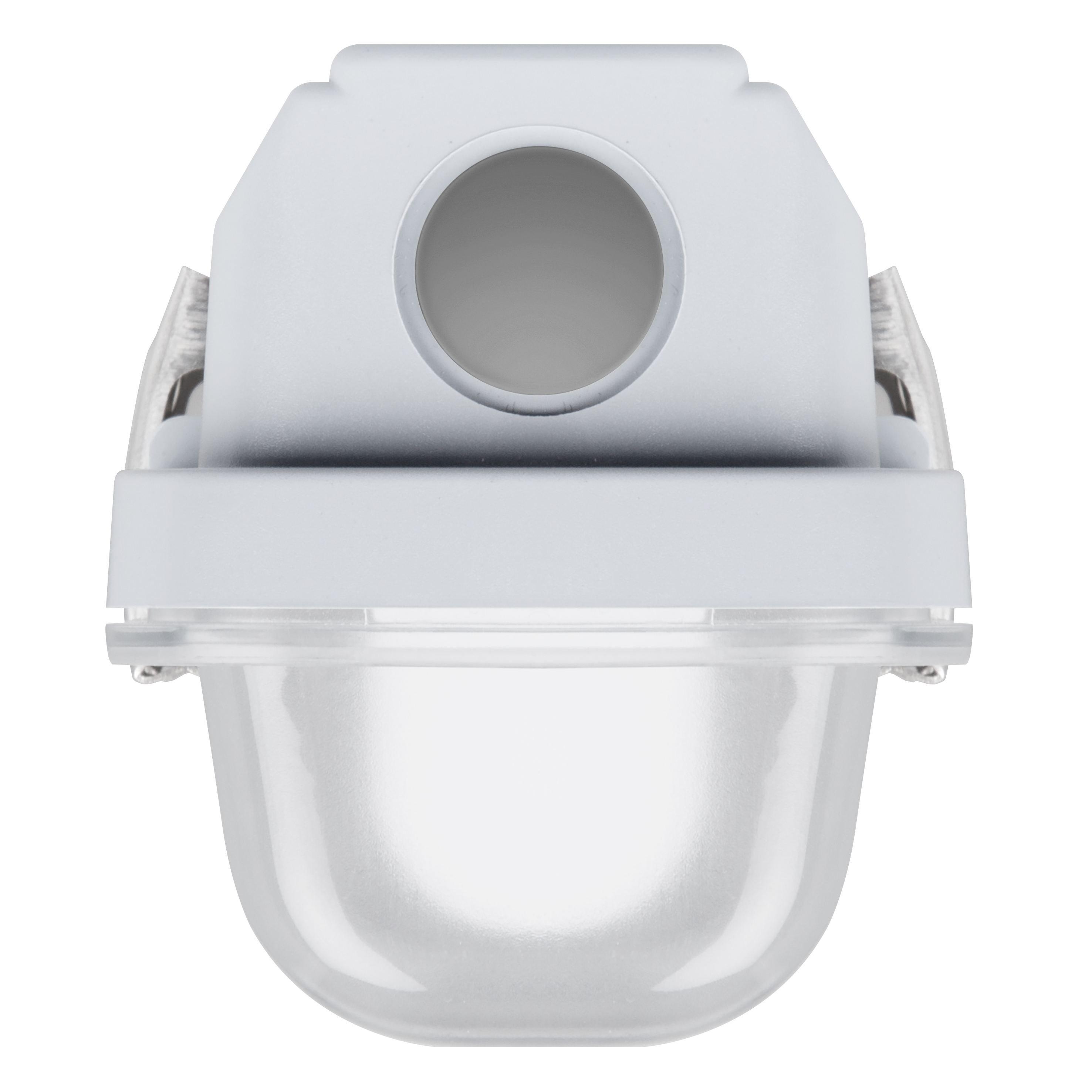

Product image: white background, upright
DP HOUSING 1500 P 1XLAMP IP65
DP HOUSING 1500 P 1XLAMP IP65
Product line drawing with letters
DP HOUSING 1500 P 1XLAMP IP65
DP HOUSING 1500 P 1XLAMP IP65
Product line drawing with numbers
DP HOUSING 1500 P 1XLAMP IP65
DP HOUSING 1500 P 1XLAMP IP65
Product line drawing - technical
DP HOUSING 1500 P 1XLAMP IP65
DP HOUSING 1500 P 1XLAMP IP65

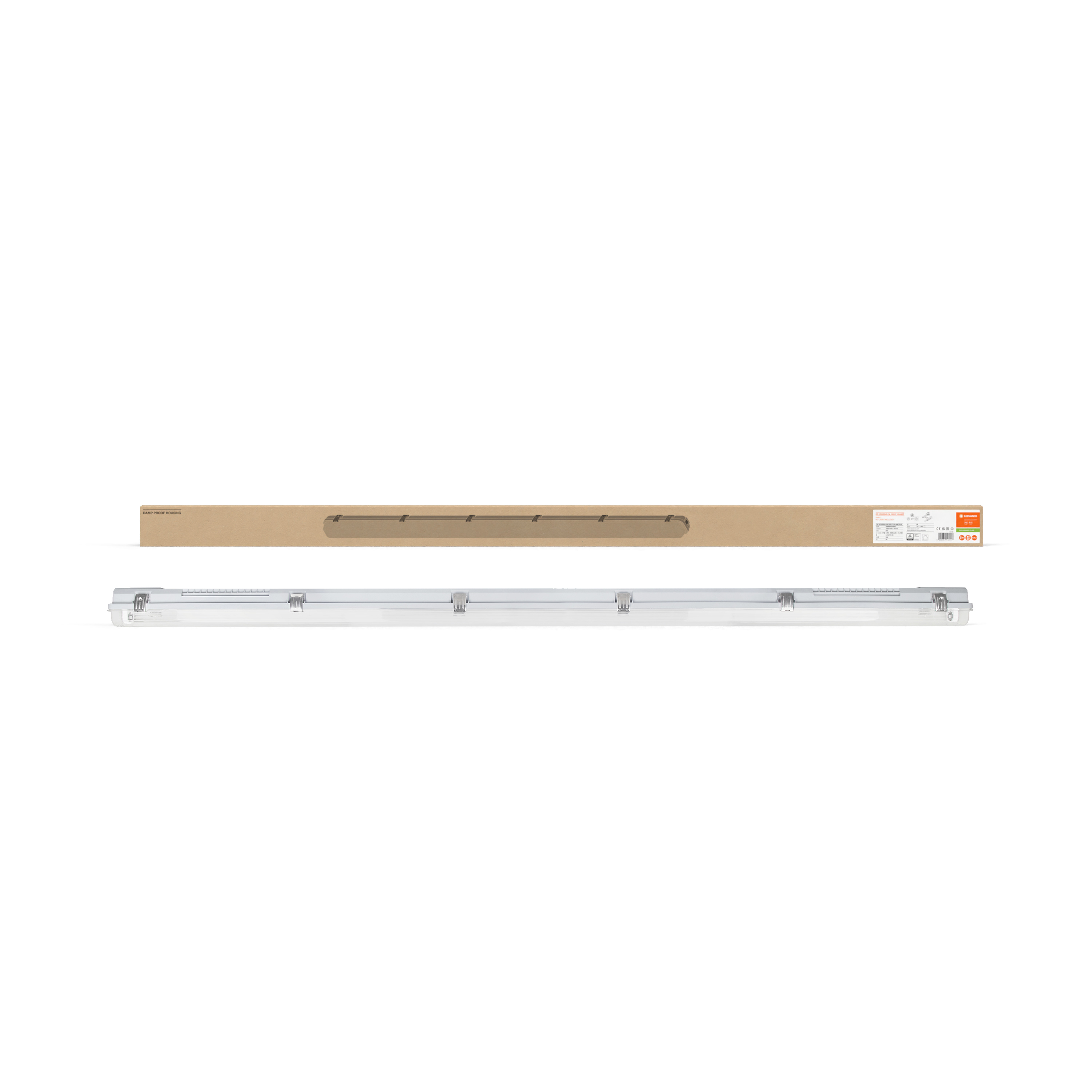

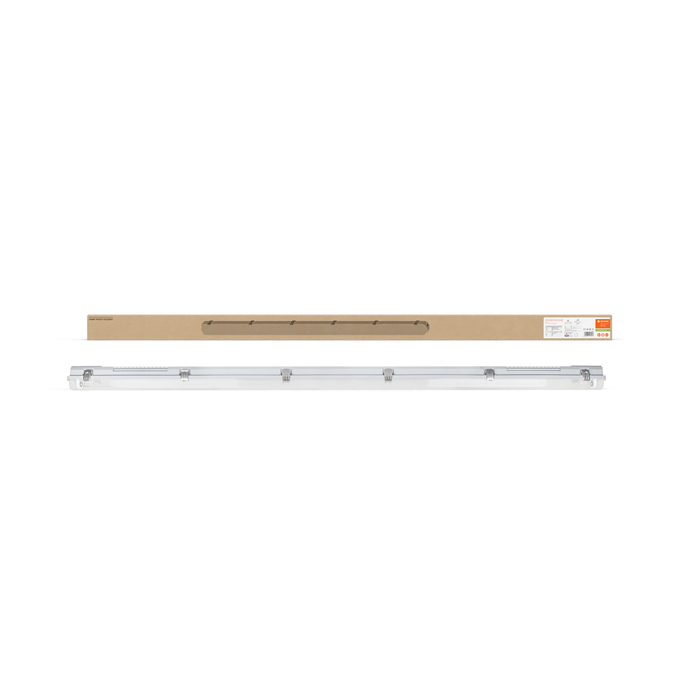

Combo Shot = Product Beauty Shot + Packaging Image
DP Housing EM 1500 P 1xLamp
DP Housing EM 1500 P 1xLamp

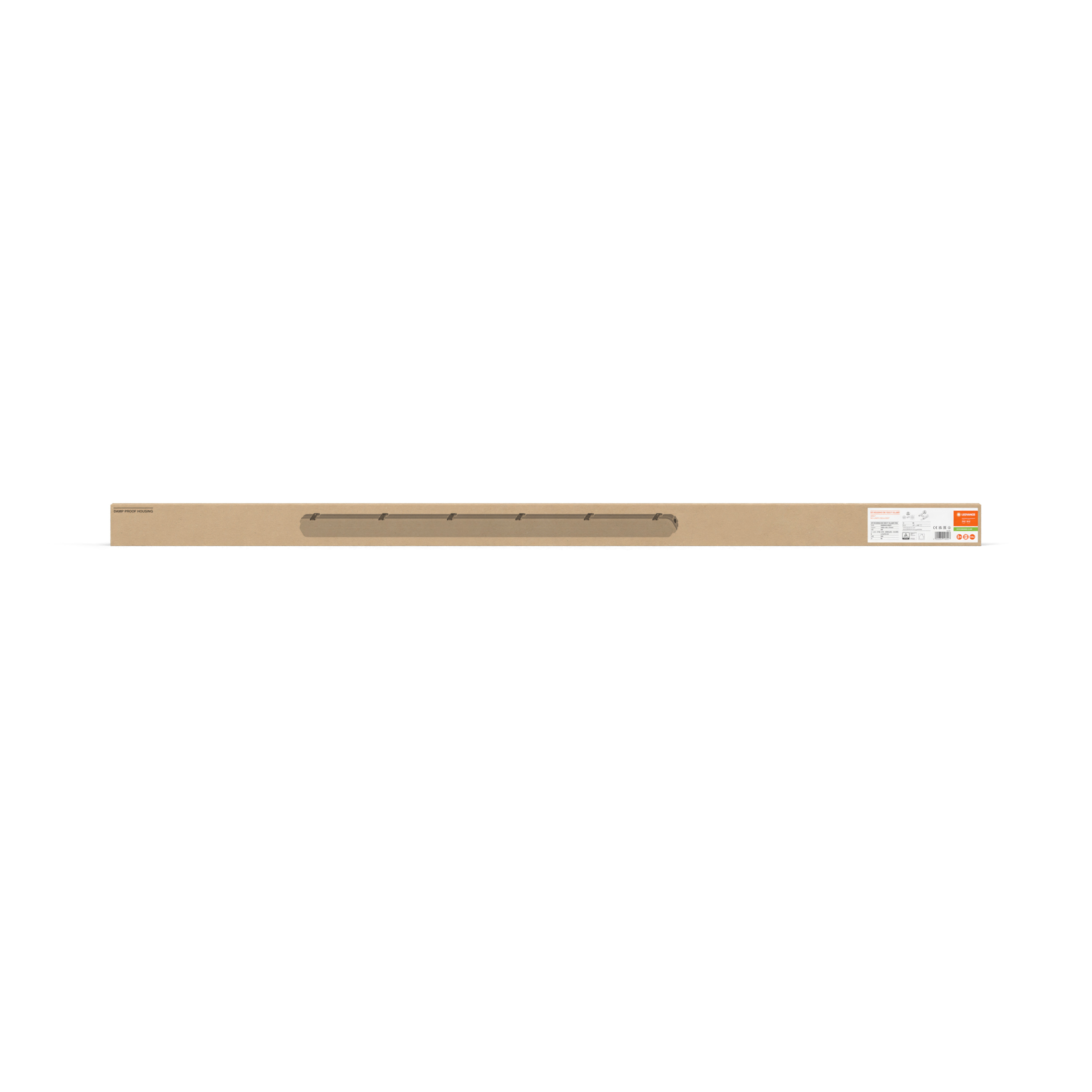

Packaging image, frontal
DP Housing EM 1500 P 1xLamp
DP Housing EM 1500 P 1xLamp
Catalog info 1
DP HOUSING EM
DP HOUSING EM
Catalog info 2
DP HOUSING EM
DP HOUSING EM
Catalog info 3
DP HOUSING EM
DP HOUSING EM
Catalog info 4
DP HOUSING EM
DP HOUSING EM
Catalog info 5
DP HOUSING EM
DP HOUSING EM
BIM Revit 3D
Damp Proof Housing G3
Damp Proof Housing G3
CAD STEP 3D
DP HOUSING G3 1 1500
DP HOUSING G3 1 1500
Tender documents
DAMP PROOF HOUSING EMERGENCY 1500 P 1XLAMP IP65-EN
DAMP PROOF HOUSING EMERGENCY 1500 P 1XLAMP IP65-EN
Application pictures Getty

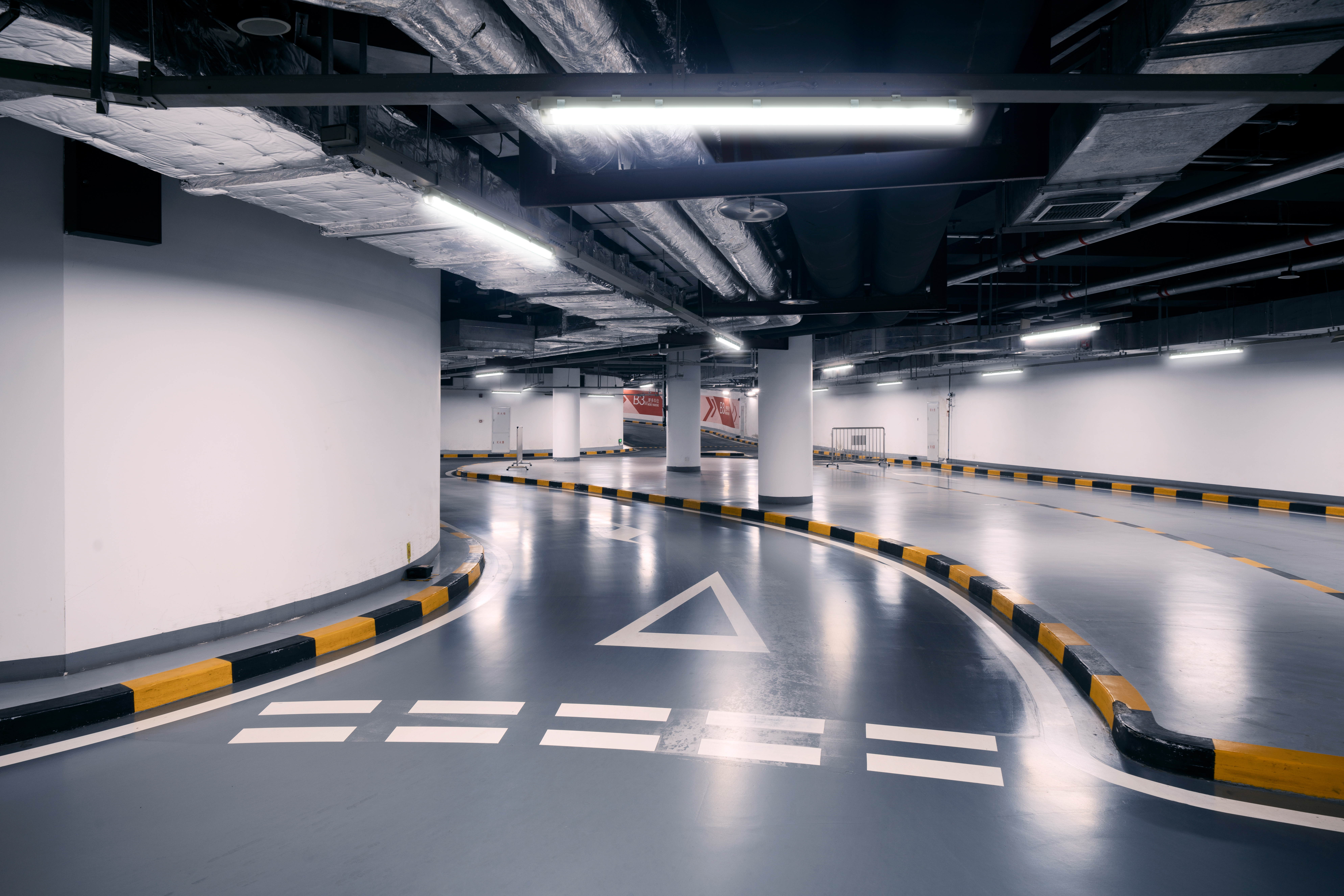

Underground car park DP Housing
