LED STRIP CONTROL DIRECT

LED STRIP CONTROL DIRECT TW RGB ZB

GTIN: 4099854550386 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Slim Design for easy installation in narrow places
  • Control DIM, TW or RGB LED Strips wirelessly without the need for control cables
  • Zigbee 3.0 certified device for integration to any 3rd party Zigbee Control System
  • Works without gateway in Direct Easy or with Vivares Zigbee
Areas of application
  • Cove lighting
  • Architecture lighting
  • General illumination
  • Hotels
  • Offices
  • Residential interiors
Product features
  • Zigbee 3.0 certified control device for LED Strips
  • 5 channels for DIM, TW or RGB and TW Control
  • Overtemperature protection
  • High power per channel up to 96 W possible
  • Input Voltage 12...24 V
  • Direct commissioning via bluetooth possible
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For current information see www.ledvance.com/light-management-systems
Electrical data
Nominal wattage 480.00 W
Nominal output power 480 W 1)
Nominal voltage 12…24 V
Input voltage DC 12…24 V
Type of current DC
Nominal current 20 A
Mains frequency 50/60 Hz
Total harmonic distortion < 20 %
Power factor λ > 0.9
1) Related to 24V input
Photometrical data
Color temperature RGBW
Dimensions & Weight
Length 145.00 mm
Width 47.00 mm
Height 16.00 mm
Cable cross-section, input side 0.5…1.5 mm²
Wire preparation length, input side 6…7 mm
Product weight 79.00 g
Colors & materials
Product color White
Body material Polycarbonate (PC)
Temperatures & operating conditions
Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 75 °C
Temperature range in operation -20…+50 °C
Additional product data
Product remark Available from September 2025
Number of control outputs 5
Commissioning App App (Android/ iOS)
Added function VIVARES
Capabilities
Dimmable Yes
Dimming interface Zigbee Direct, IoT
Overload protection No
Number of control outputs 5
Certificates & Standards
Standards CE, ROHS, REACH, UKCA
Protection class III
Type of protection IP20
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854550386 Folding box
1		 147 mm x 50 mm x 25 mm 119.00 g 0.18 dm³
4099854550393 Shipping box
100		 380 mm x 270 mm x 280 mm 12900.00 g 28.73 dm³
User instruction / safety instructions
LED STRIP CONTROL DIRECT TW RGB ZB
PDF (3.05 MB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Safety Insert LED STRIP CONTROL DIRECT TW RGB ZB
PDF (267.25 KB)
Legal information
App Download guide
PDF (2.21 MB)
Declarations of conformity
LED STRIP CONTROL DIRECT TW RGB ZB
PDF (286.85 KB)

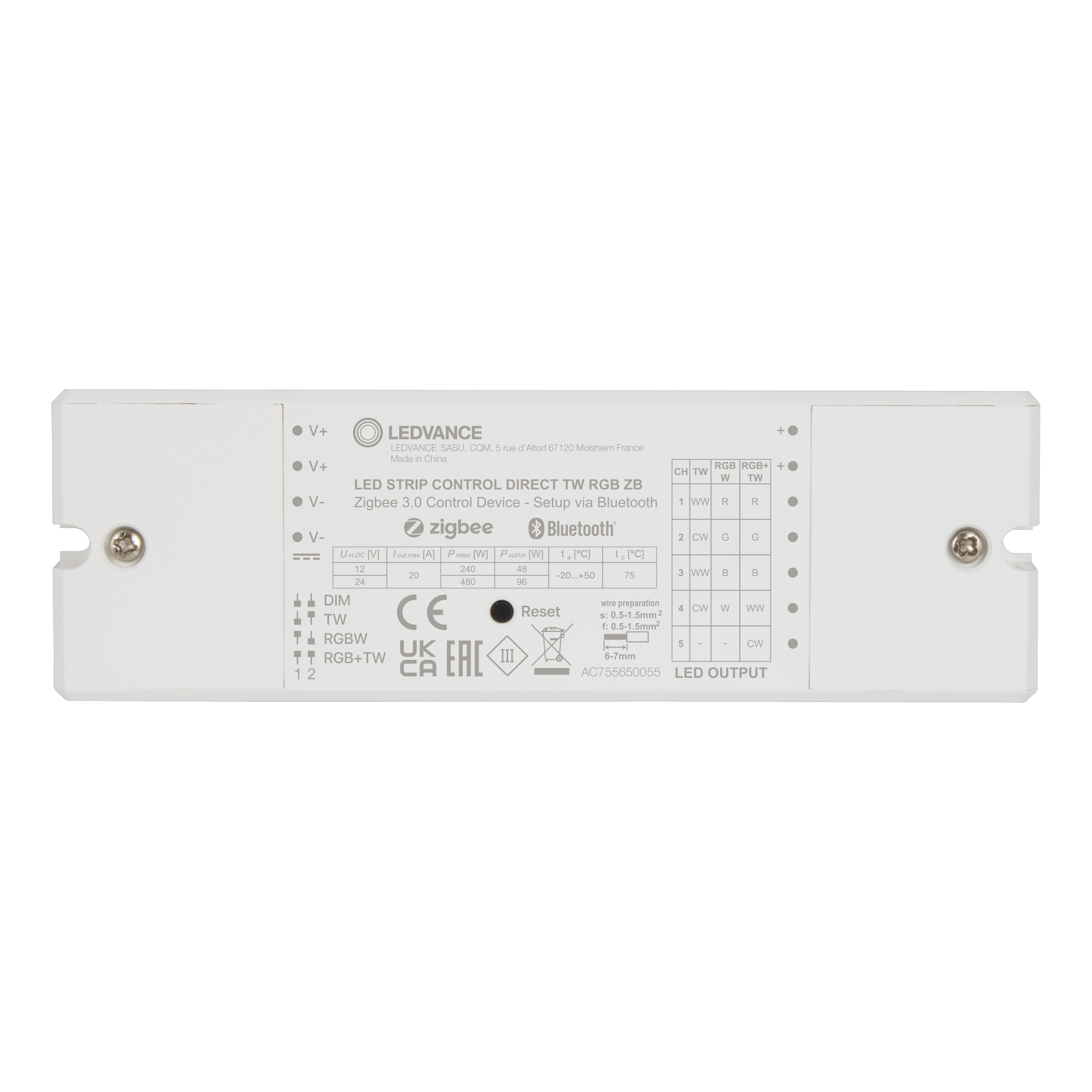

Product image: white background, horizontal
LED STRIP CONTROL DIRECT TW RGB ZB
JPG (895.86 KB)
Product image: white background, horizontal
LED STRIP CONTROL DIRECT TW RGB ZB
JPG (1.1 MB)
Product image: white background, upright
LED STRIP CONTROL DIRECT TW RGB ZB
JPG (1.46 MB)

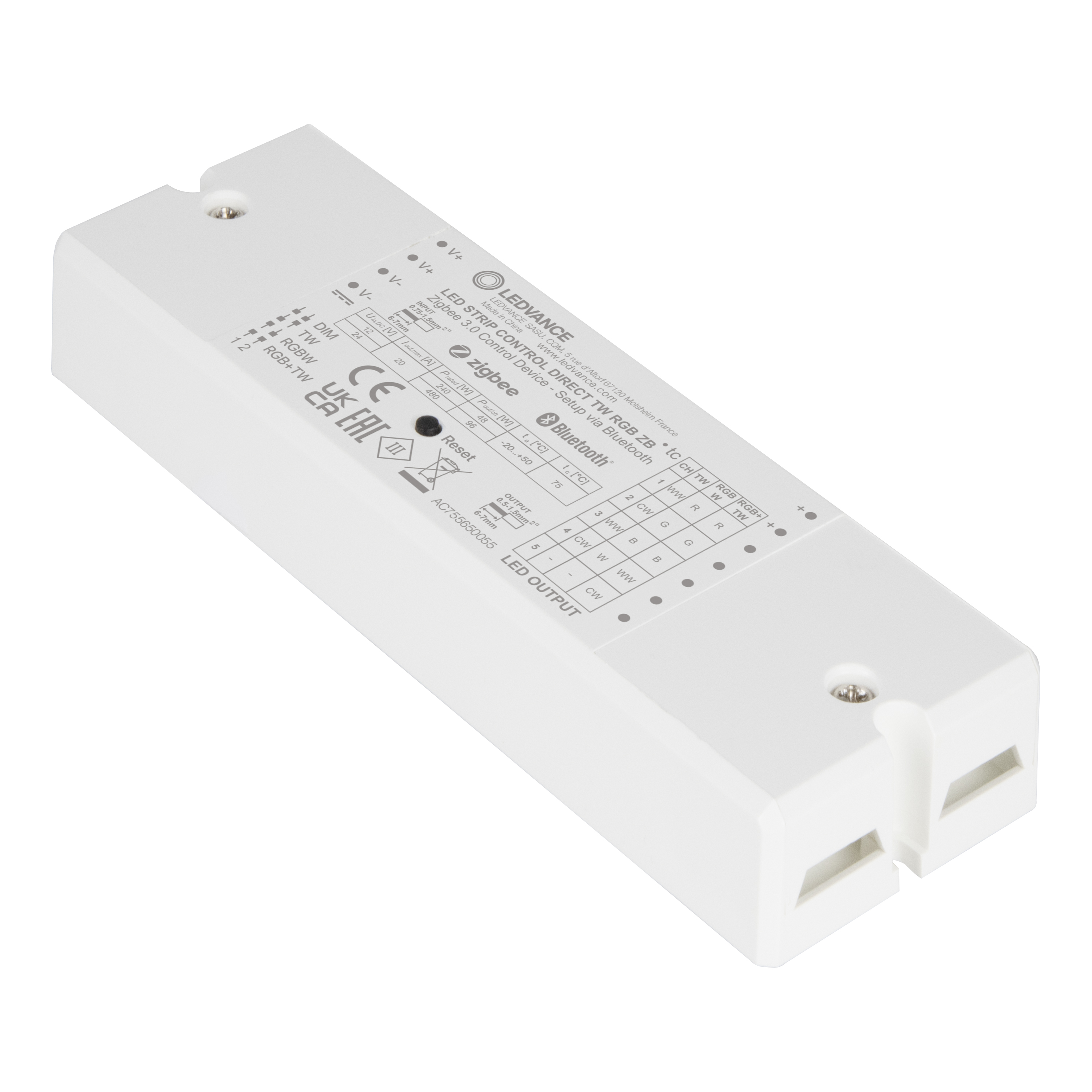

Product image: white background, spacial
LED STRIP CONTROL DIRECT TW RGB ZB
JPG (1.59 MB)
Product line drawing with letters
LED STRIP CONTROL DIRECT TW RGB ZB
SVG (16.14 KB)
Product line drawing with numbers
LED STRIP CONTROL DIRECT TW RGB ZB
SVG (18.91 KB)
Product line drawing - technical
LED STRIP CONTROL DIRECT TW RGB ZB
SVG (9.57 KB)

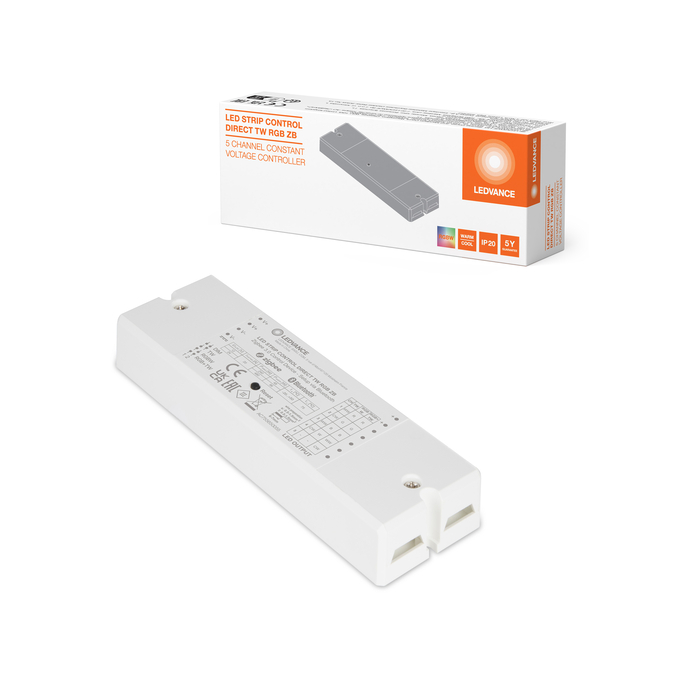

Combo Shot = Product Beauty Shot + Packaging Image
