Product benefits

• VDE/VDE EMC certified system
• Simplified startup thanks to predefined operation modes
• Automatic and manual setting of regulation set point

Areas of application

• Offices
• Classrooms
• Training rooms
• Corridors
• Ceiling or independent installation via ECO CI KIT possible

Product features

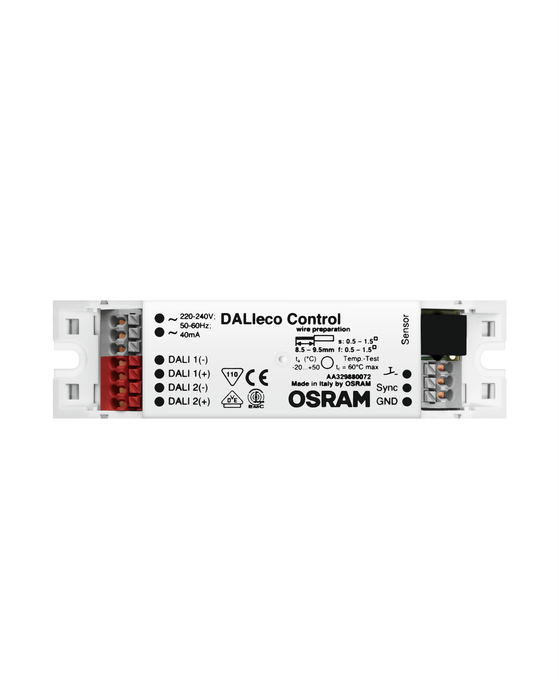

• 2 channel light control with DALI interface
• Daylight-dependent regulation and presence-dependent control of light
• 100 hours burn-in function for fluorescent lamps
• Operation via standard pushbutton or IR remote control
• Outputs with adjustable offset
• Outputs with electronical reversible overtemperature, short-circuit, overload protection
• Connection of up to 4 DALIeco LS/PD LI or 6 DALI LS/PD LI sensors
• Connection of up to 4 light and presence sensors via 4p4c plug system
• Individual adjustment of functional parameters via IR remote control
• Halogen free polycarbonate plastic housing
• Sensor connection via polarity reversal protected 4p4c socket (RJ10)

Equipment / Accessories

• Suitable for up to 32 electronic control gears
