CV Dimmers with 1…10 V
OT DIM
GTIN: 4050300943459
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- 1…10 V control port basic isolated
Areas of application
- Suitable for indoor SELV installations
Product features
- Intelligent analog dimmer (1…10 V) with constant output voltage
- Dimming range: 0…100 %
- Cable clamp housing for independent mounting
- Device fits also for special applications where dimming below 1 % is required
Electrical data
| Nominal wattage | 144.00 W |
| Nominal output power | 120 W |
| Nominal voltage | 10…24 V |
| Nominal output voltage | 10,5…24 V |
| Input voltage AC | 10,5…24 V 1) |
| Input voltage DC | 10,5…24 V |
| Nominal current | 5 A |
| Mains frequency | 0 Hz |
| ECG efficiency | 96 % |
| Device power loss | 4 W 2) |
| Galvanic isolation | SELV equivalent |
| Operating frequency | 135 Hz |
| Power loss in stand-by mode | < 0.5 W |
1) VDC
2) Maximum
2) Maximum
Dimensions & Weight
| Length | 172.00 mm |
| Mounting hole spacing, length | 164,0 mm |
| Width | 42.00 mm |
| Height | 20.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Wire preparation length, input side | 10 mm |
| Wire preparation length, output side | 10 mm |
| Product weight | 81.00 g |
Colors & materials
| Product color | White |
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 70 °C |
| Max.housing temperature in case of fault | 100 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 50000 h |
Additional product data
| Encapsulated | No |
| Number of control outputs | 1 |
Capabilities
| Dimmable | Yes |
| Dimming interface | 1…10 V |
| Dimming range | 0…100 % |
| Overheating protection | Automatic reversible |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible 1) |
| No-load proof | Yes |
| Suitable for fixtures with prot. class | II |
| Type of connection, output side | Screw terminal |
| Number of control outputs | 1 |
| Type of installation | Luminaire integration/Ceiling integration |
1) In combination with OPTOTRONIC power supply
Certificates & Standards
| Approval marks – approval | CE, UR, VDE, VDE-EMC |
| Standards | Acc. to DIN VDE 0875/CISPR 15/EN 55015, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61046, Acc. to IEC 61347-2-2, Acc. to UL 508 |
| Protection class | III |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -25…85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4050300943459 | Unpacked 1 |
171 mm x 21 mm x 43 mm | 81.00 g | 0.15 dm³ |
| 4050300943466 | Shipping box 20 |
355 mm x 78 mm x 225 mm | 1654.20 g | 6.23 dm³ |
Declarations of conformity
334844_Declaration of conformity – OT Dimmer – OT Sequencer
334844_Declaration of conformity – OT Dimmer – OT Sequencer
Certificates
729533_Certificate OT DIM 10-24
729533_Certificate OT DIM 10-24
PRODUCT DATASHEET
313229_ADDON TECHNICAL INFORMATION OT DIM VS20 OSRAM (GB)
313229_ADDON TECHNICAL INFORMATION OT DIM VS20 OSRAM (GB)

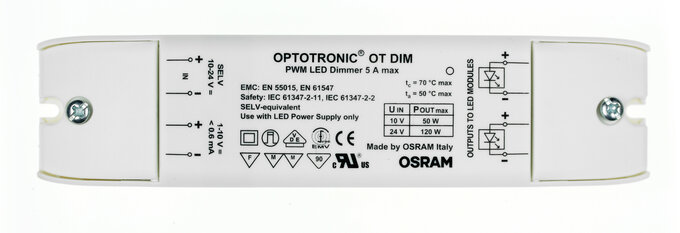

Product image: white background, diagonal
Optotronic OT DIM
Optotronic OT DIM

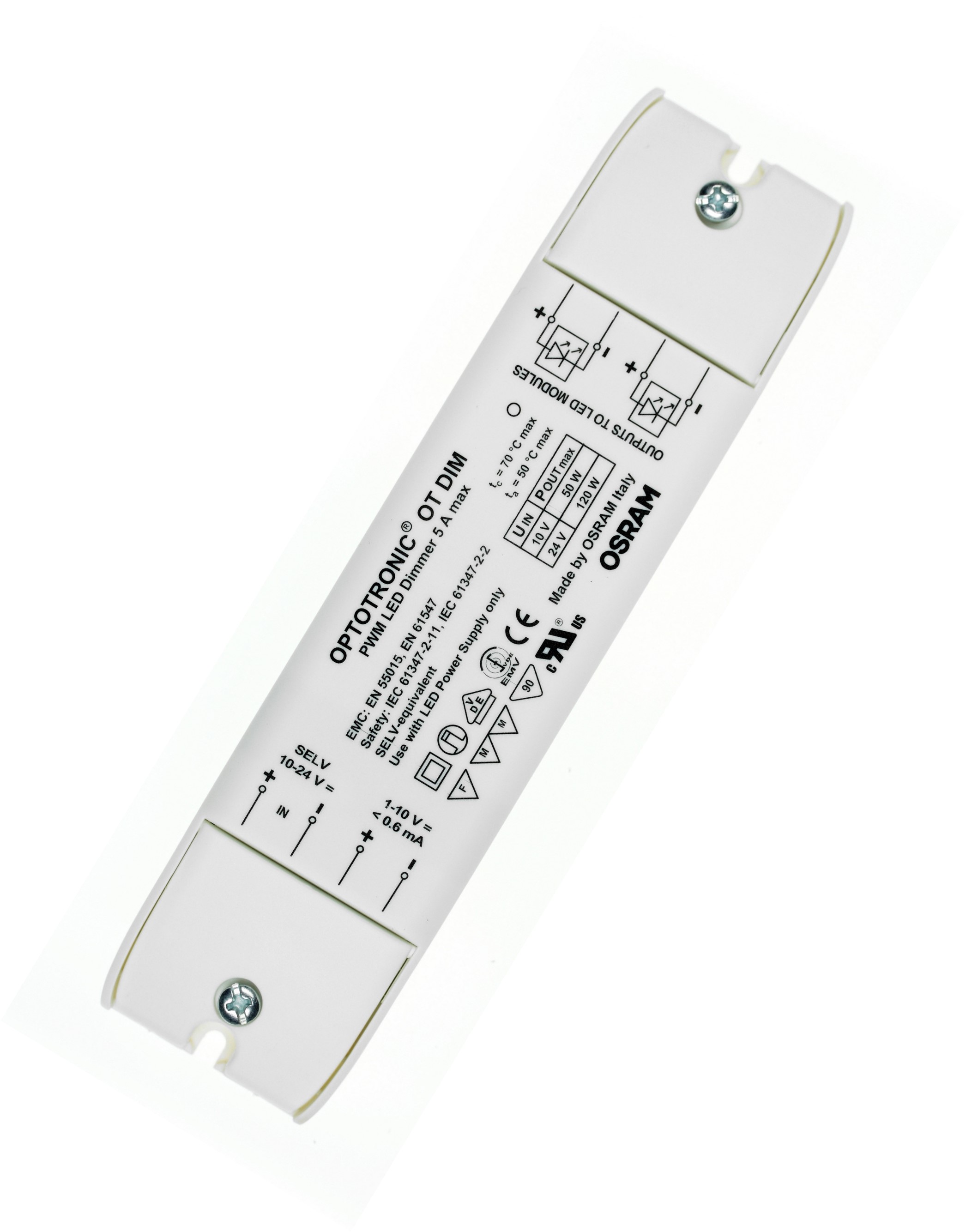

Product image: white background, diagonal, alternative image
313708_OPTOTRONIC OT DIM
313708_OPTOTRONIC OT DIM

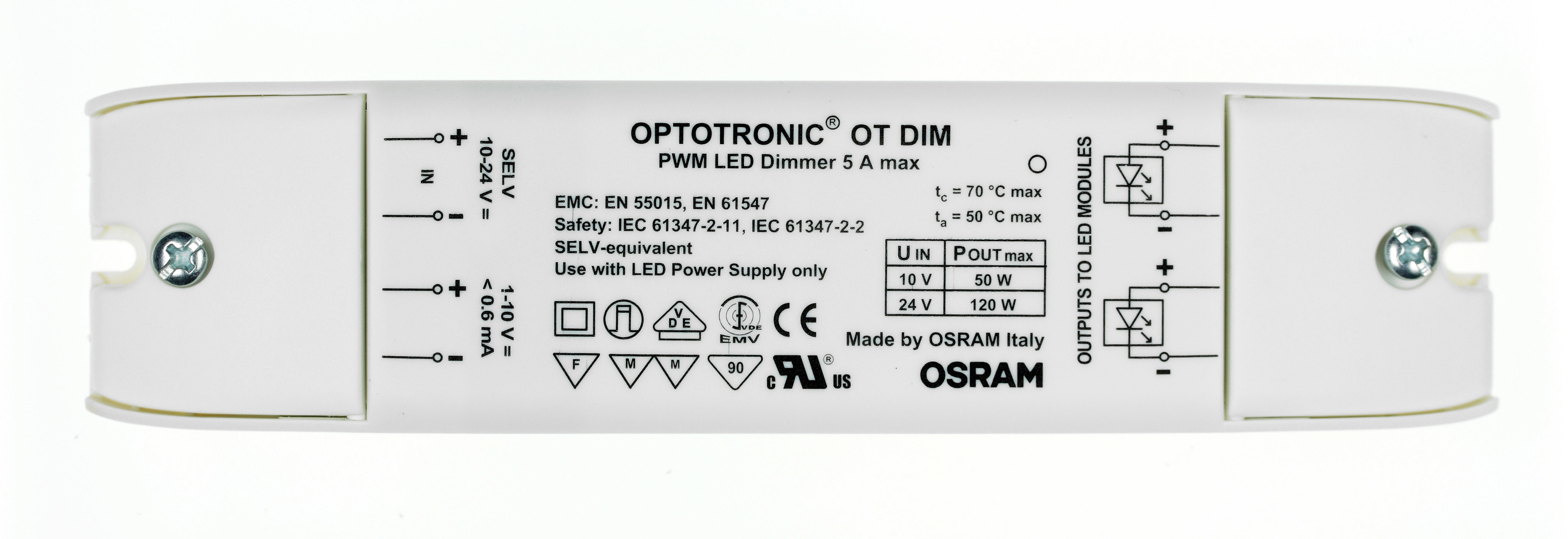

Product image: white background, horizontal
316008_OPTOTRONIC OT DIM
316008_OPTOTRONIC OT DIM
Product line drawing with letters
326686_OPTOTRONIC - DIMMER
326686_OPTOTRONIC - DIMMER
Product line drawing with numbers
324656_ECG housing OPTOTRONIC
324656_ECG housing OPTOTRONIC
Product line drawing, front, no dimensions
330732_OPTOTRONIC - DIMMER
330732_OPTOTRONIC - DIMMER
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4050300943459 | 7980171 | 4031170 | 6659808 | 919492020 |
