Flat Profiles for LED Strips

LS AY -PF03/EC/H

GTIN: 4058075277663 Folding box / 2 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Low profile
Quick and simple installation

Areas of application

General indoor illumination

Dimensions & Weight

Length	7.8 mm
Width	25.0 mm
Height	8.3 mm
Product weight	1.00 g

Colors & materials

Product color

Grey

Temperatures & operating conditions

Ambient temperature range	-15…+45 °C
Temperature range in operation	-15…+45 °C

LOGISTICAL DATA

Temperature range at storage

-35…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075277663	Folding box 2	80 mm x 120 mm x 5 mm	3.00 g	0.05 dm³
4058075277670	Shipping box 100	120 mm x 100 mm x 120 mm	198.00 g	1.44 dm³
4058075277687	Shipping box 1,000	525 mm x 140 mm x 270 mm	2371.00 g	19.85 dm³

Declarations of conformity
LS AY PM_PF_PW_PC

PDF (176.38 KB)

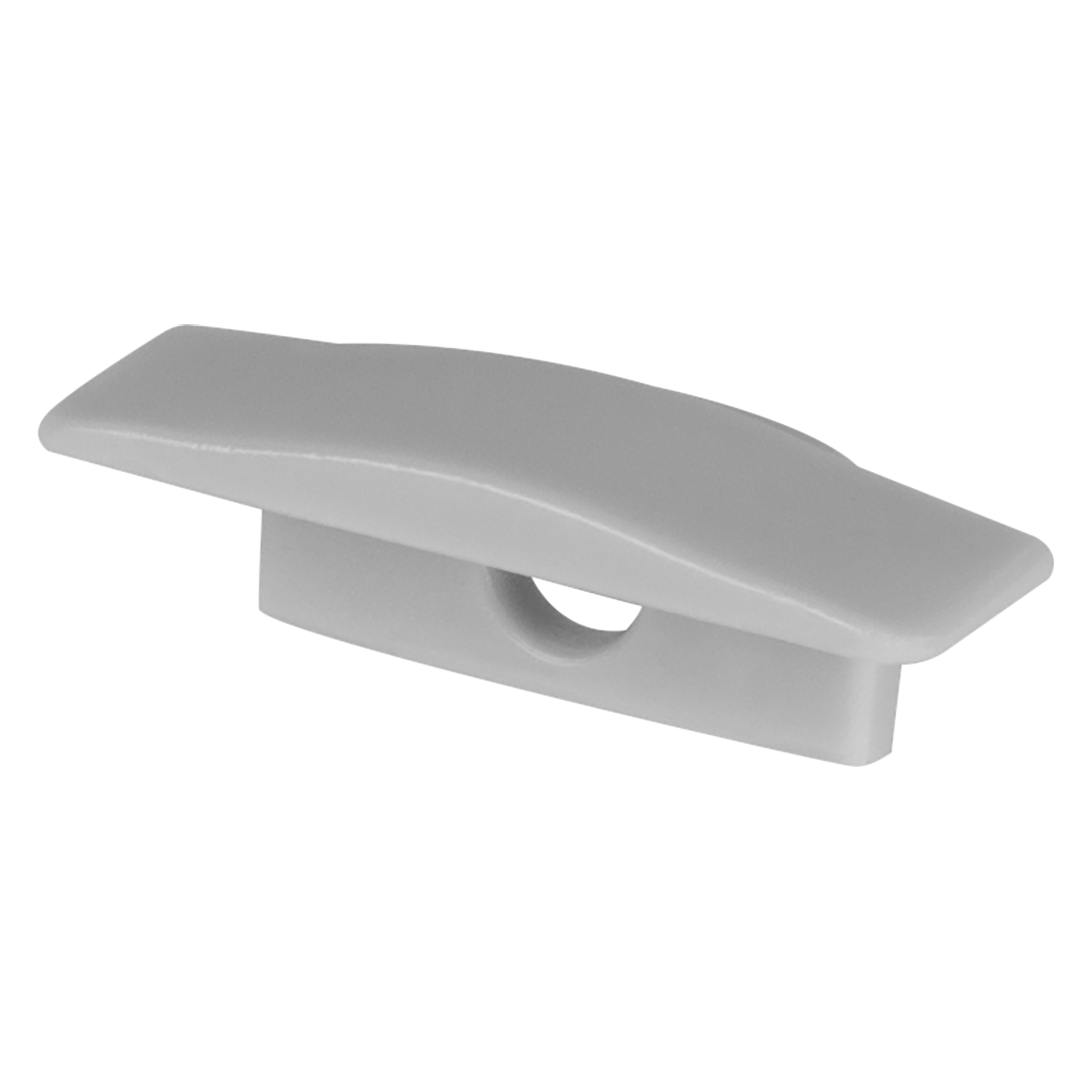

Product image: white background, diagonal
LS AY-PF03/EC/H

JPG (963.71 KB)

Product line drawing with letters
LS AY-PF03/EC/H

Product line drawing, front, no dimensions
LS AY-PF03/EC/H

Tender documents
Flat Profiles for LED Strips PF03ECH-EN

Application pictures
Parking de Urquinaona en Barcelona

Application pictures
Parking de Urquinaona en Barcelona

Application pictures
Parking de Urquinaona en Barcelona

Application pictures
Parking de Urquinaona en Barcelona

Application pictures
Parking de Urquinaona en Barcelona

Application pictures
Parking de Urquinaona en Barcelona

Application pictures
Parking de Urquinaona en Barcelona

EAN	STK number	ELDAS number
4058075277663	4266608	941901130
