CV Power supplies 24 V with Bluetooth
OTI BLE 80/220…240/24 1…4 CH
GTIN: 4062172046558
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Power supply and control of white, Tunable White, Tunable Warm White, Dim to Warm
- Power supply and control of RGB and RGBW LED modules
- Driver with integrated CASAMBI lighting control system
- Slim form factor for installation in light boxes
Areas of application
- Suitable for indoor installations
- Shops and hospitality: retail, hotels, restaurants
- Museums, residential buildings
Product features
- 80 W/24 V LED driver, 1–4 channels
- Power metering on the app interface
- Lighting wireless Bluetooth Mesh network, up to 127 devices
- Different light profiles to customize the application
- 2 KHz PWM control unit
Electrical data
| Nominal wattage | 80.00 W |
| Nominal output power | 80 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 24 V |
| Input voltage AC | 198…264 V |
| Input voltage DC | 176…276 V |
| U-OUT (working voltage) | 24.2 V |
| Inrush current | 48 A |
| Mains frequency | 50/60 Hz |
| Total harmonic distortion | < 5 % |
| Power factor λ | 0.98 |
| ECG efficiency | 93 % |
| Max. ECG no. on circuit breaker 10 A (B) | 7 |
| Max. ECG no. on circuit breaker 16 A (B) | 11 |
| Max. ECG no. on circuit breaker 25 A (B) | 17 |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | SELV |
| Operating frequency | 50/60 Hz |
| Power loss in stand-by mode | < 0.5 W |
Dimensions & Weight
| Length | 346.00 mm |
| Mounting hole spacing, length | 303 mm |
| Width | 32.00 mm |
| Height | 22.00 mm |
| Cable cross-section, input side | 0,5…2,5 mm² |
| Cable cross-section, output side | 0.2…1.5 mm² |
| Wire preparation length, input side | 6,0 mm |
| Wire preparation length, output side | 5,0 mm |
| Product weight | 191.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Maximum temperature at tc test point | 80 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 50000 h |
Additional product data
| Encapsulated | Yes |
Capabilities
| Dimmable | Yes |
| Dimming interface | Bluetooth CASAMBI |
| Dimming range | 0.4…100 % |
| Overheating protection | Reversible |
| Overload protection | Reversible |
| Short-circuit protection | Reversible |
| No-load proof | Yes |
| Suitable for fixtures with prot. class | I, II |
| Type of connection, output side | Screw terminal |
Certificates & Standards
| Approval marks – approval | VDE, RCM, EAC |
| Standards | CE, ENEC |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
Energy labelling regulation data acc EU 2019/2015
| Networked standby power for CLS | < 0.50 W |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4062172046558 | Unpacked 1 |
191.00 g | ||
| 4062172046565 | Shipping box 20 |
370 mm x 170 mm x 116 mm | 3998.00 g | 7.30 dm³ |
User instruction / safety instructions
OPTOTRONIC® LED Power Supply
OPTOTRONIC® LED Power Supply
Declarations of conformity
OTi BLE 80 24 9C1 3793600 (EN)
OTi BLE 80 24 9C1 3793600 (EN)
Certificates
OTi BLE 80 CB DE1 63484 280420
OTi BLE 80 CB DE1 63484 280420
Certificates
OT outdoor ENEC 40050684 100220
OT outdoor ENEC 40050684 100220
Certificates
OTi BLE 80 220 240 24 1 4CH NSW 28218 270120
OTi BLE 80 220 240 24 1 4CH NSW 28218 270120
PRODUCT DATASHEET
Technical datasheet OTI BLE 80/220-240/24 1-4CH (EN)
Technical datasheet OTI BLE 80/220-240/24 1-4CH (EN)
PRODUCT DATASHEET
OTi BLE 80 220 240 24 1 CH DS 300420 (EN)
OTi BLE 80 220 240 24 1 CH DS 300420 (EN)
Product image: white background, diagonal
OTi BLE 80
OTi BLE 80

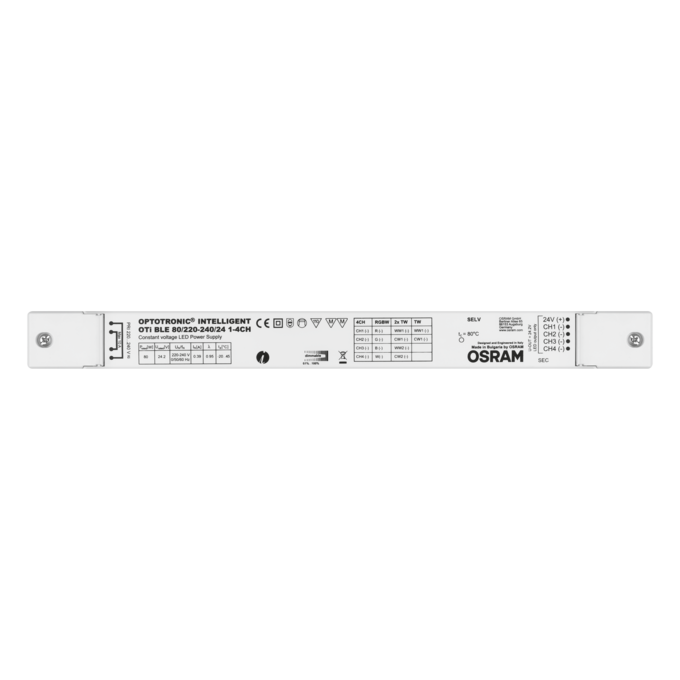

Product image: white background, horizontal
OTi BLE 80
OTi BLE 80

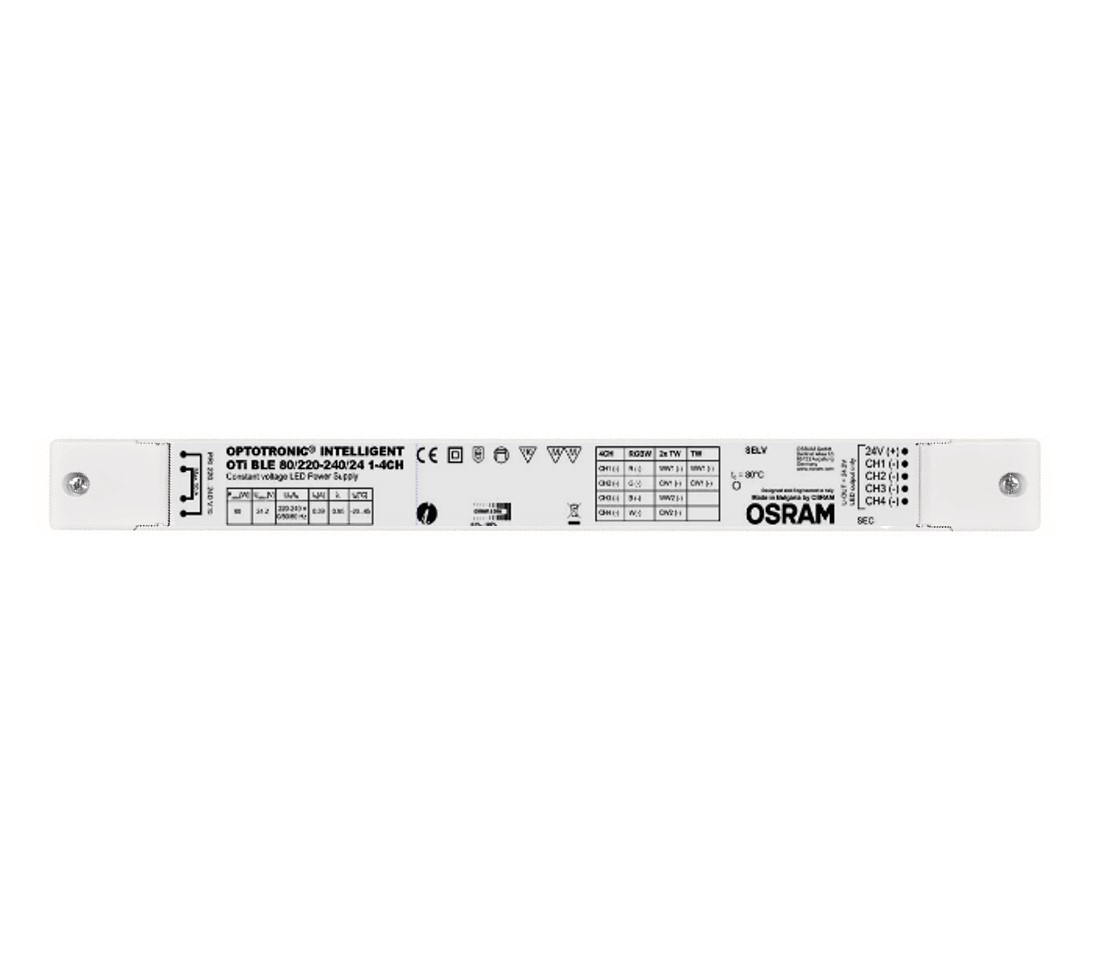

Product image: white background, horizontal
