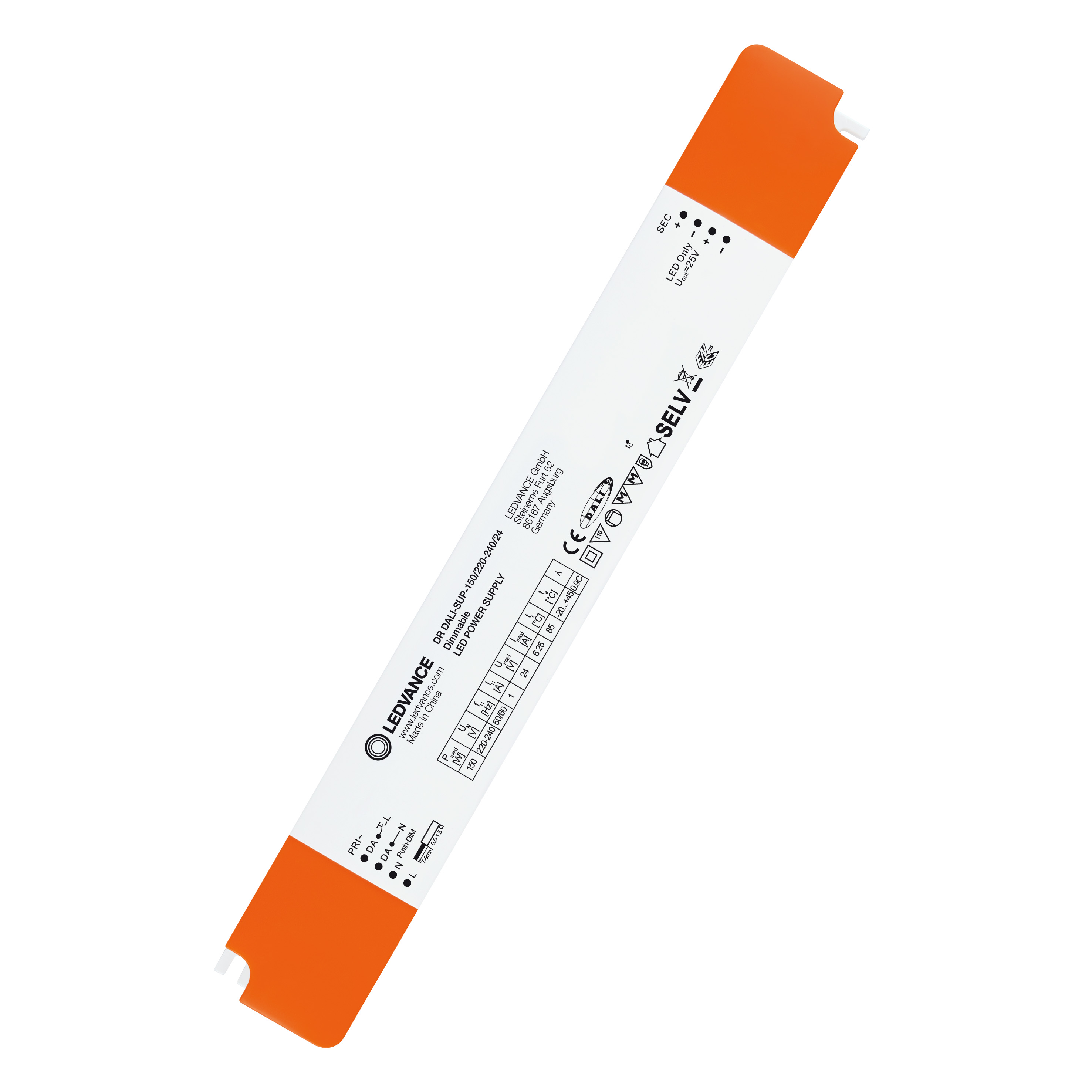

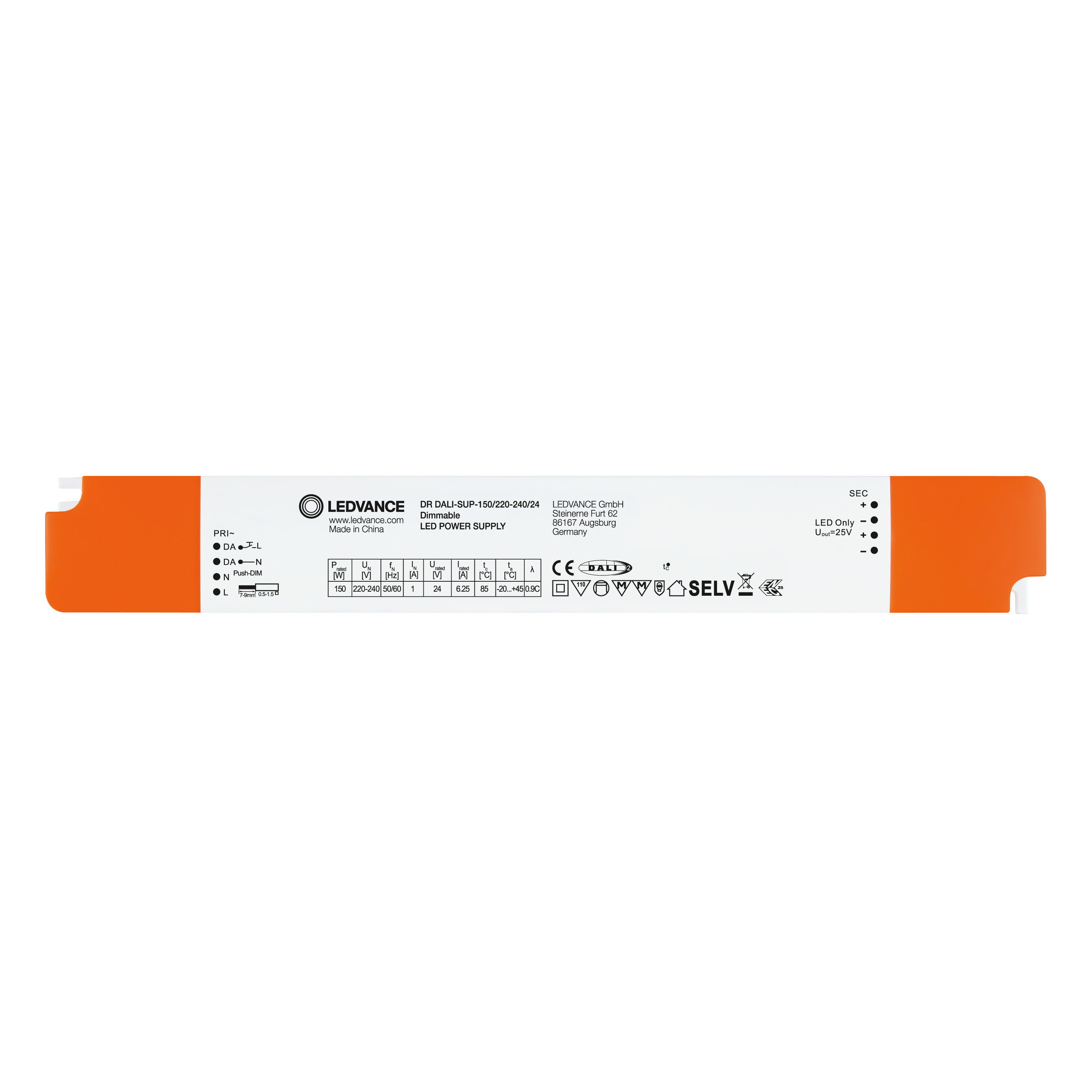

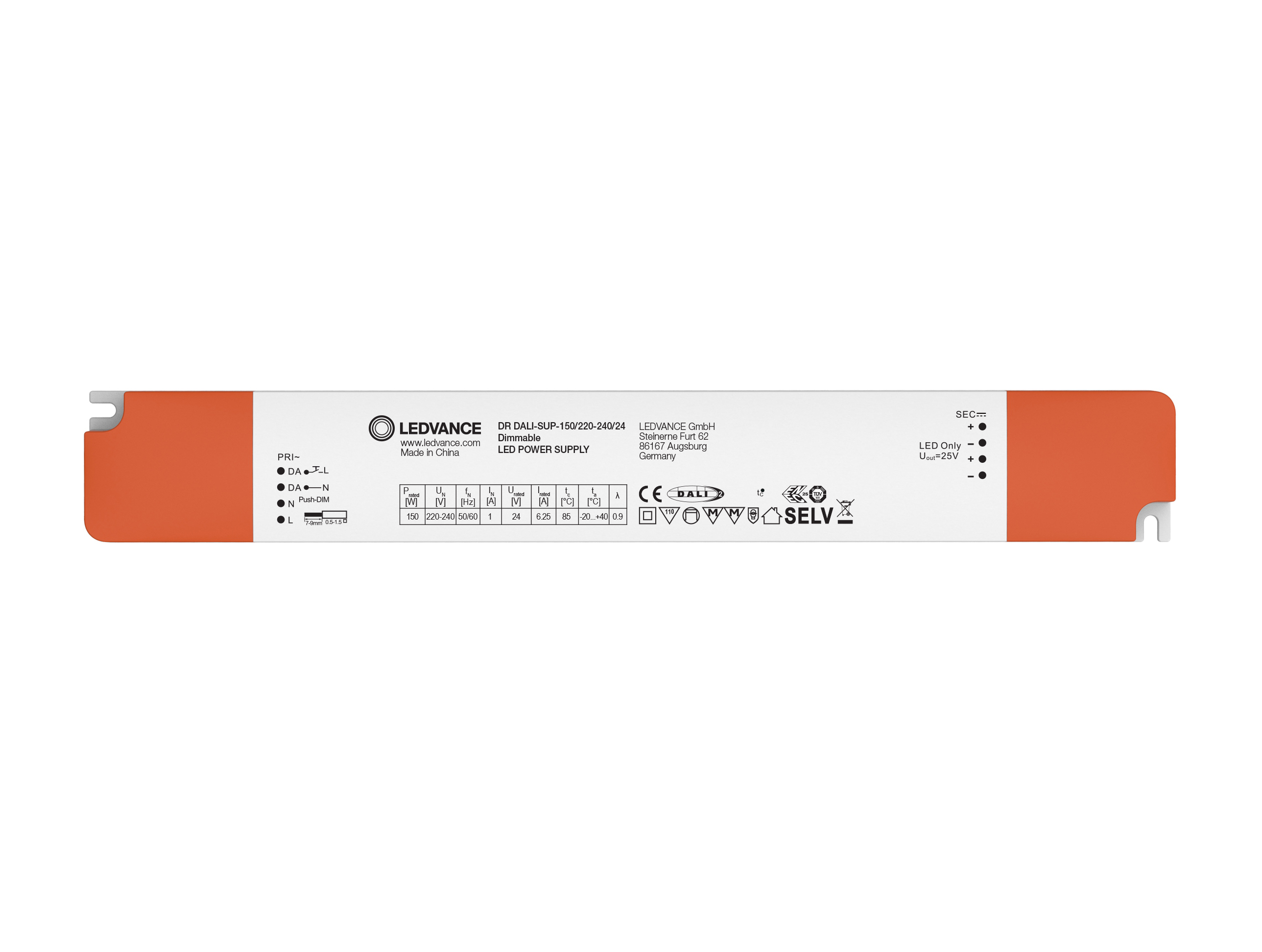

DR DALI-SUP -150/220-240/24

LED DRIVER DALI SUPERIOR

GTIN: 4058075421868 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Quick and comfortable installation thanks to tool-less cable clamp concept
5 years guarantee
Low flickering enables high light quality as well as good visual comfort
Push DIM application for easy control
Optimized matched to 24 V LED flexible strips

Areas of application

Cove lighting, even in tight spaces
Hotels, shops, hospitality, residential interiors
Museums, art galleries
Strip lighting in single and open-plan offices
Suitable for use in emergency lighting systems (DC capable)

Product features

1 channel DALI-2 certified LED driver
Cable clamp housing for independent mounting
Operated with Safety extra-low voltage (SELV): < 60 V
Type of protection: IP20

References / Links

For Guarantee see www.ledvance.com/guarantee

Electrical data

Nominal wattage	150.00 W
Nominal output power	150 W ¹⁾
Nominal voltage	220…240 V
Nominal output voltage	24 V ²⁾
Input voltage AC	198…264 V ³⁾
U-OUT (working voltage)	25 V
Type of current	DC
Nominal current	825 mA
Nominal output current	6250 mA ⁴⁾
Inrush current	90 A
Output ripple current (100 Hz)	+/- 3.5 %
Mains frequency	50…60 Hz
Total harmonic distortion	< 10 % ⁵⁾
Power factor λ	> 0.90 ⁶⁾
ECG efficiency	91 % ⁷⁾
Device power loss	19 W ⁸⁾
Max. ECG no. on circuit breaker 10 A (B)	2
Max. ECG no. on circuit breaker 16 A (B)	3
Max. ECG no. on circuit breaker 25 A (B)	5
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Power loss in stand-by mode	< 0.5 W

¹⁾ From 0 to 150 W
²⁾ Maximum 24 V
³⁾ Permitted voltage range
⁴⁾ ±5%
⁵⁾ At full load, 220…240 V, 50 Hz
⁶⁾ Full load at 230 V
⁷⁾ At full load and 230 V
⁸⁾ At maximum LED load of 169 W

Dimensions & Weight

Length	330.00 mm
Mounting hole spacing, length	318 mm
Width	47.00 mm
Height	32.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Prewired	No
Wire preparation length, input side	6…7 mm
Wire preparation length, output side	6…7 mm
Product weight	484.00 g

Colors & materials

Product color	White
Casing material	Plastic
Body material	Plastic

Temperatures & operating conditions

Ambient temperature range	-20…+45 °C
Maximum temperature at tc test point	85 °C
Max.housing temperature in case of fault	110 °C
Temperature range in operation	-25…+45 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

Lifespan

ECG lifetime

50000 h ¹⁾

¹⁾ At maximum T_c / 10% failure rate

Additional product data

Encapsulated

Capabilities

Dimmable	Yes
Dimming interface	DALI-2
Dimming range	1…100 %
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	I, II
Suitable for emergency lighting	No
Type of connection, output side	Push terminal

Certificates & Standards

Approval marks – approval	CE, CB, ENEC
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class	II
Type of protection	IP20

LOGISTICAL DATA

Temperature range at storage

-40…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
