LED DRIVER DALI SUPERIOR

DR DALI-SUP -80/220-240/24

GTIN: 4058075421844 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Quick and comfortable installation thanks to tool-less cable clamp concept
  • 5 years guarantee
  • Low flickering enables high light quality as well as good visual comfort
  • Push DIM application for easy control
  • Optimized matched to 24 V LED flexible strips
Areas of application
  • Cove lighting, even in tight spaces
  • Hotels, shops, hospitality, residential interiors
  • Museums, art galleries
  • Strip lighting in single and open-plan offices
  • Suitable for use in emergency lighting systems (DC capable)
Product features
  • 1 channel DALI-2 certified LED driver
  • Cable clamp housing for independent mounting
  • Operated with Safety extra-low voltage (SELV): < 60 V
  • Type of protection: IP20
References / Links
Electrical data
Nominal wattage 80.00 W
Nominal output power 80 W 1)
Nominal voltage 220…240 V
Nominal output voltage 24 V 2)
Input voltage AC 198…264 V 3)
U-OUT (working voltage) 25 V
Type of current DC
Nominal current 462 mA
Nominal output current 3330 mA 4)
Inrush current 50 A
Output ripple current (100 Hz) +/- 3.5 %
Mains frequency 50…60 Hz
Total harmonic distortion < 10 % 5)
Power factor λ > 0.90 6)
ECG efficiency 88 % 7)
Device power loss 12 W 8)
Max. ECG no. on circuit breaker 10 A (B) 4
Max. ECG no. on circuit breaker 16 A (B) 6
Max. ECG no. on circuit breaker 25 A (B) 9
Surge capability (L/N-Ground) 2 kV
Surge capability (L-N) 1 kV
Galvanic isolation SELV
Power loss in stand-by mode < 0.5 W
1) From 0 to 80 W
2) Maximum 24 V
3) Permitted voltage range
4) ±5%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 92 W
Dimensions & Weight
Length 330.00 mm
Mounting hole spacing, length 318 mm
Width 47.00 mm
Height 32.00 mm
Cable cross-section, input side 0.5…1.5 mm²
Cable cross-section, output side 0.5…1.5 mm²
Prewired No
Wire preparation length, input side 6…7 mm
Wire preparation length, output side 6…7 mm
Product weight 320.00 g
Colors & materials
Product color White
Casing material Plastic
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 85 °C
Max.housing temperature in case of fault 110 °C
Temperature range in operation -25…+45 °C
Permitted rel. humidity during operation 5…85 % 1)
1) Maximum 56 days/year at 85 %
Lifespan
ECG lifetime 50000 h 1)
1) At maximum Tc / 10% failure rate
Additional product data
Encapsulated No
Capabilities
Dimmable Yes
Dimming interface DALI-2
Dimming range 1…100 %
Overheating protection Yes
Overload protection Yes
Short-circuit protection Yes
Max. cable length to lamp/LED module 2,0 m
Suitable for fixtures with prot. class I, II
Suitable for emergency lighting No
Type of connection, output side Push terminal
Certificates & Standards
Approval marks – approval CE, CB, ENEC
Standards Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class II
Type of protection IP20
LOGISTICAL DATA
Temperature range at storage -40…+85 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075421844 Folding box
1
336 mm x 55 mm x 38 mm 359.00 g 0.70 dm³
4058075421851 Shipping box
10
387 mm x 324 mm x 116 mm 4139.00 g 14.55 dm³
User instruction / safety instructions
LED DR DALI SUP CV
Declarations of conformity
DECLARATION OF CONFORMITY LED DR DALI PFM_LED DR SUP
Declarations of conformity
DECLARATION OF CONFORMITY LED DR DALI PFM_LED DR SUP
Certificates
CERTIFICATE_LED DR DALI PFM_LED DR SUP

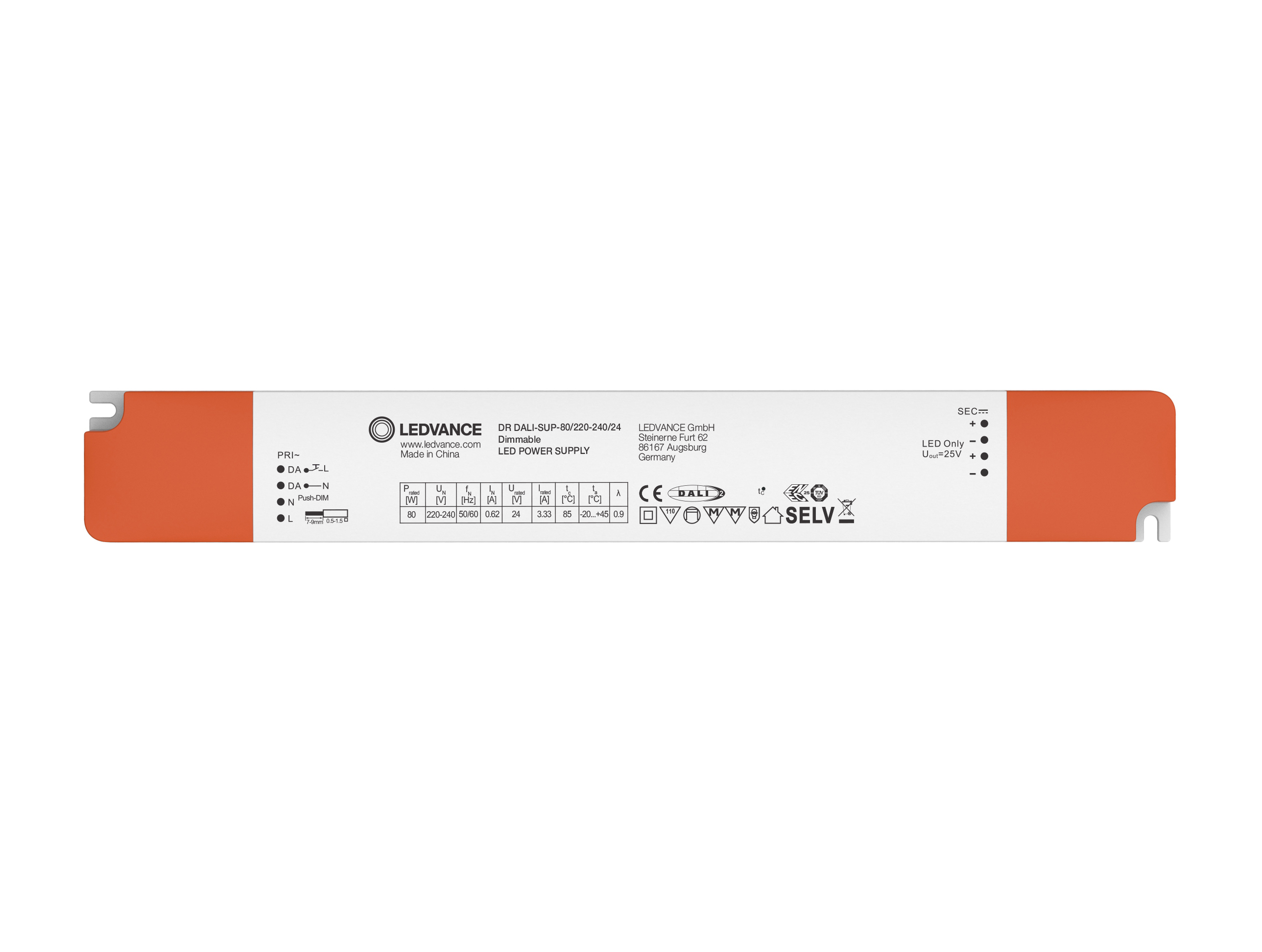

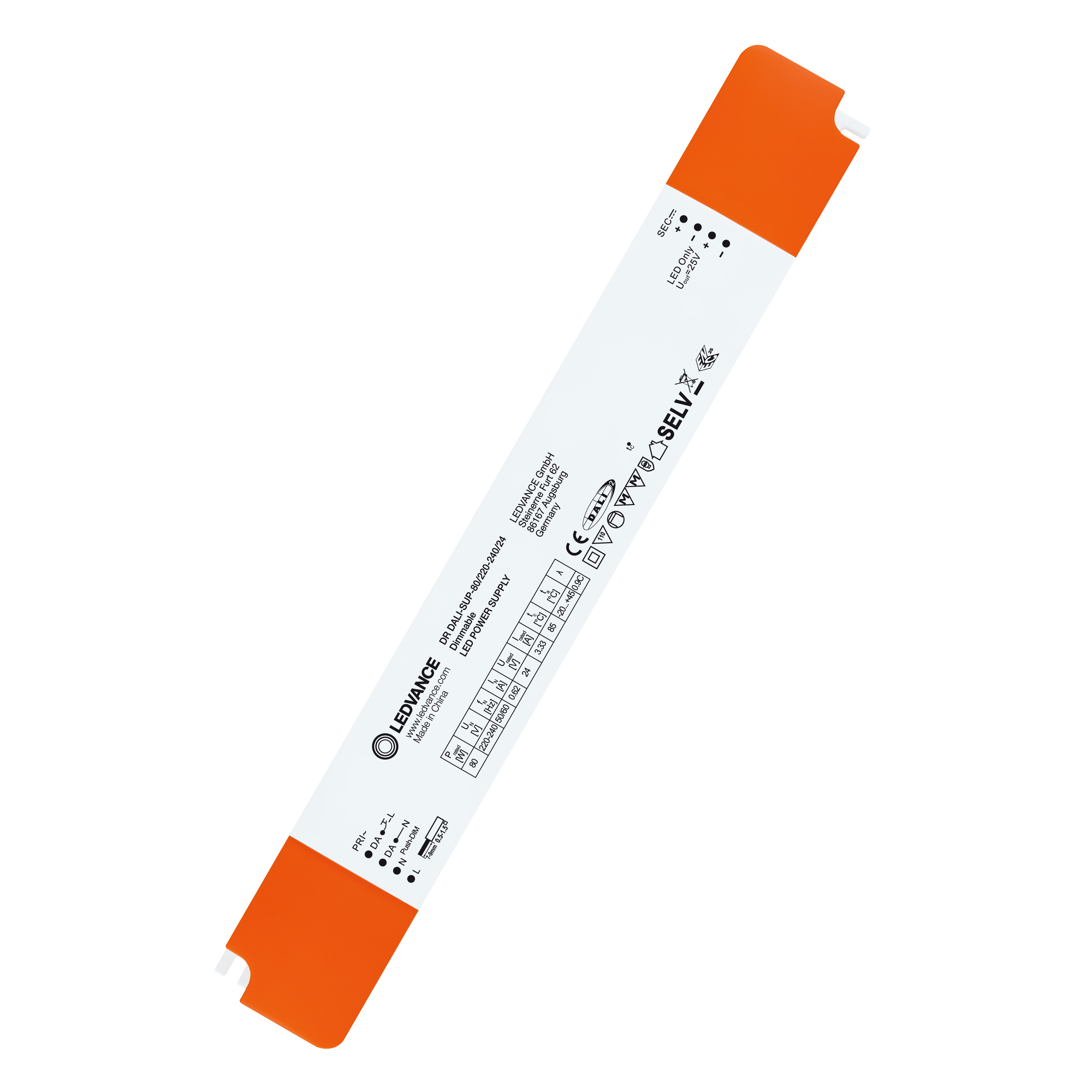

Product image: white background, diagonal
DR DALI SUP 80/220-240/24

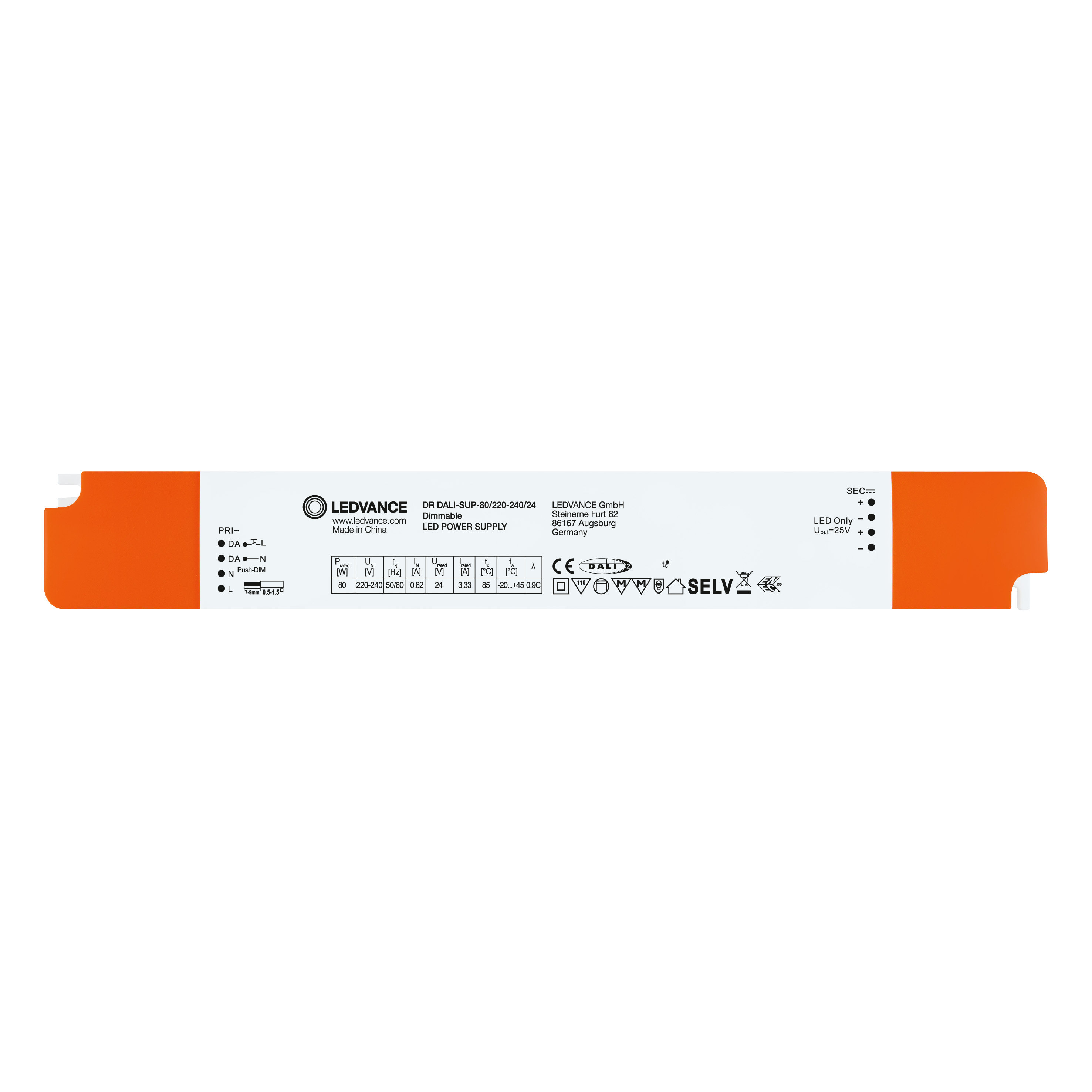

Product image: white background, horizontal
DR DALI SUP 80/220-240/24
Product image: white background, horizontal
DR DALI-SUP-80
Product line drawing with letters
DR DALI-SUP-80
Product line drawing with numbers
DR DALI-SUP-80
Product line drawing, front, no dimensions
DR DALI-SUP-80
EAN SEG number STK number EFO number ELDAS number
4058075421844 7982255 4031431 6600959 919100180
