LED STRIP P HIGH VOLTAGE 230V
LS P AC 1200 840 50M IP66
GTIN: 4058075844681
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Great scope of design options due to 50 m long and flexible LED strips
- Easy mounting on many smooth surfaces thanks to self-adhesive tape
- Maximum flexibility due to large range of accessories with integrated over-current protection (3.15A)
- Simple connection thanks to integrated cables with fast twist lock connectors
- Suitable for use in damp conditions thanks to high type of protection
Areas of application
- General indoor illumination
- General outdoor illumination
- Industry and construction site
- Offices, retail outlets and conference rooms
- Architecture lighting
- Decorative illumination
Product features
- Direct power supply with 220-240V AC mains
- Flexible and cuttable LED strip
- Smallest cuttable unit: 100 mm
- Lifetime (L70/B50): up to 50,000 h at Ta: 45°C
- Luminous flux: 1300 lm/m
- Prewired LED strip with 200 mm long fast twist lock connector for 220-240V AC mains supply connection
- Type of protection: IP66
Equipment / Accessories
- Connectors for several mounting options available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
Electrical data
| Nominal wattage | 550.00 W 1) |
| Construction wattage | 550.00 W |
| Nominal wattage per meter | 12 W 2) |
| Nominal voltage | 220…240 V |
| Type of current | AC/DC |
| Nominal current | 2400.000 mA 3) |
| Inrush current | 12 A |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.90 |
| Max. ECG no. on circuit breaker 10 A (B) | 3 |
| Max. ECG no. on circuit breaker 25 A (B) | 8 |
1) W (50m) AC: 550 DC: 510
2) W (1m) AC: 12 DC: 10
3) mA (50m) AC: 2400 DC: 2230
2) W (1m) AC: 12 DC: 10
3) mA (50m) AC: 2400 DC: 2230
Photometrical data
| Luminous efficacy | 111 lm/W 1) |
| Luminous flux | 60300 lm 2) |
| Luminous flux per meter | 1340 lm 3) |
| Color temperature | 4000 K |
| Color rendering index Ra | > 80 |
| Light color (designation) | Cool White |
| Standard deviation of color matching | 6 sdcm |
1) lm/W: AC: 111 DC: 143
2) lm (50m) AC: 60300 DC: 64350
3) lm (1m) AC: 1340 DC: 1430
2) lm (50m) AC: 60300 DC: 64350
3) lm (1m) AC: 1340 DC: 1430
Light technical data
| Beam angle | 120 ° |
LED MODULE INFORMATION
| Number of LEDs per meter | 120 |
Dimensions & Weight
| Length | 50000.00 mm |
| Length – smallest unit | 100 mm |
| Cable length | 266.000 |
| Width | 12.00 mm |
| Height | 4.50 mm |
| Product weight | 3470.00 g |
Colors & materials
| Product color | Transparent |
| Body material | Silicone |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Temperature range in operation | -20…+45 °C |
| Permitted rel. humidity during operation | 0…93 % |
Lifespan
| Nominal lamp life time | 50000 h |
Additional product data

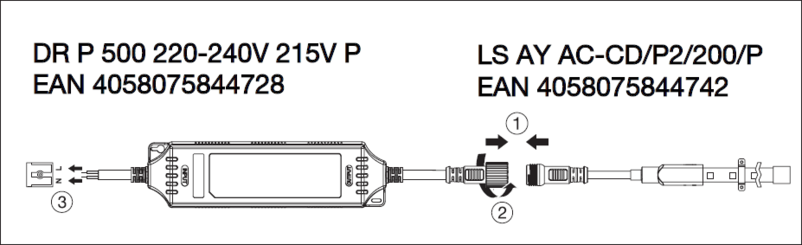

| Product remark | Suitable for DC input only in combination with LED DRIVER - DR P 500W 220-240V 215V P |
Capabilities
| Dimmable | No |
| Dimming interface | Not dimmable |
| Lowest bending radius | 30 mm |
| Self-adhesive | Yes |
Certificates & Standards
| Approval marks – approval | CE, UKCA, EAC, DEKRA |
| Protection class | II |
| Type of protection | IP66 |
| Energy class of contained light source | E |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075844681 | Folding box 1 |
271 mm x 271 mm x 175 mm | 4195.00 g | 12.85 dm³ |
| 4058075844698 | Shipping box 2 |
292 mm x 292 mm x 359 mm | 8977.00 g | 30.61 dm³ |
User instruction / safety instructions
UI_LED STRIP_HV
UI_LED STRIP_HV
Legal information
LSI LED Strip
LSI LED Strip
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11215928
Safety Insert G11215928
Declarations of conformity
LS LUM
LS LUM

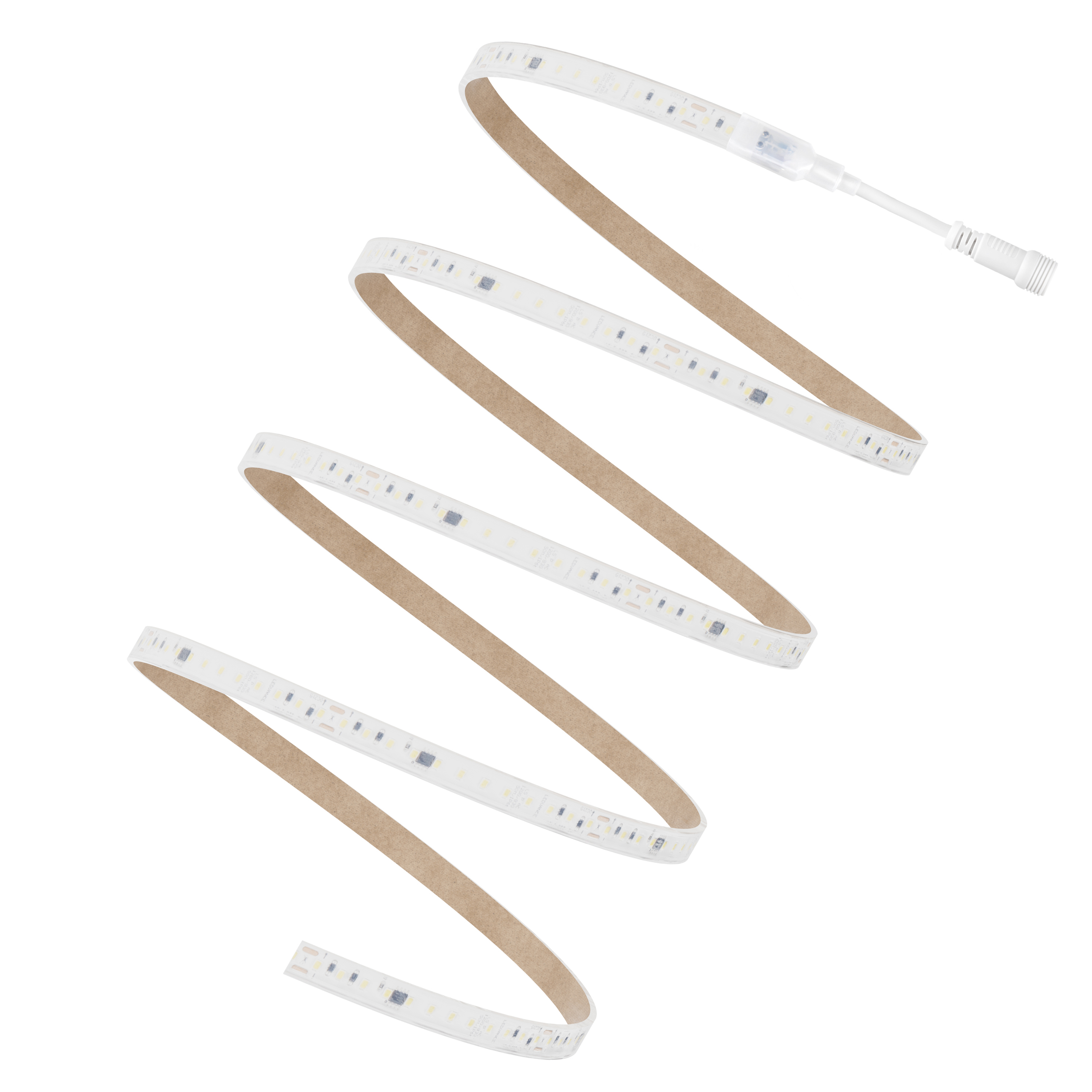

Product image: white background, diagonal
LS P AC 1200
LS P AC 1200

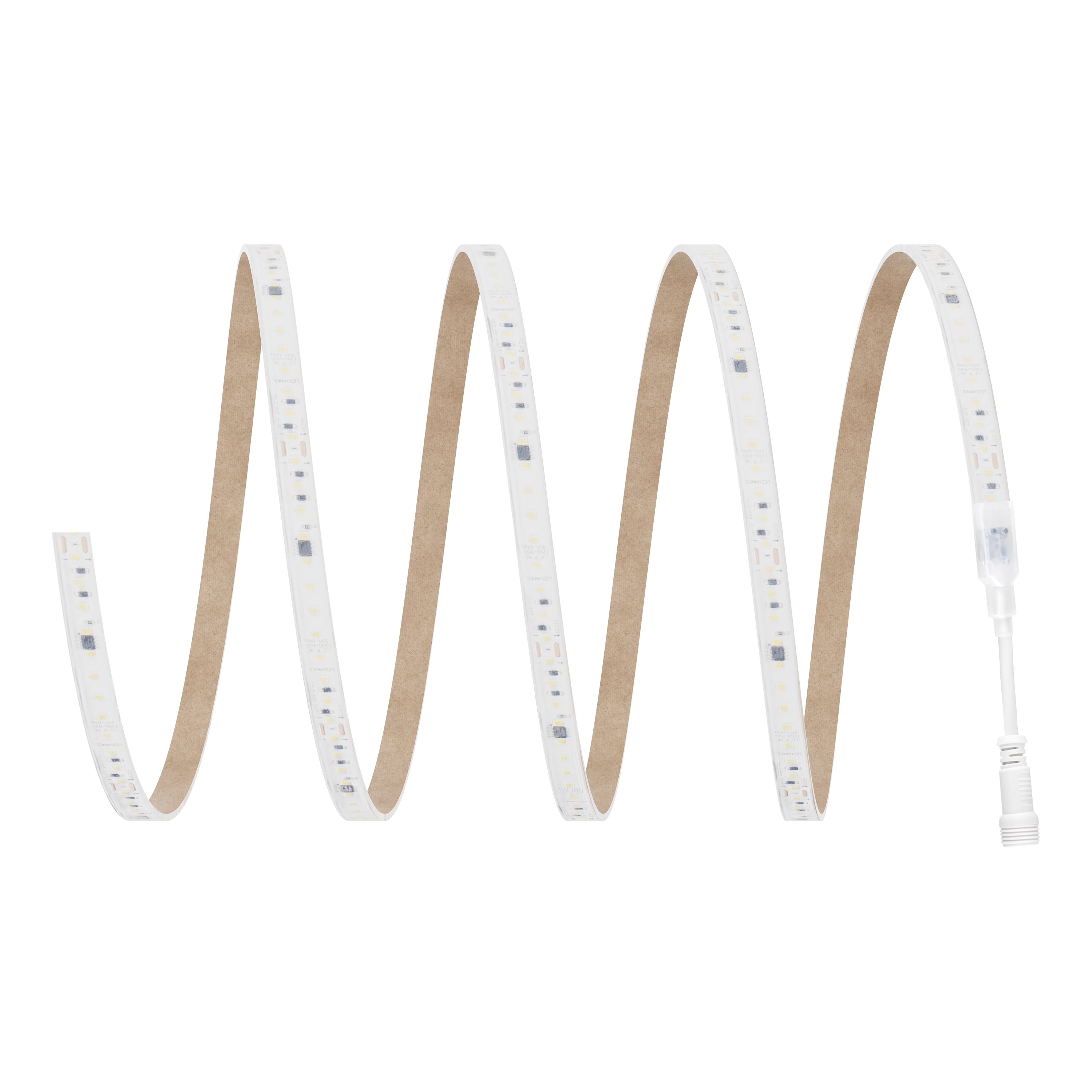

Product image: white background, upright
LS P AC 1200
LS P AC 1200
Product line drawing with letters
LS P AC 1200
LS P AC 1200
Product line drawing with numbers
LS P AC 1200
LS P AC 1200
Product line drawing - technical
LS P AC 1200
LS P AC 1200

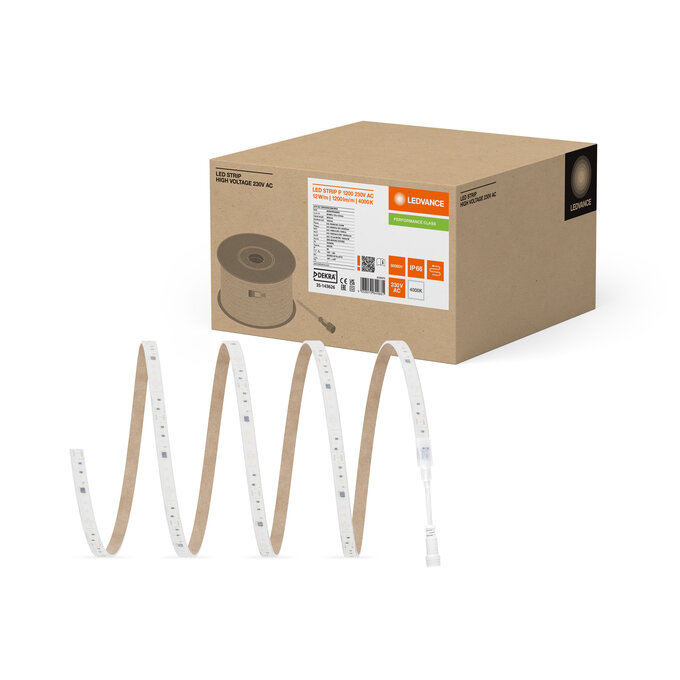

Combo Shot = Product Beauty Shot + Packaging Image
