LS PFM -1000/RGBW/840/5

LED STRIP PERFORMANCE-1000 RGBW

GTIN: 4058075436282 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

PRODUCT DETAILS

Product benefits

Great scope of design options due to long and flexible RGBW LED strips
Easy installation, no tools required for connection
Easy mounting thanks to self-adhesive tape
Maximum flexibility due to large range of accessories
Simple connection thanks to integrated cables on both sides
Good white light quality thanks to dedicated white LEDs

Areas of application

General illumination
Architecture lighting
Dynamic light as an architectural effect in public zones
Intensive color effects for special moods
Cove lighting
Hotels and Offices
Residential interiors

Product features

Flexible and cuttable LED strip with white Chip and Multichip RGB LEDs
Smallest cuttable unit: 100 mm
Lifetime (L70/B50): up to 40,000 h at T_c max. ≤ 85°C
Dimmable by pulse width modulation (PWM)

Safety advice

All electrical connections must be made by a qualified person.

Electrical data

Nominal wattage	98.00 W ¹⁾
Construction wattage	98.00 W
Nominal wattage per meter	20.0 W ²⁾
Nominal voltage	24 V ³⁾
Input voltage range	23…25 V ³⁾
Type of current	DC
Nominal current	4080 mA

¹⁾ 48W for white, 14.4 W for Red, 16.1W for Green, 16.1W for Blue
²⁾ 3.3W per meter for Red, 3.3W per meter for Green, 3.3W per meter for Blue, 9.6W per meter for White
³⁾ V_DC

Photometrical data

Luminous efficacy	109 lm/W
Luminous flux	6655 lm ¹⁾
Luminous flux per meter	1235 lm
Luminous flux per module chain	6655 lm
Luminous flux per meter - Red	100 lm/m
Luminous flux per meter - Green	260 lm/m
Luminous flux per meter - Blue	65 lm/m
Luminous flux per meter - RGB	395 lm/m
Color temperature	4000 K
Color rendering index Ra	> 80
Light color LED	RGB, white
Light color (designation)	RGBW, Daylight
Standard deviation of color matching	‹4 sdcm

¹⁾ 4790lm for 2700K, 4820lm for 3000K, 5130lm for 4000K, 5160lm for 6500K, 425lm for Red, 1255lm for Green, 315lm for Blue

Light technical data

Beam angle	120 °
Rated beam angle (half peak value)	120.00 °

LED MODULE INFORMATION

Number of LEDs per meter	120
Number of LEDs per module	600
Number of LEDs per smallest unit	12

Dimensions & Weight

Length	5000.00 mm
Length – smallest unit	100 mm
Cable length	500.000
Width	12.00 mm
Height	1.90 mm
Prewired	Yes
Conductor cross section	0.5 mm²
LED pitch	16.67 mm
Short pitch	No
Product weight	188.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+55 °C ¹⁾
Maximum temperature at tc test point	85 °C ²⁾

¹⁾ Providing that temperature at Tc point is below max value during operation
²⁾ Exceeding the maximum specified ratings can reduce expected life time or destroy the LED strip

Lifespan

Nominal lamp life time

40000 h

Capabilities

Dimmable	Yes ¹⁾
Lowest bending radius	30 mm
Self-adhesive	Yes

¹⁾ Dimmable with suitable drivers, see also www.ledvance.com/dim

Certificates & Standards

Approval marks – approval	TUV, RoHS, CE, REACH
Protection class	III
Type of protection	IP00
Energy class of contained light source	F
Salt mist resistance acc. IEC 60068-2-52	No
UV resistance acc. IEC 60068-2-5	No

LOGISTICAL DATA

Temperature range at storage

-35…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075436282	Folding box 1	242 mm x 242 mm x 26 mm	379.00 g	1.52 dm³
4058075436299	Shipping box 10	260 mm x 20 mm x 265 mm	4181.00 g	1.38 dm³
4058075436305	Shipping box 40	540 mm x 280 mm x 555 mm	17731.00 g	83.92 dm³

Product image	Product name	EAN
	DR-PFM -100/220-240/24/P	4058075239937
	DR-PFM -250/220-240/24/P	4058075240032
	DR-PFM -150/220-240/24/P	4058075239975
	DR DIM-PFM -100/220-240/24/P	4058075240070
	DR DIM-PFM -250/220-240/24/P	4058075240155
	DR DIM-PFM -150/220-240/24/P	4058075240117

Product image	Product name	EAN
	LS AY -PW02/UW/39X26/14/2	4058075401471
	LS AY PFM -CSW/P5/50	4058075451148
	LS AY -PM05/U/17,5X14,5/10/2	4058075401778
	LS AY -PW02/UW/39X26/14/1	4058075278134
	LS AY -PM05/U/17,5X14,5/10/1	4058075279278
	LS AY -PW01/U/26X8/14/1	4058075278103
	LS AY -PM06/E/18X18/12/2	4058075401808
	LS AY PFM -CP/P5/500	4058075451087
	LS AY -PM04/UW/23X15,5/10/2	4058075401747
	LS AY -PF04/U/17X7/12/1	4058075278288
	LS AY -PM01/UW/21,5X12/10/2	4058075401655
	LS AY -PF03/UW/25X7/12/2	4058075401594
	LS AY PFM -CSD/P5	4058075451117
	LS AY -PW03/U/26X26/14/2	4058075401501
	LS AY -PW03/U/26X26/14/1	4058075278165
	LS AY -PF03/UW/25X7/12/1	4058075278257
	LS AY -PM06/E/18X18/12/1	4058075279308
	LS AY -PM04/UW/23X15,5/10/1	4058075278400
	LS AY -PM01/UW/21,5X12/10/1	4058075278318
	LS AY -PW01/U/26X8/14/2	4058075401440
	LS AY -PF04/U/17X7/12/2	4058075401624
	LS AY PFM -13/SMB	4058075451292

User instruction / safety instructions
LED STRIP PERFORMANCE RGBW

PDF (3.21 MB)

Legal information
LED STRIP RGBW IP00

PDF (1.23 MB)

Declarations of conformity
LS SUP TW and LS PFM RGBW

PDF (208.13 KB)

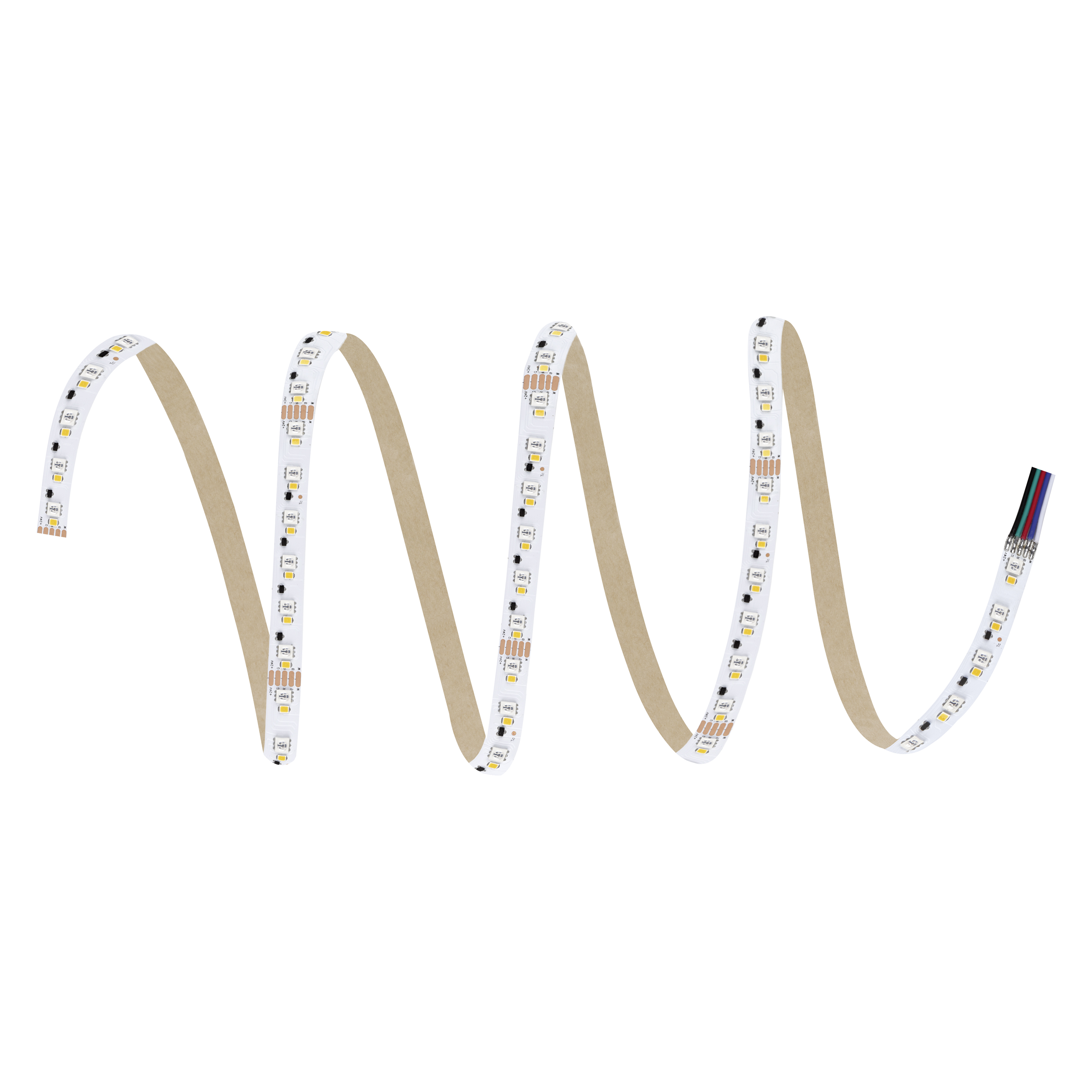

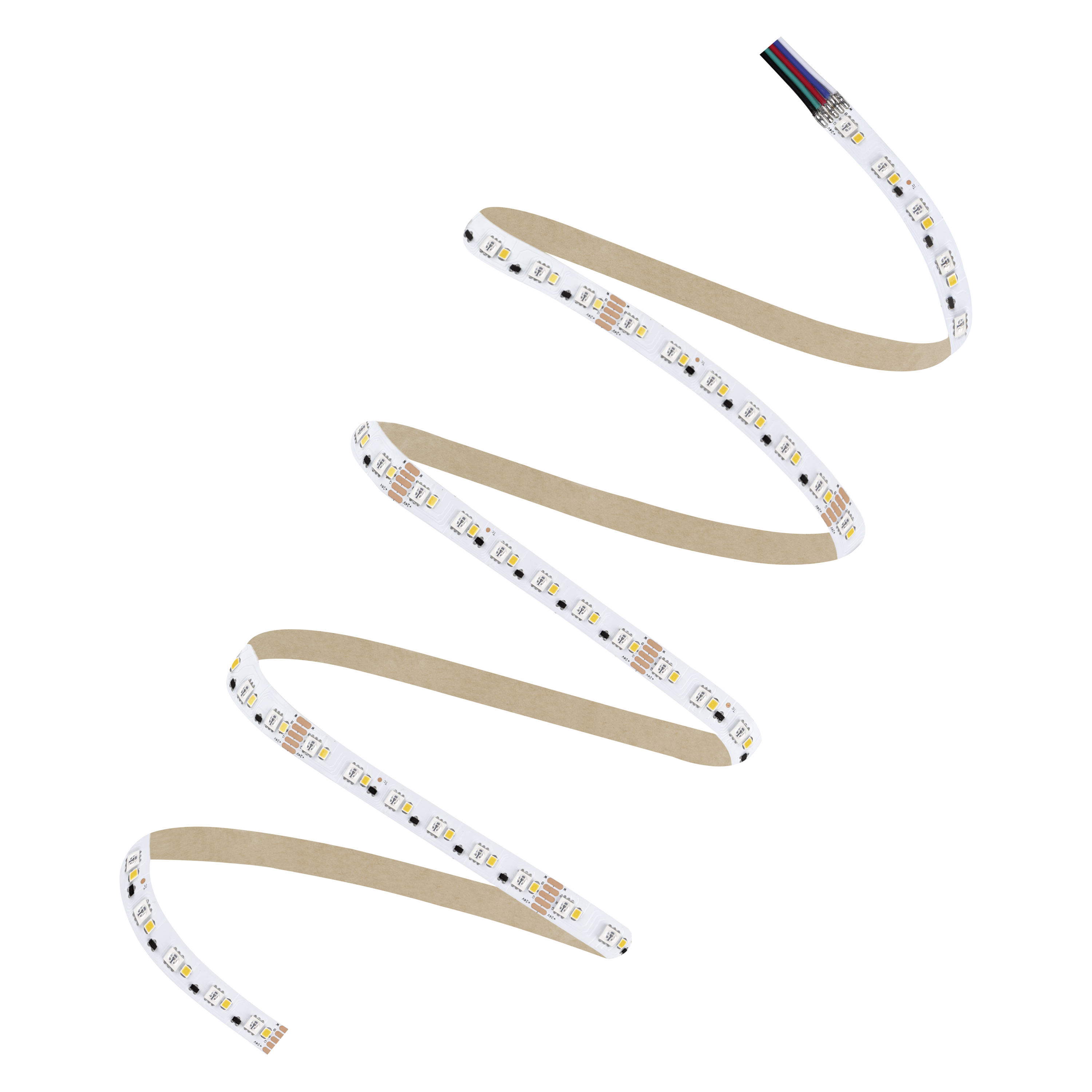

Product image: white background, diagonal
LS PFM 1000 RGBW Unprotected

JPG (1.28 MB)

Product image: white background, horizontal
LS PFM 1000 RGBW Unprotected

JPG (1.17 MB)

Product line drawing with letters
LS PFM 1000 RGBW Unprotected

SVG (65.07 KB)

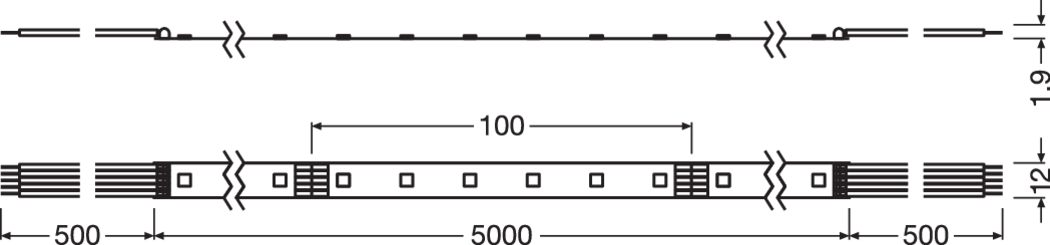

Product line drawing with numbers
LS PFM RGBW IP00

EPS (2.34 MB)

Product line drawing, front, no dimensions
LS PFM 1000 RGBW Unprotected

SVG (55.5 KB)

Tender documents
LED STRIP PERFORMANCE 1000 RGBW 1000 RGBW 840 5-EN

TXT (2.51 KB)

Application pictures

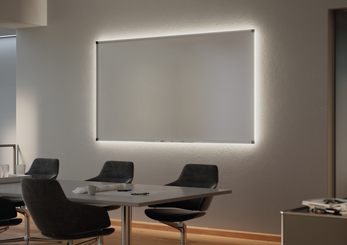

LED Strip Category PERFORMANCE RGBW Close Up Cove Lighting Whiteboard (white)

TIF (10.09 MB)

Application pictures

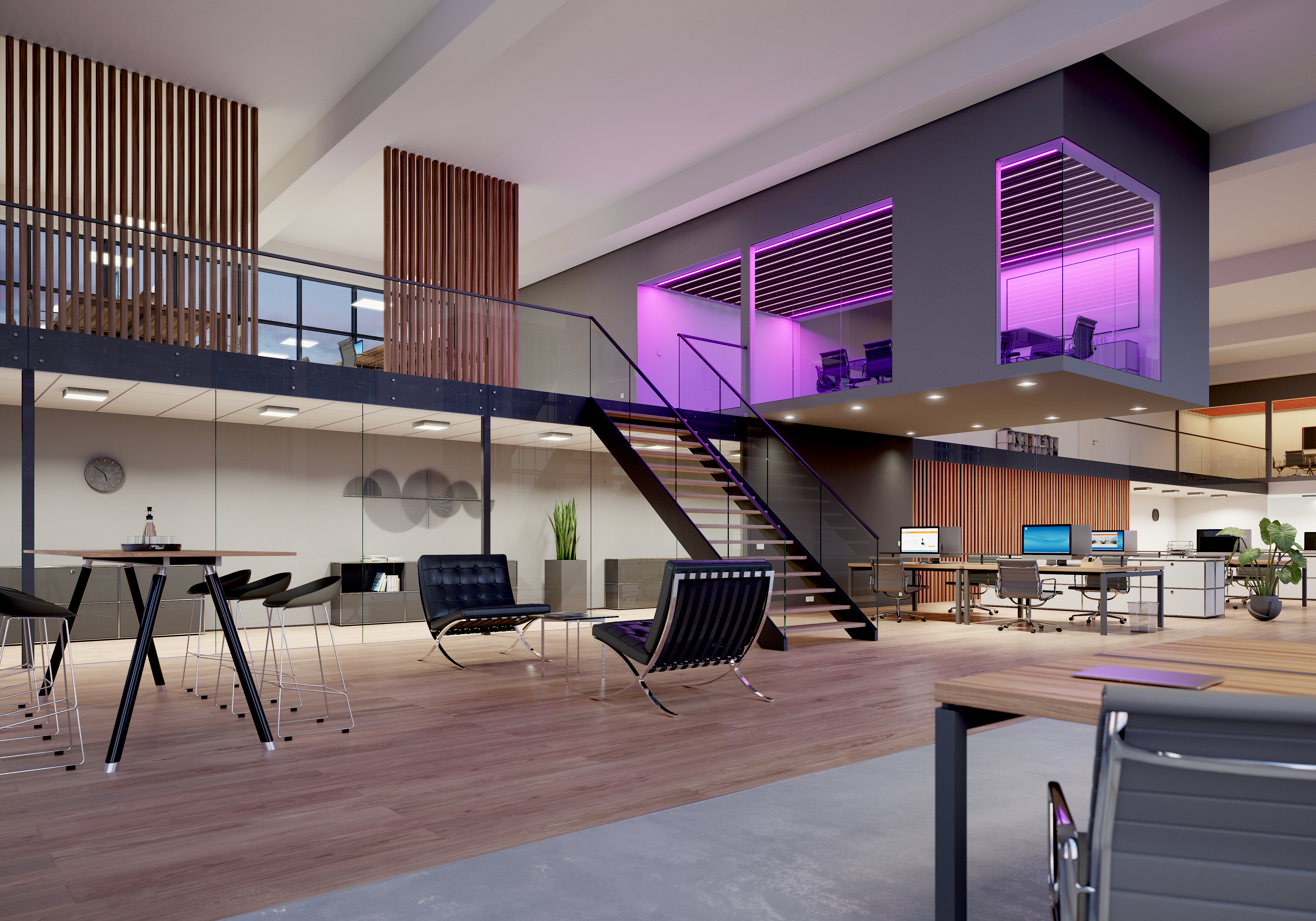

Office Cross Selling

JPG (14.1 MB)

Application pictures

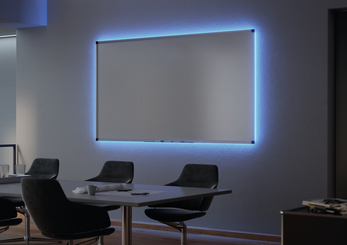

LED Strip Category PERFORMANCE RGBW Close Up Cove Lighting Whiteboard (blue)

TIF (11.78 MB)

Application pictures

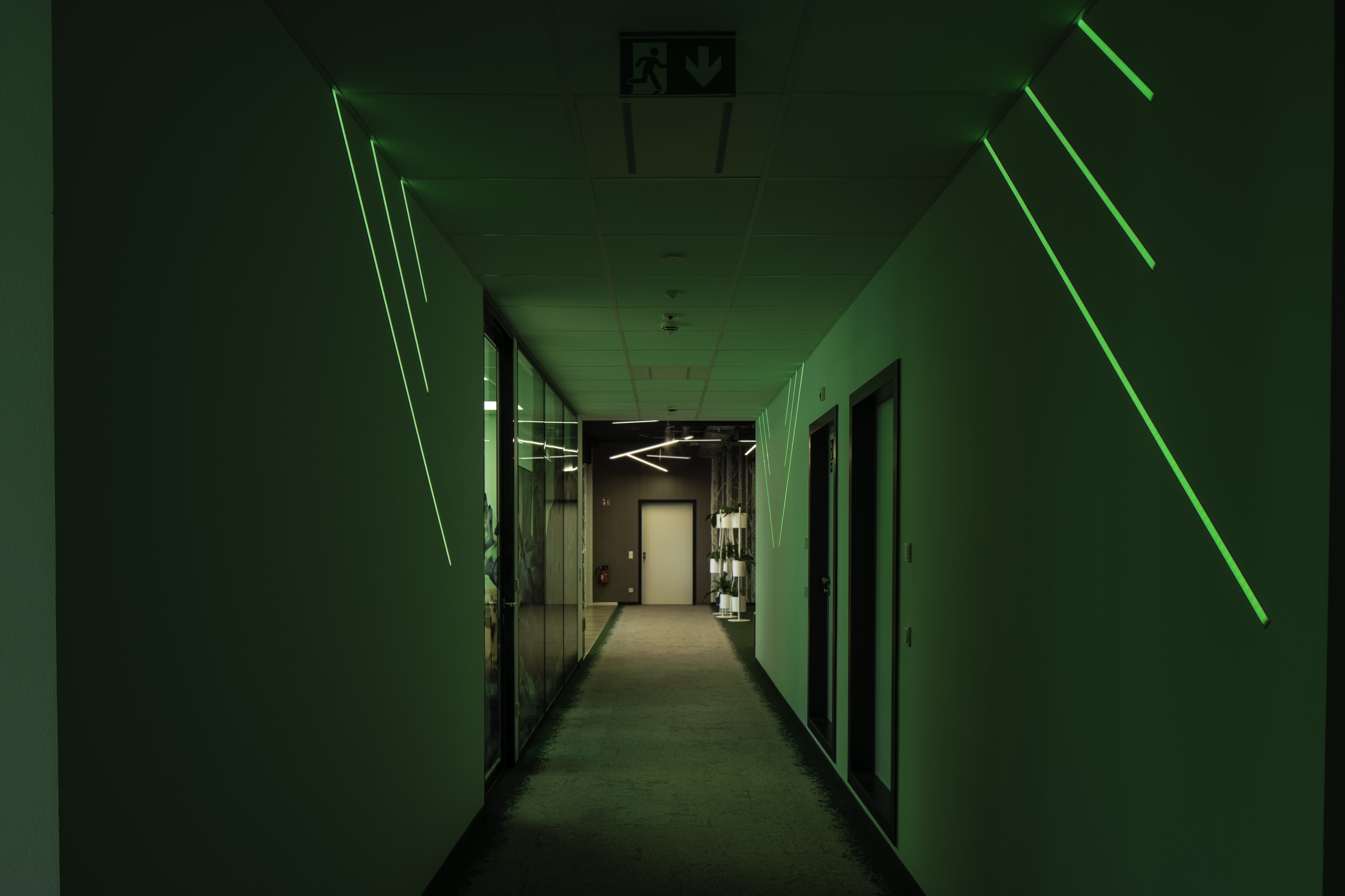

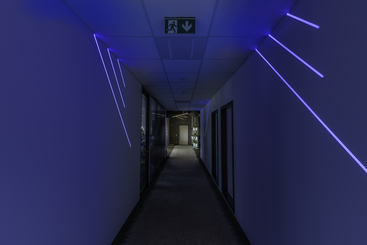

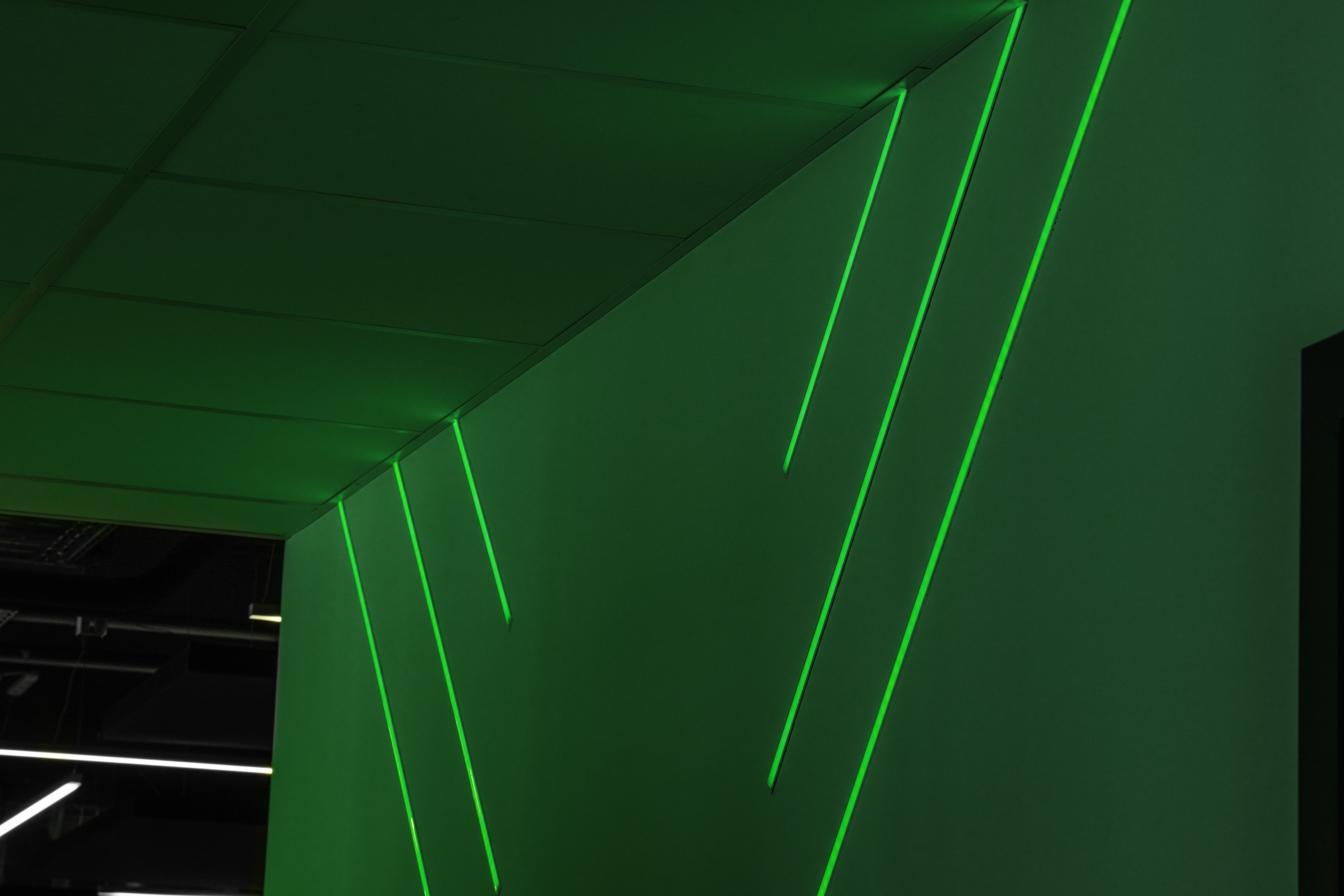

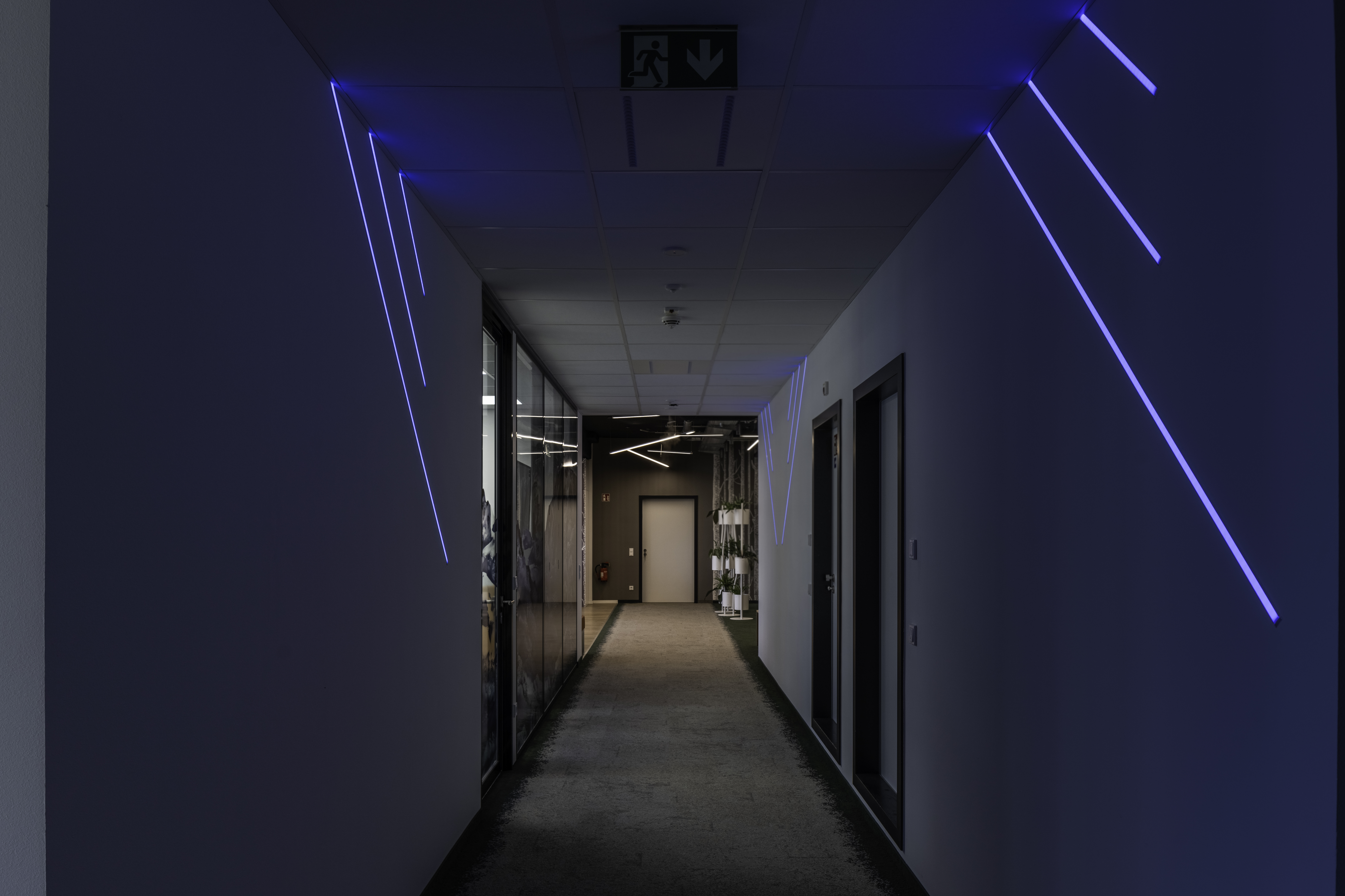

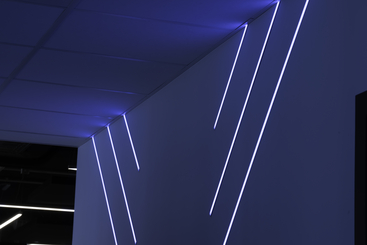

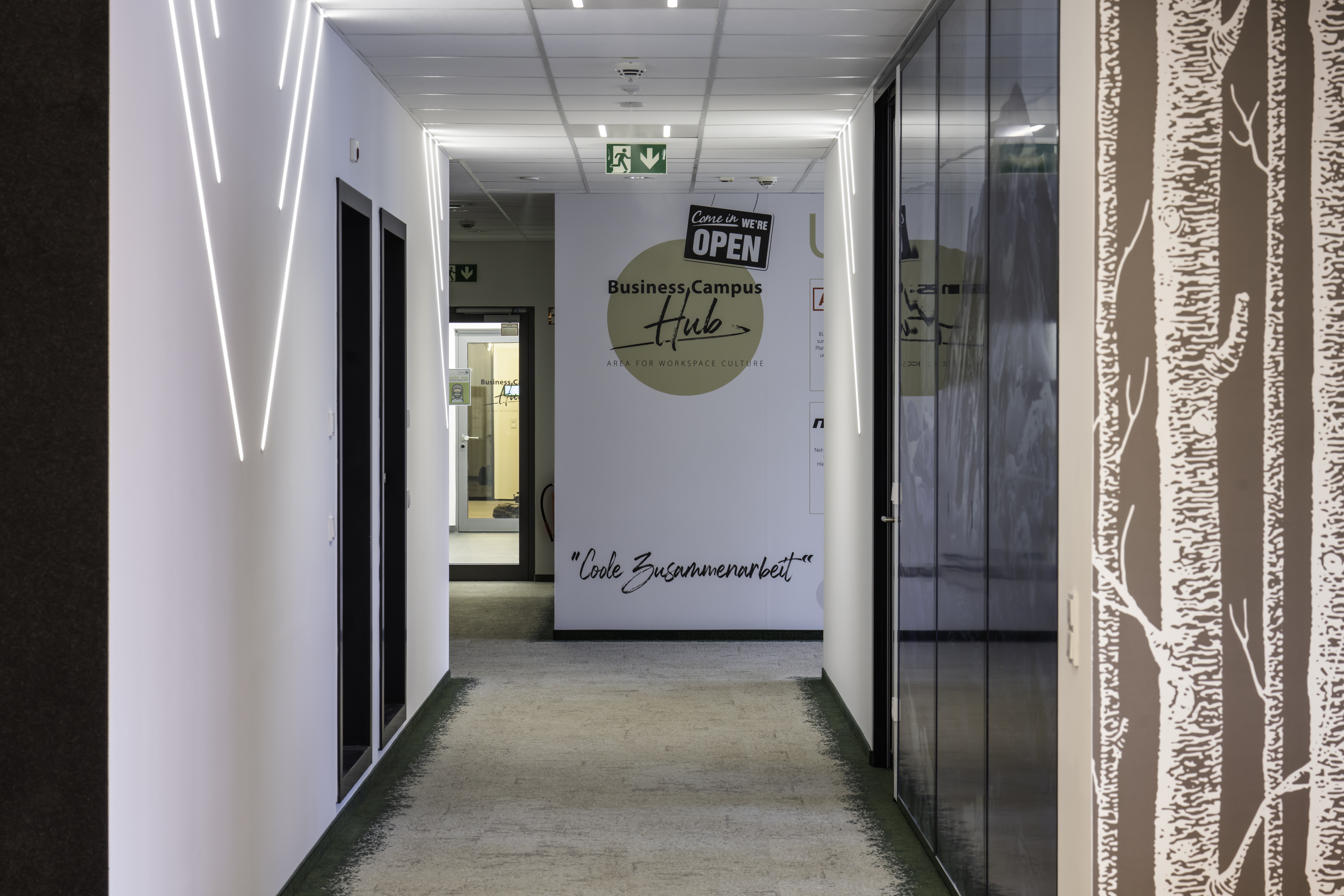

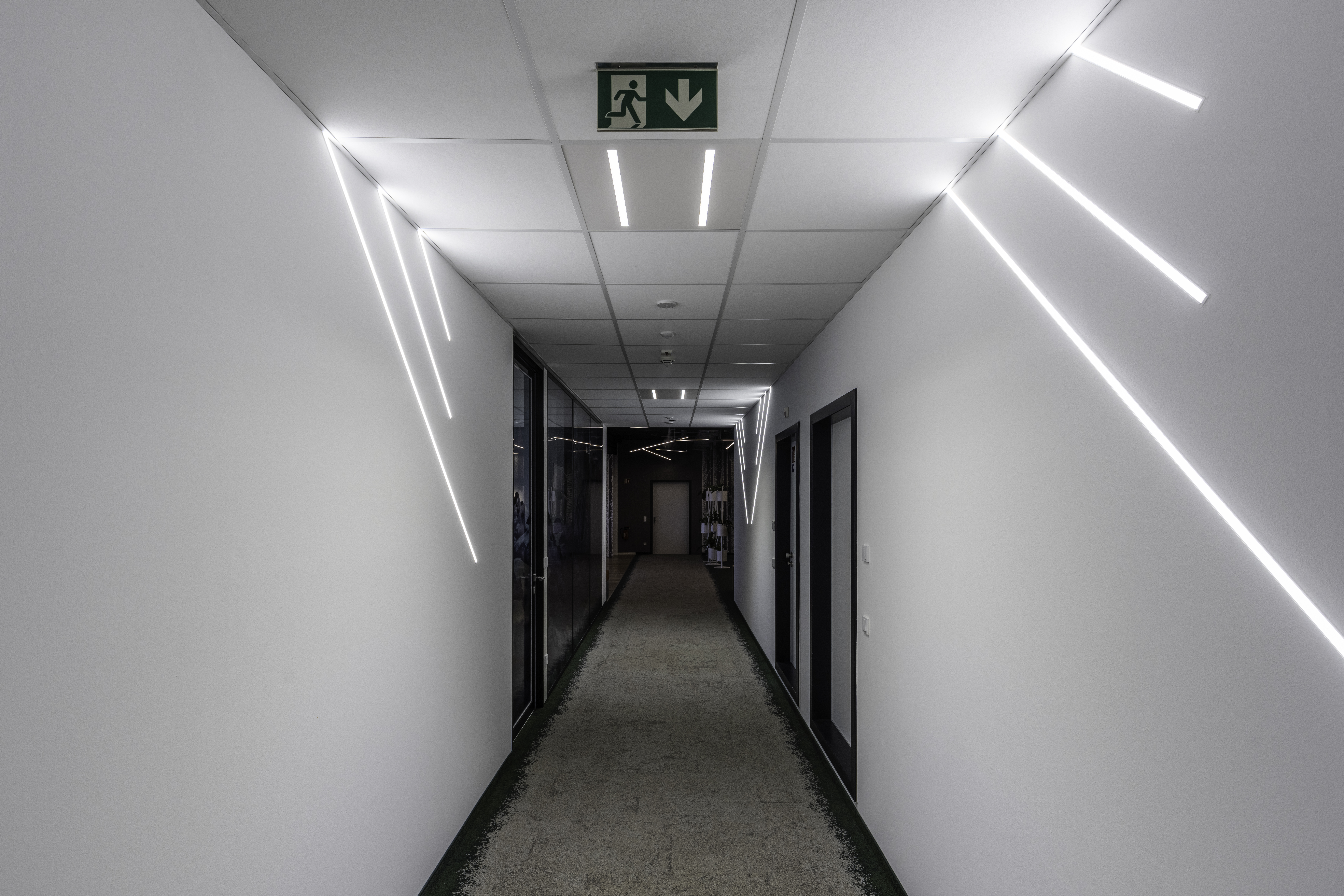

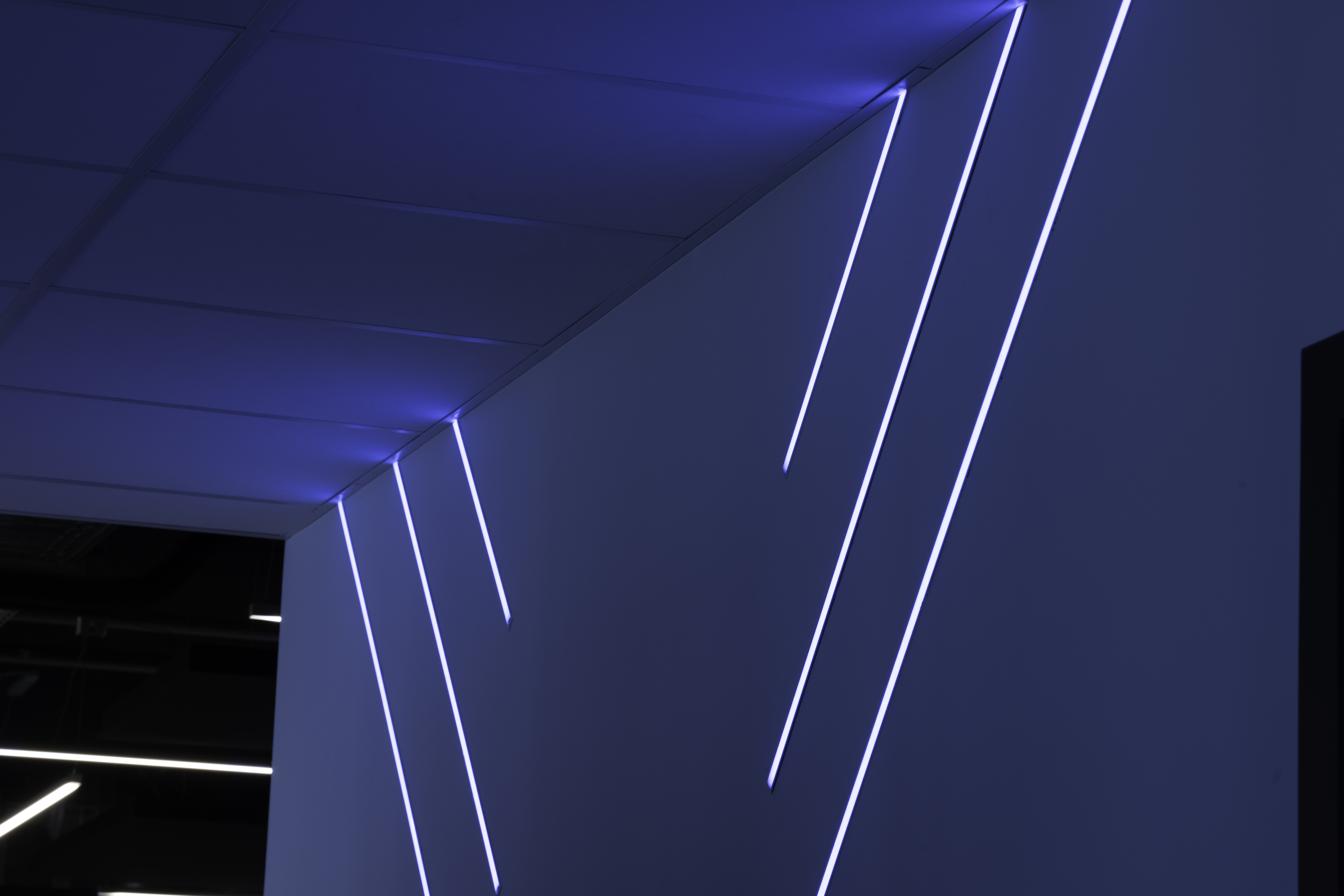

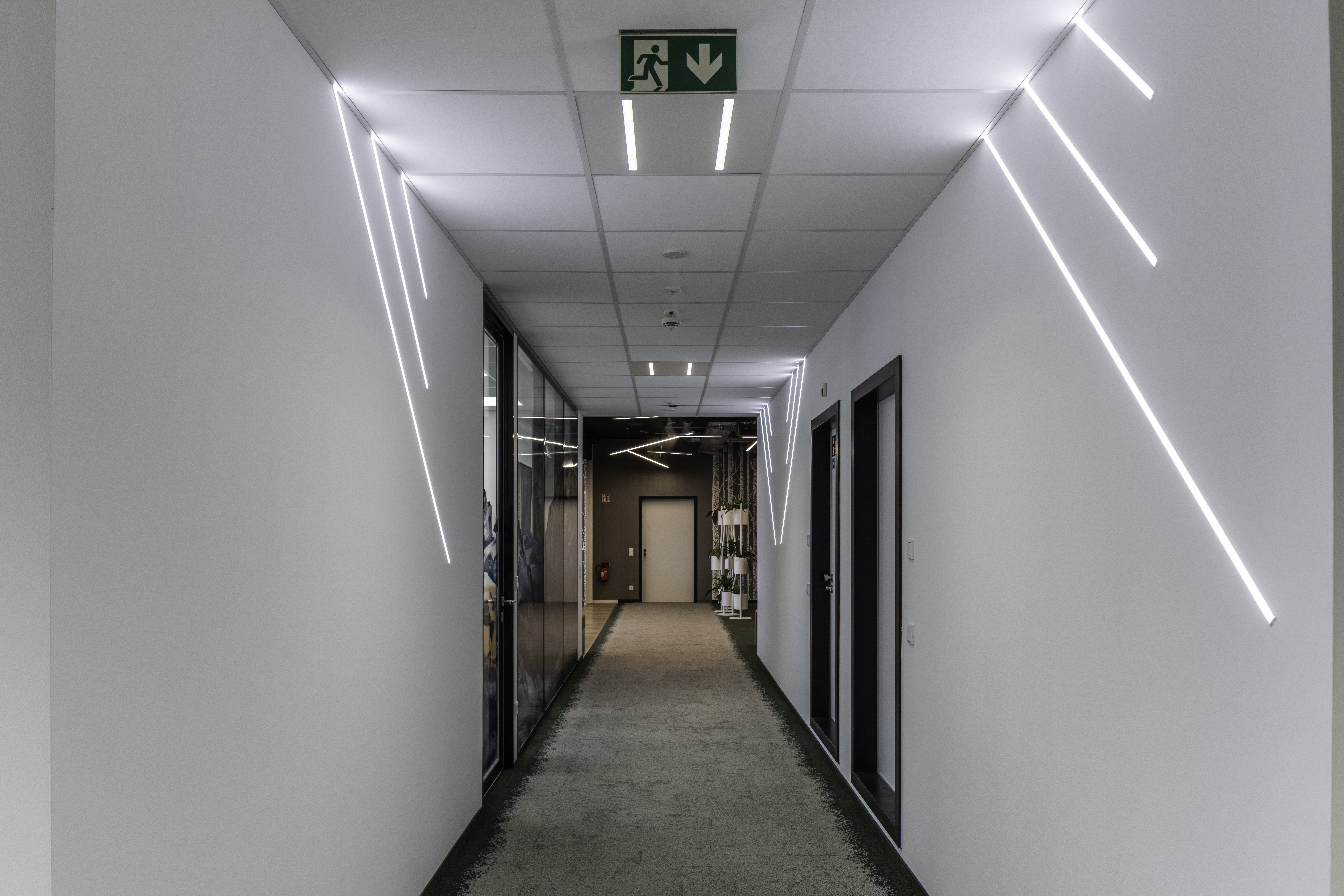

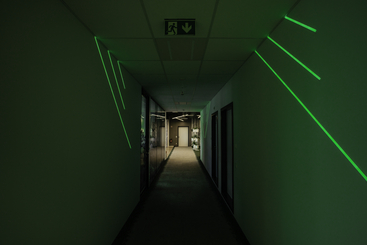

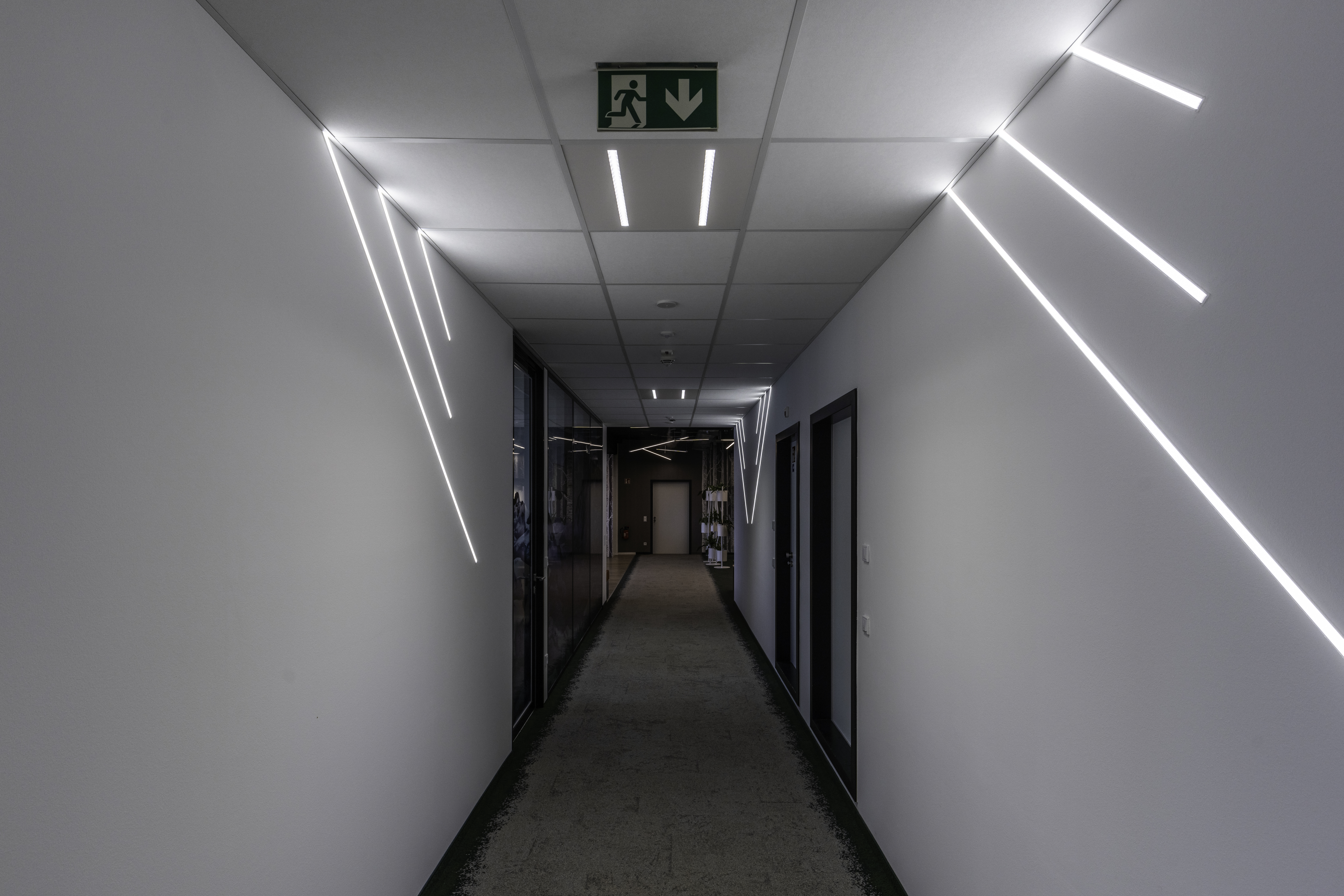

Case Study - Future Office Hub Garching 2022
