LS AY SUP -CSW/P2/500

GTIN: 4058075304505 BAG / 2 Show all packages

Contact sales

Nominal voltage	25 V
Nominal current	5000 mA

Length	519.6 mm
Cable length	500 mm
Width	9.8 mm
Height	5.7 mm
Cable cross-section, input side	0.34 mm²
Product weight	7.00 g

Product color

White

Ambient temperature range	-35…+75 °C
Temperature range in operation	-35…+75 °C

Type of protection

IP00

Temperature range at storage

-5…+55 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075304505	BAG 2	80 mm x 120 mm x 5 mm	15.00 g	0.05 dm³
4058075304512	Shipping box 100	213 mm x 213 mm x 215 mm	1132.00 g	9.75 dm³
4058075304529	Shipping box 400	439 mm x 439 mm x 233 mm	5126.00 g	44.90 dm³

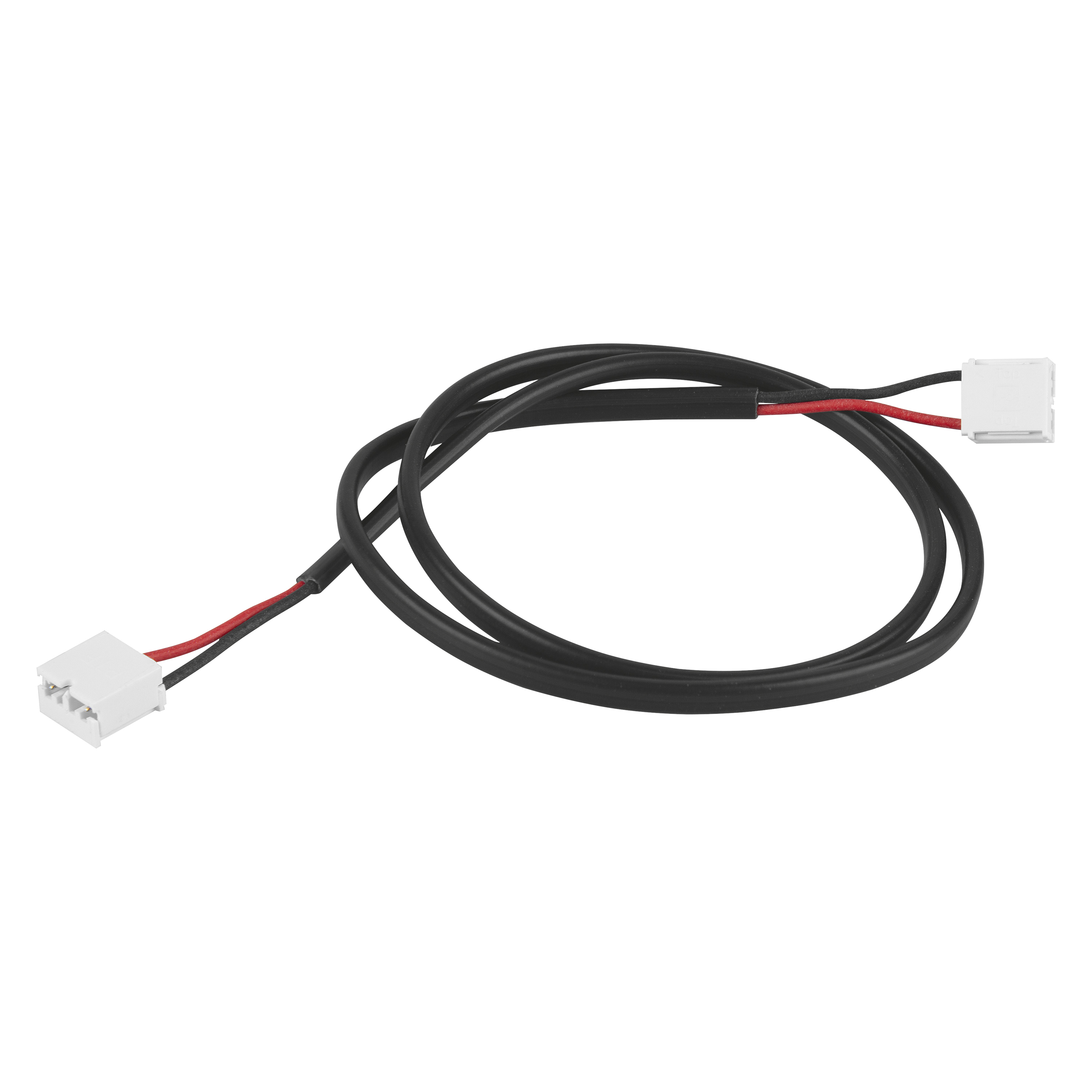

Product image: white background, diagonal
LS AY SUP-CSW/P2/500

Product line drawing with letters
LS AY SUP-CSW/P2/500

Product line drawing, front, no dimensions
LS AY SUP-CSW/P2/500

EAN	SEG number	STK number	EFO number	ELDAS number
4058075304505	7507147	4266644	3254348	941902040
