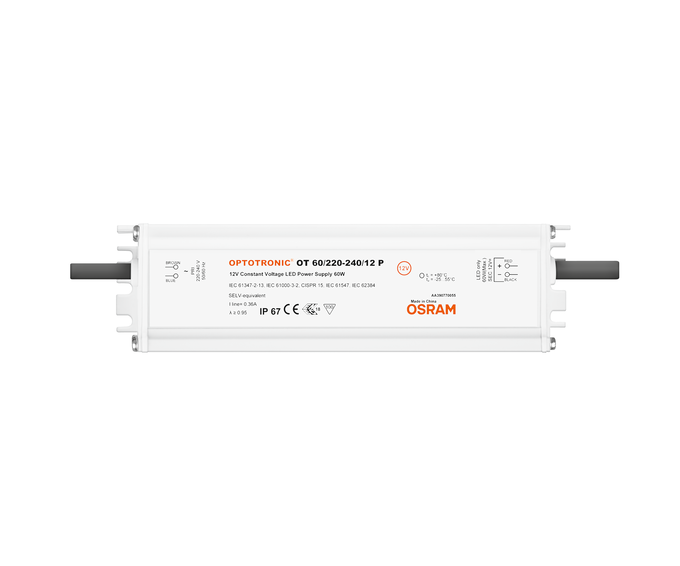

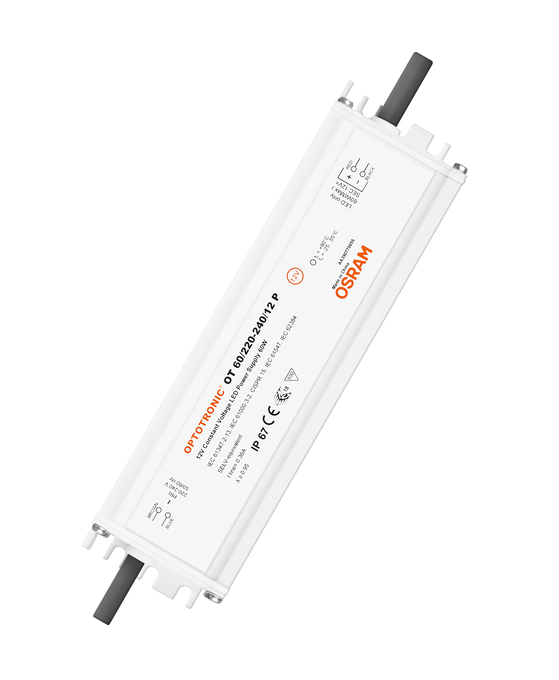

OT 60/220…240/12 P

GTIN: 4008321790811 Folding box / 1 Show all packages

Contact sales

Nominal wattage	70.00 W
Nominal output power	60 W ¹⁾
Nominal voltage	220…240 V
Nominal output voltage	12.5 V ²⁾
Input voltage AC	198…264 V ³⁾
U-OUT (working voltage)	12.5 V
Nominal current	0.33 A
Inrush current	35 A
Mains frequency	50/60 Hz
Total harmonic distortion	< 20 %
Power factor λ	0.98 ⁴⁾
ECG efficiency	86 % ⁵⁾
Device power loss	9 W
Max. ECG no. on circuit breaker 10 A (B)	11
Max. ECG no. on circuit breaker 16 A (B)	17
Max. ECG no. on circuit breaker 25 A (B)	-
Surge capability (L-N)	3 kV
Galvanic isolation	SELV

¹⁾ Partial load 0…60 W
²⁾ ±0.5 V
³⁾ V_AC / Permitted voltage range
⁴⁾ Full load at 230 V/Half load at 230 V
⁵⁾ At full load and 230 V

Length	180.00 mm
Mounting hole spacing, length	171,0 mm
Width	50.00 mm
Height	34.00 mm
Cable cross-section, input side	1 mm² ¹⁾
Cable cross-section, output side	1 mm² ¹⁾
Wire preparation length, input side	10 mm
Wire preparation length, output side	10 mm
Product weight	700.00 g

¹⁾ Flexible

Casing material	Metal
Body material	Metal

Ambient temperature range	-25…+55 °C
Maximum temperature at tc test point	80 °C
Max.housing temperature in case of fault	100 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Non-condensing

ECG lifetime

50000 h ¹⁾

¹⁾ At T_case = 70°C at T_c point / 10% failure rate

Encapsulated

Dimmable	No
Dimming interface	Not dimmable
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Max. cable length to lamp/LED module	10 m
Suitable for fixtures with prot. class	II

Approval marks – approval	CE, ENEC 18, CB, CCC, RCM, EAC, BIS
Standards	Acc. to IEC 61347-1, Acc. to IEC 61347-2-13, Acc. to IEC 62384, Acc. to CISPR 15, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 61547
Protection class	II
Type of protection	IP67

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
